Anti-Lock Brake System Schematics

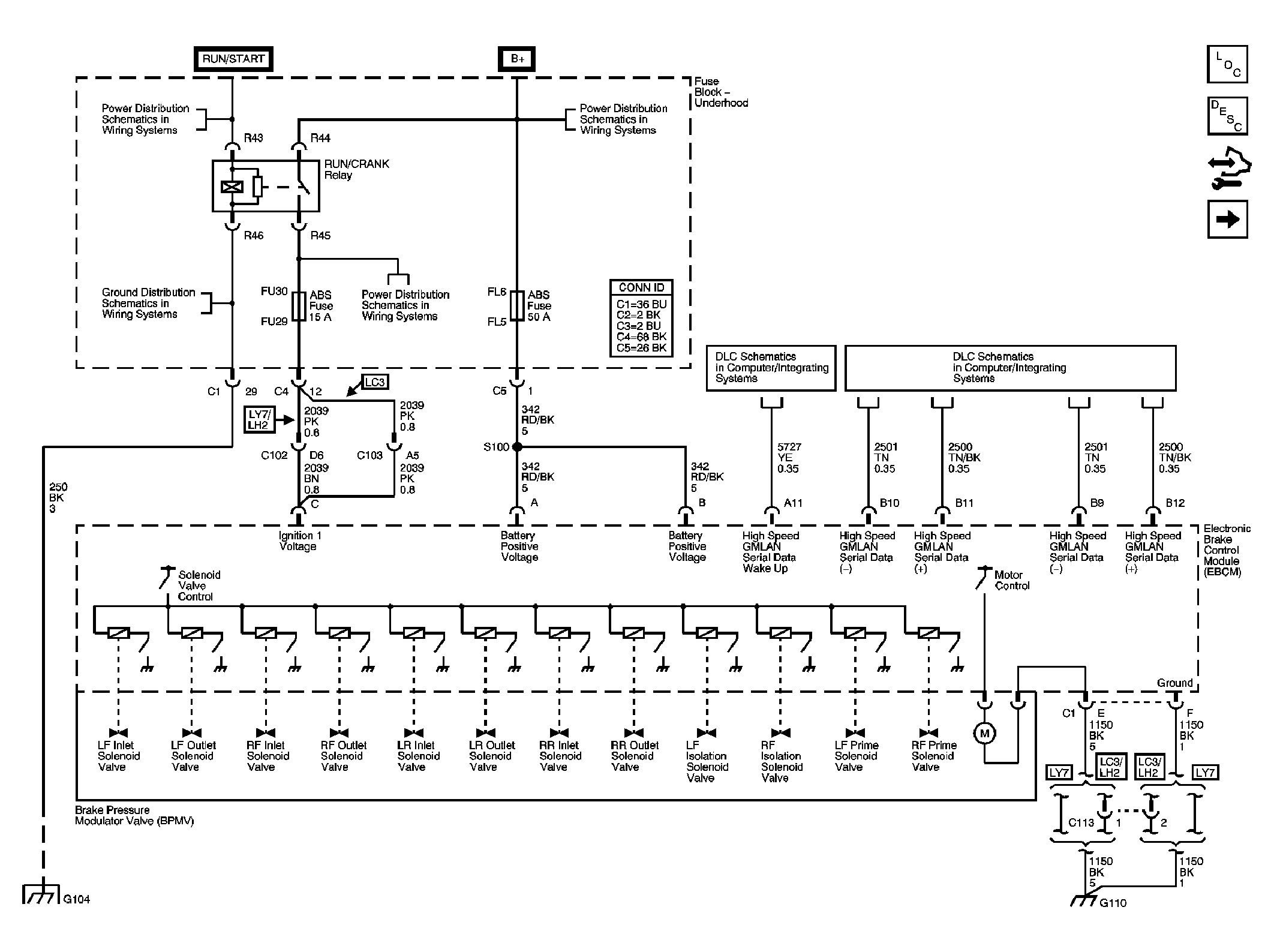

Fig 1: EBCM Module Power, Ground and DLC
GM1618617Courtesy of GENERAL MOTORS CORP.

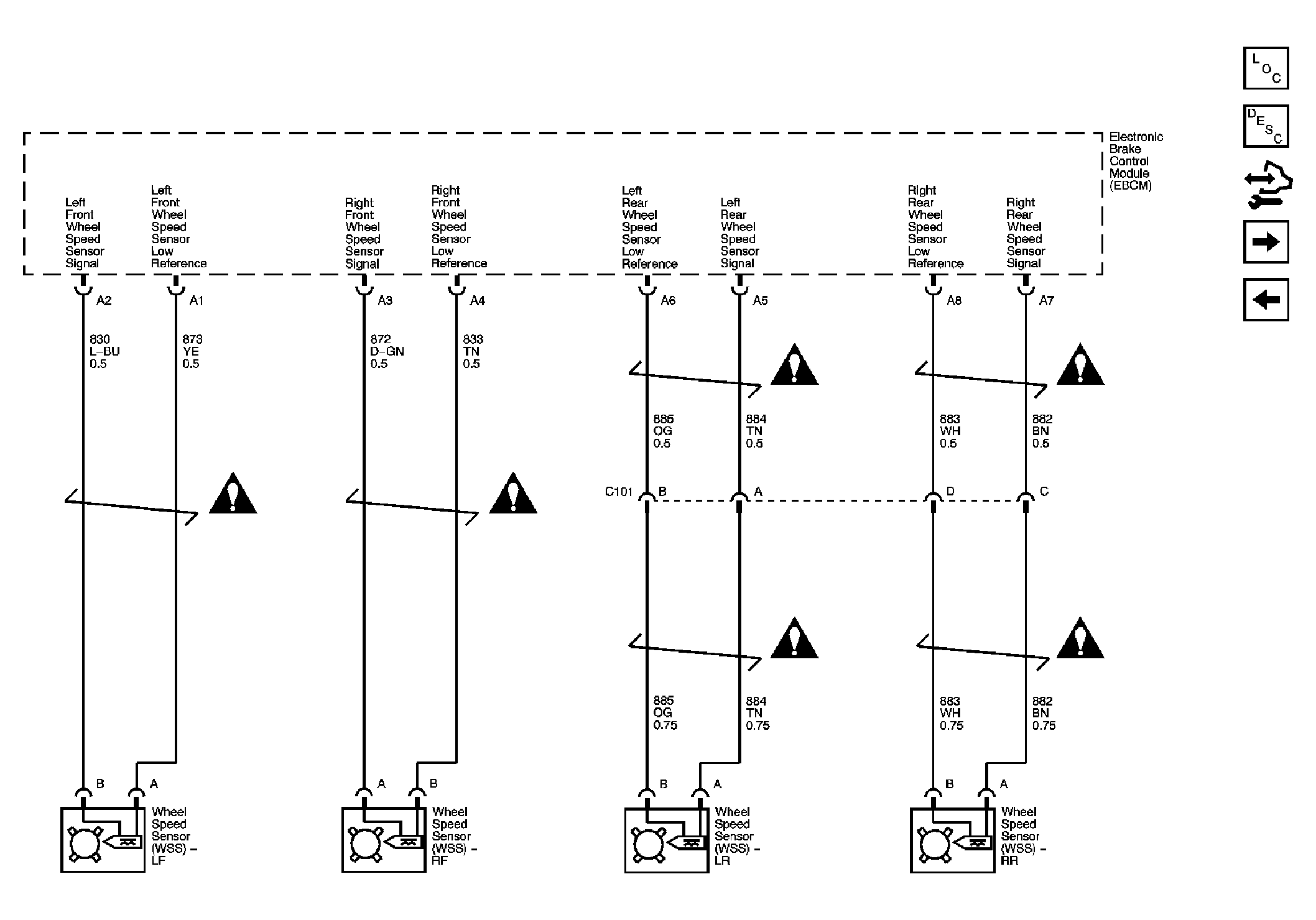

Fig 2: Wheel Speed Sensors
GM1618616Courtesy of GENERAL MOTORS CORP.

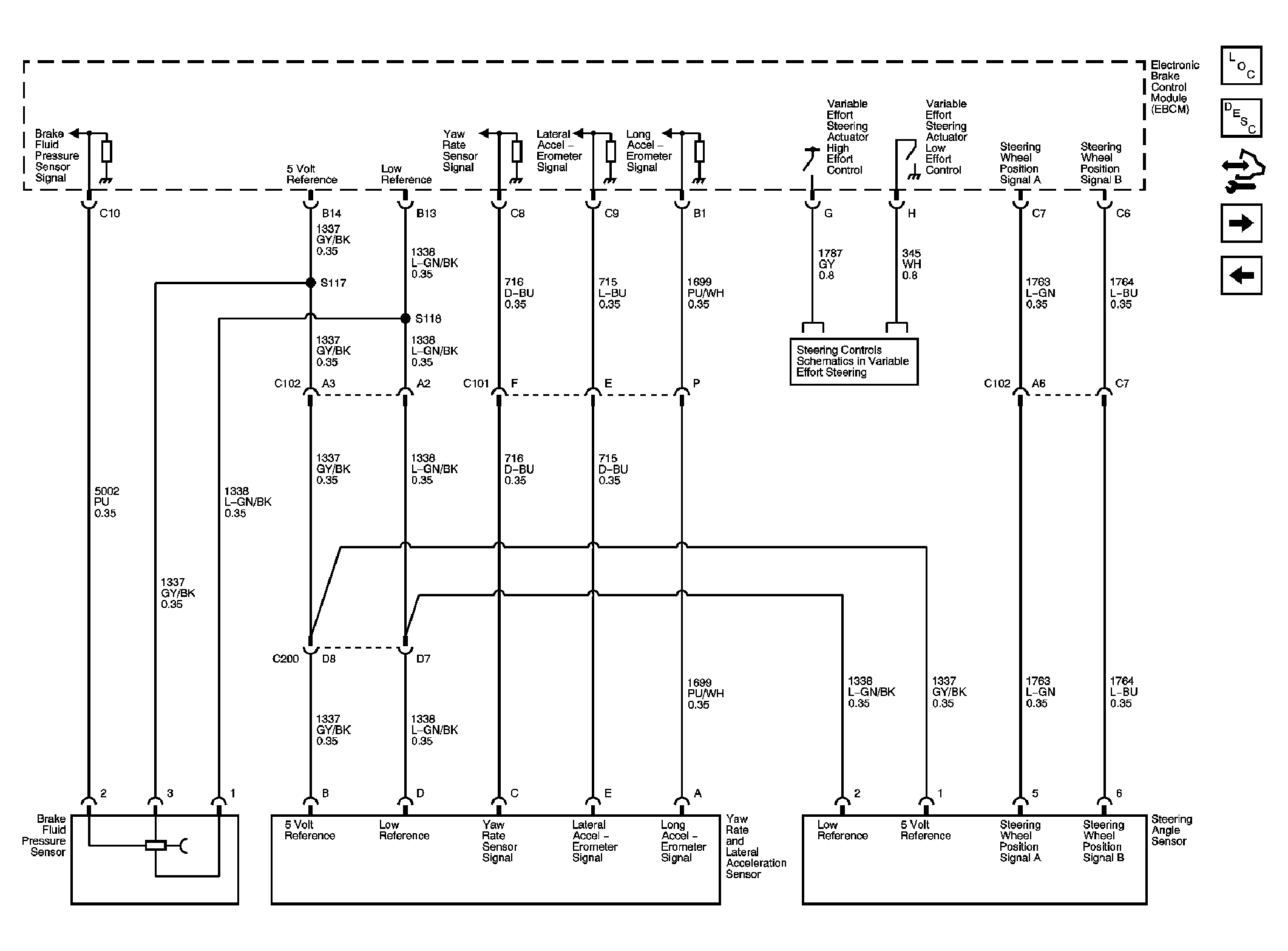

Fig 3: Stability Control System
GM1618609Courtesy of GENERAL MOTORS CORP.

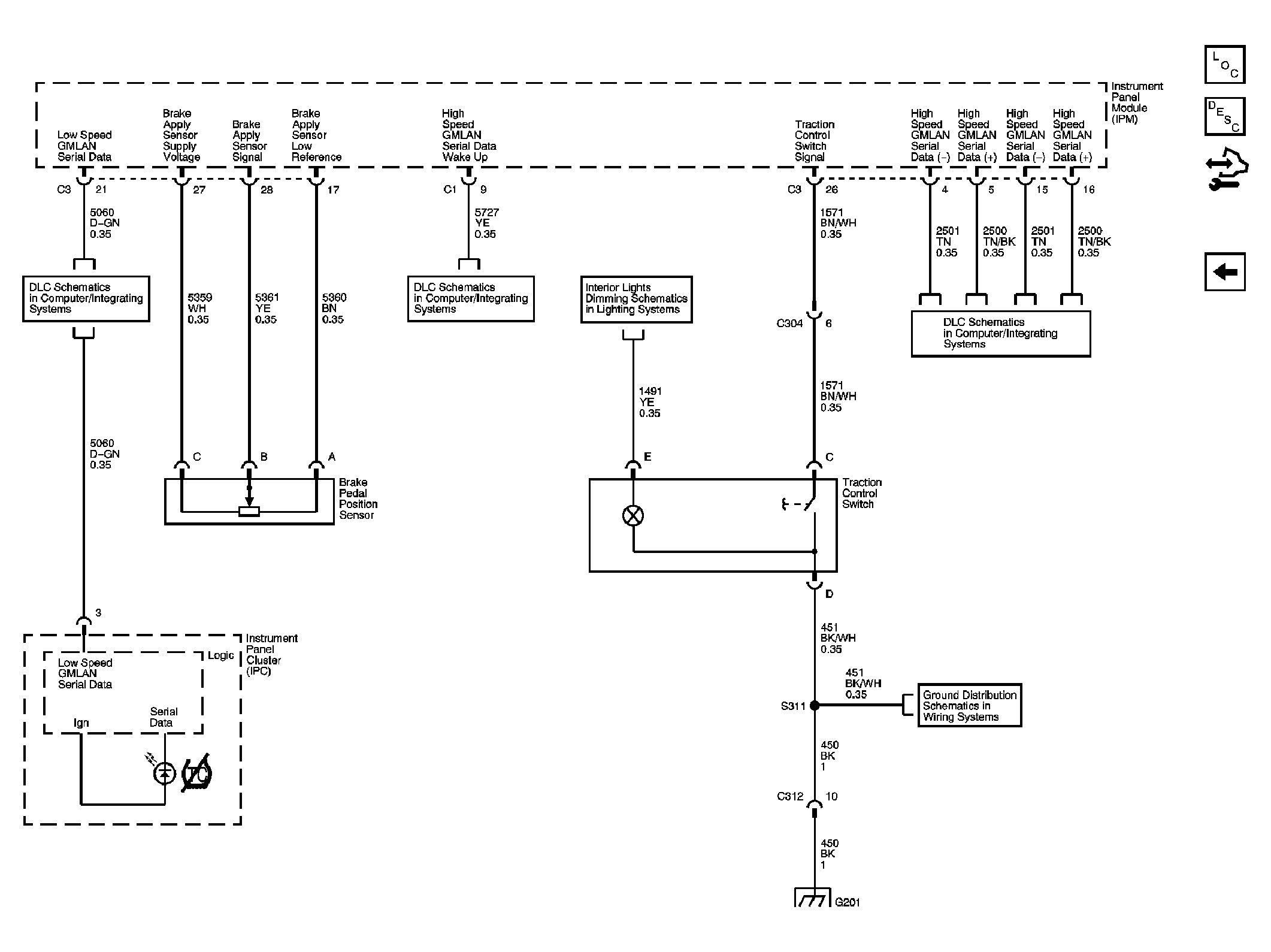

Fig 4: Indicator and Traction Control
GM1738251Courtesy of GENERAL MOTORS CORP.
