Power Seat Component Views

Fig 1: Console Component View

GM1488593

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Console
2	Auxiliary Audio/Video Control (UY5)
3	HVAC Control Module - Rear Auxiliary (KA6)
4	LR Heated Seat Switch - Part of the Rear Auxiliary Module
5	RR Heated Seat Switch - Part of the Rear Auxiliary Module
6	Mode Select Switch - Auxiliary (KA6)
7	Auxiliary Power Outlet - Rear
8	Hazard Switch
9	Traction Control Switch

Fig 2: Driver Seat Component View

GM1488573

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Motor Assembly - Driver: Horizontal Motor and Position Sensor (AL2)
2	Speaker - Driver Seat Right (UY5)
3	Cooled Seat Blower Motor - Driver Back (KB6)
4	Speaker - Driver Seat Left (UY5)
5	Lumbar Motor Assembly - Driver: Vertical Motor and Position Sensor (AL2)
6	Heated Seat Element - Driver Back (KA1)
7	Heated Seat Element - Driver Cushion (KA1)
8	Lumbar Adjuster Switch - Driver (AL2)
9	Seat Recliner Switch
10	Seat Adjuster Switch - Driver
11	Cooled Seat Blower Motor - Driver Cushion (KB6)
11	Cooled Seat Blower Motor - Driver Cushion (KB6)
12	Seat Rear Vertical Motor - Driver
13	Seat Rear Vertical Position Sensor - Driver (A45)
14	Seat Front Vertical Position Sensor - Driver (A45)
15	Seat Horizontal Motor - Driver
16	Seat Horizontal Position Sensor - Driver (A45)
17	Seat Front Vertical Motor - Driver
18	Memory Seat Module (A45)
19	Seat Belt Pretensioner
20	Seat Recliner Motor Driver (w/oA45) or Seat Recline Motor Assembly (A45)

Fig 3: Front Passenger Seat Component View

GM1488574

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Passenger Seat Right (UY5)
2	Cooled Seat Blower Motor - Passenger Back (KB6)
3	Speaker - Passenger Seat Left (UY5)
4	Lumbar Horizontal Motor - Passenger
5	Seat Recliner Motor - Passenger
6	Seat Belt Pretentioner
7	Climate Control Seat Module (KA1/KB6)
8	Cooled Seat Blower Motor - Passenger Cushion (KB6)
8	Cooled Seat Blower Motor - Passenger Cushion (KB6)
9	Seat Adjuster Switch - Passenger
9	Seat Adjuster Switch - Passenger
10	Seat Recliner Switch
11	Seat Front Vertical Motor - Passenger
12	Seat Rear Vertical Motor - Passenger
13	Seat Horizontal Motor - Passenger
14	Lumbar Adjuster Switch - Passenger (AL2)
14	Lumbar Adjuster Switch - Passenger (AL2)
15	Heated Seat Element - Passenger Cushion (KA1)
16	Heated Seat Element - Passenger Back (KA1)

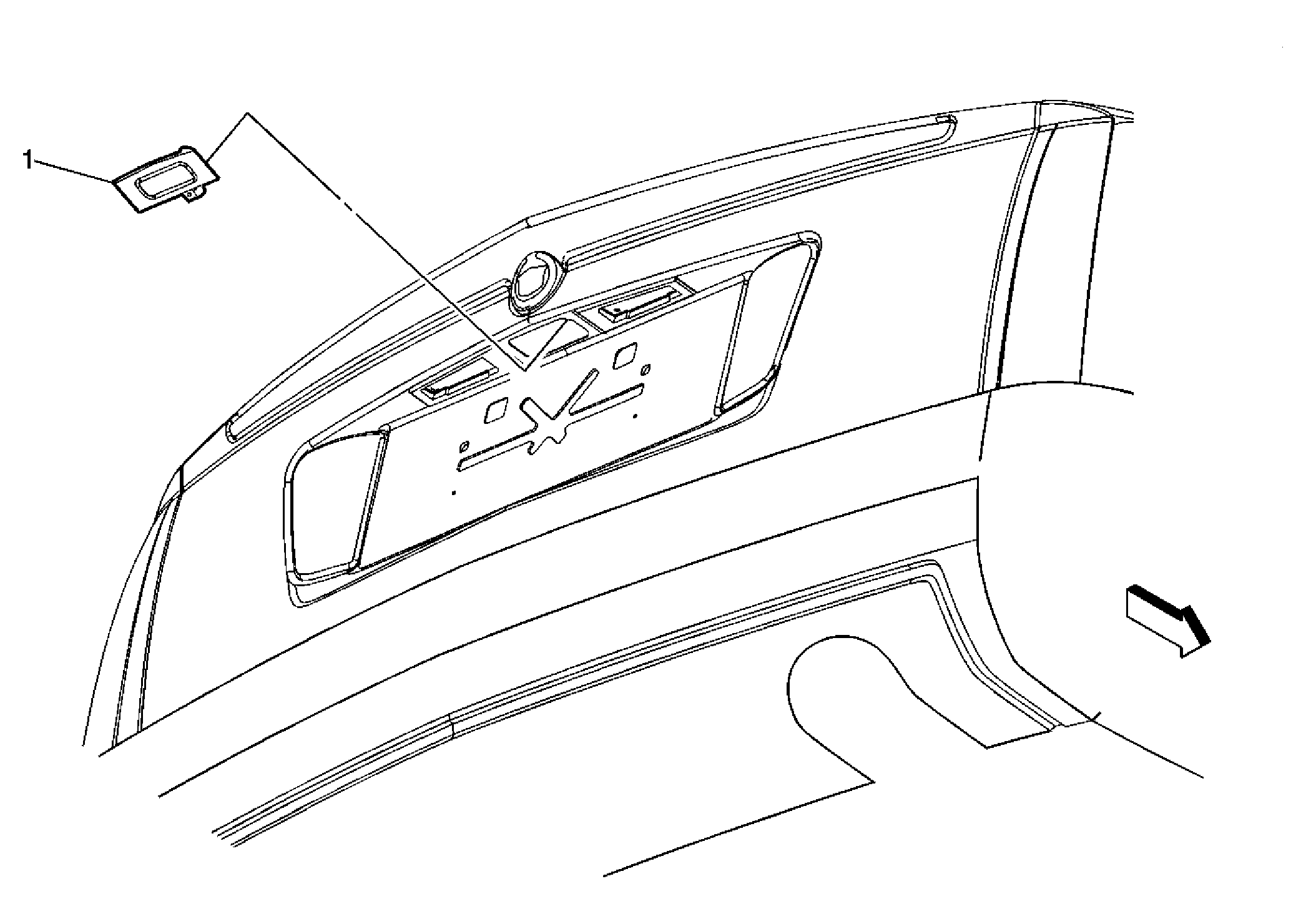

Fig 4: Rear Compartment Lid Switch (Exterior)

GM1580009

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch (Exterior)

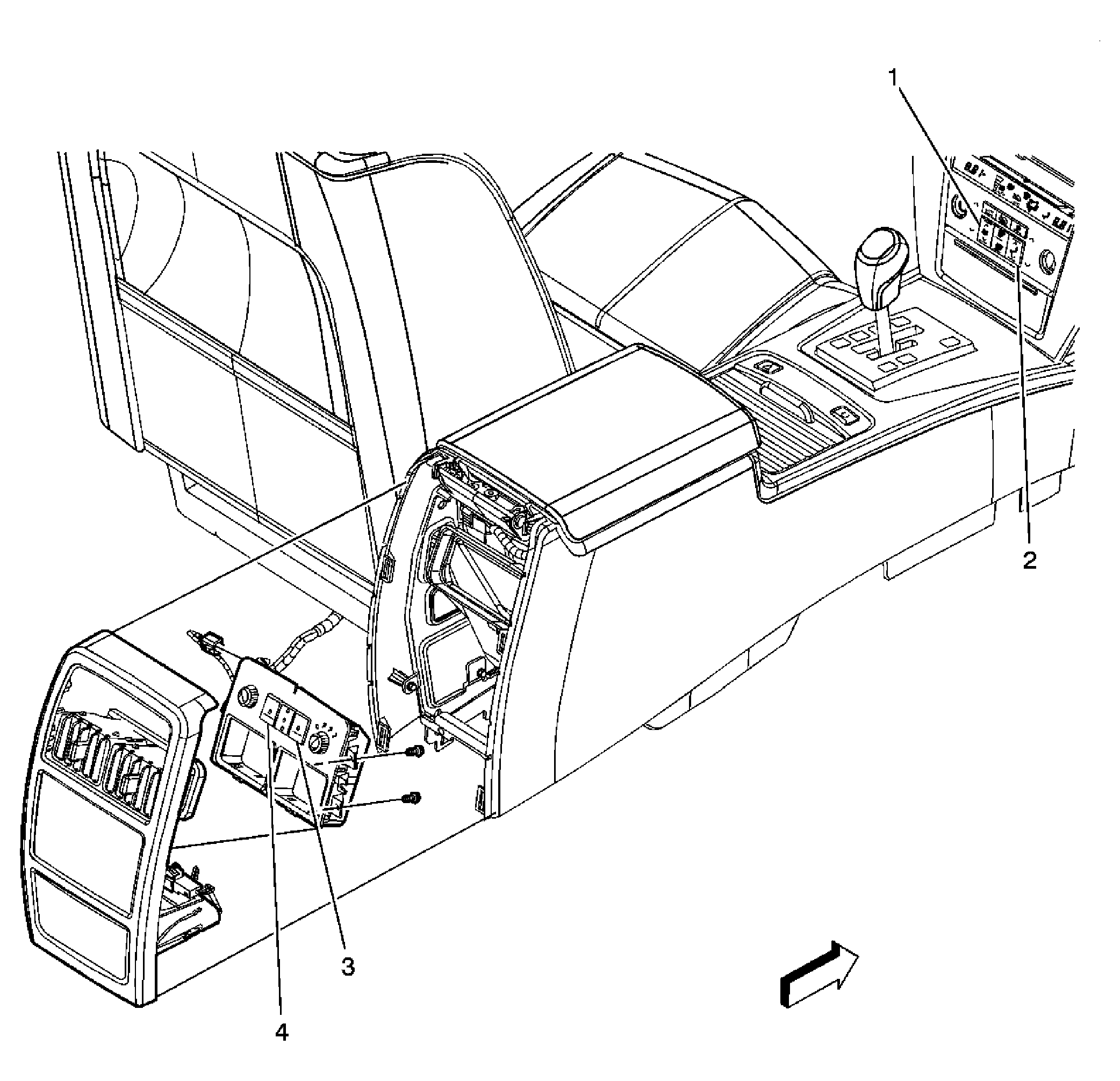

Fig 5: Rear Compartment Lid Valet Lock Out Switch

GM1580006

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Front Seat Heat/Cool Switch
2	Right Front Seat Heat/Cool Switch
3	Right Rear Seat Heat/Cool Switch
4	Left Rear Seat Heat/Cool Switch

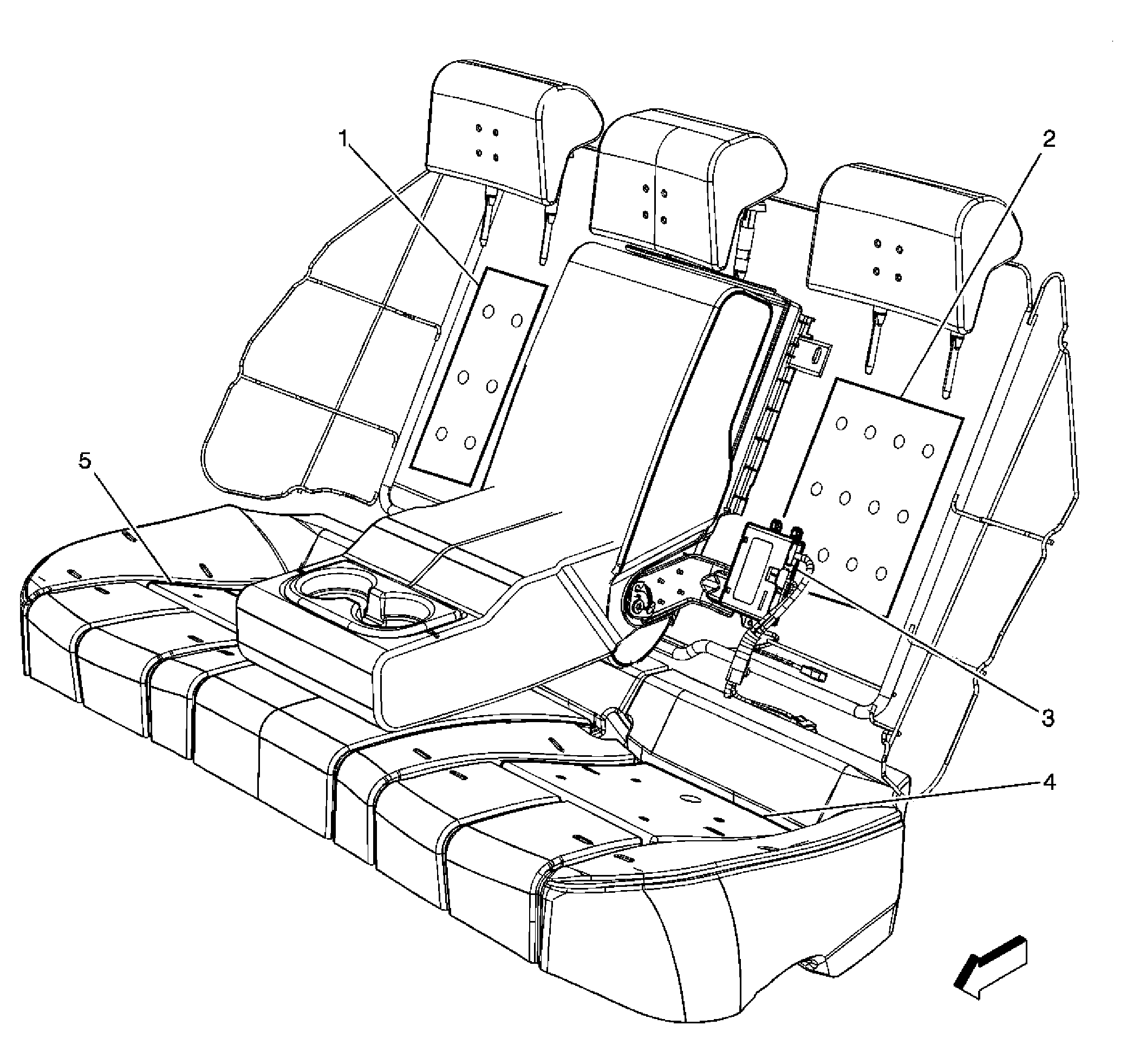

Fig 6: Rear Seat Components

GM1488570

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - RR Back (w/KA6)
2	Heated Seat Element - LR Back (w/KA6)
3	Heated Seat Module - Rear (w/KA6)
4	Heated Seat Element - LR Cushion (w/KA6)
5	Heated Seat Element - RR Cushion (w/KA6)
