Keyless Entry Schematics

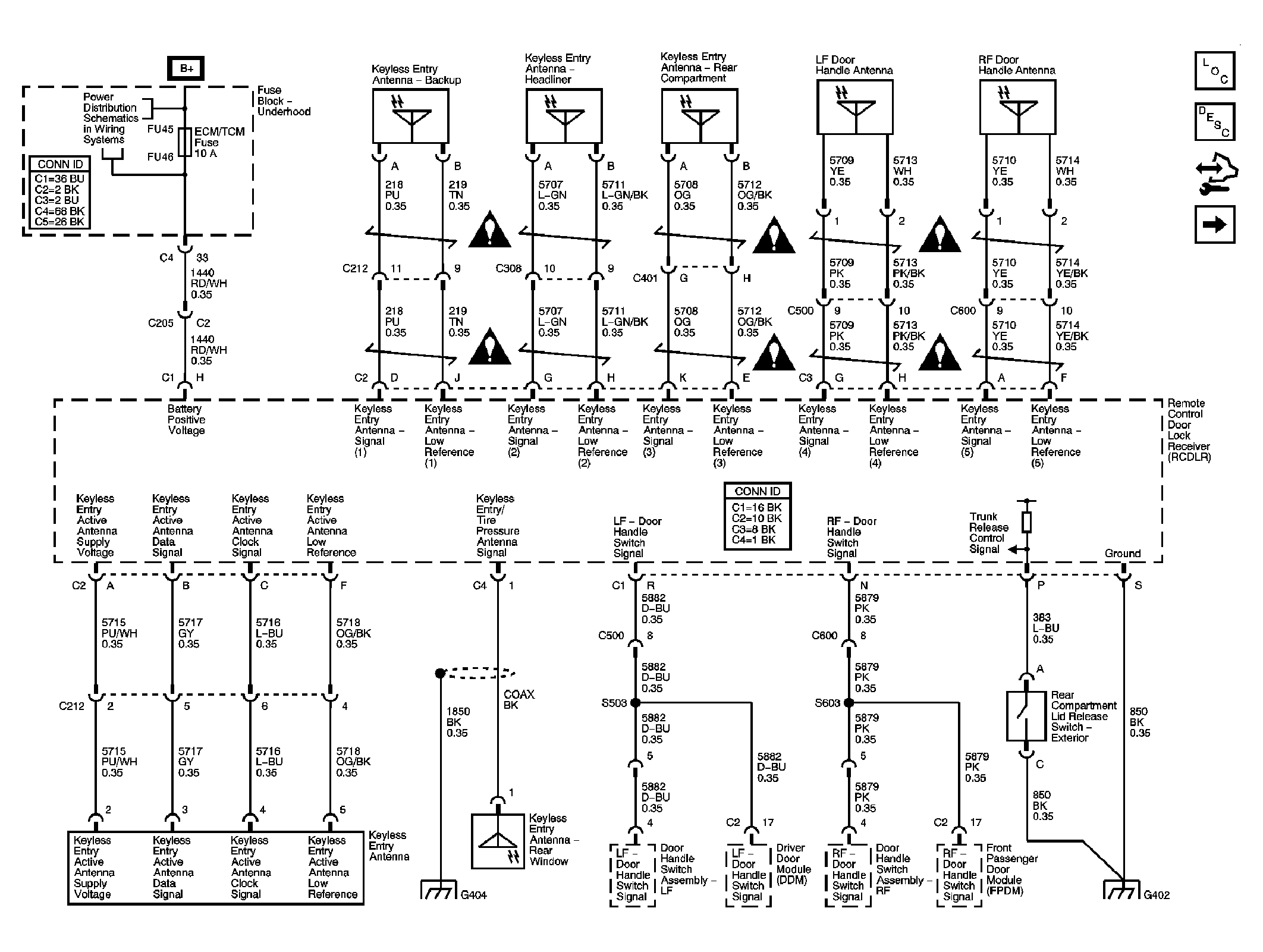

Fig 1: Module Power, Grounds, Antennas and Switches
GM1619679Courtesy of GENERAL MOTORS CORP.

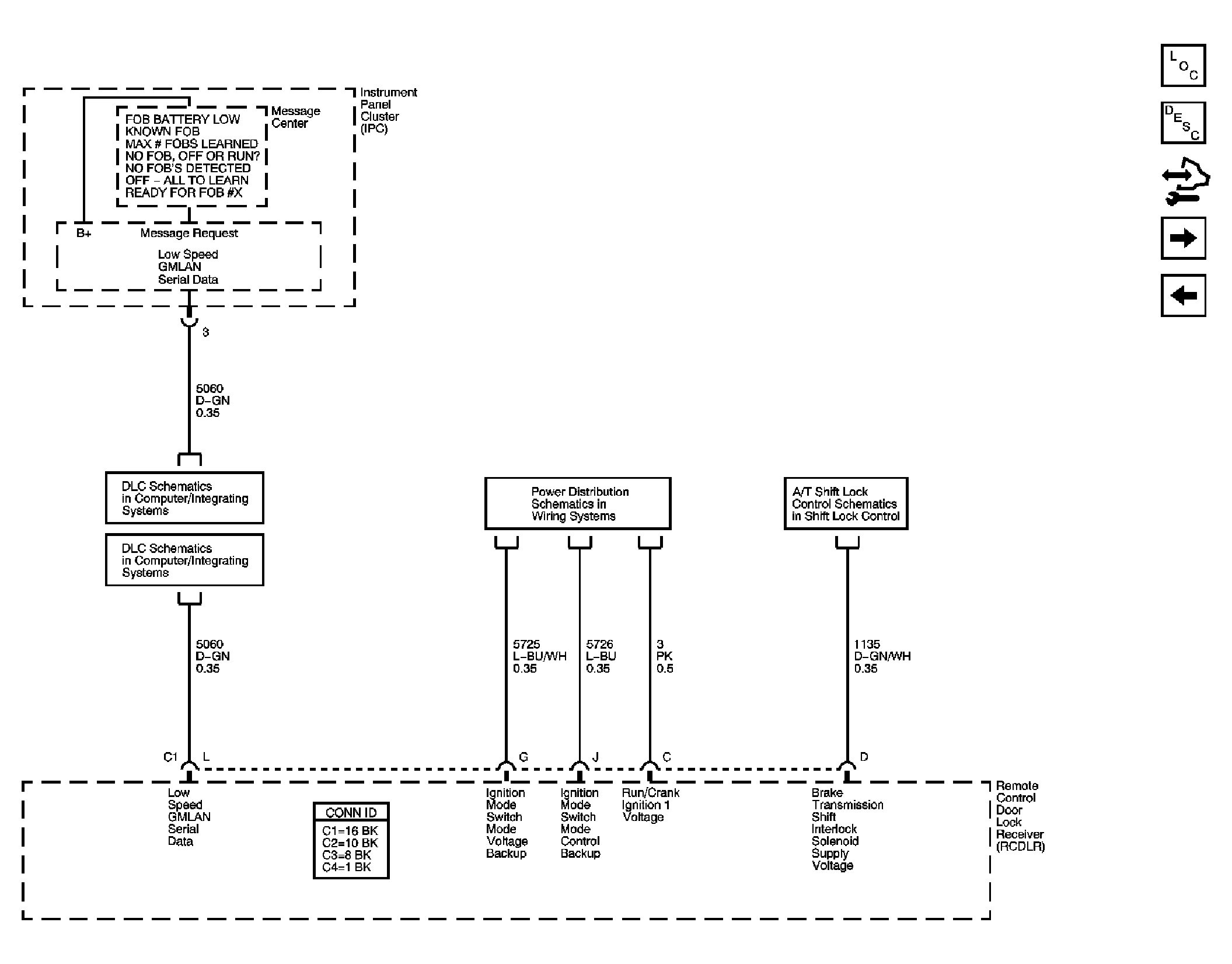

Fig 2: DLC, Instrument Panel Cluster (IPC)
GM1619681Courtesy of GENERAL MOTORS CORP.
Fig 3: Hood Ajar Switch Schematic
GM1663854Courtesy of GENERAL MOTORS CORP.
