Inline Harness Connector End Views: C310

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
C310 Terminal Identification - Sunroof Harness to Body Harness (C3B/CF5)

GM1283909Courtesy of GENERAL MOTORS CORP.

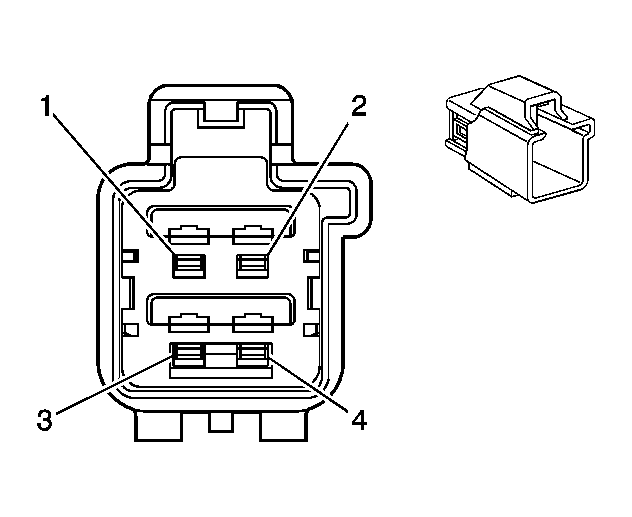

GM1283911Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-5561-40
  • 4-Way F Yazaki 2.8 Series (GY)
 Connector Part Information
  • 7282-5561-40
  • 4-Way M Yazaki 2.8 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 D-BU 75 RAP Relay Switch Supply Voltage (w/o T79) 1 BN 75 RAP Relay Switch Supply Voltage (w/o T79)
BN 41 Ignition 3 Voltage (T79) BN 41 Ignition 3 Voltage (T79)
2 RD/WH 4440 Battery Positive Voltage 2 RD/WH 4440 Battery Positive Voltage
3 BK 1050 Ground 3 BK 1050 Ground
4 - - Not Used 4 - - Not Used
