Power Distribution Schematics

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

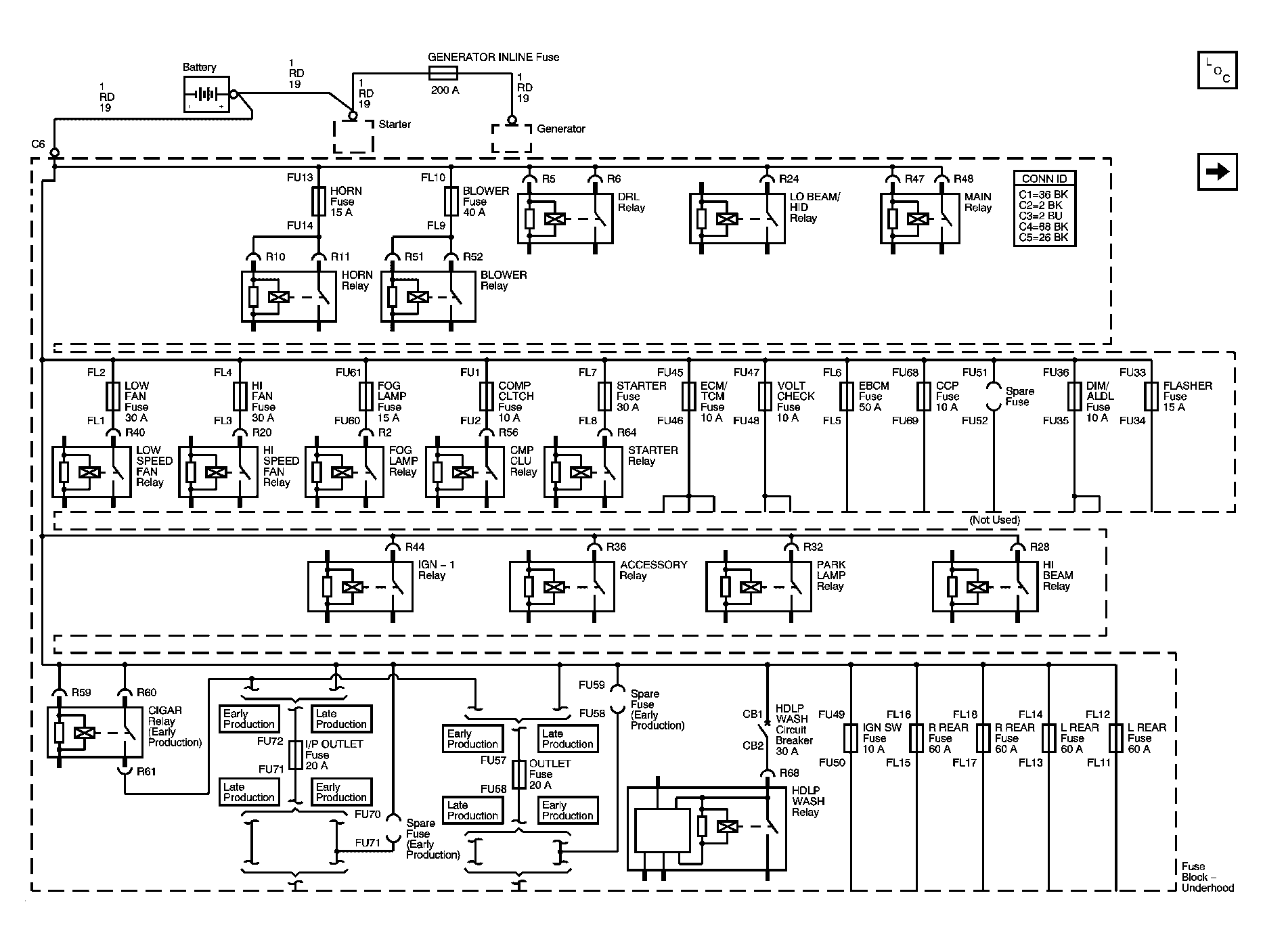

Fig 1: Fuse Block - Underhood B+ Bus Schematic

Courtesy of GENERAL MOTORS CORP.

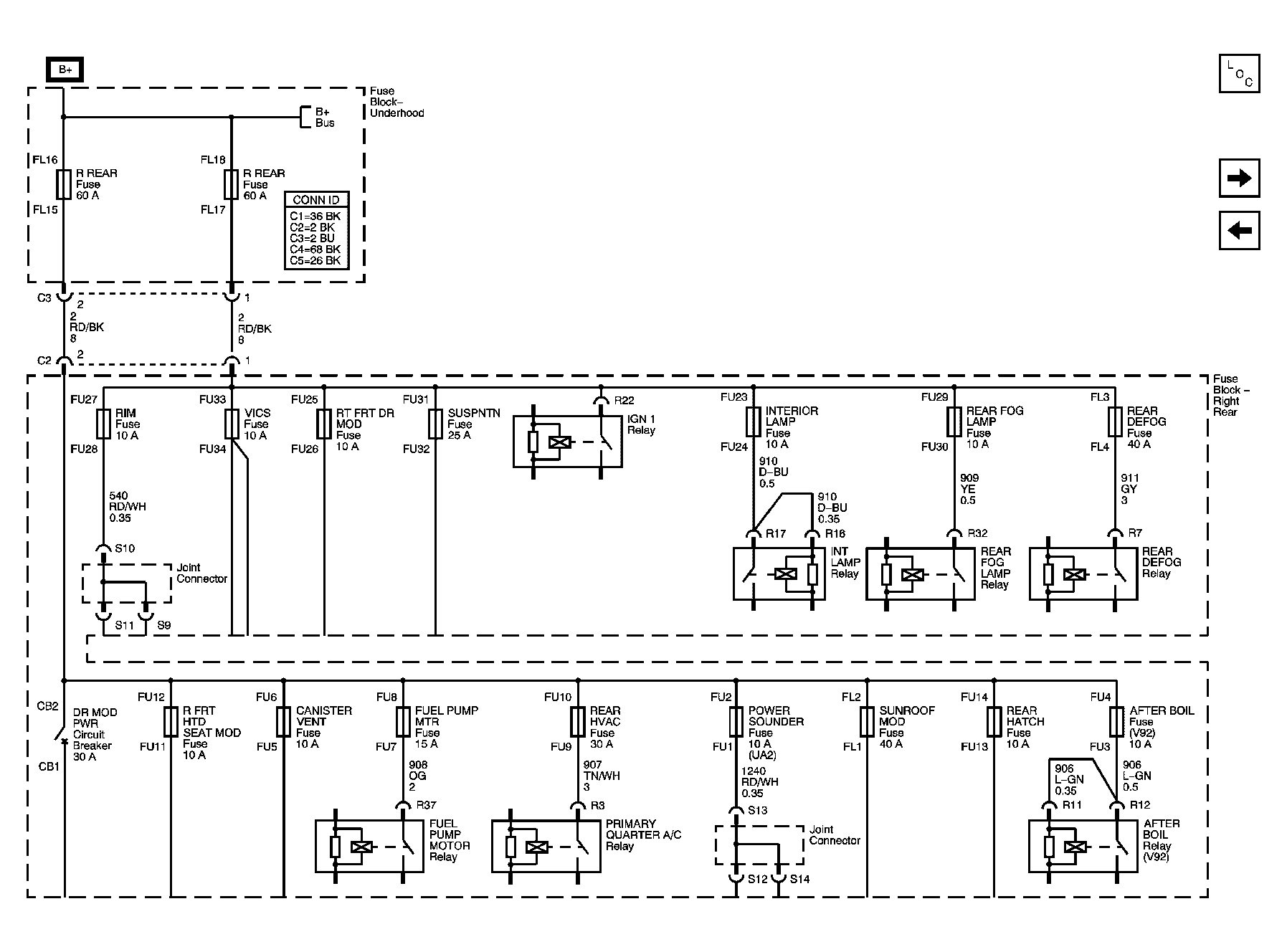

Fig 2: Fuse Block - Right Rear B+ Bus Schematic

Courtesy of GENERAL MOTORS CORP.

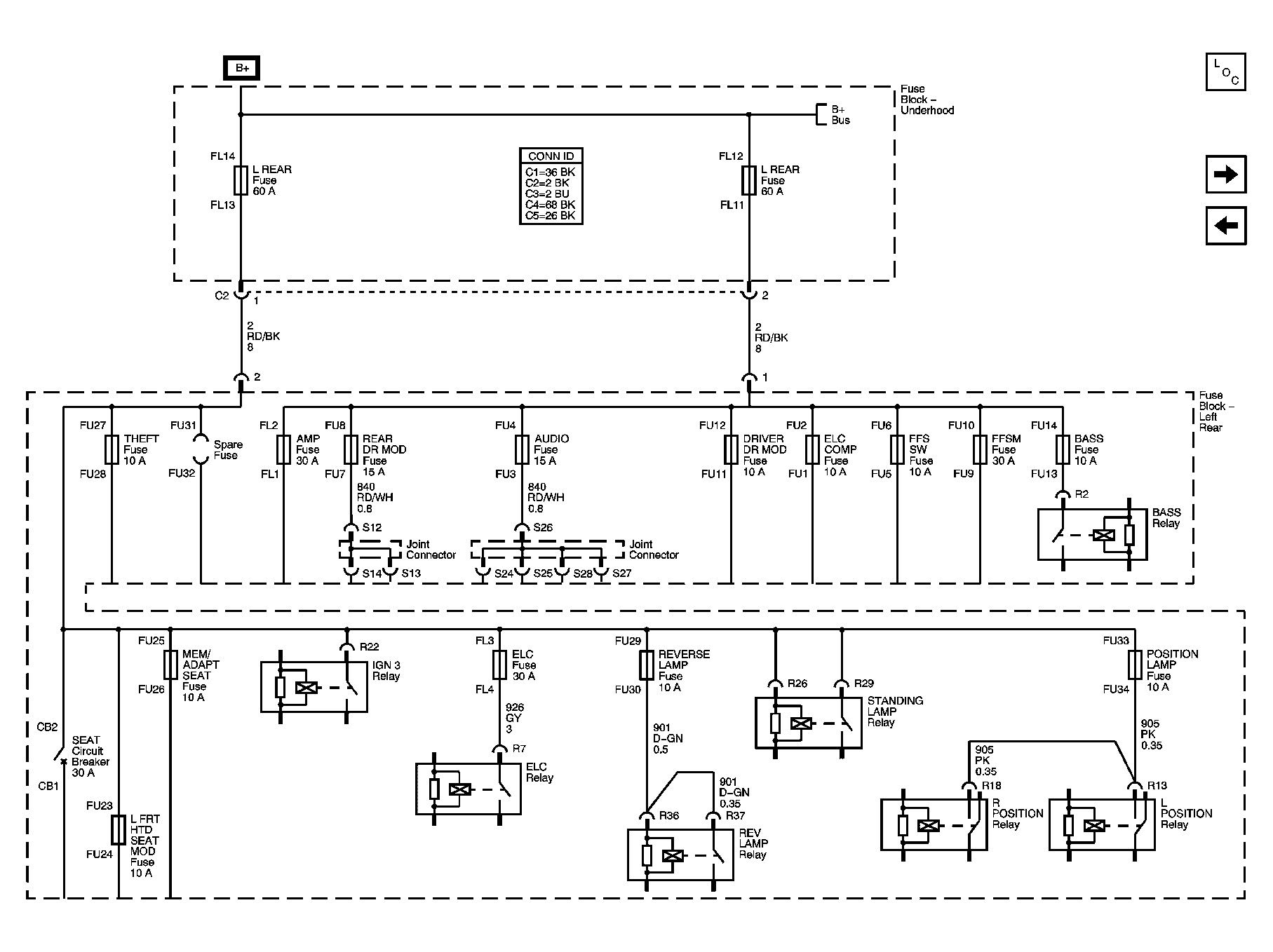

Fig 3: Fuse Block - Left Rear B+ Bus Schematic

Courtesy of GENERAL MOTORS CORP.

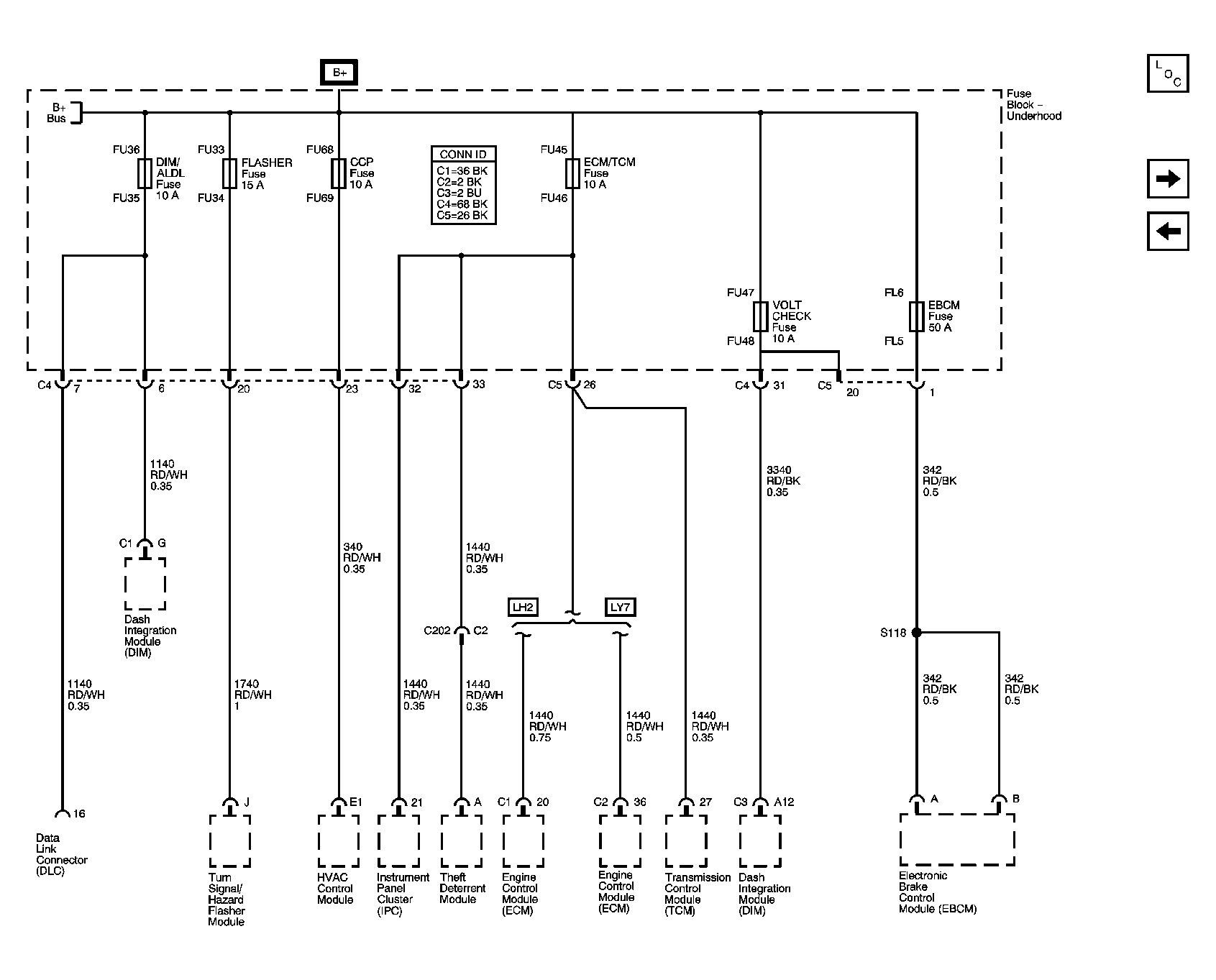

Fig 4: CCP (B+) DIM/ALDL, EBCM (B+) ECM/TCM, FLASHER, & VOLT CHECK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

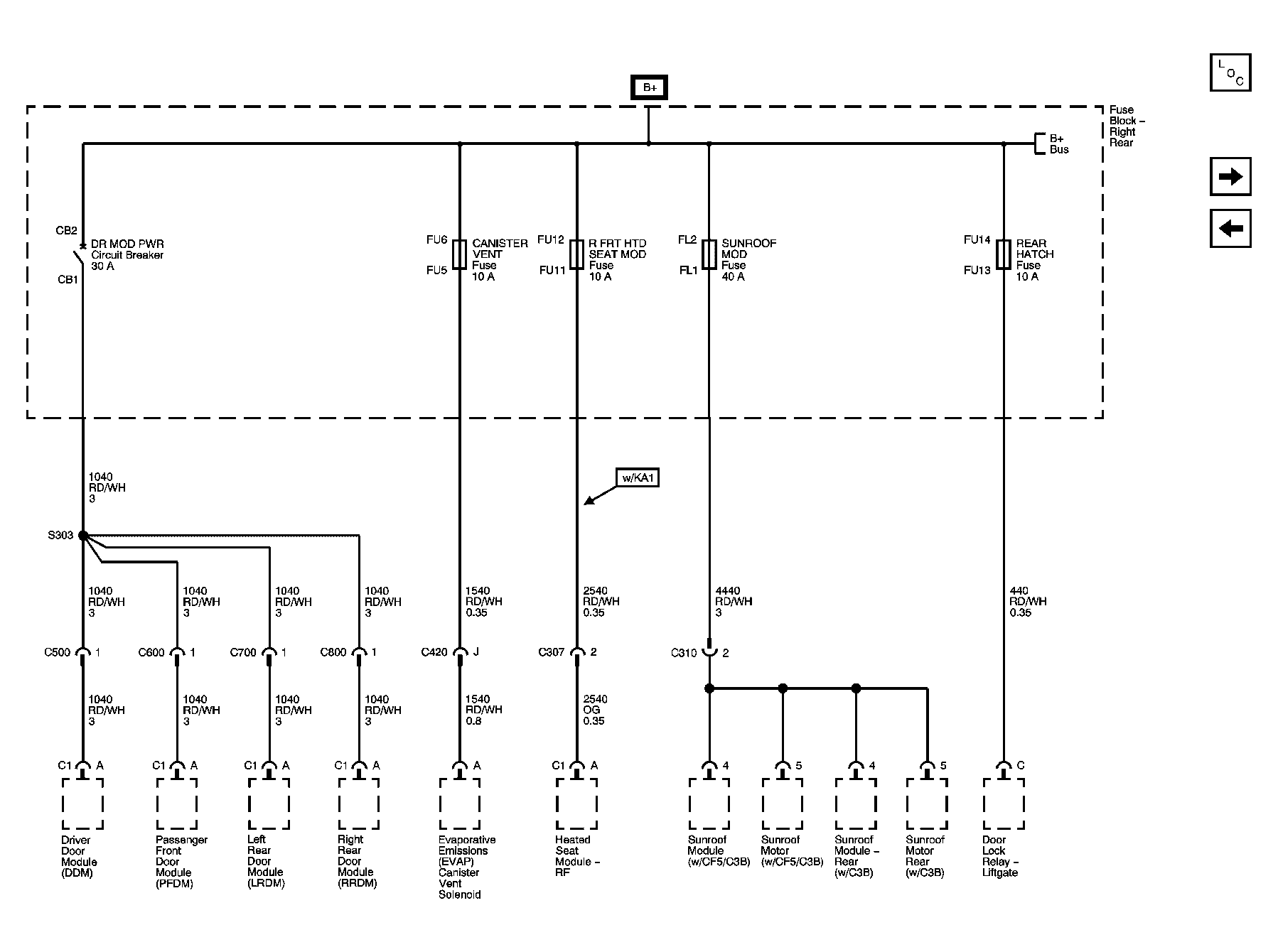

Fig 5: CANISTER VENT, DR MOD PWR, REARHATCH, R FRT HTD SEAT MOD, & SUNROOF MOD Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

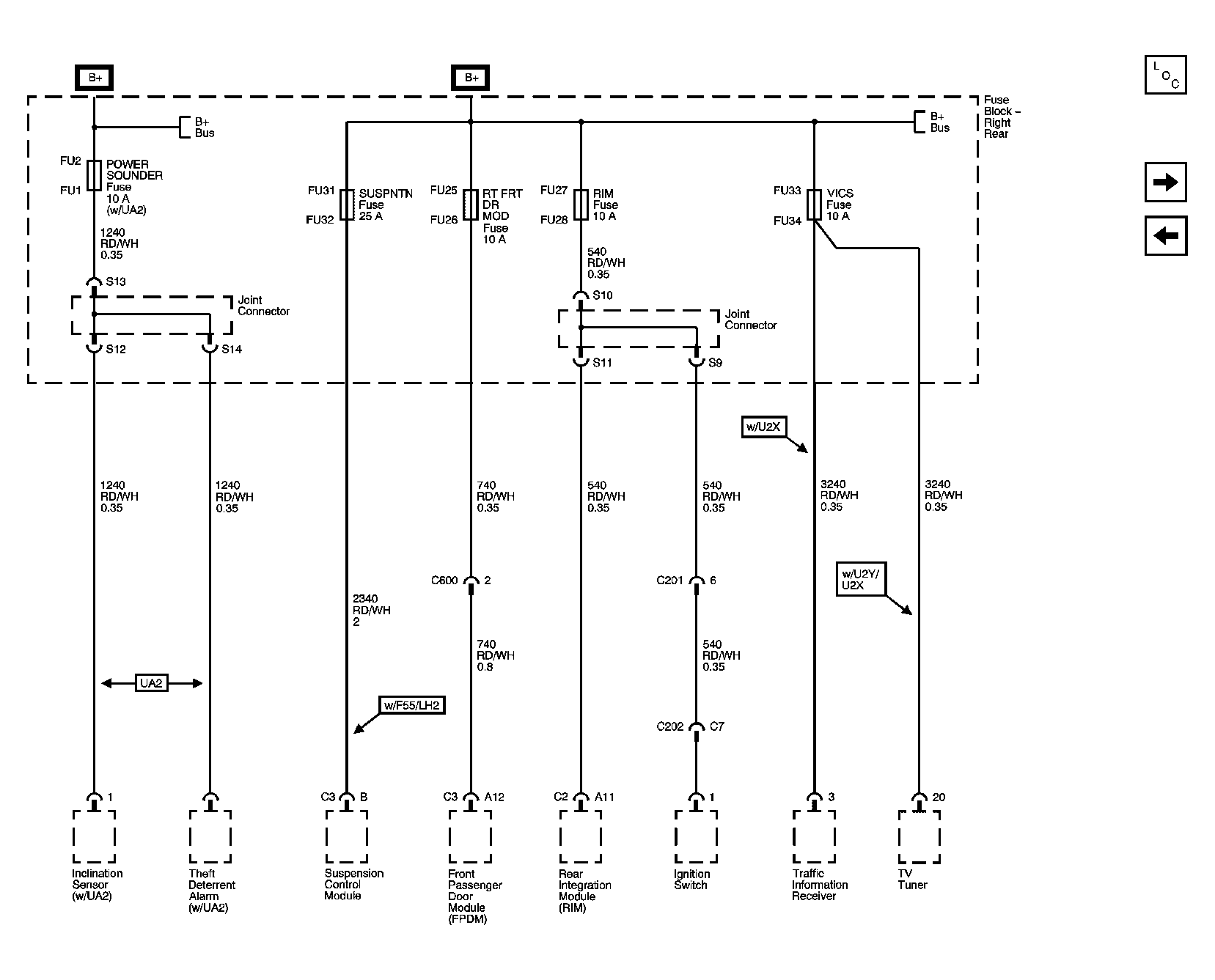

Fig 6: POWER SOUNDER, RIM RT FRT DR MOD, SUSPNTN, & VICS/RAP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

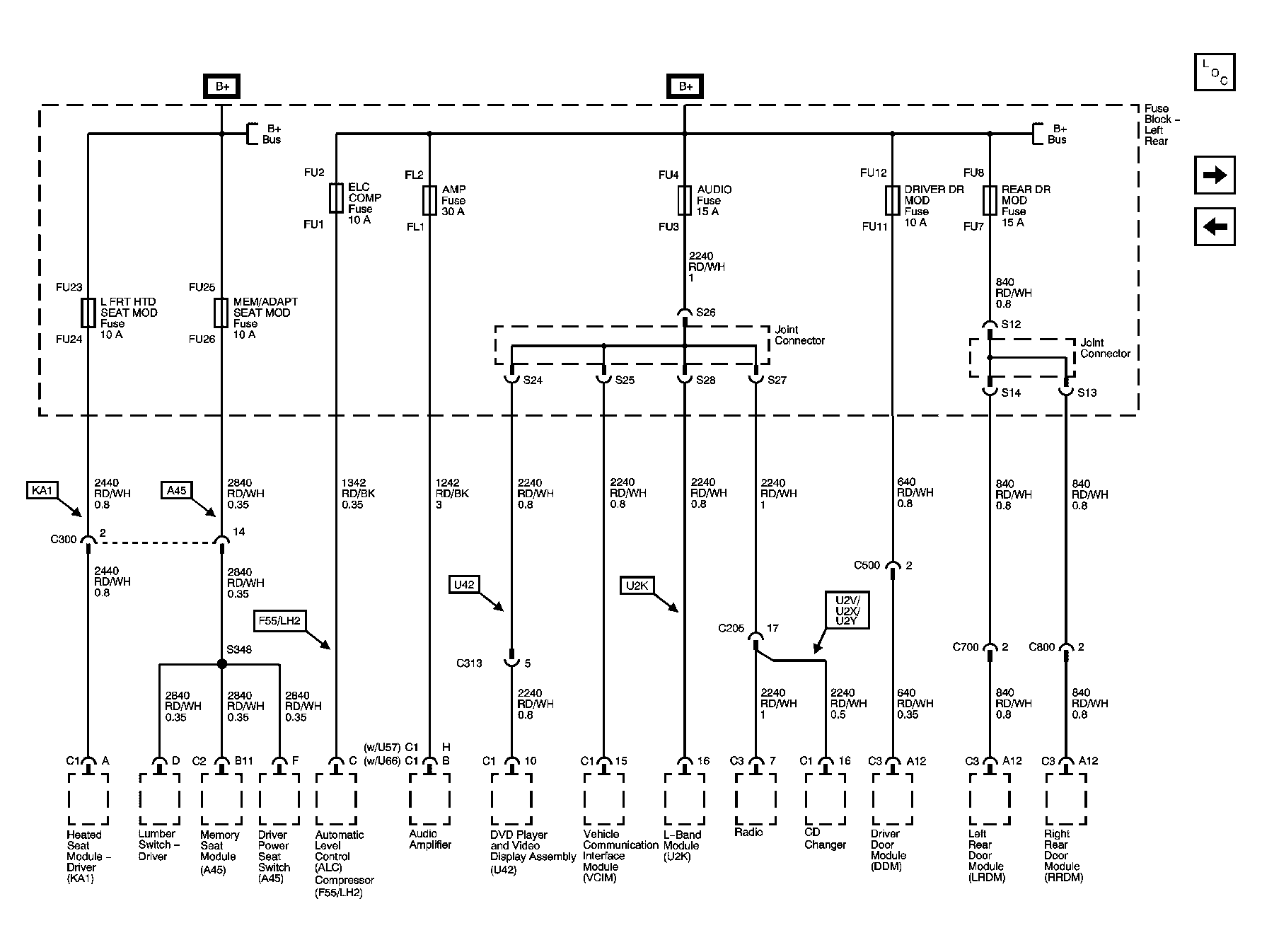

Fig 7: AMP, AUDIO, DRIVER DR MOD, ELC COMP, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, & REAR DR MOD Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

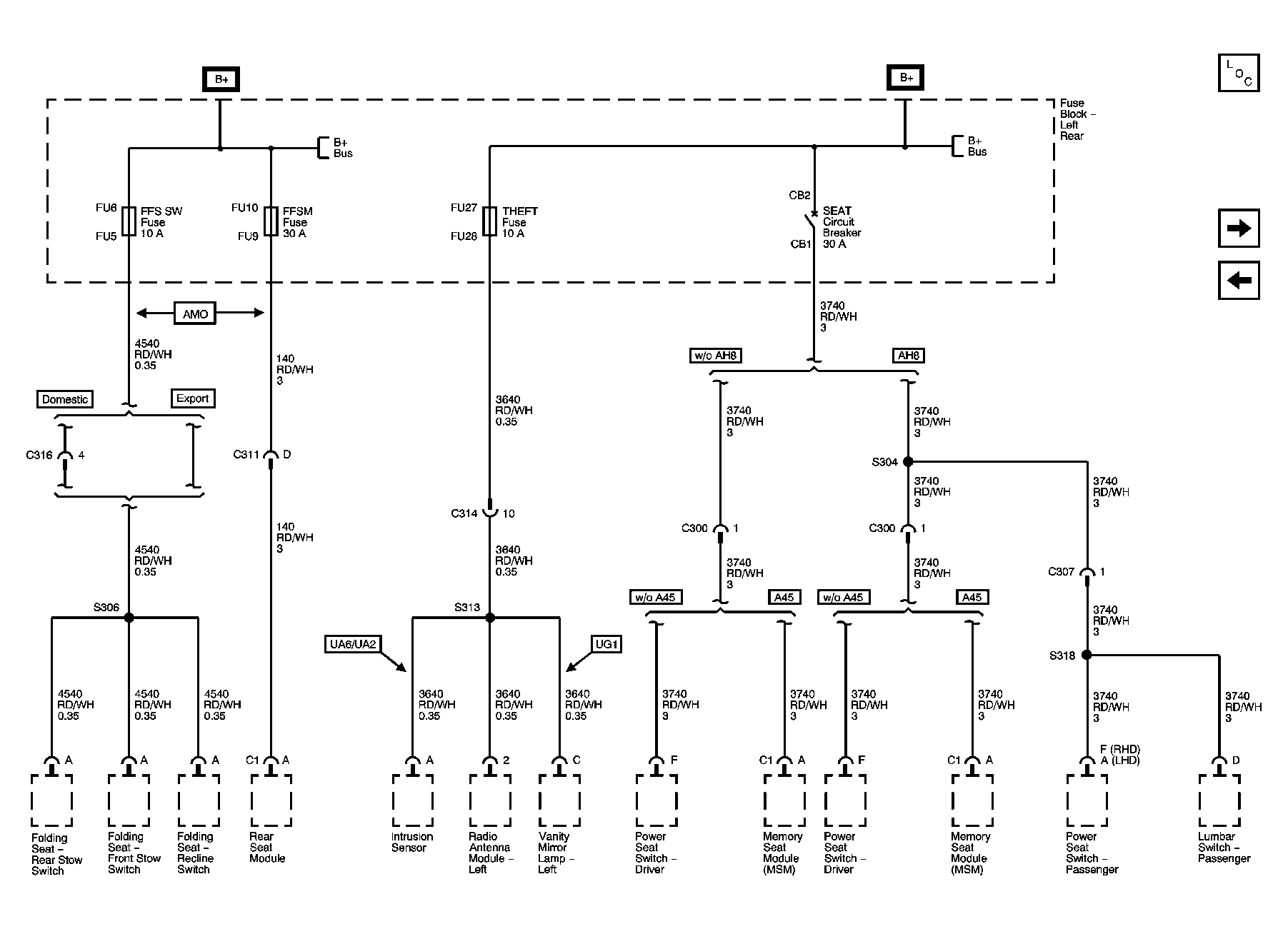

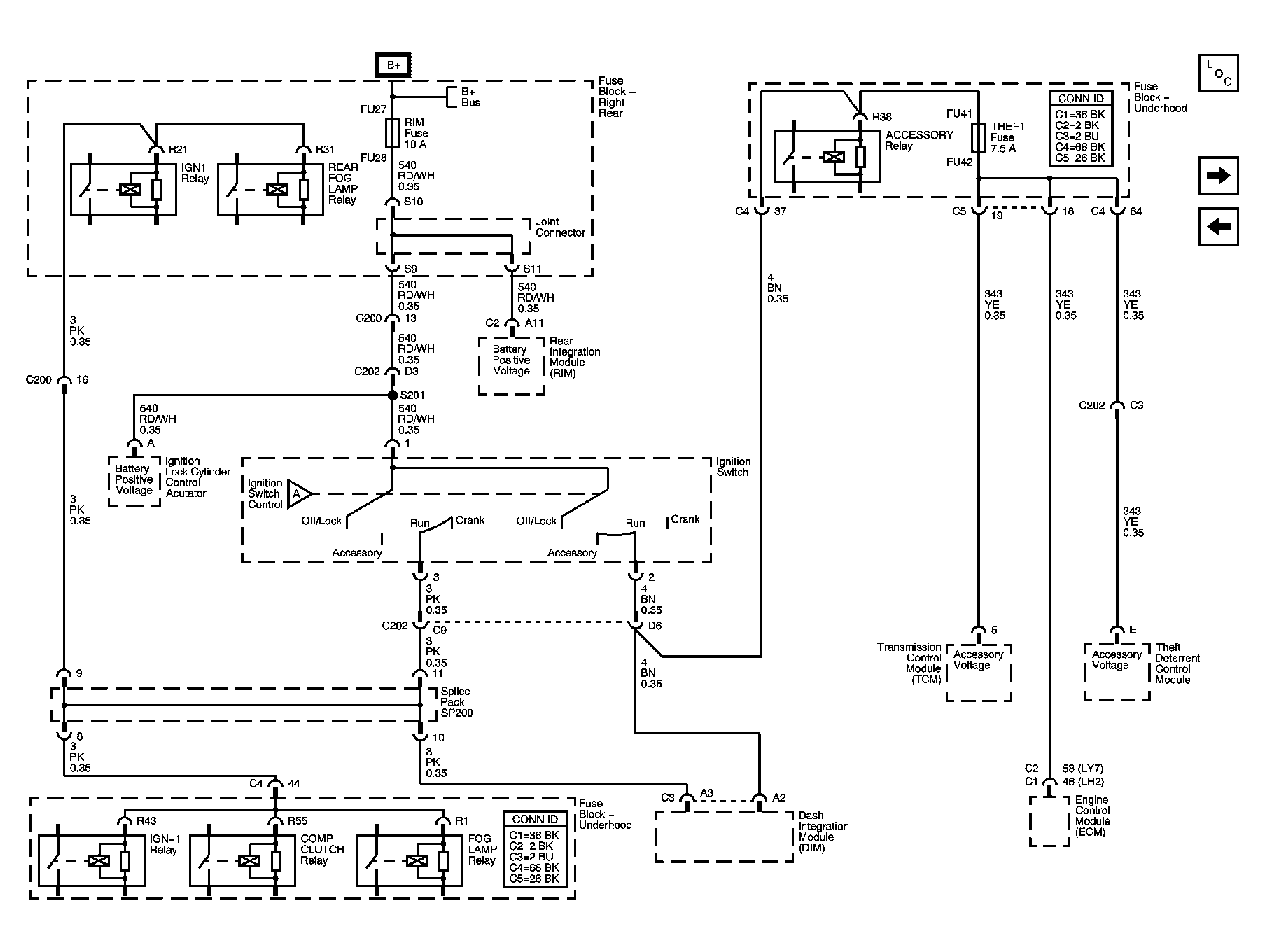

Fig 8: FFSM, FFS SW, & THEFT Fuses & SEAT Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

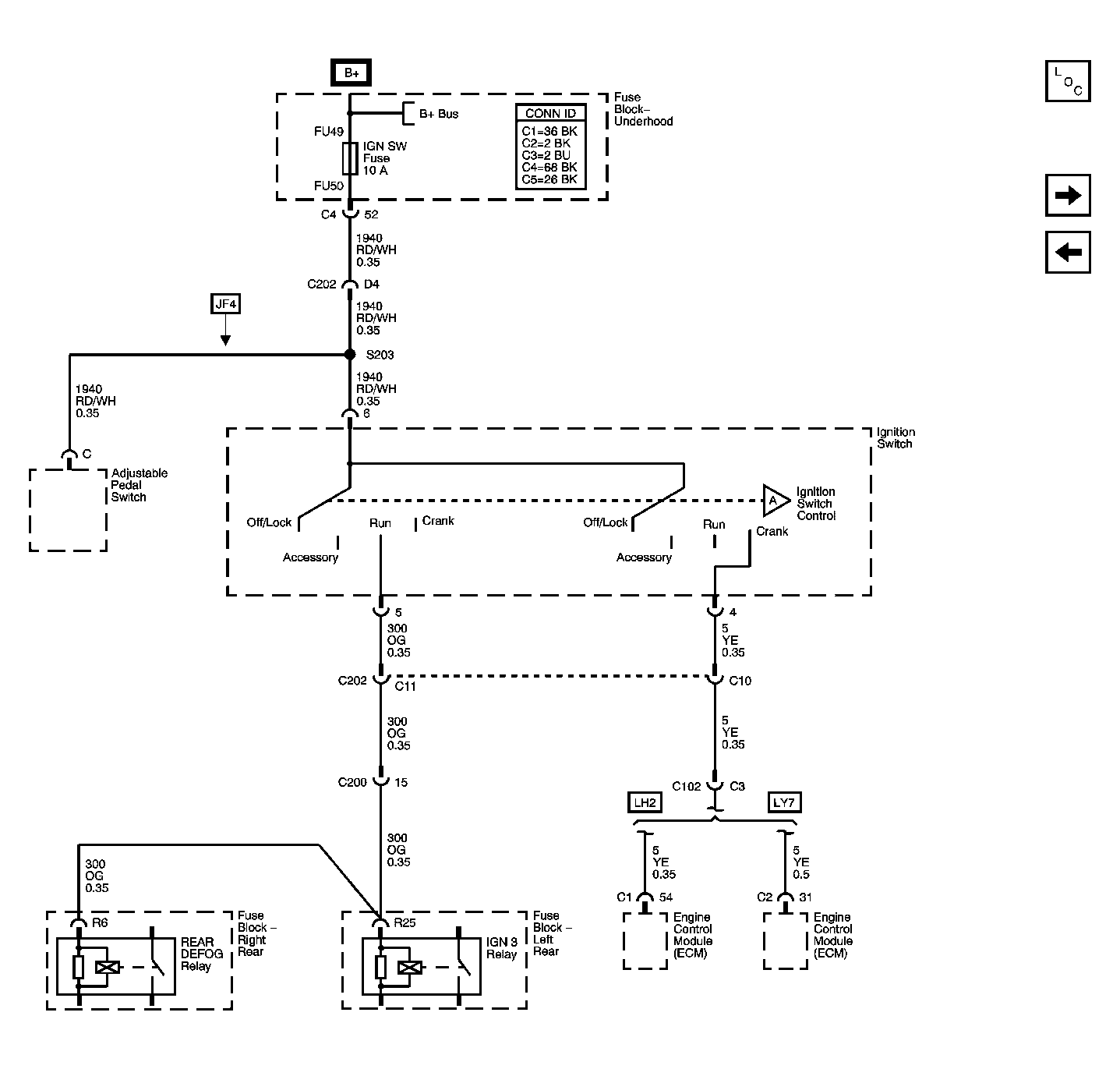

Fig 9: IGN SW Fuse and Ignition Switch Schematic - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

Fig 10: RTM & THEFT Fuses and Ignition Switch Schematic - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

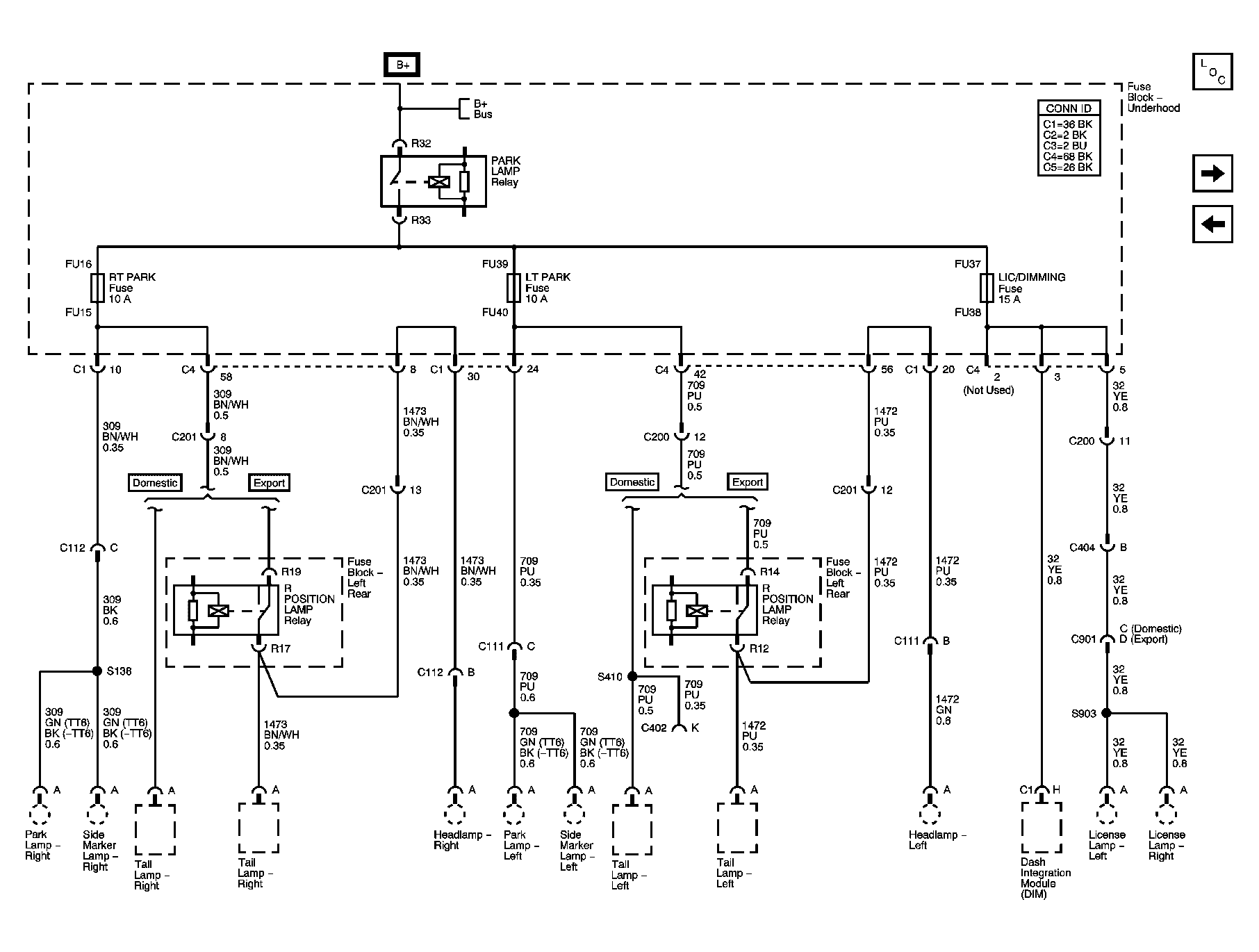

Fig 11: LIC/DIMMING, LT PARK, & RT PARK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

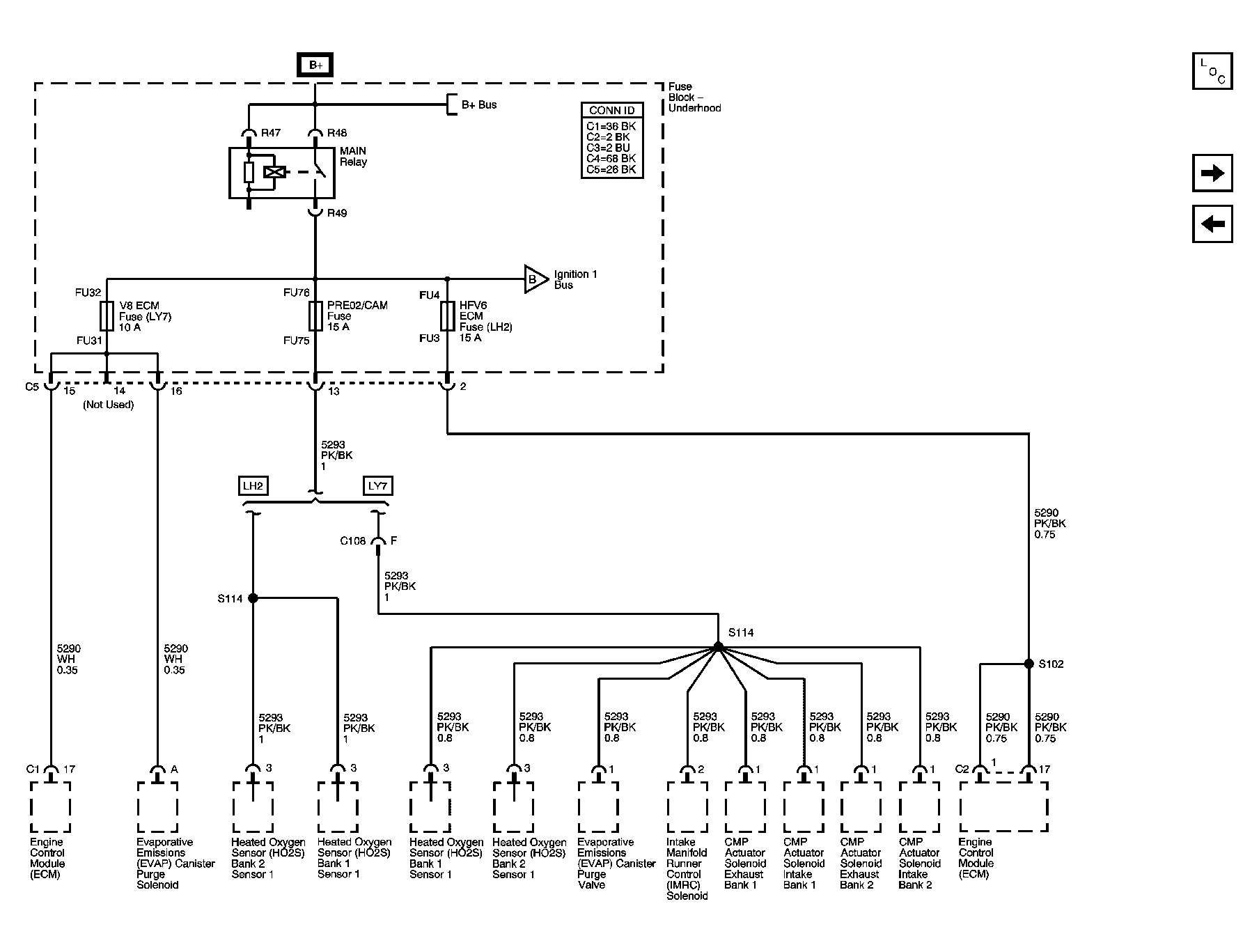

Fig 12: HFVG, PRE 02/CAM, & V8 ECM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

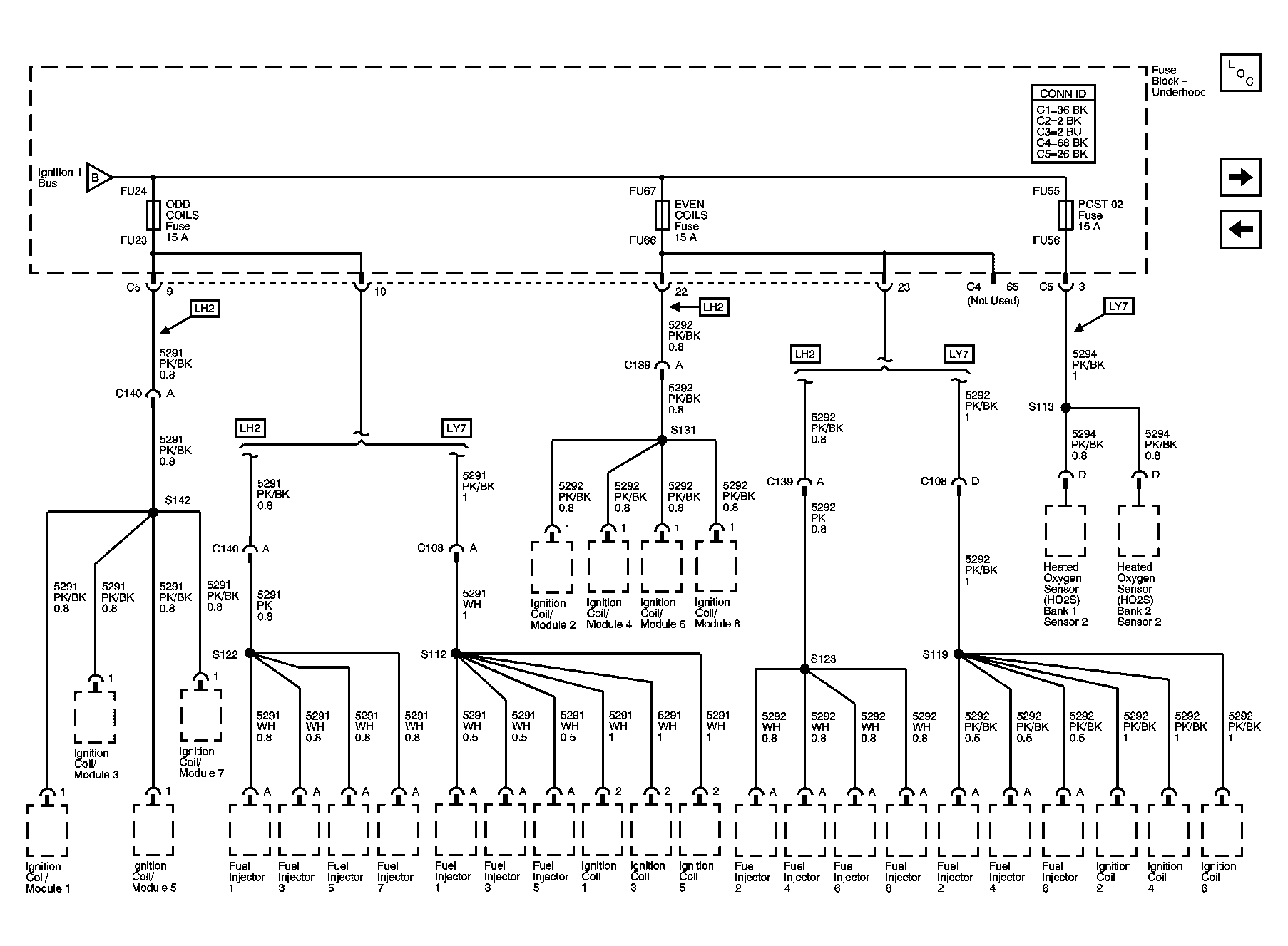

Fig 13: EVEN COILS, ODD COILS, & POST 02 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

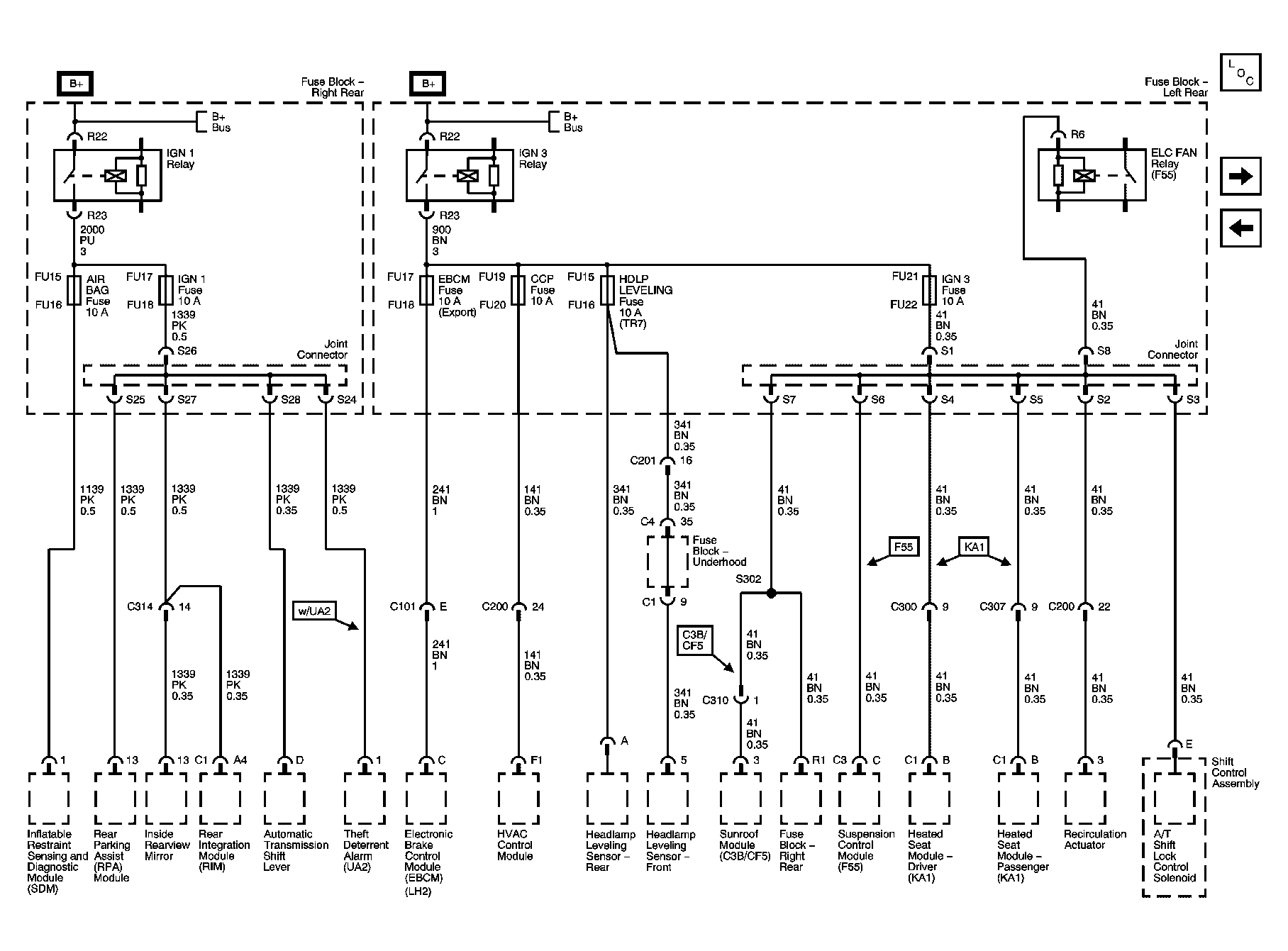

Fig 14: AIRBAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, & IGN 3 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

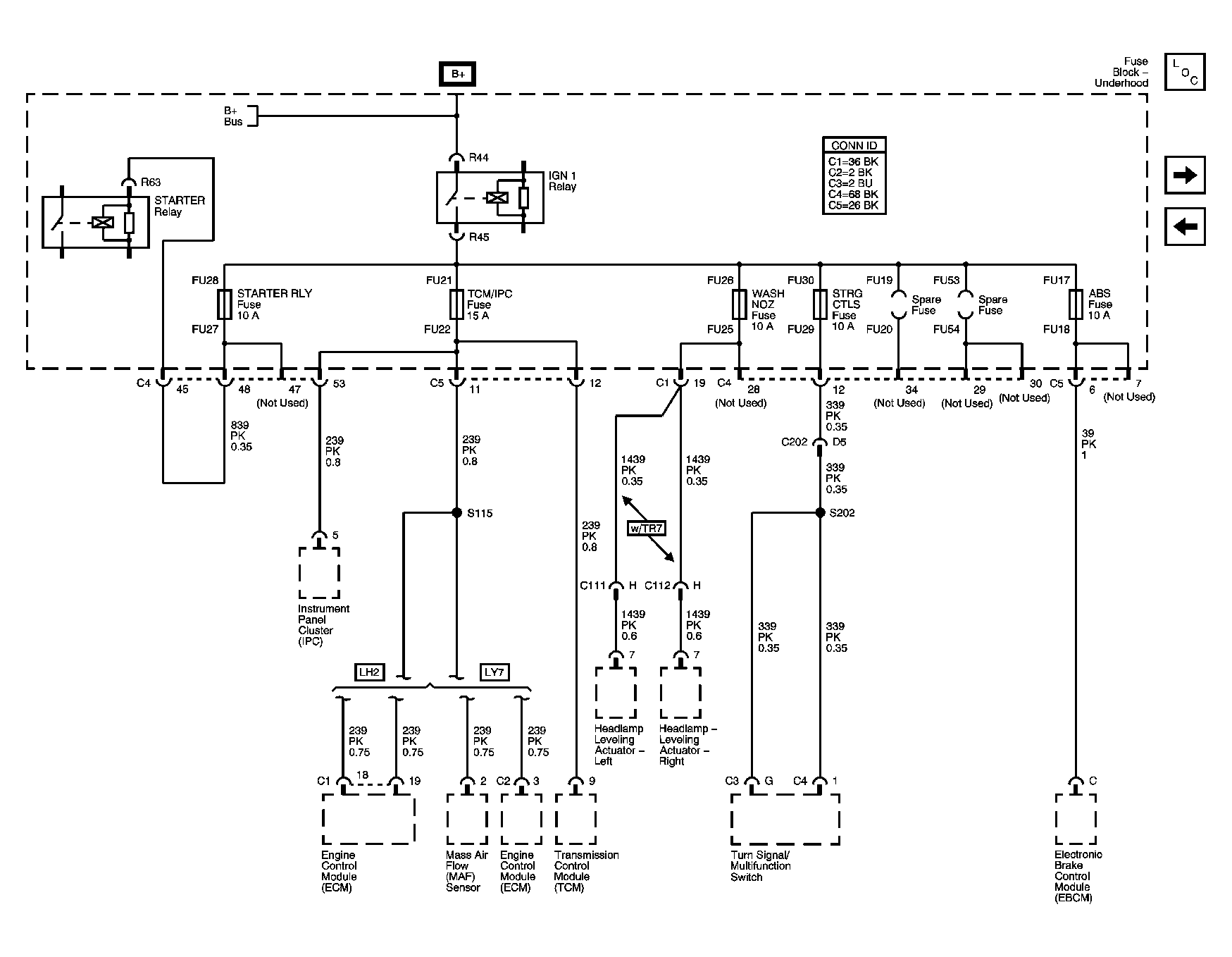

Fig 15: ABS, STARTER RLY, STRG CTLS, TCM/IPC, & WASH NOZ Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

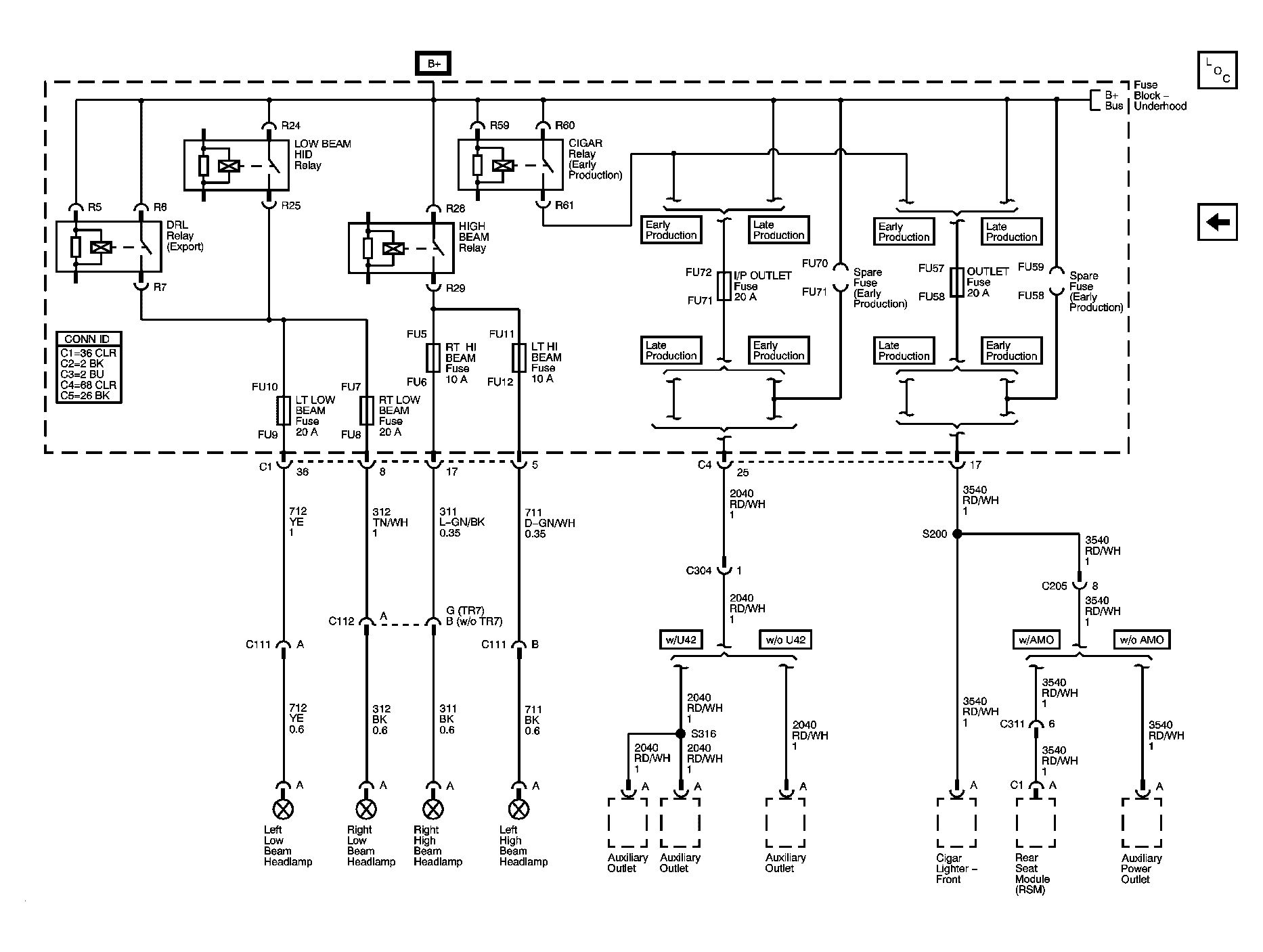

Fig 16: I/P OUTLET, LT HI BEAM, LT LOW BEAM, OUTLET, RT HI BEAM, & RT LOW BEAM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
