Theft Deterrent System Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

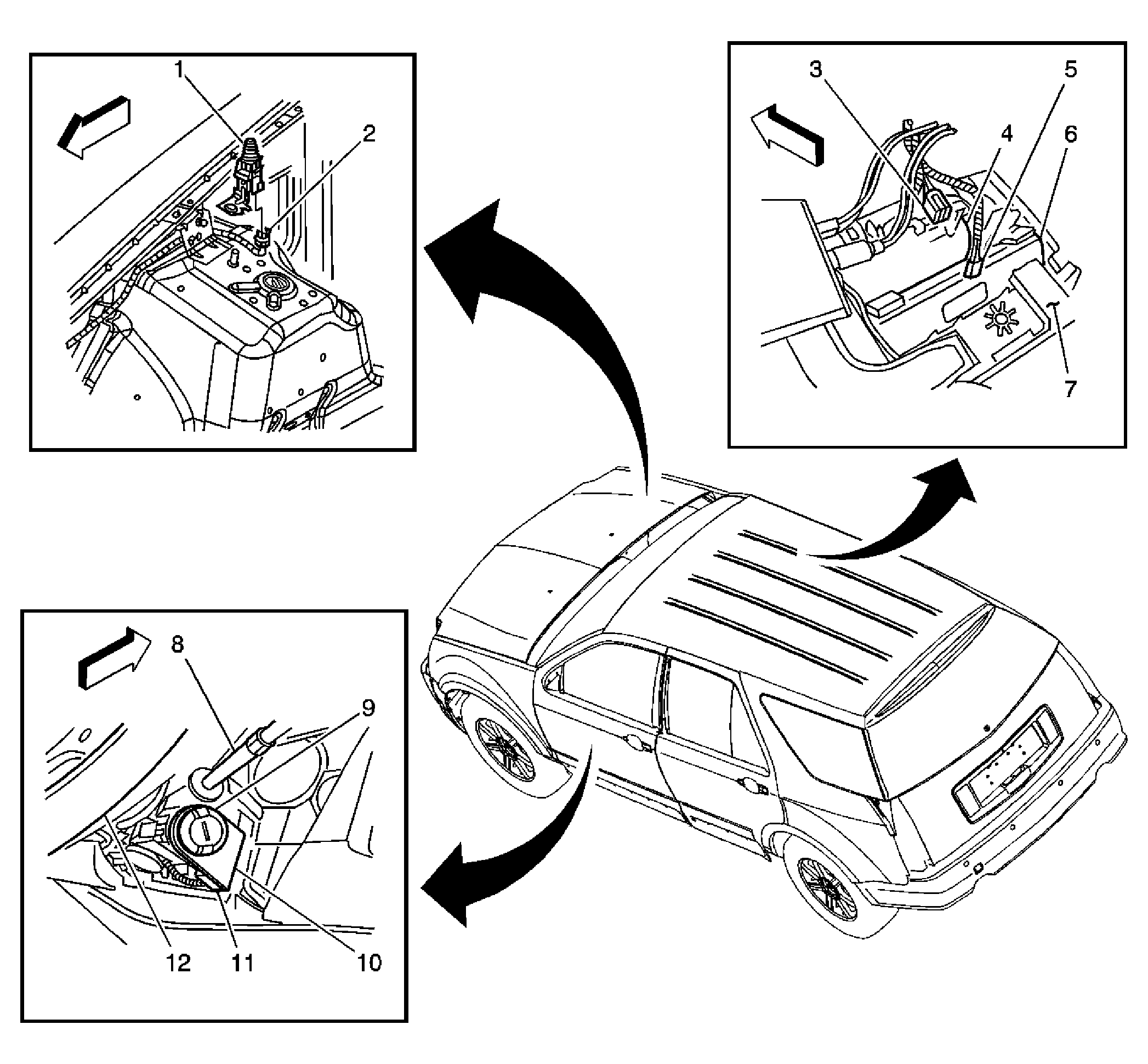

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Hood Ajar Switch |
| 2 |
Hood Ajar Switch Connector |
| 3 |
Dome Lamp Connector |
| 4 |
Dome Lamp |
| 5 |
Intrusion Sensor Connector |
| 6 |
Intrusion Sensor |
| 7 |
Headliner |
| 8 |
Windshield Wiper/Washer Switch |
| 9 |
Ignition Lock Solenoid |
| 10 |
Theft Deterrent Control Module |
| 11 |
Theft Deterrent Control Module Connector |
| 12 |
Steering Wheel |

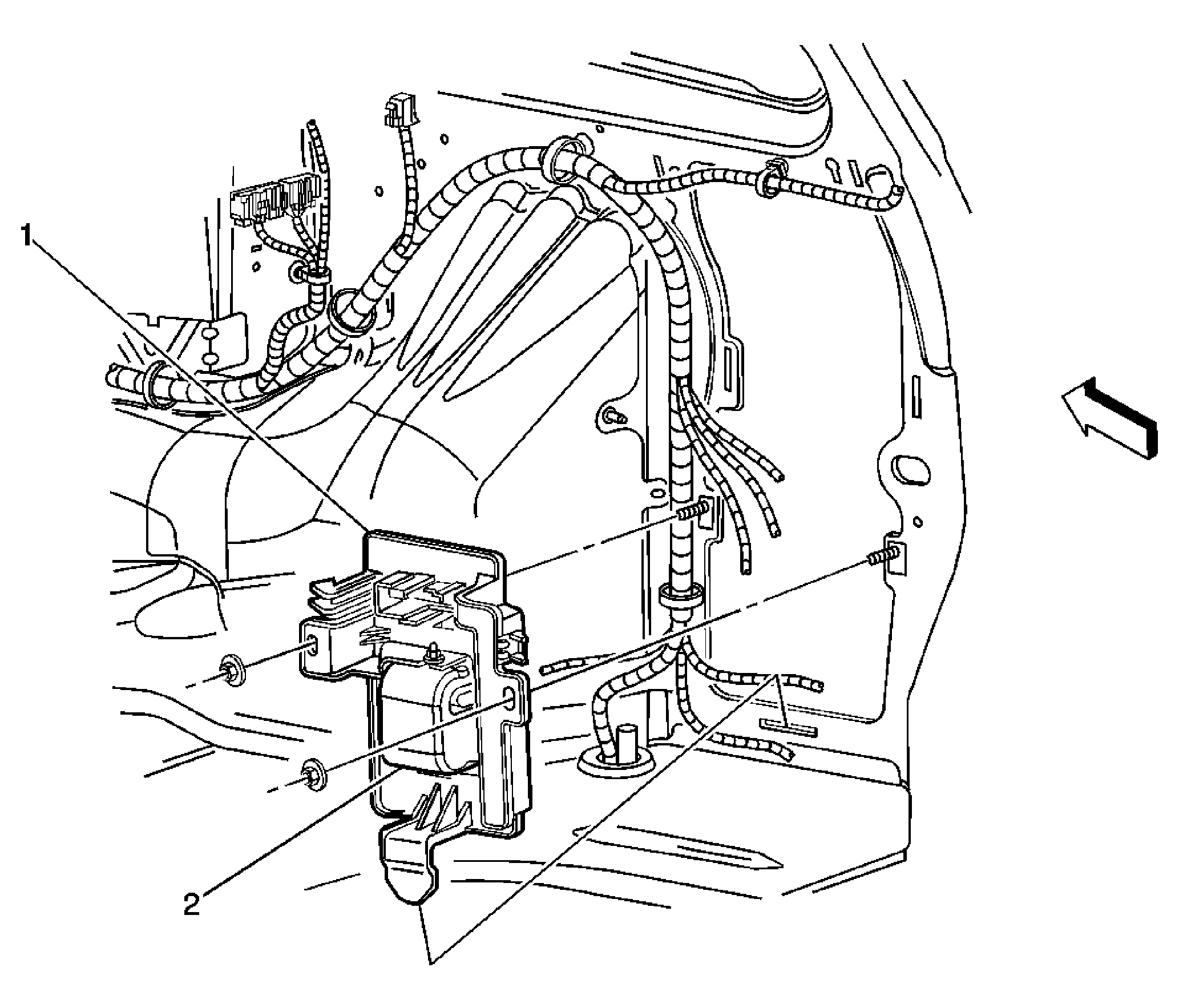

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inclination Sensor |
| 2 |
Theft Deterrent Alarm Siren |
