Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the license lamp bulb into the socket if replacing.
  2. Install the license lamp socket into the lamp assembly by inserting the socket and turning the socket clockwise.
  3. Install the license lamp (1) to the liftgate applique by sliding the lamp into the applique until an audible click is heard.

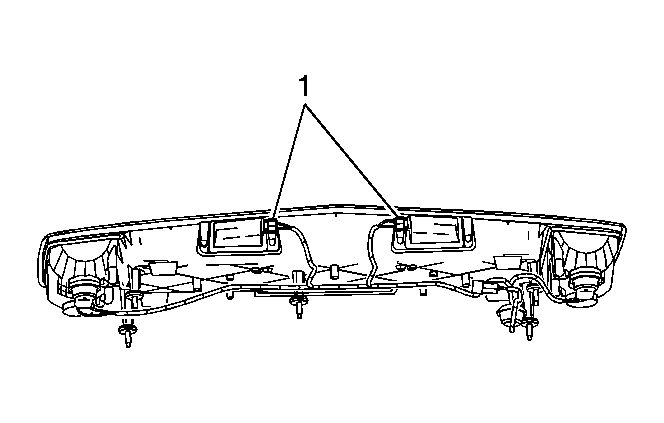

    4. Fig 1: View Of License Lamp
    GM1257687Courtesy of GENERAL MOTORS CORP.
  4. Install the liftgate applique to the rear compartment lid. Refer to Liftgate Applique Replacement in Body Rear End.
  5. Close the lift gate.
