Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sensor (3) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolt (1) to secure the sensor (4) to the vehicle.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in)

  3. Install ball and socket (3) to sensor (4).
  4. Connect electrical connector (2) to the sensor (4).

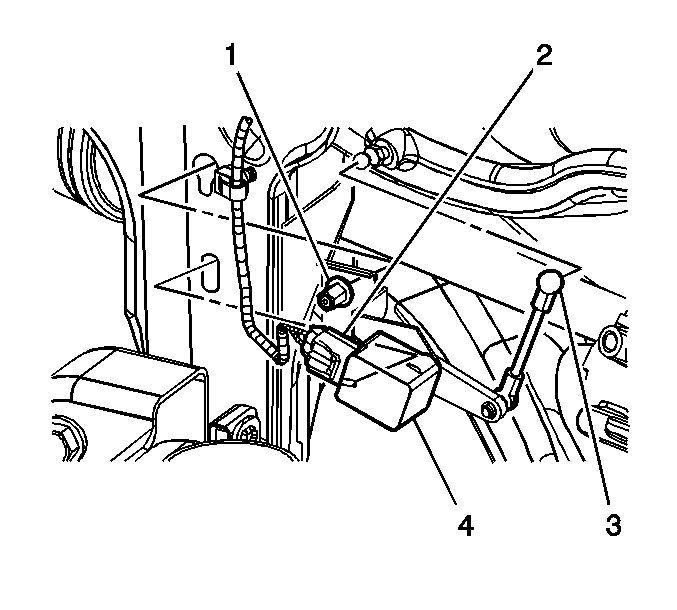

    5. Fig 1: View Of Rear Headlamp Leveling Sensor
    GM802721Courtesy of GENERAL MOTORS CORP.
  5. Install the right tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Lower the vehicle.
