Horns Component Views

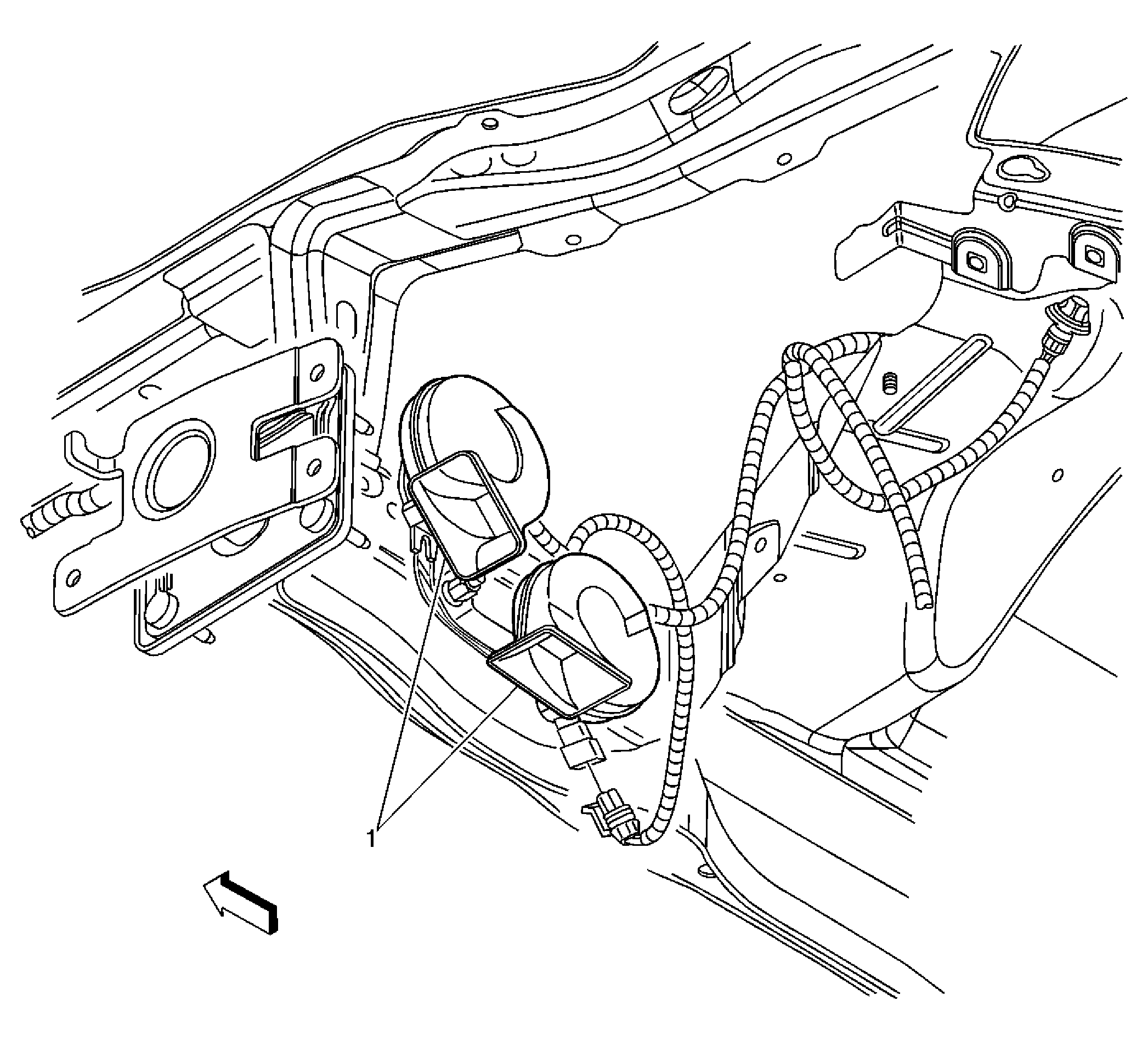

Fig 1: Left Front Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horns

Fig 2: Steering Wheel Components Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module/Horn Switch
2	Steering Wheel Controls - Left
3	Steering Wheel Controls - Right
4	Steering Wheel Controls - Left Connector
5	C208
6	Steering Wheel
7	Steering Column
8	Inflatable Restraint Steering Wheel Module Coil
9	Inflatable Restraint Steering Wheel Module Connector C1
10	Inflatable Restraint Steering Wheel Module Connector C2
11	C208
12	Steering Wheel Controls - Right Connector
