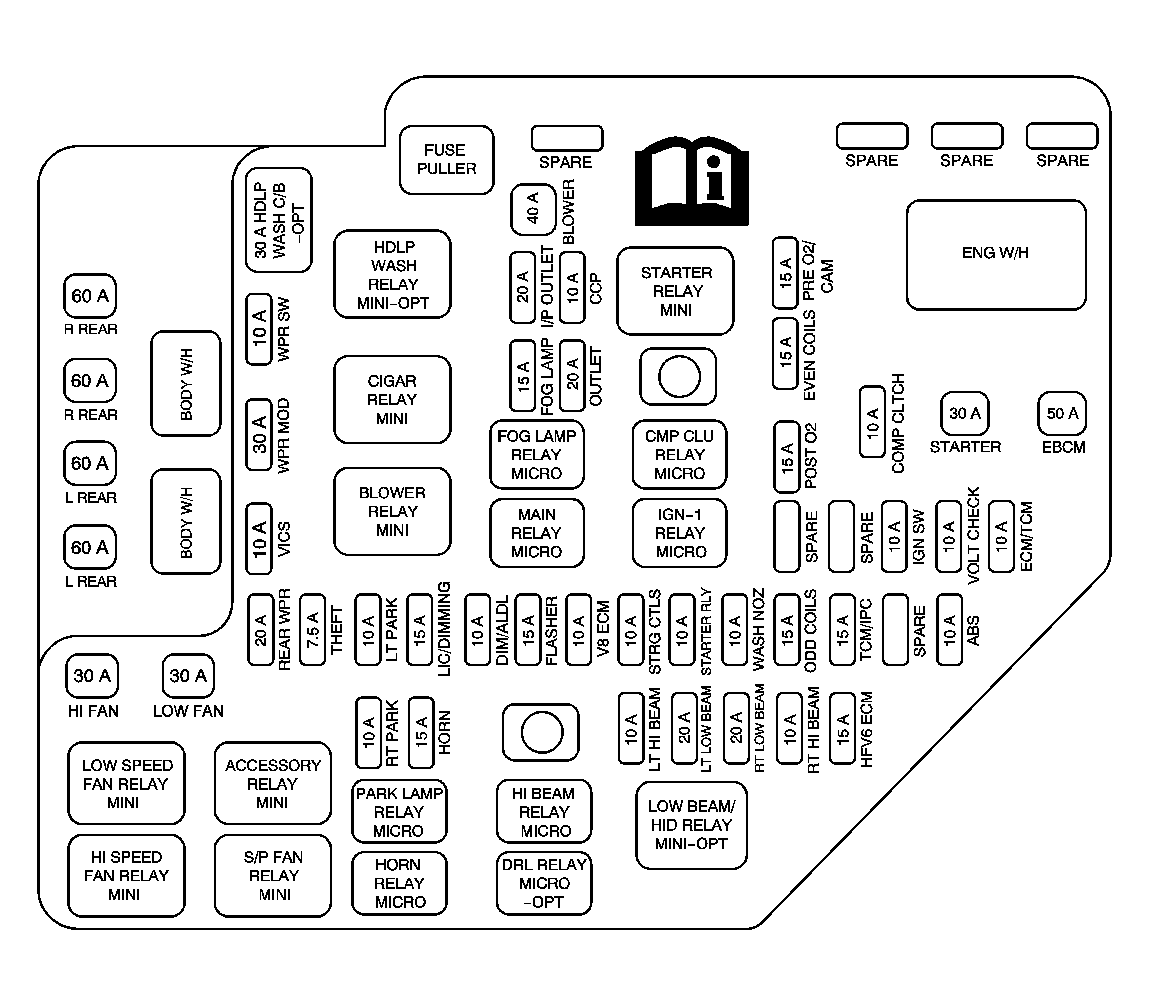

Fuse Block - Underhood Label
Fuse Block - Underhood Label Usage
| Device | Rating | Description |
|---|---|---|
| ABS Fuse | 10A | EBCM |
| BLOWER Fuse | 40A | BLOWER Relay |
| CCP Fuse | 10A | HVAC Control Module |
| COMP CLTCH Fuse | 10A | CMP CLU Relay |
| DIM/ALDL Fuse | 10A | DIM and DLC |
| EBCM Fuse | 50A | EBCM |
| ECM/TCM Fuse | 10A | ECM, IPC, Theft Deterrent Module, and TCM |
| EVEN COILS Fuse | 15A | Even Ignition Coils and Even Fuel Injectors |
| FLASHER Fuse | 15A | Turn Signal/Hazard Flasher Module |
| FOG LAMP Fuse | 15A | FOG LAMP Relay |
| HFV6 ECM | 15A | ECM (LY7) |
| HI FAN Fuse | 30A | HI SPEED FAN Relay |
| HORN Fuse | 15A | HORN Relay |
| IGN SW Fuse | 10A | Adjustable Pedals Switch (JF4) and Ignition Switch |
| I/P OUTLET Fuse | 20A | Auxiliary Power Outlet and Cigar Lighter |
| LIC/DIMMING Fuse | 15A | DIM, License Lamp - Left, and License Lamp - Right |
| LOW FAN Fuse | 30A | LOW SPEED FAN Relay |
| L REAR Fuse | 60A | Fuse Block - Left Rear |
| L REAR Fuse | 60A | Fuse Block - Left Rear |
| LT HI BEAM Fuse | 10A | Left High Beam Headlamp |
| LT LOW BEAM Fuse | 20A | Left Low Beam Headlamp |
| LT PARK Fuse | 10A | L POSITION Relay (Export), Park Lamp - Left, Side Marker Lamp - Left, and Tail Lamp - Left |
| ODD COILS | 15A | Odd Ignition Coils and Odd Fuel Injectors |
| OUTLET Fuse | 20A | Auxiliary Power Outlet - Left and Auxiliary Power Outlet - Right |
| POST 02 Fuse | 15A | HO2S Bank 1 Sensor 2, HO2S Bank 2 Sensor 2 |
| PRE02/CAM Fuse | 15A | CMP Solenoid Exhaust Actuators Bank 1 and Bank 2 (LY7), CMP Solenoid Intake Actuators Bank 1 and Bank 2 (LY7), EVAP Canister Purge Valve (LY7), HO2S Bank 1 Sensor 1, HO2S Bank 2 Sensor 1, and Intake Runner Solenoid (LY7) |
| REAR WPR Fuse | 20A | Window Wiper Motor - Rear |
| R REAR Fuse | 60A | Fuse Block - Right Rear |
| R REAR Fuse | 60A | Fuse Block - Right Rear |
| RT HI BEAM Fuse | 10A | Right High Beam Headlamp |
| RT LOW BEAM Fuse | 20A | Right Low Beam Headlamp |
| RT PARK Fuse | 10A | R POSITION Relay (Export), Park Lamp - Right, Side Marker Lamp - Right, and Tail Lamp - Right |
| Spare Fuse | - | Not Used |
| STARTER Fuse | 30A | STARTER Relay |
| STARTER RLY Fuse | 10A | STARTER Relay |
| STRG CTLS Fuse | 10A | Headlamp Switch and Left Multifunction Lever |
| TCM/IPC Fuse | 15A | ECM, IPC, MAF Sensor (LY7), and TCM |
| THEFT Fuse | 7.5A | ECM, TCM, and Theft Deterrent Control Module |
| V8 ECM Fuse | 10A | ECM and EVAP Canister Purge Solenoid (LH2) |
| VICS Fuse | 10A | Traffic Information Receiver (VICS FM Multiplex Module) |
| VOLT CHECK Fuse | 10A | DIM |
| WASH NOZ Fuse | 10A | Heated Washer Nozzles |
| WPR MOD Fuse | 30A | Windshield Wiper/Washer Module |
| WPR SW Fuse | 10A | Windshield Wipe/Washer Switch, Wiper/Washer Switch - Rear |
| HDLP WASH Circuit Breaker | 30A | HDLP WASH Relay |
| ACCESSORY Relay | - | REAR WPR, VICS, WPR MOD, and WPR SW Fuses |
| BLOWER Relay | - | Blower Motor and Blower Motor Control Processor |
| CIGAR Relay | - | OUTLET and I/P OUTLET Fuses |
| CMP CLU Relay | - | A/C Compressor Clutch |
| DRL Relay | - | LT LOW BEAM and RT LOW BEAM Fuses |
| FOG LAMP Relay | - | Fog Lamps |
| HDLP WASH Relay | - | Headlamp Washer Fluid Pump |
| HI BEAM Relay | - | LT HI BEAM and RT HI BEAM Fuses |
| HI SPEED FAN Relay | - | Cooling Fan - Right |
| HORN Relay | - | Horns |
| IGN-1 Relay | - | ABS, STARTER RLY, STRG CTLS, TCM/IPC, and WASH NOZ Fuses |
| LOW BEAM/HID Relay | - | LT LOW BEAM and RT LOW BEAM Fuses |
| LOW SPEED FAN Relay | - | Cooling Fan - Left |
| MAIN Relay | - | LOW SPEED FAN, HI SPEED FAN, and S/P FAN Relays, EVEN COILS, HFV6, ODD COILS, POST O2, PREO2/CAM, and V8 ECM Fuses |
| PARK LAMP Relay | - | RT PARK, LT PARK, and LIC/DIMMING Fuses |
| S/P FAN Relay | - | Cooling Fan - Left |
| STARTER Relay | - | Starter |
| BODY W/H | - | Underhood Fuse Block C2 (2-Way Connector) |
| BODY W/H | - | Underhood Fuse Block C3 (2-Way Connector) |
| ENG W/H | - | Underhood Fuse Block C5 (26-Way Connector) |
| Fuse Puller | - | Fuse Puller |
