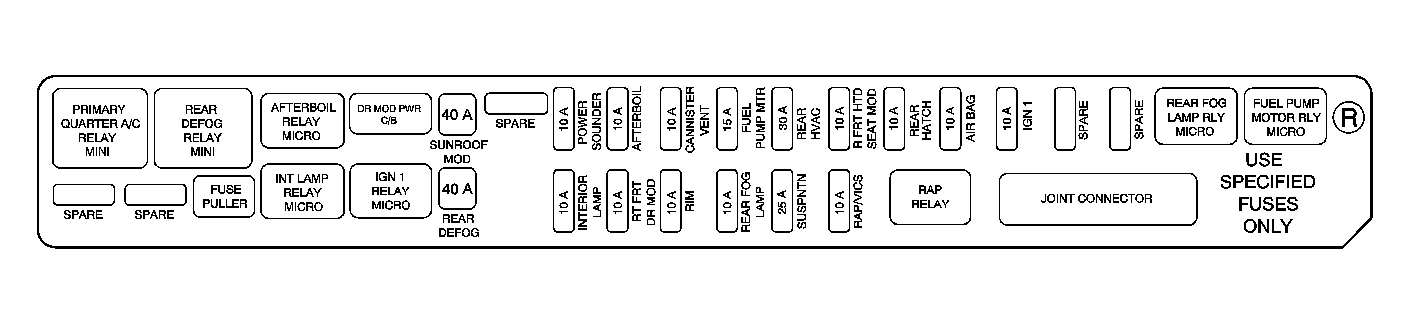

Fuse Block - Right Rear Label
Fuse Block - Right Rear Label Usage
| Device | Rating | Description |
|---|---|---|
| AFTER BOIL Fuse | 10A | AFTER BOIL Relay (LH2 w/V92) |
| AFTER BOIL Relay | - | After Boil Heater Pump (LH2 w/V92) |
| AIRBAG Fuse | 10A | SDM |
| DR MOD PWR Circuit Breaker | 30A | DDM, LRDM, FPDM, and RRDM |
| FUEL PUMP MOTOR Relay | - | Fuel Pump Motor |
| FUEL PUMP MTR Fuse | 15A | Fuel Pump Relay |
| Fuse Puller | - | Fuse Puller |
| IGN 1 Relay | - | Ignition 1 Fuse, RIM, SDM Fuse, Inside Rearview Mirror, SDM, Power Sounder (Export), RPA, and Floor Shifter |
| INT LAMP Relay | - | Liftgate Courtesy Lamp, Door Exterior Courtesy Lamps and Overhead Console Courtesy Lamps |
| INTERIOR LAMP Fuse | 10A | INT LAMP Relay |
| POWER SOUNDER Fuse | 10A | Inclination Sensor (Export) and Theft Deterrent Alarm (Export) |
| RT FRT DR MOD Fuse | 10A | FPDM |
| R FRT HTD SEAT MOD Fuse | 10A | Passenger Heated Seat Module |
| RAP Relay | - | Sunroof/Front Sunshade Control Module (C3B/CF5 w/o T79) and Rear Sunshade Control Module (C3B w/o T79) |
| REAR DEFOG Fuse | 40A | REAR DEFOG Relay |
| REAR DEFOG Relay | - | Rear Defogger Element |
| REAR FOG LAMP Fuse | 10A | REAR FOG LAMP Relay (Export) |
| REAR FOG LAMP Relay | - | Rear Fog Lamps (Export) |
| REAR HATCH Fuse | 10A | REAR HATCH Relay (Body Harness) |
| REAR HVAC Fuse | 30A | PRIMARY QUARTER A/C Relay |
| PRIMARY QUARTER A/C Relay | - | Rear HVAC Blower Motor |
| RIM Fuse | 10A | RIM, Ignition Switch and Floor Shifter (Key Lock Solenoid) |
| Spare Fuse | - | Not Used |
| SUNROOF MOD Fuse | 40A | Sunroof Switch - Front, Front Shade Motor (Mini) and Rear Shade Motor (Mega) |
| SUSPNTN Fuse | 25A | SCM |
| VICS/RAP Fuse | 10A | RAP Relay (w/o T79), Traffic Information Receiver (U2X), and TV Tuner Module (U2Y/U2X) |
