Power Seat Systems Connector End Views

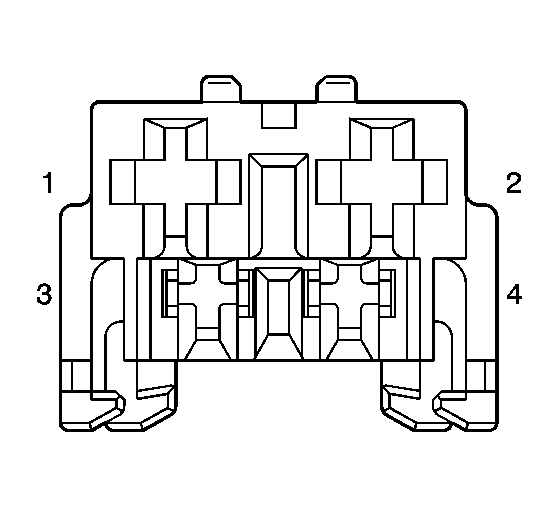

Folding Seat Horizontal Motor Assembly (AM0)

GM1404730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 968182-1
  • 4-Way M Amp (BK)
Pin Wire Color Circuit No. Function
1 YE 5464 Folding Seat Horizontal Motor Rearward Control
2 WH 5465 Folding Seat Horizontal Motor Forward Control
3 BN 5474 Folding Seat Position Sensor Low Reference
4 OG 5471 Folding Seat Horizontal Position Sensor Signal
Folding Seat Recline Motor Assembly (AM0)

GM1404730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 968182-1
  • 4-Way M Amp (BK)
Pin Wire Color Circuit No. Function
1 YE/BK 5468 Folding Seat Back Recline Motor Forward Control
2 GY 5469 Folding Seat Back Recline Motor Rearward Control
3 BN 5474 Folding Seat Position Sensor Low Reference
4 PK 5472 Folding Seat Recline Position Sensor Signal
Folding Seat Recline Switch (AM0)

GM39660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 4540 Battery Positive Voltage
B - - Not Used
C L-BU 5368 Folding Seat Recline Switch Signal
D - - Not Used
Folding Seat Rotation Motor Assembly (AM0)

GM1404730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 968182-1
  • 4-Way M Amp (BK)
Pin Wire Color Circuit No. Function
1 D-GN 5467 Folding Seat Back Rotation Motor Forward Control
2 D-BU 5466 Folding Seat Back Rotation Motor Rearward Control
3 BN 5474 Folding Seat Position Sensor Low Reference
4 PU/WH 5473 Folding Seat Rotation Position Sensor Signal
Folding Seat Stow Switch - Front (AM0)

GM1283883Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419483
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 4540 Battery Positive Voltage
B - - Not Used
C D-BU 5366 Folding Seat Front Stow Switch Signal
D - - Not Used
Folding Seat Stow Switch - Rear (AM0)

GM1283883Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419483
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 4540 Battery Positive Voltage
B - - Not Used
C D-BU/WH 5367 Folding Seat Rear Stow Switch Signal
D - - Not Used
Heated Seat Control Module - Driver C1 (KA1)

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (WH)
Pin Wire Color Circuit No. Function
A RD/WH 2440 Battery Positive Voltage
B BN 41 Ignition 3 Voltage
C L-BU/WH 181 Heated Seat Control Module Status Signal
D - - Not Used
E PK 1501 Driver Heated Seat High/Low Signal
F-J - - Not Used
K BK 550 Ground
Heated Seat Control Module - Driver C2 (KA1)

GM40422Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit No. Function
A YE 9529 Heated Seat Element Supply Voltage
B - - Not Used
C YE 9530 Heated Seat Element Control
D BK/RD 9534 Heated Seat Temperature Sensor Low Reference
E - - Not Used
F BK/RD 9533 Heated Seat Temperature Sensor Signal
Heated Seat Control Module - Passenger C1 (KA1)

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (WH)
Pin Wire Color Circuit No. Function
A OG 2540 Battery Positive Voltage
B BN 41 Ignition 3 Voltage
C L-BU/WH 2181 Passenger Heated Seat Control Module Status Signal
D - - Not Used
E PK 1503 Passenger Heated Seat High/Low Signal
F-J - - Not Used
K BK 550 Ground
Heated Seat Control Module - Passenger C2 (KA1)

GM40422Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit No. Function
A YE 9529 Heated Seat Element Supply Voltage
B - - Not Used
C YE 9530 Heated Seat Element Control
D BK/RD 9534 Heated Seat Temperature Sensor Low Reference
E - - Not Used
F BK/RD 9533 Heated Seat Temperature Sensor Signal
Memory Seat Module - Driver C1 (A45)

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 3740 Battery Positive Voltage
B BK 550 Ground
Memory Seat Module - Driver C2 (A45)

GM258912Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110113
  • 32-Way F Micro-Pack 100 Series (RD)
Pin Wire Color Circuit No. Function
A1 D-GN 1518 Power Seat Front Vertical Up Switch Signal
A2 YE 1519 Power Seat Rear Vertical Up Switch Signal
A3 D-BU 1520 Power Seat Front Vertical Down Switch Signal
A4 L-BU 1521 Power Seat Rear Vertical Down Switch Signal
A5 TN 1522 Power Seat Horizontal Forward Switch Signal
A6 L-GN 1523 Power Seat Horizontal Rearward Switch Signal
A7 GY/BK 1269 Power Seat Recline Forward Switch Signal
A8 D-GN/WH 1270 Power Seat Recline Rearward Switch Signal
A9 D-BU 1064 Driver Seat Lumbar Rearward Switch Signal (AL2)
A10 YE 1065 Driver Seat Lumbar Forward Switch Signal (AL2)
A11-A12 - - Not Used
A13 GY 788 5-Volt Reference
A14 BN/WH 557 Front Vertical Seat Motor Position Sensor Signal
A15 TN 782 Memory Seat/Mirror Sensor Low Reference
A16 D-GN 569 Horizontal Seat Motor Position Sensor Signal
B1 TN 568 Rear Vertical Seat Motor Position Sensor Signal
B2 WH/BK 570 Driver Seat Recline Motor Position Sensor Signal
B3 YE 1063 Driver Seat Lumbar Horizontal Position Sensor Signal (AL2)
B4 D-GN 5953 Adjustable Accelerator Pedal Position Sensor Signal (JF4)
B5 - - Not Used
B6 D-BU 5952 Adjustable Brake Pedal Position Sensor Signal
B7-B8 - - Not Used
B9 PU 5286 Adjustable Pedals Motor Forward Control (JF4)
B10 OG/BK 5285 Adjustable Pedals Motor Rearward Control (JF4)
B11 RD/WH 2840 Battery Positive Voltage
B12-B13 - - Not Used
B14 PU 1807 Class 2 Serial Data
B15-B16 - - Not Used
Memory Seat Module - Driver C3 (A45)

GM283847Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129431
  • 16-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN 286 Driver Seat Front Vertical Motor Up Control
B D-BU 611 Driver Seat Lumbar Motor Forward Control (AL2)
C-E - - Not Used
F L-GN 276 Driver Seat Recline Motor Forward Control
G L-BU 277 Driver Seat Recline Motor Rearward Control
H YE 5129 Adjustable Pedals Relay Rearward Control (JF4)
J PU 5130 Adjustable Pedals Relay Forward Control (JF4)
K - - Not Used
L PK 610 Driver Seat Lumbar Motor Rearward Control (AL2)
M D-BU 287 Driver Seat Front Vertical Motor Down Control
N TN 285 Driver Seat Horizontal Motor Forward Control
P L-BU 283 Driver Seat Rear Vertical Motor Down Control
R YE 282 Driver Seat Rear Vertical Motor Up Control
S L-GN 284 Driver Seat Horizontal Motor Rearward Control
Memory Seat Switch (A45)

GM814536Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 174966
  • 4-Way F AMP Multi-Lock (BK)
Pin Wire Color Circuit No. Function
1 YE 1491 Backlight Lamps Control
2 PU 616 Memory 2 Switch Signal
3 BK/WH 351 Ground
4 WH 615 Memory 1 Switch Signal
Rear Seat Module C1 (AM0)

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A RD/WH 140 Battery Positive Voltage
B BK 1050 Ground
Rear Seat Module C2 (AM0)

GM73157Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110114
  • 32-Way F Micro-Pack 100 Series (WH)
Pin Wire Color Circuit No. Function
C1-C3 - - Not Used
C4 PK 5472 Folding Seat Recline Position Sensor Signal
C5 PU/WH 5473 Folding Seat Rotation Position Sensor Signal
C6 - - Not Used
C7 OG 5471 Folding Seat Horizontal Position Sensor Signal
C8-C9 - - Not Used
C10 L-GN 5698 Load Floor Position Switch Signal
C11 PU 5470 Back Panel Position Switch Signal
C12 D-BU 5366 Folding Seat Front Stow Switch Signal
C13 L-BU 5368 Folding Seat Recline Switch Signal
C14 - - Not Used
C15 D-BU/WH 5367 Folding Seat Rear Stow Switch Signal
C16 PU 1807 Class 2 Serial Data
D1 YE/BK 5701 Load Floor Position Switch Supply Voltage
D2 L-BU/WH 5700 Back Panel Position Switch Supply Voltage
D3-D14 - - Not Used
D15 BN 5474 Folding Seat Position Sensor Low Reference
D16 - - Not Used
Rear Seat Module C3 (AM0)

GM258247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129432
  • 16-Way F Metri-Pack 280 Series (GY)
Pin Wire Color Circuit No. Function
A-B - - Not Used
C YE/BK 5468 Folding Seat Back Recline Motor Forward Control
D - - Not Used
E D-BU 5466 Folding Seat Back Rotation Motor Rearward Control
F-H - - Not Used
J WH 5465 Folding Seat Horizontal Motor Forward Control
K GY 5469 Folding Seat Back Recline Motor Rearward Control
L D-GN 5467 Folding Seat Back Rotation Motor Forward Control
M-N - - Not Used
P YE 5494 Folding Seat Horizontal Motor Rearward Control
R-S - - Not Used
Seat Adjuster Switch - Driver (w/o A45)

GM476149Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F GT 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU 77 Driver Seat Recline Motor Rearward
B D-GN 76 Driver Seat Recline Motor Forward
C BK 550 Ground
D L-GN 290 Driver Seat Horizontal Motor Rearward Control
E TN 296 Driver Seat Horizontal Motor Forward Control
F RD/WH 3740 Battery Positive Voltage
G-H - - Not Used
J L-BU 289 Driver Seat Rear Vertical Motor Down Control
K YE 288 Driver Seat Rear Vertical Motor Up Control
L D-BU 298 Driver Seat Front Vertical Motor Down Control
M D-GN 297 Driver Seat Front Vertical Motor Up Control
Seat Adjuster Switch - Driver (A45)

GM476149Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F GT 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN/WH 1270 Power Seat Recline Rearward Switch Signal
B GY/BK 1269 Power Seat Recline Forward Switch Signal
C - - Not Used
D L-GN 1523 Power Seat Horizontal Rearward Switch Signal
E TN 1522 Power Seat Horizontal Forward Switch Signal
F RD/WH 2840 Battery Positive Voltage
G-H - - Not Used
J L-BU 1521 Power Seat Rear Vertical Down Switch Signal
K YE 1519 Power Seat Rear Vertical Up Switch Signal
L D-BU 1520 Power Seat Front Vertical Down Switch Signal
M D-GN 1518 Power Seat Front Vertical Up Switch Signal
Seat Adjuster Switch - Passenger

GM476149Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F GT 280 Series (BK)
Pin Wire Color Circuit No. Function
A OG 3740 Battery Positive Voltage
B L-GN 290 Passenger Seat Horizontal Motor Rearward Control
C TN 296 Passenger Seat Horizontal Motor Forward Control
D BK 550 Ground
E D-BU 77 Passenger Seat Recline Motor Rearward
F D-GN 76 Passenger Seat Recline Motor Forward
G D-BU 298 Passenger Seat Front Vertical Motor Down Control
H D-GN 297 Passenger Seat Front Vertical Motor Up Control
J L-BU 289 Passenger Seat Rear Vertical Motor Down Control
K YE 288 Passenger Seat Rear Vertical Motor Up Control
L-M - - Not Used
Seat Back Load Floor Position Switch (AM0)

GM35451Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059251
  • 2-Way F Metri-Pack 150 Series (RD)
Pin Wire Color Circuit No. Function
A L-GN 5698 Load Floor Position Switch Signal
B YE/BK 5701 Load Floor Position Switch Supply Voltage
Seat Back Panel Position Switch (AM0)

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PU 5470 Back Panel Position Switch Signal
B L-BU/WH 5700 Back Panel Position Switch Supply Voltage
Seat Front Vertical Motor - Driver

GM1542255Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129082
  • 2-Way F Metri-Pack 280 Series, Flexlock (GY)
Pin Wire Color Circuit No. Function
A D-BU 287 Driver Seat Front Vertical Motor Down Control
B D-GN 286 Driver Seat Front Vertical Motor Up Control
Seat Front Vertical Motor - Passenger

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit No. Function
A D-GN 297 Passenger Seat Front Vertical Motor Up Control
B D-BU 298 Passenger Seat Front Vertical Motor Down Control
Seat Front Vertical Position Sensor - Driver (A45)

GM1332410Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059584
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A - - Not Available
B TN 782 Memory Seat/Mirror Sensor Low Reference
C BN/WH 557 Front Vertical Seat Motor Position Sensor Signal
D GY 788 5-Volt Reference
Seat Horizontal Motor - Driver

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A TN 285 Driver Seat Horizontal Motor Forward Control
B L-GN 284 Driver Seat Horizontal Motor Rearward Control
Seat Horizontal Motor - Passenger

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN 290 Passenger Seat Horizontal Motor Rearward Control
B TN 296 Passenger Seat Horizontal Motor Forward Control
Seat Horizontal Position Sensor - Driver (A45)

GM1332415Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059581
  • 3-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
A GY 788 5-Volt Reference
B D-GN 569 Horizontal Seat Motor Position Sensor Signal
C TN 782 Memory Seat/Mirror Sensor Low Reference
D - - Not Available
Seat Lumbar Motor - Driver (AL2)

GM38274Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015199
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU 610 Driver Seat Lumbar Motor Rearward Control
B PK 611 Driver Seat Lumbar Motor Forward Control
Seat Lumbar Motor - Passenger (AL2)

GM38274Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015199
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU 211 Passenger Seat Lumbar Motor Forward Control
B WH 210 Passenger Seat Lumbar Motor Rearward Control
Seat Lumbar Switch - Driver (AL2)

GM62432Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041429
  • 5-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B YE 1065 Driver Seat Lumbar Forward Switch Signal
C - - Not Used
D RD/WH 2840 Battery Positive Voltage
E D-BU 1064 Driver Seat Lumbar Rearward Switch Signal
Seat Lumbar Switch - Passenger (AL2)

GM62432Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041429
  • 5-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A BK 550 Ground
B D-BU 211 Passenger Seat Lumbar Motor Forward Control
C BK 550 Ground
D OG 3740 Battery Positive Voltage
E WH 210 Passenger Seat Lumbar Motor Rearward Control
Seat Rear Vertical Motor - Driver

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit No. Function
A YE 282 Driver Seat Rear Vertical Motor Up Control
B L-BU 283 Driver Seat Rear Vertical Motor Down Control
Seat Rear Vertical Motor - Passenger

GM1542255Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129082
  • 2-Way F Metri-Pack 280 Series, Flexlock (GY)
Pin Wire Color Circuit No. Function
A L-BU 289 Passenger Seat Rear Vertical Motor Down Control
B YE 288 Passenger Seat Rear Vertical Motor Up Control
Seat Rear Vertical Position Sensor - Driver (A45)

GM1332414Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059582
  • 3-Way F Metri-Pack 150 Series (BU)
Pin Wire Color Circuit No. Function
A GY 788 5-Volt Reference
B TN 568 Rear Vertical Seat Motor Position Sensor Signal
C - - Not Available
D TN 782 Memory Seat/Mirror Sensor Low Reference
Seat Recline Motor - Driver

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN 276 Driver Seat Recline Motor Forward Control
B L-BU 277 Driver Seat Recline Motor Rearward Control
Seat Recline Motor - Passenger

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN 76 Passenger Seat Recline Motor Forward Control
B D-BU 77 Passenger Seat Recline Motor Rearward Control
Seat Recline Position Sensor - Driver (A45)

GM401671Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 39-01-4030
  • 3-Way F Molex (NA)
Pin Wire Color Circuit No. Function
1 TN 782 Memory Seat/Mirror Sensor Low Reference
2 GY 788 5-Volt Reference
3 WH/BK 570 Driver Seat Recline Motor Position Sensor Signal
scientia non olet · About LEMON Manuals
