Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: Right Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

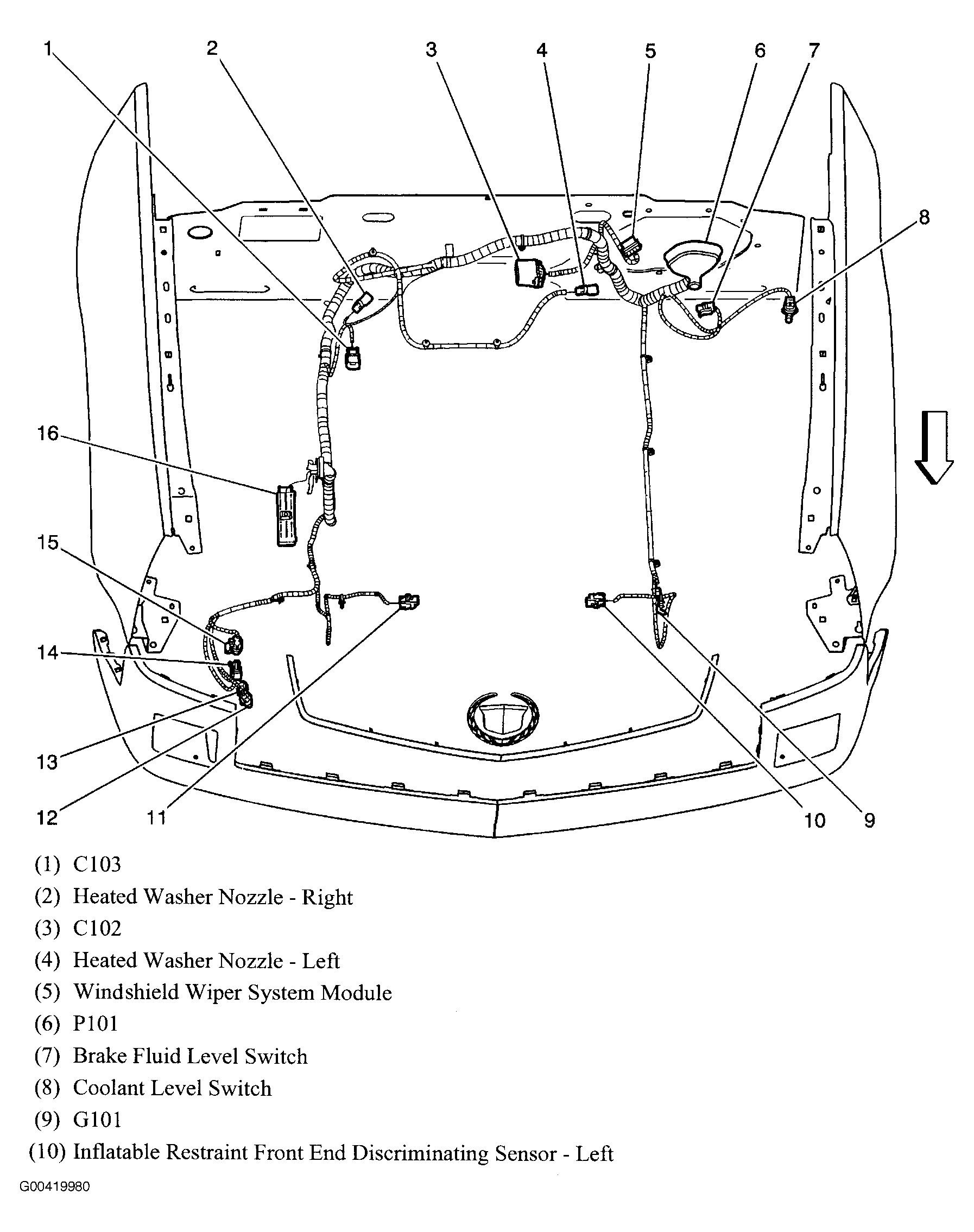

Fig 4: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 5: Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left & Right "D" Pillars
Courtesy of GENERAL MOTORS CORP.
Fig 7: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 8: Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 9: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

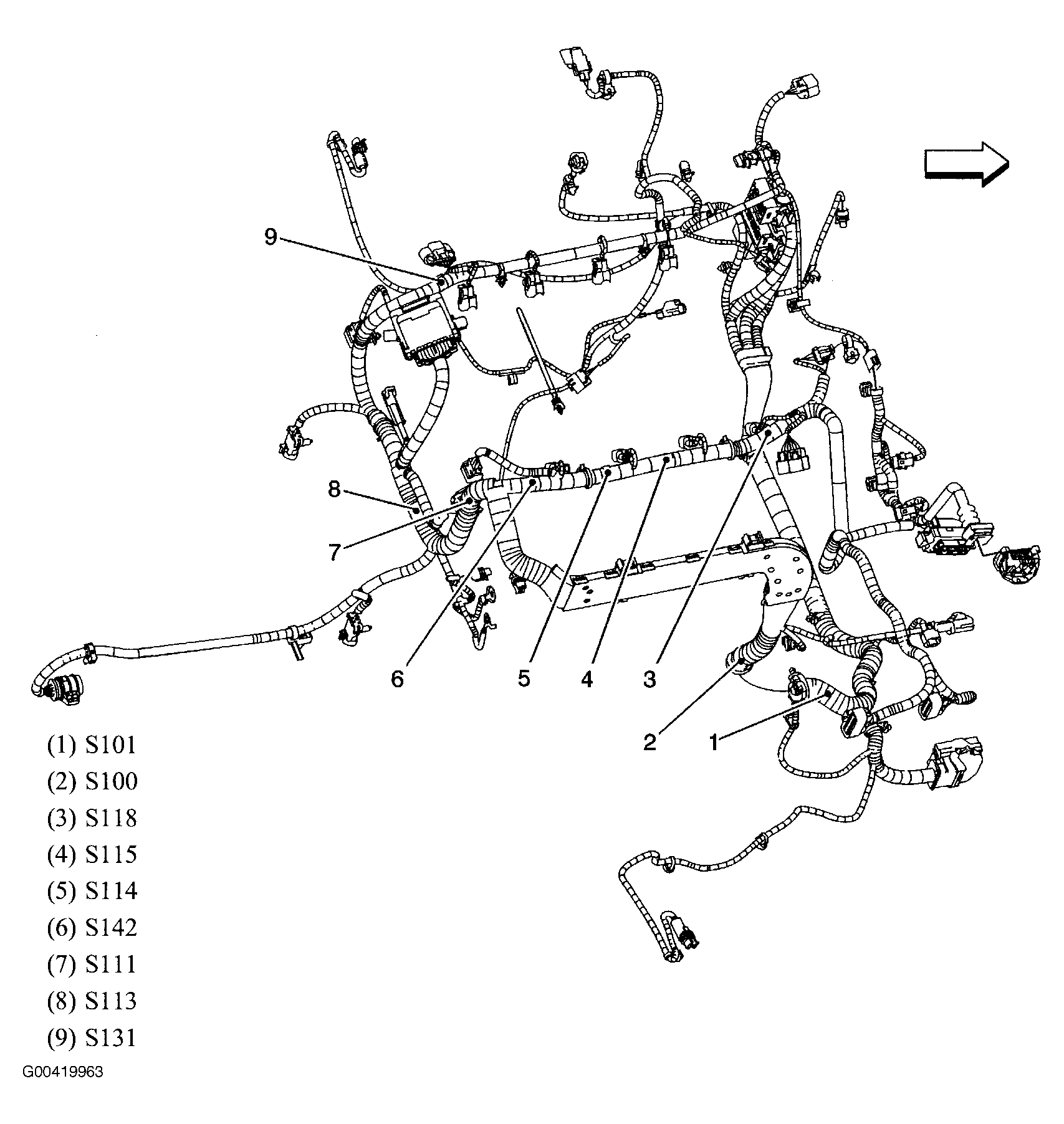

Fig 10: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 11: Top Of Evaporator
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 13: Rear Of Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 15: Rear Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 17: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Side Of Engine Compartment, Center Rear Of Headliner & Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 20: Left Rear Of Cargo Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 21: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 22: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 23: SIR Components Location
Courtesy of GENERAL MOTORS CORP.

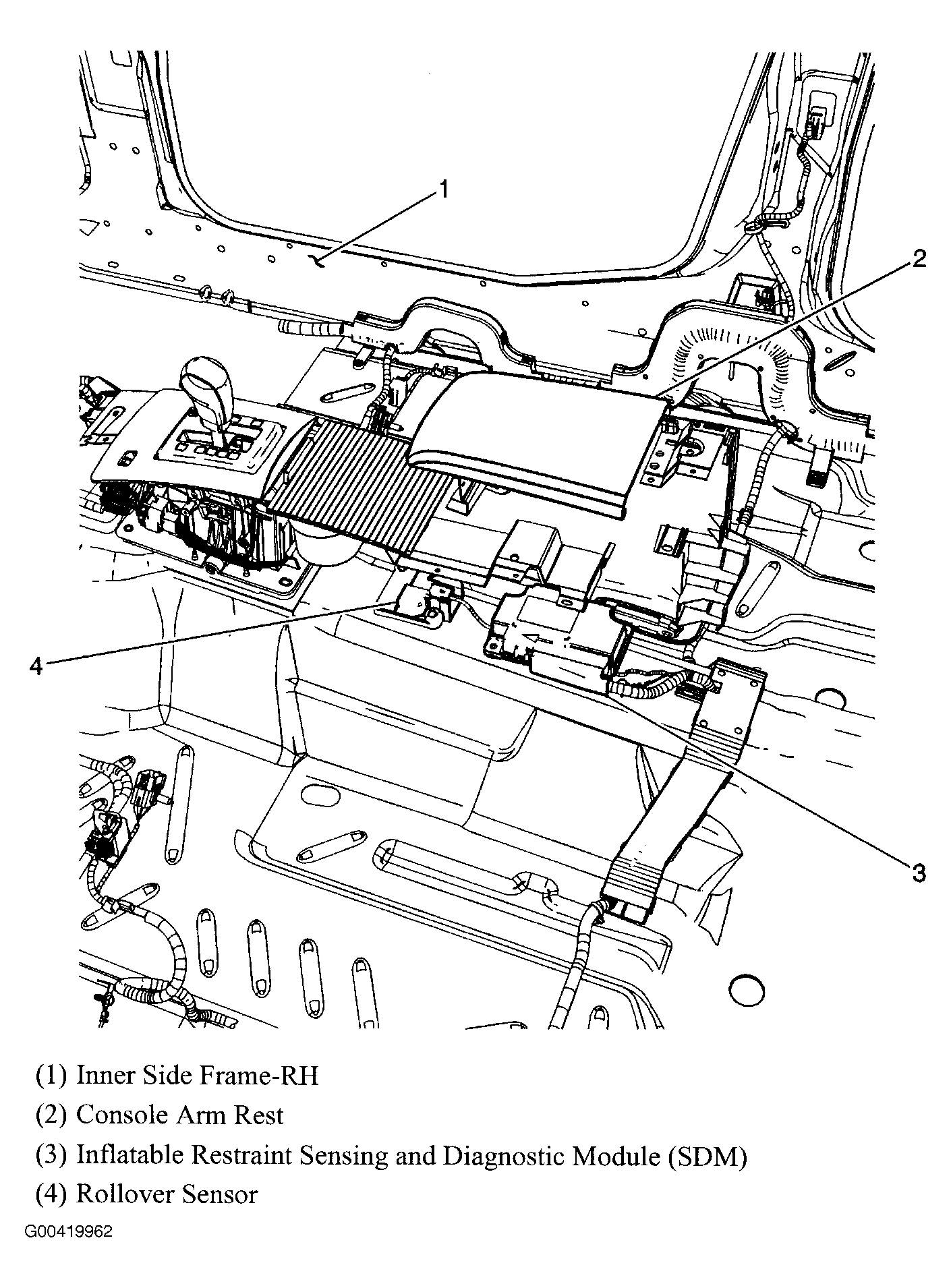

Fig 24: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 25: Front Of Vehicle Frame
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 27: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 28: Automatic Transmission (5L40-E)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Automatic Transmission (5L50-E)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Front Of Engine & Passenger Compartments
Courtesy of GENERAL MOTORS CORP.
Fig 31: Overview Of Vehicle Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 32: Rear Of Engine (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Top Of Engine (4.6L VIN A) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Top Of Engine (4.6L VIN A) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Top Right Of Engine (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Front Exhaust Pipes
Courtesy of GENERAL MOTORS CORP.
Fig 37: Fuel Tank (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Left Side Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Right Rear Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Left Rear Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Right Side Of Engine Compartment (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Rear Underside Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 43: Fuel Tank (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Top Of Engine (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Top Front Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Right Side Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Side Of Dash & Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 48: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 50: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 52: Bottom Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 53: Front & Rear Wheel Assemblies
Courtesy of GENERAL MOTORS CORP.
Fig 54: Tire Pressure Monitoring Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 55: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 56: Right Rear Of Vehicle & Rear Suspension
Courtesy of GENERAL MOTORS CORP.
Fig 57: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 58: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 59: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 60: HVAC
Courtesy of GENERAL MOTORS CORP.
Fig 61: Front Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Top Of Engine (4.6L VIN A) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Top Of Engine (4.6L VIN A) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 65: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 66: Right Rear Of Vehicle, Behind Trim Panel
Courtesy of GENERAL MOTORS CORP.
Fig 67: Antenna Components
Courtesy of GENERAL MOTORS CORP.
Fig 68: Right Door (Right Shown, Left Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Left Side Of Engine (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 71: Front Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 73: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 74: Behind Right Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 75: Driver Seat (Driver Shown, Passenger Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 77: Driver Seat (Driver Shown, Passenger Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Driver Seat (Driver Shown, Passenger Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Driver Seat (Driver Shown, Passenger Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 80: Passenger Seat (Passenger Shown, Driver Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 81: Third Row Folding Seats
Courtesy of GENERAL MOTORS CORP.
Fig 82: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 83: Right Rear Of Vehicle, Behind Trim Panel
Courtesy of GENERAL MOTORS CORP.
Fig 84: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 85: Automatic Transmission Shift Lock Control
Courtesy of GENERAL MOTORS CORP.
Fig 86: Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 87: Liftgate Latch Assembly
Courtesy of GENERAL MOTORS CORP.

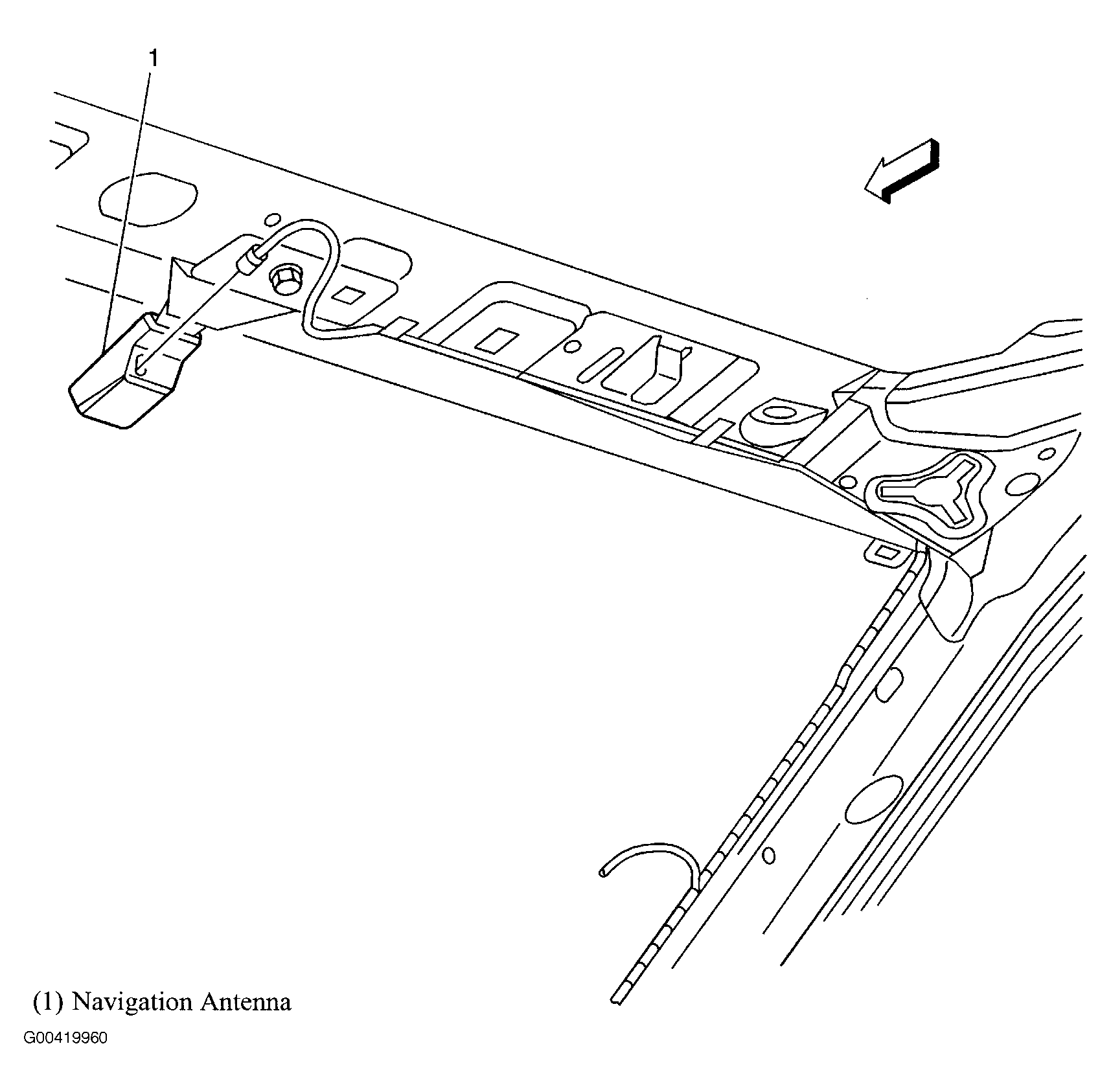

Fig 88: Upper Center Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 89: Engine Electrical Components (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 90: Sunroof (C3B)
Courtesy of GENERAL MOTORS CORP.
Fig 91: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 92: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 93: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 94: Antenna Components
Courtesy of GENERAL MOTORS CORP.
Fig 95: Center Of Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 96: Under Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 97: Engine (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.

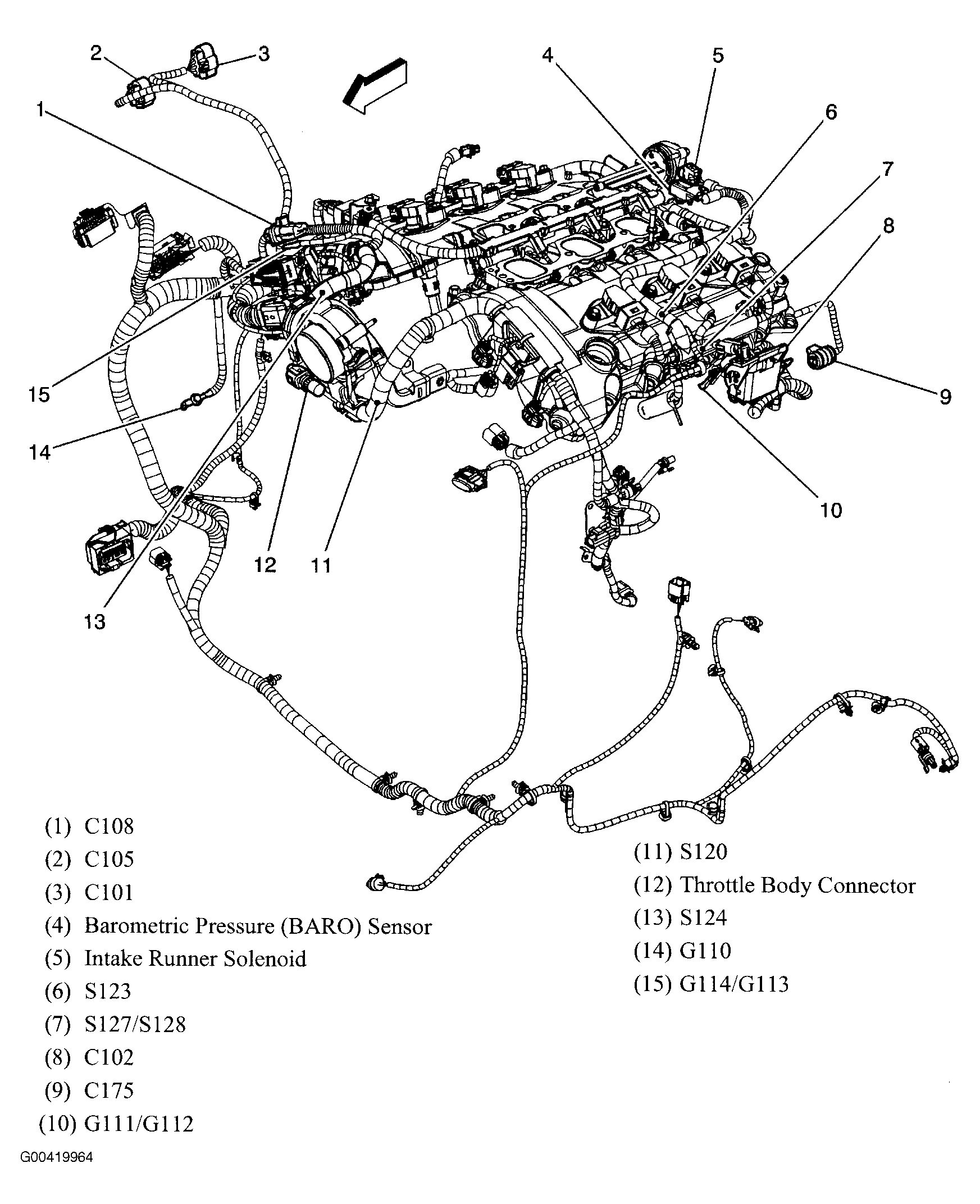

Fig 98: Left Side Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.

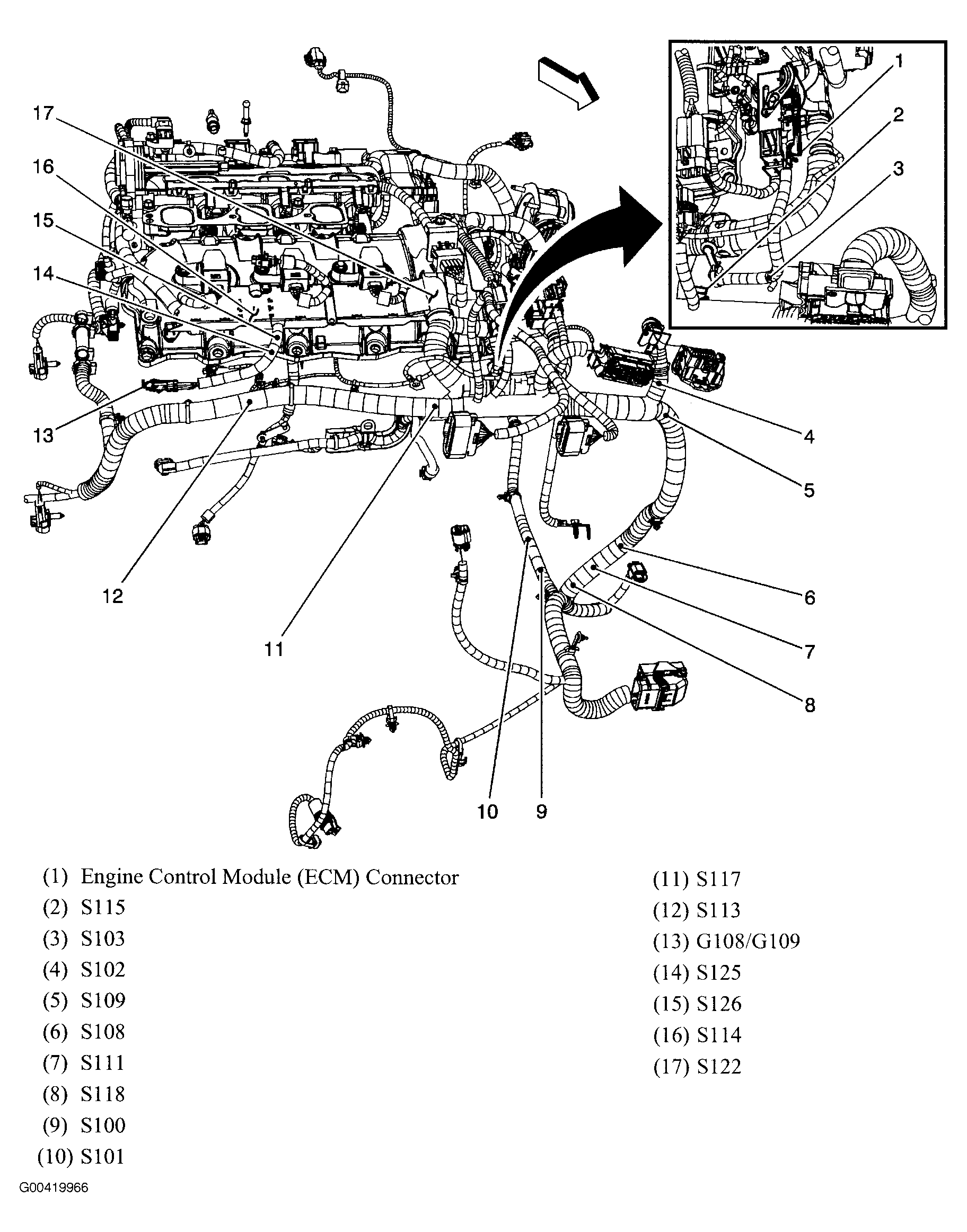

Fig 99: Right Side Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.

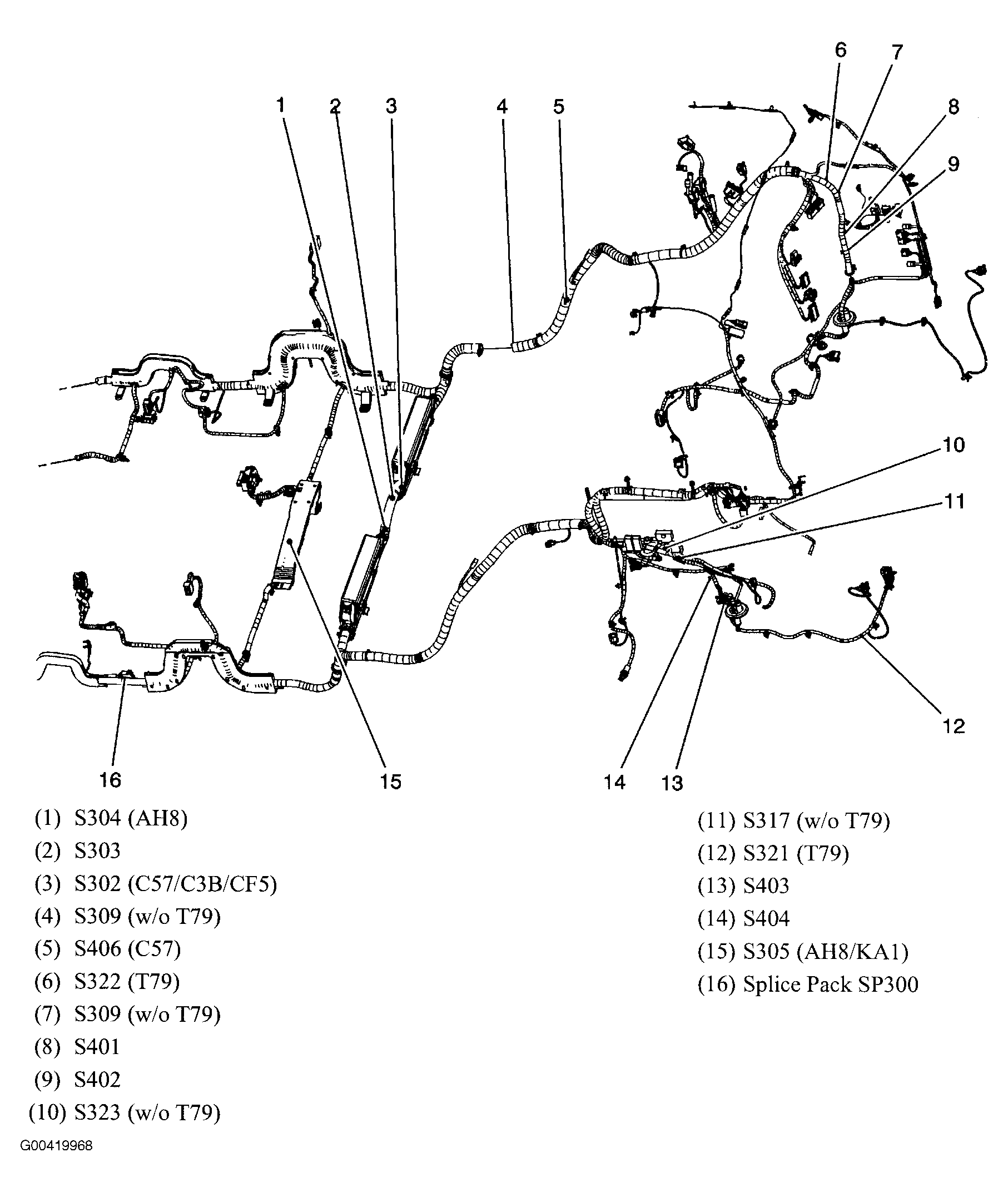

Fig 100: Body Harness Overview
Courtesy of GENERAL MOTORS CORP.

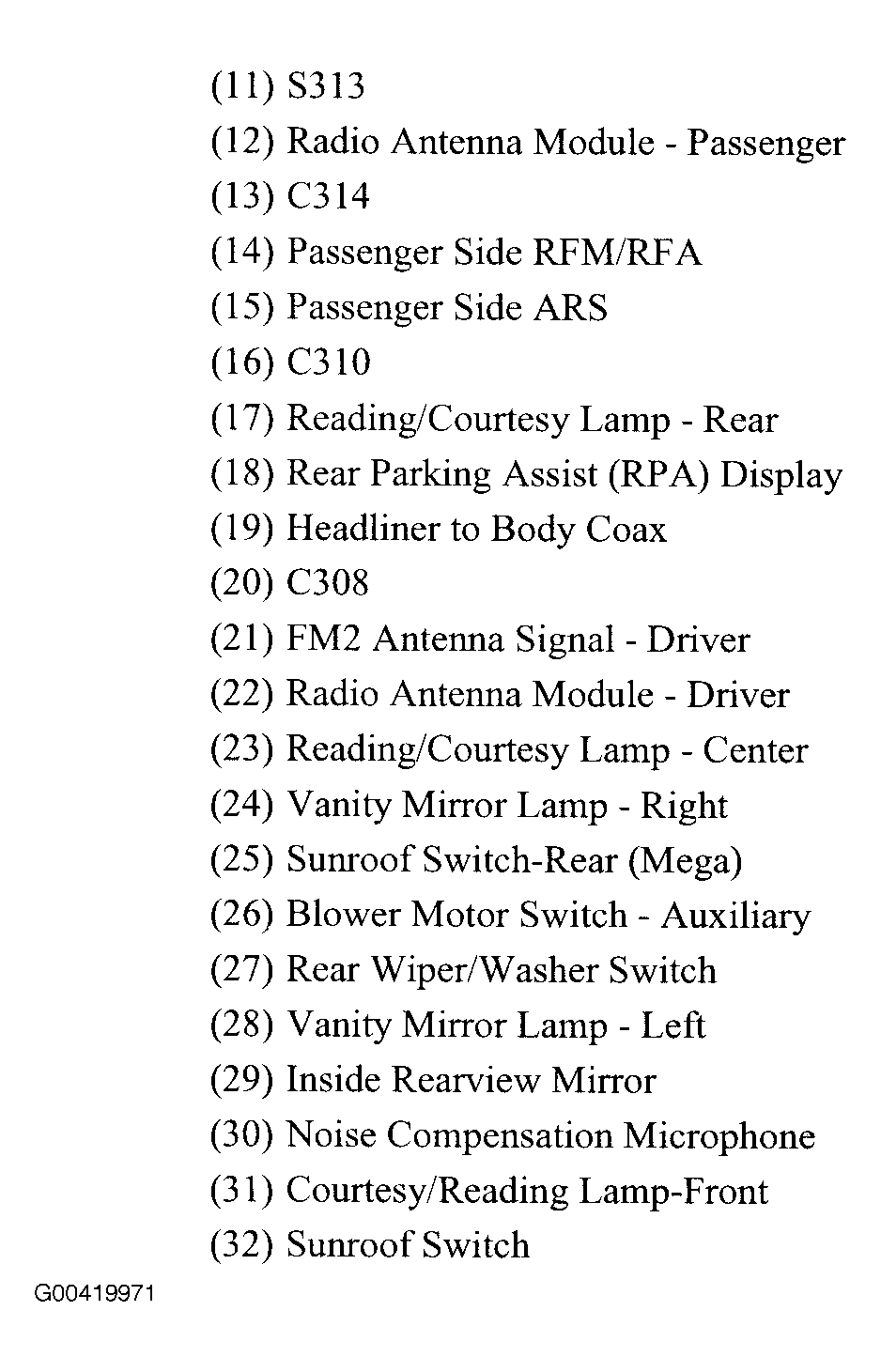

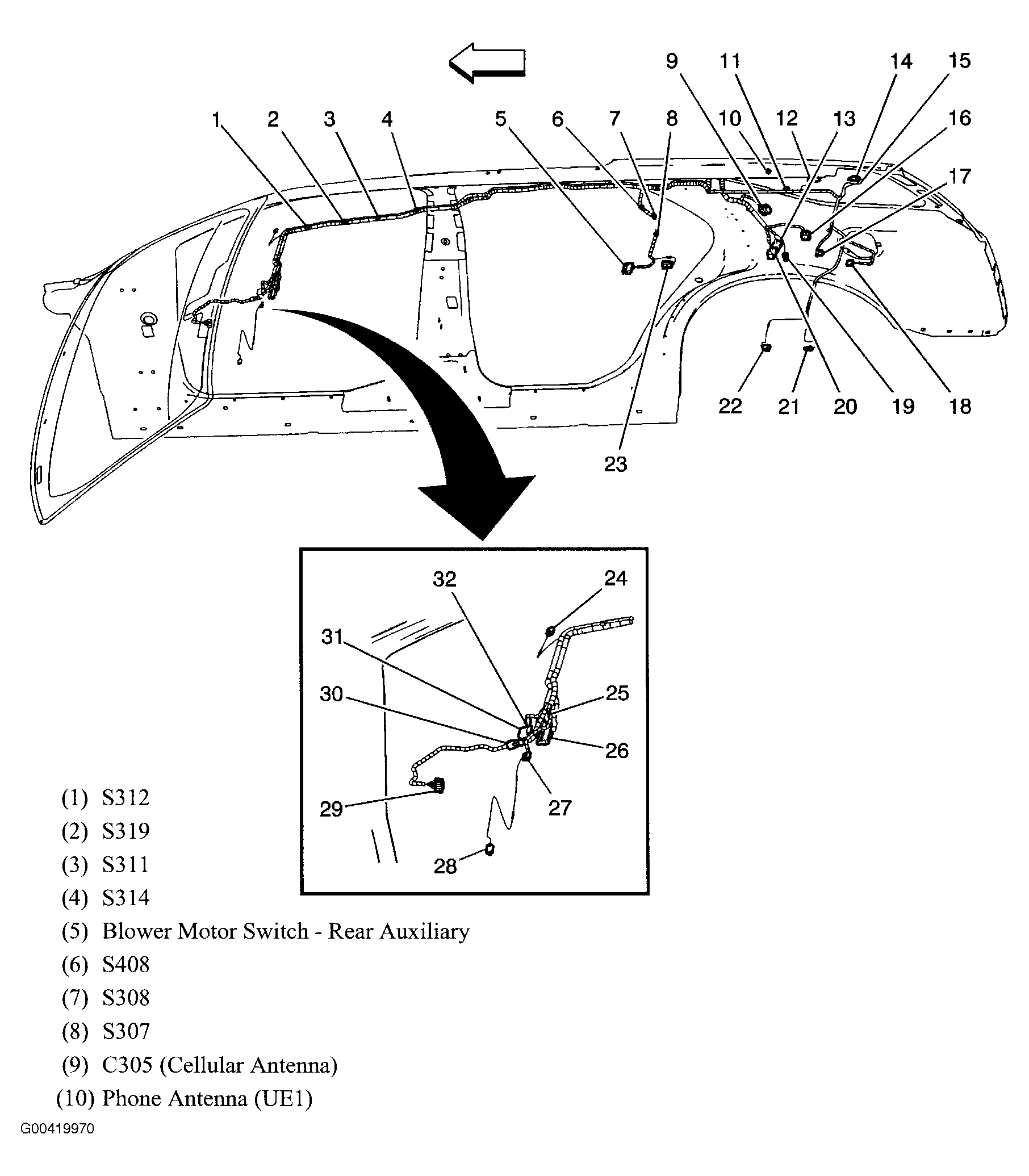

Fig 101: Headliner (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 102: Headliner (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

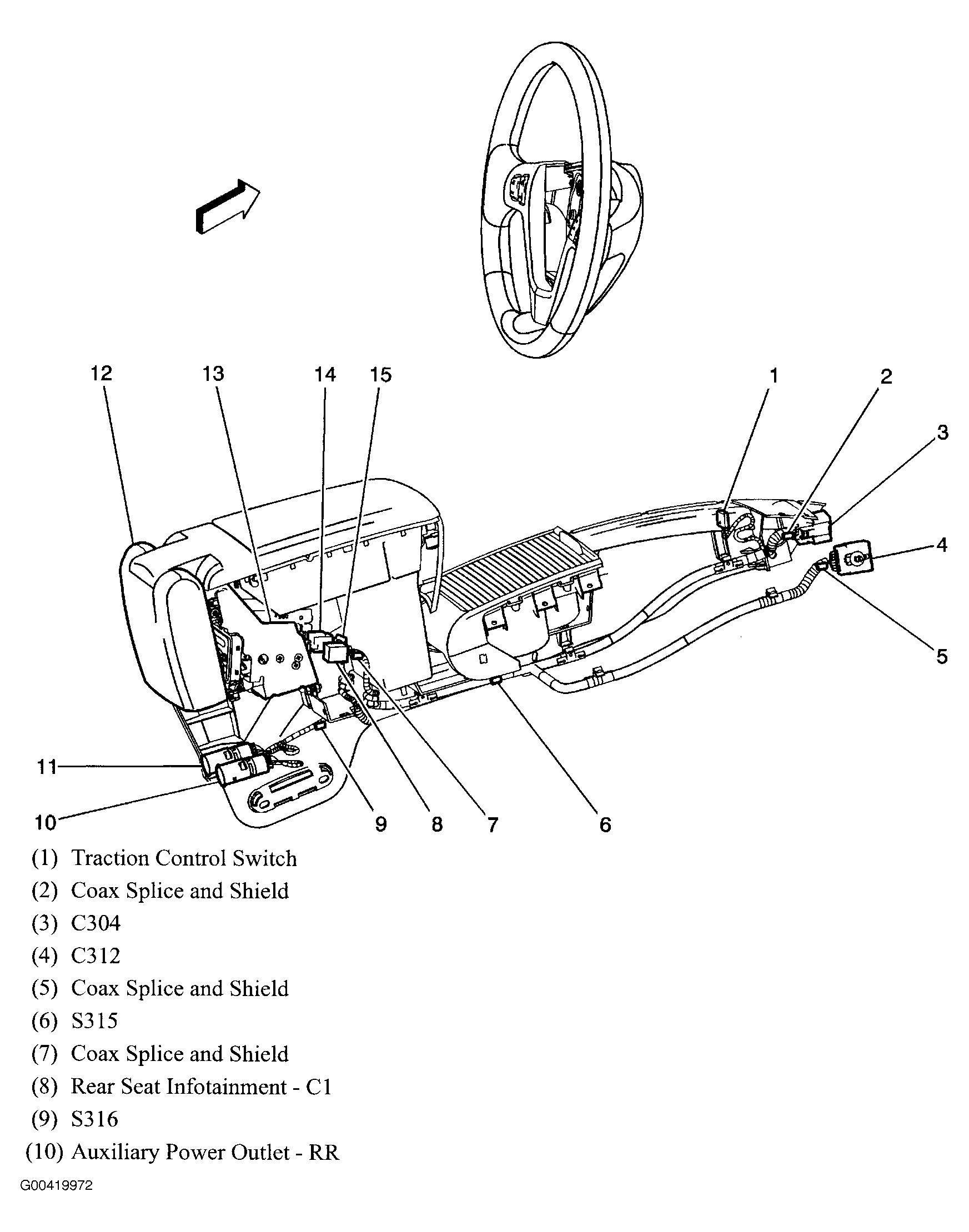

Fig 103: Center Floor Console
Courtesy of GENERAL MOTORS CORP.

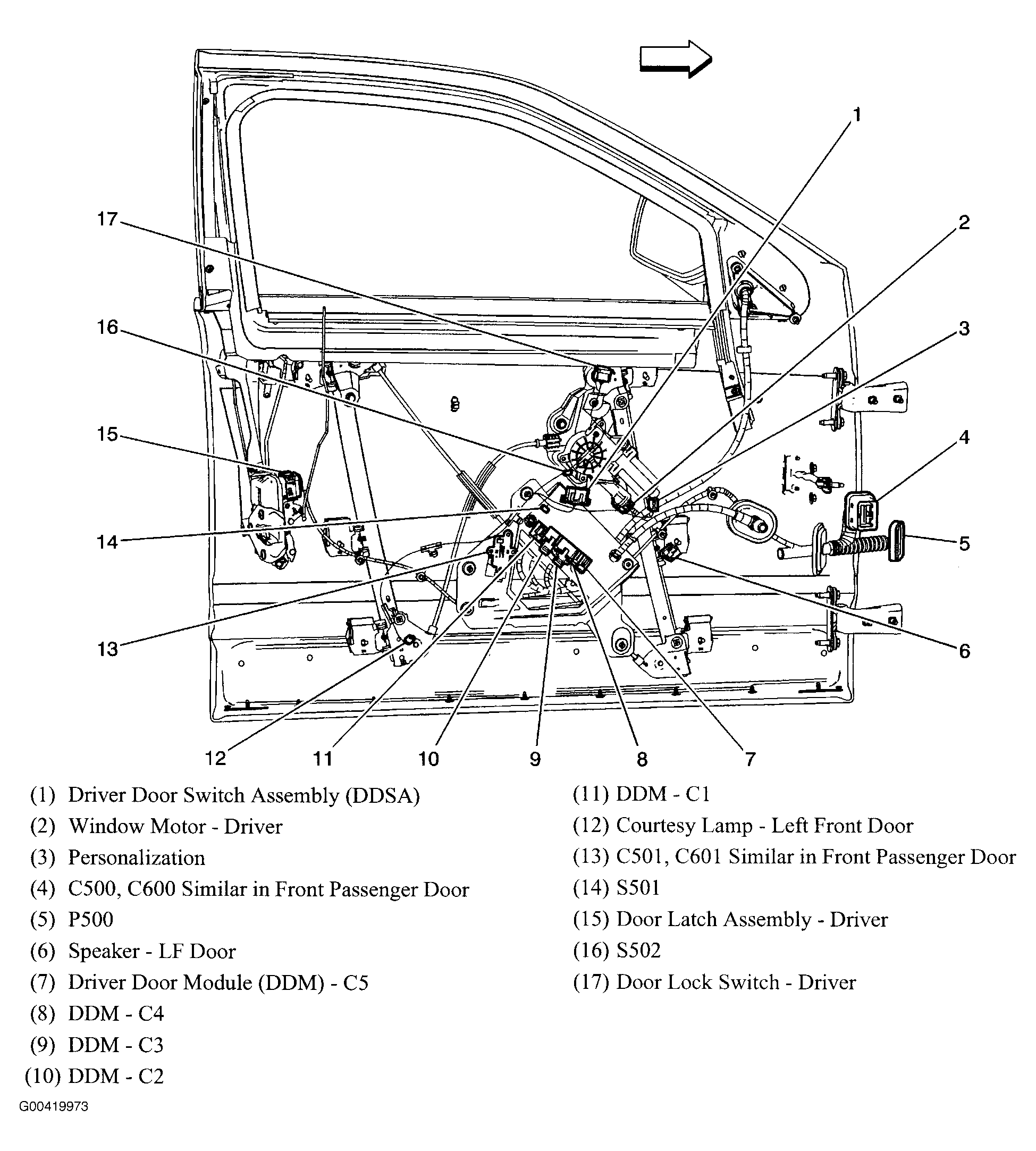

Fig 104: Driver's Door (Front Passenger's Similar)
Courtesy of GENERAL MOTORS CORP.

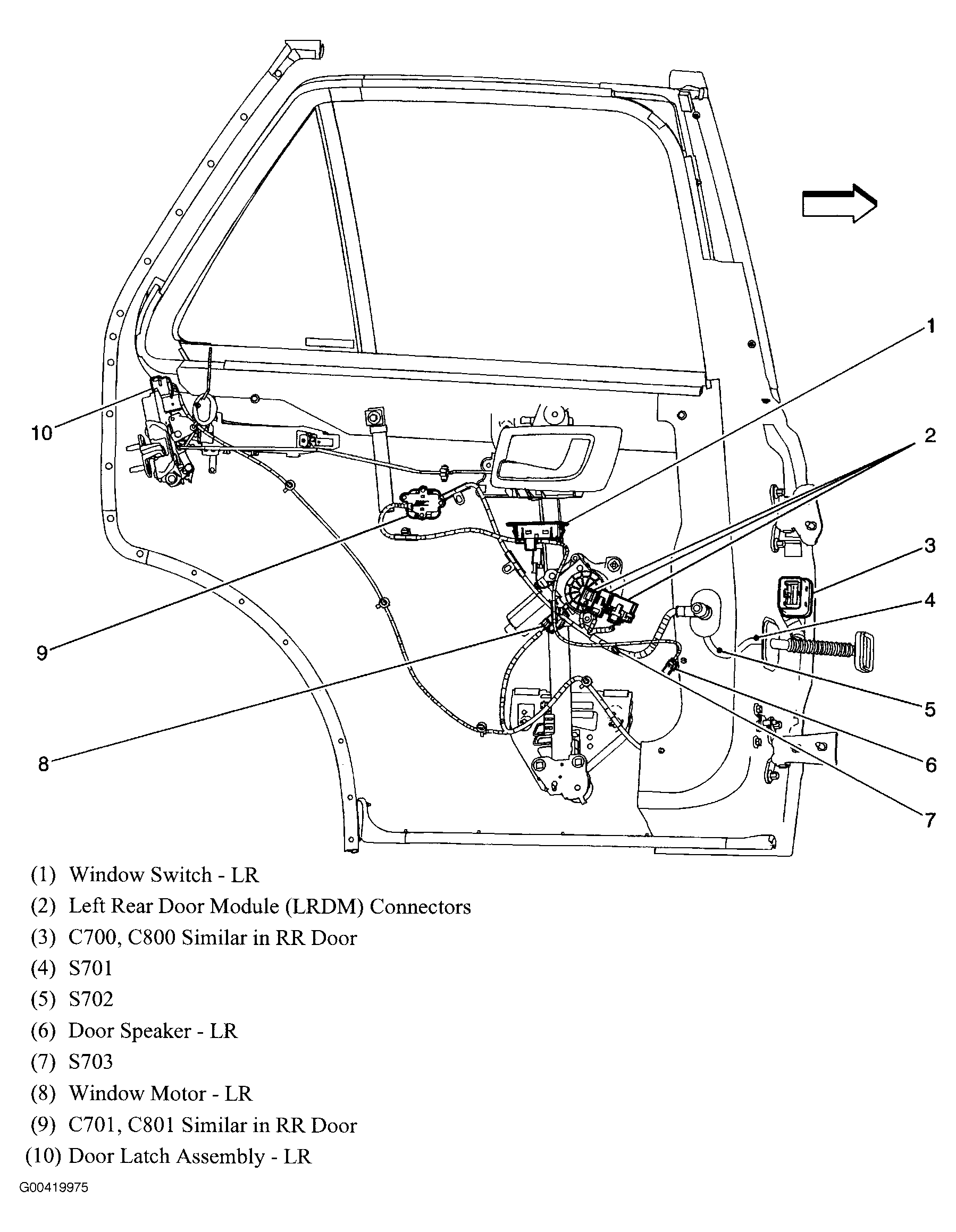

Fig 105: Left Rear Door (Right Rear Similar)
Courtesy of GENERAL MOTORS CORP.

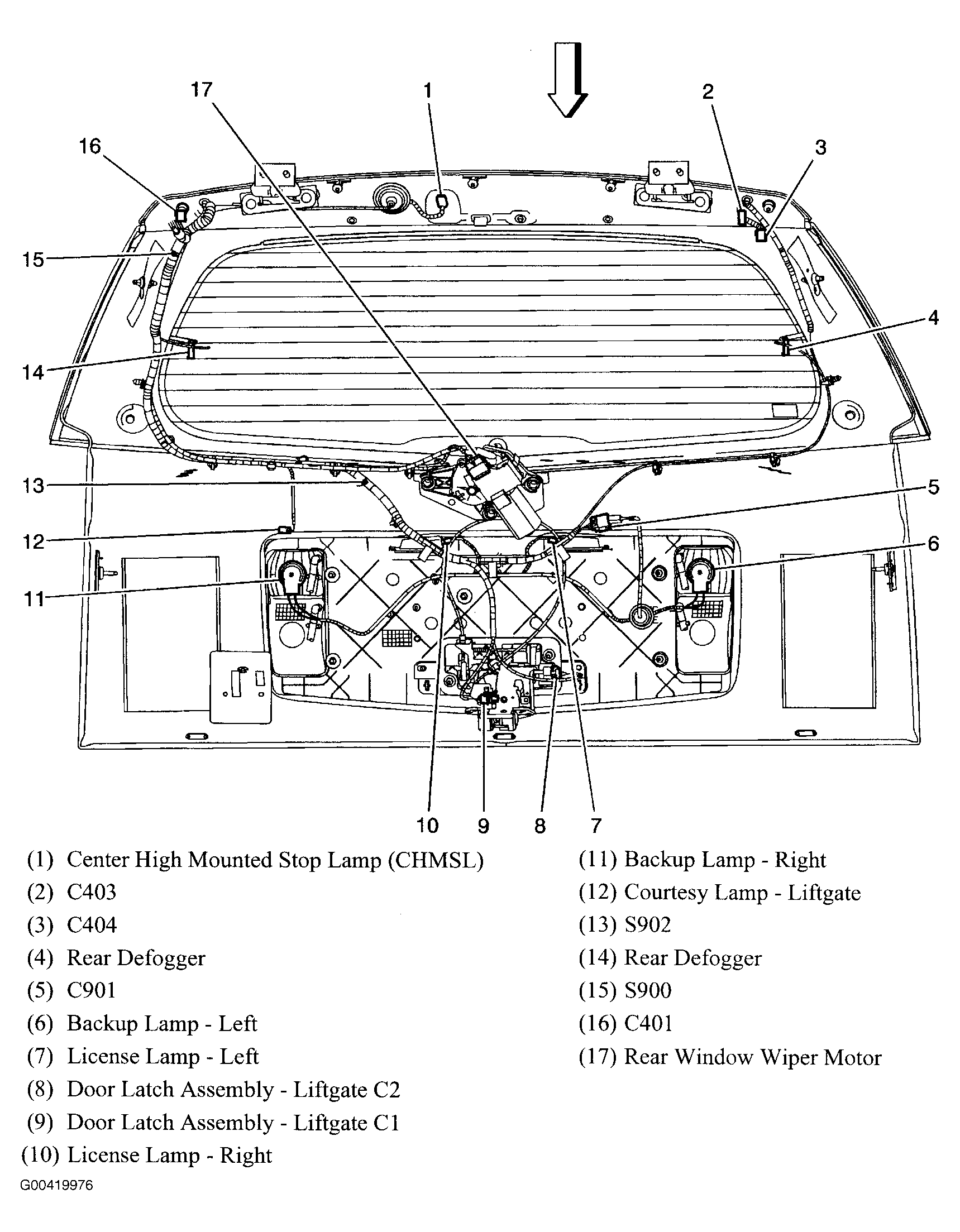

Fig 106: Liftgate
Courtesy of GENERAL MOTORS CORP.

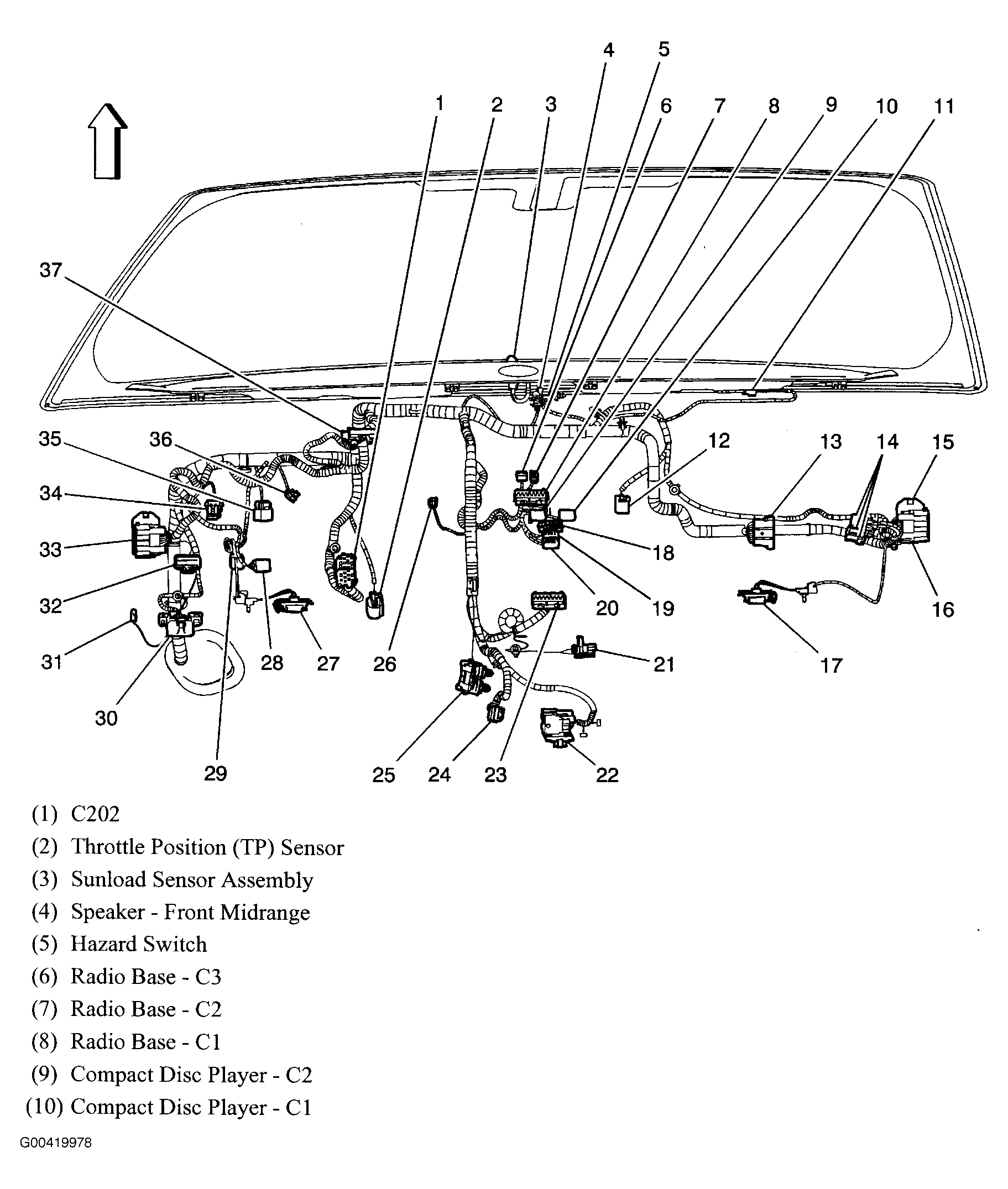

Fig 107: Rear Of Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

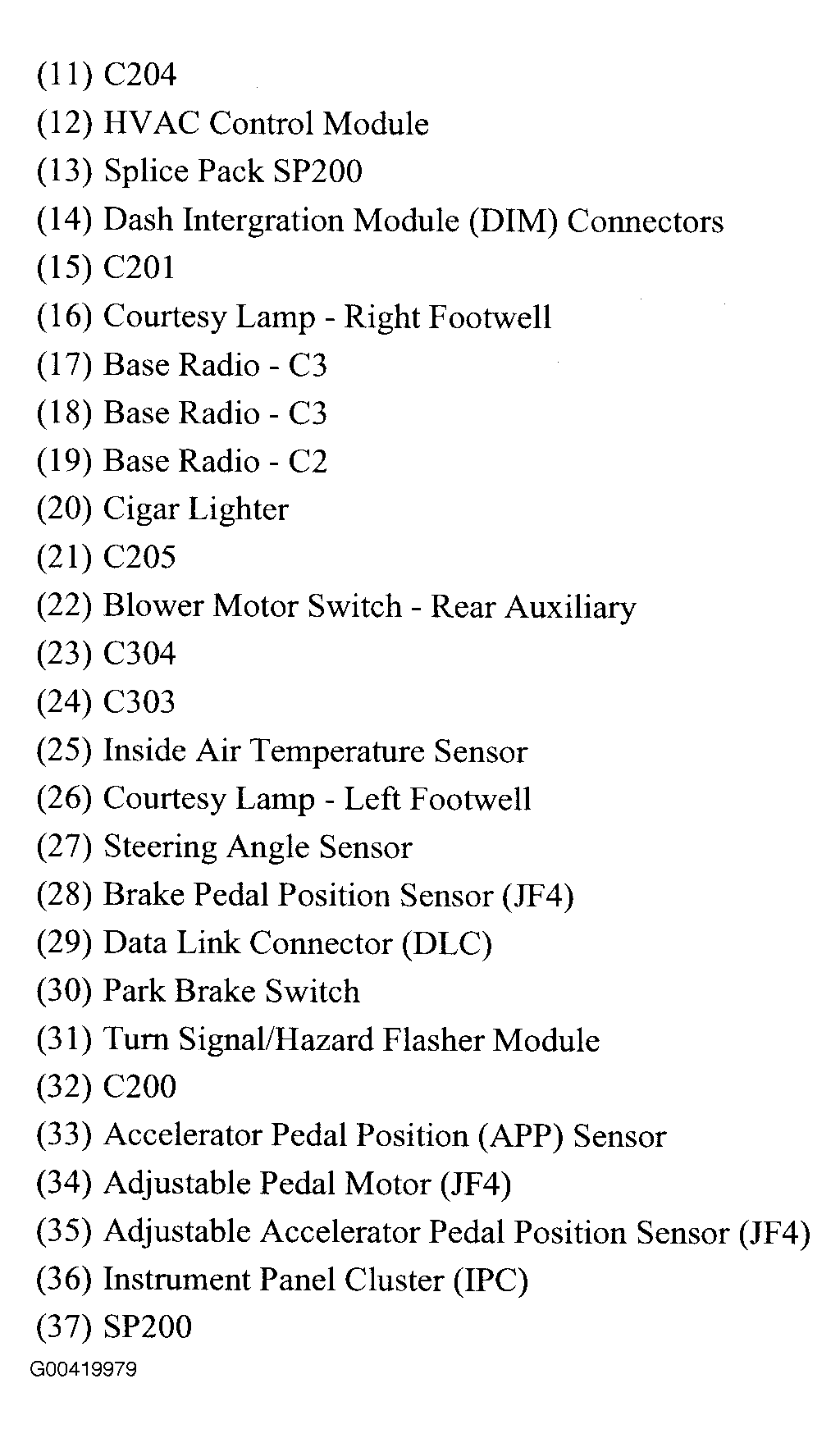

Fig 108: Rear Of Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 109: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
