Door Control Module Schematics

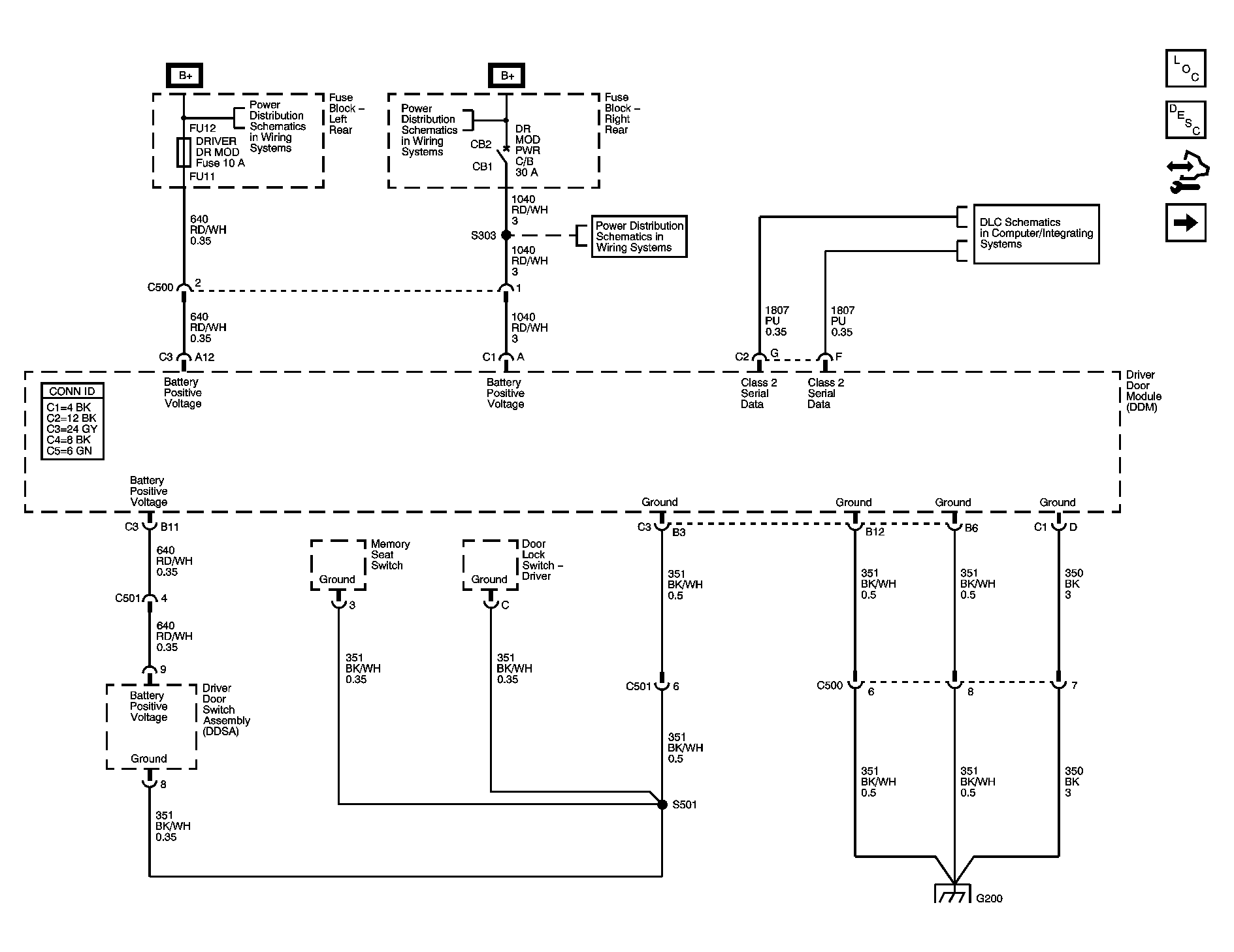

Fig 1: DDM Power, Ground and Serial Data

GM1614116

Courtesy of GENERAL MOTORS CORP.

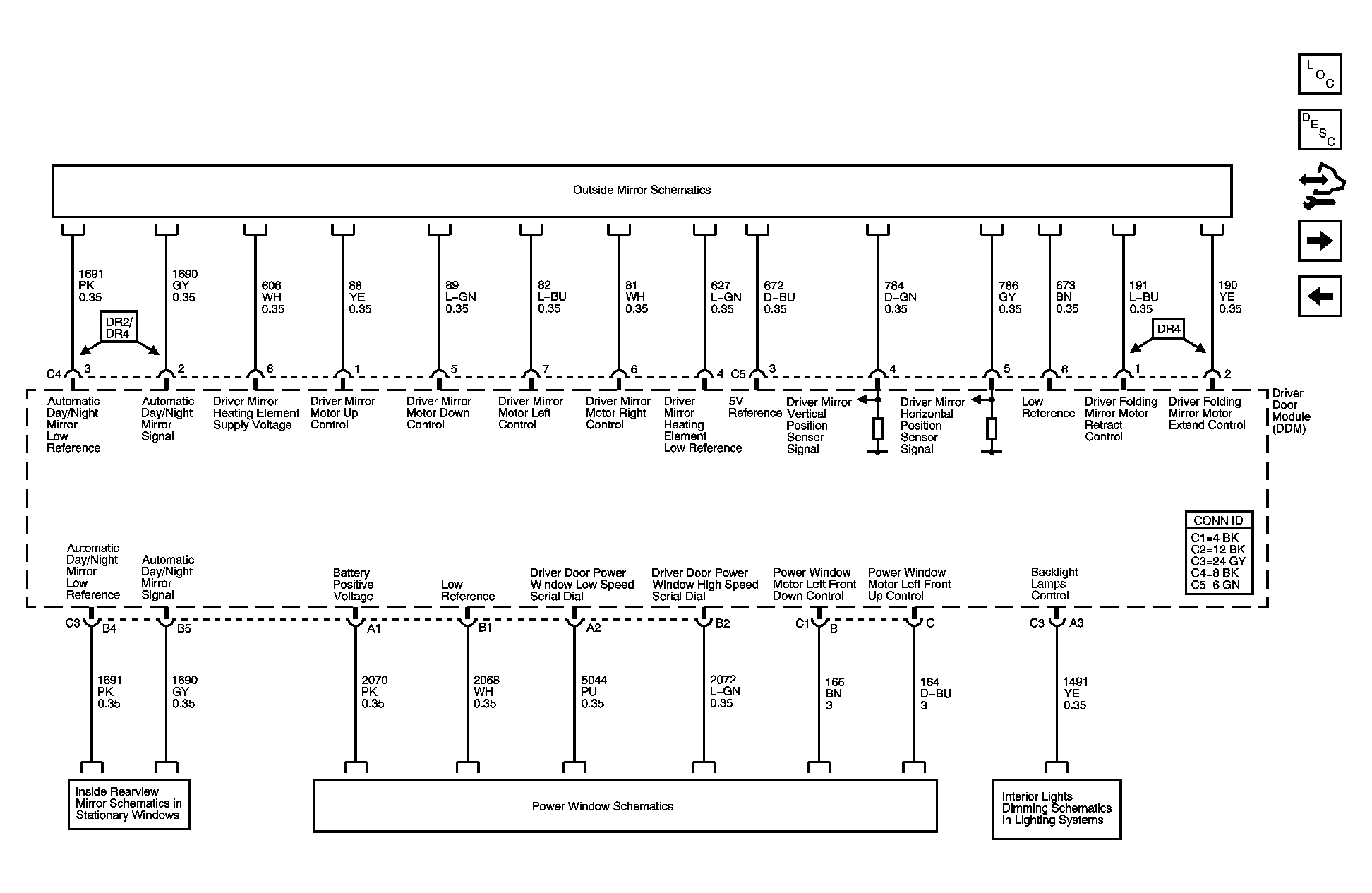

Fig 2: DDM Signals/Controls - 1 of 2

GM1614118

Courtesy of GENERAL MOTORS CORP.

Fig 3: DDM Signals/Controls - 2 of 2

GM1614121

Courtesy of GENERAL MOTORS CORP.

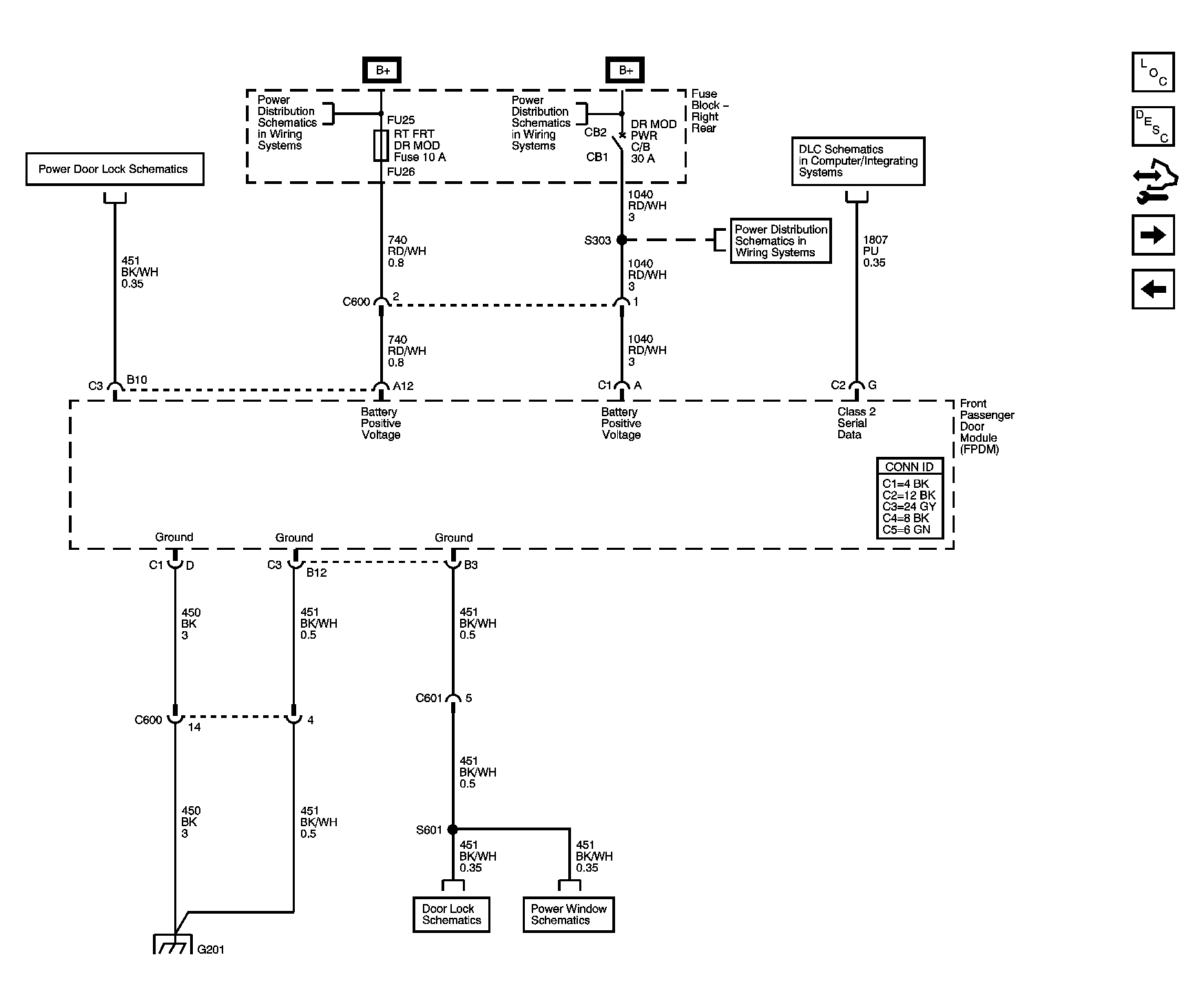

Fig 4: FPDM Power, Ground and Serial Data

GM1614126

Courtesy of GENERAL MOTORS CORP.

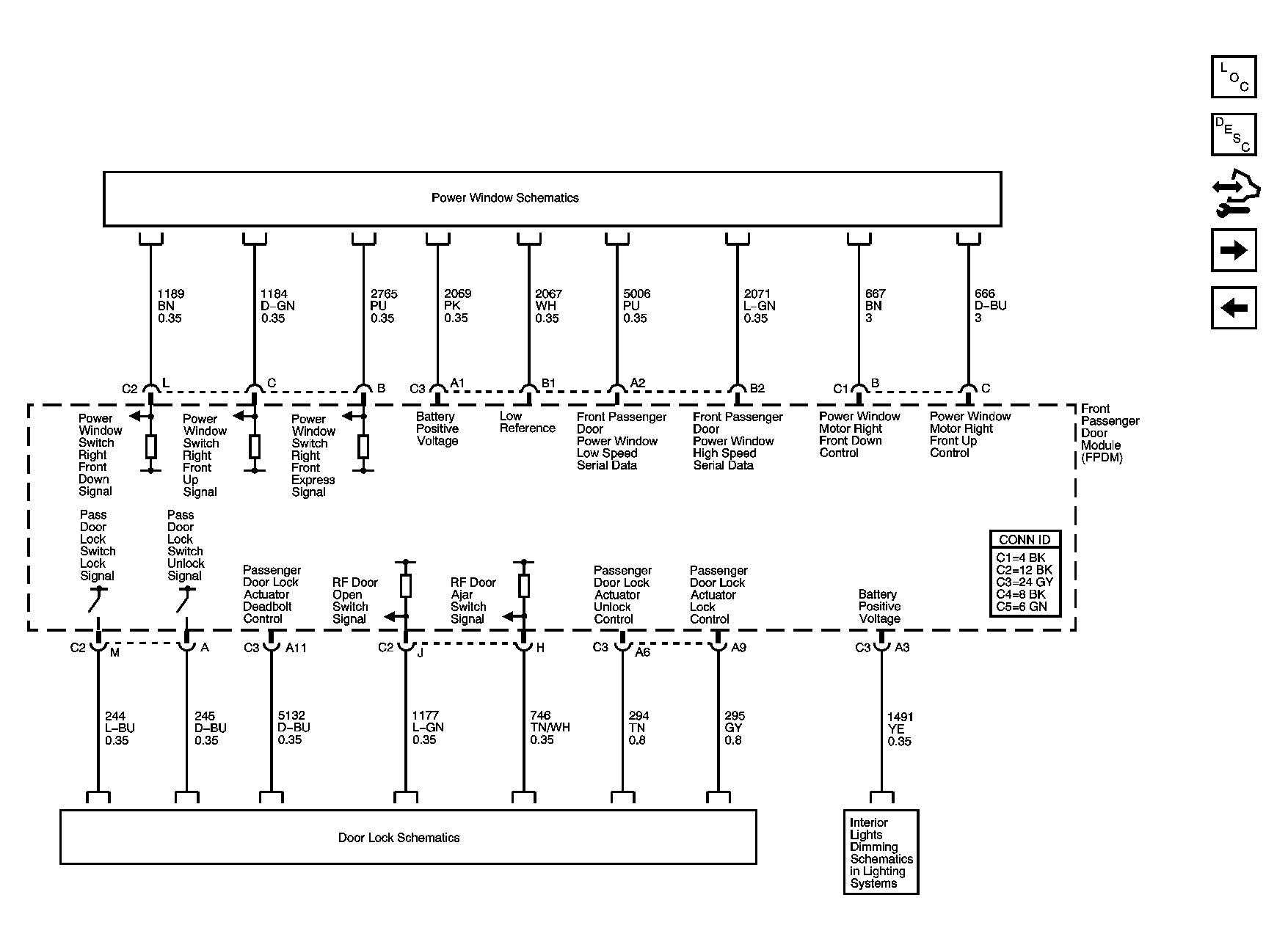

Fig 5: FPDM Signals/Controls - 1 of 2

GM1614128

Courtesy of GENERAL MOTORS CORP.

Fig 6: FPDM Signals/Controls - 2 of 2

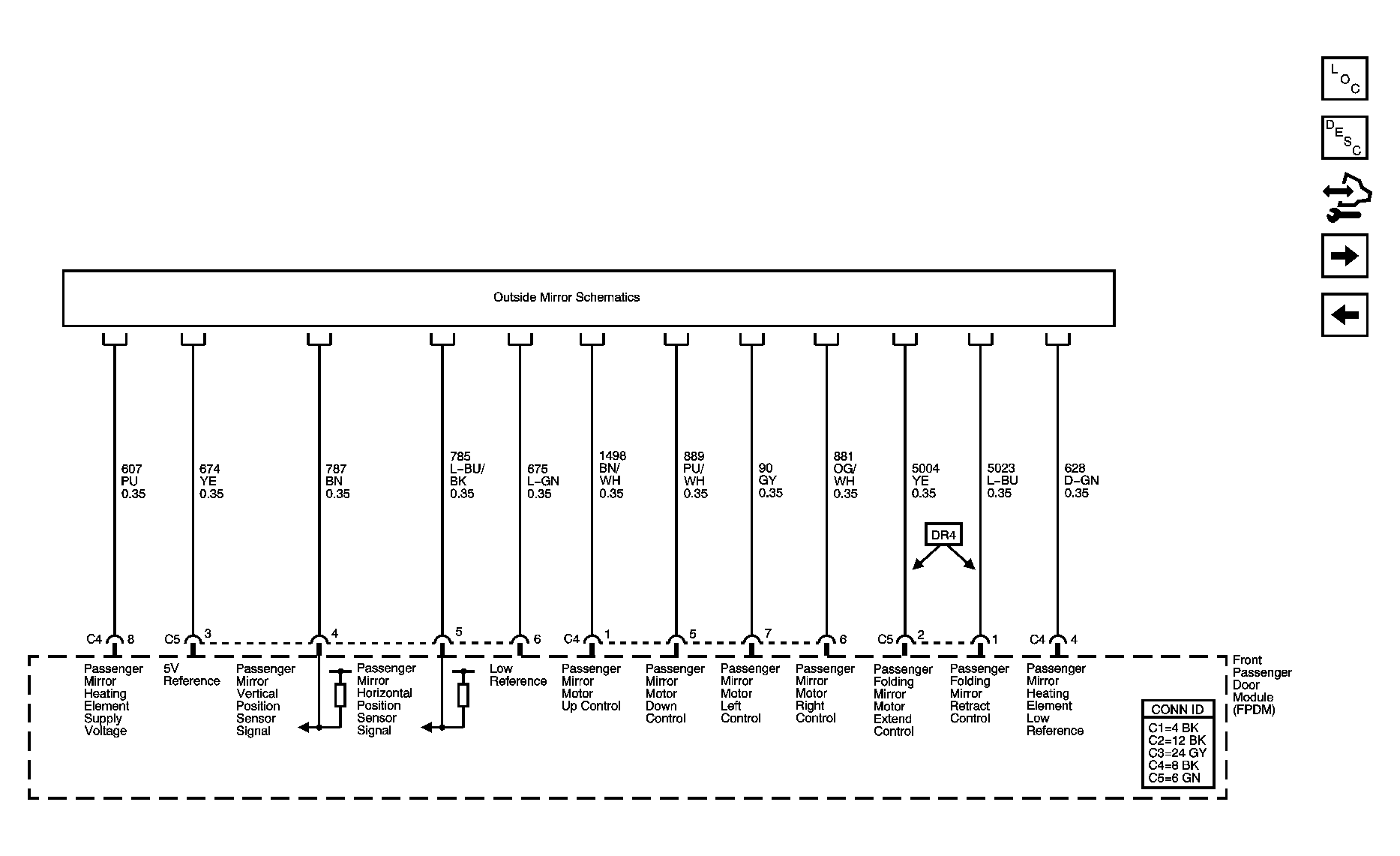

GM1614134

Courtesy of GENERAL MOTORS CORP.

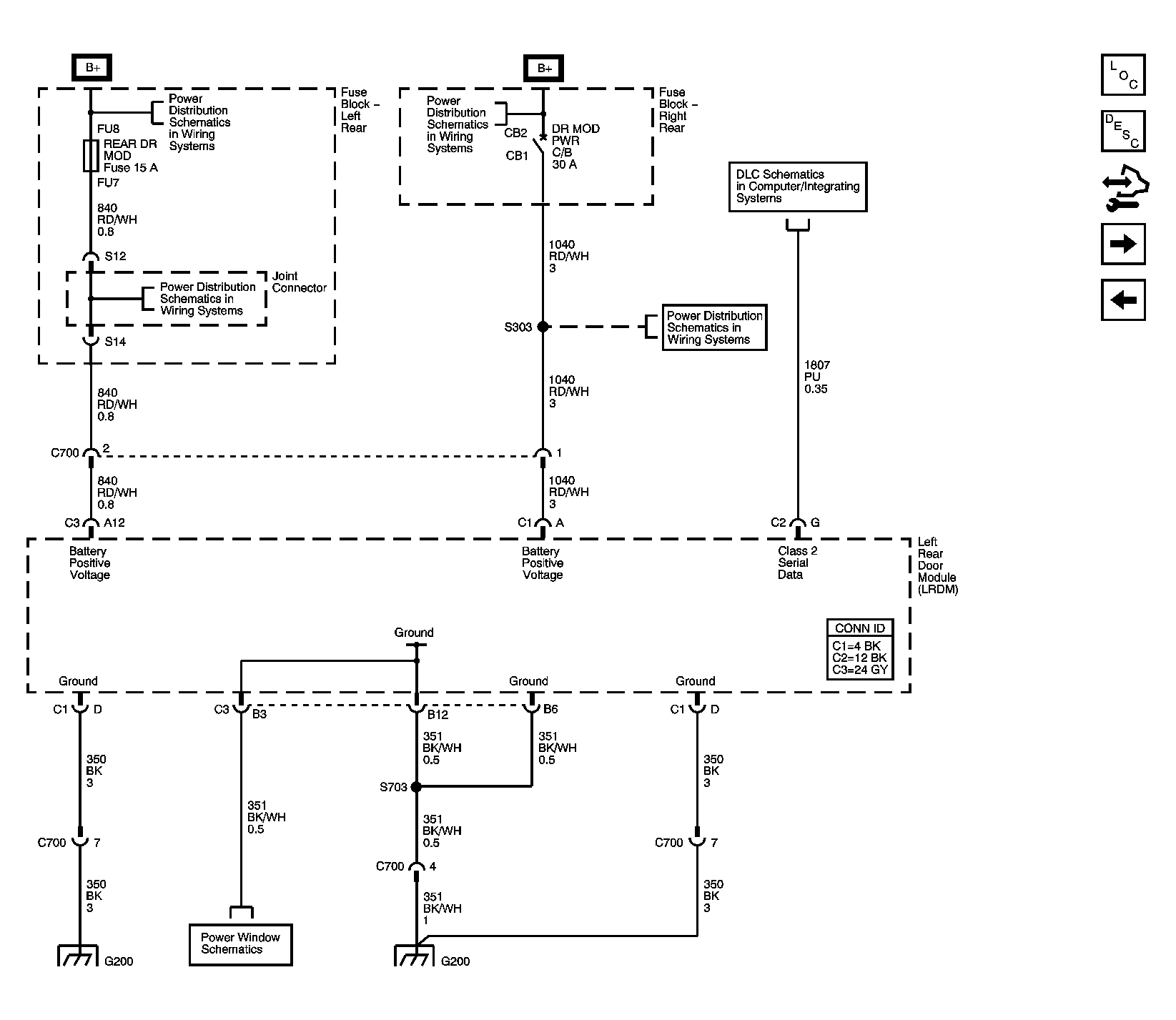

Fig 7: LRDM Power, Ground and Serial Data

GM1614139

Courtesy of GENERAL MOTORS CORP.

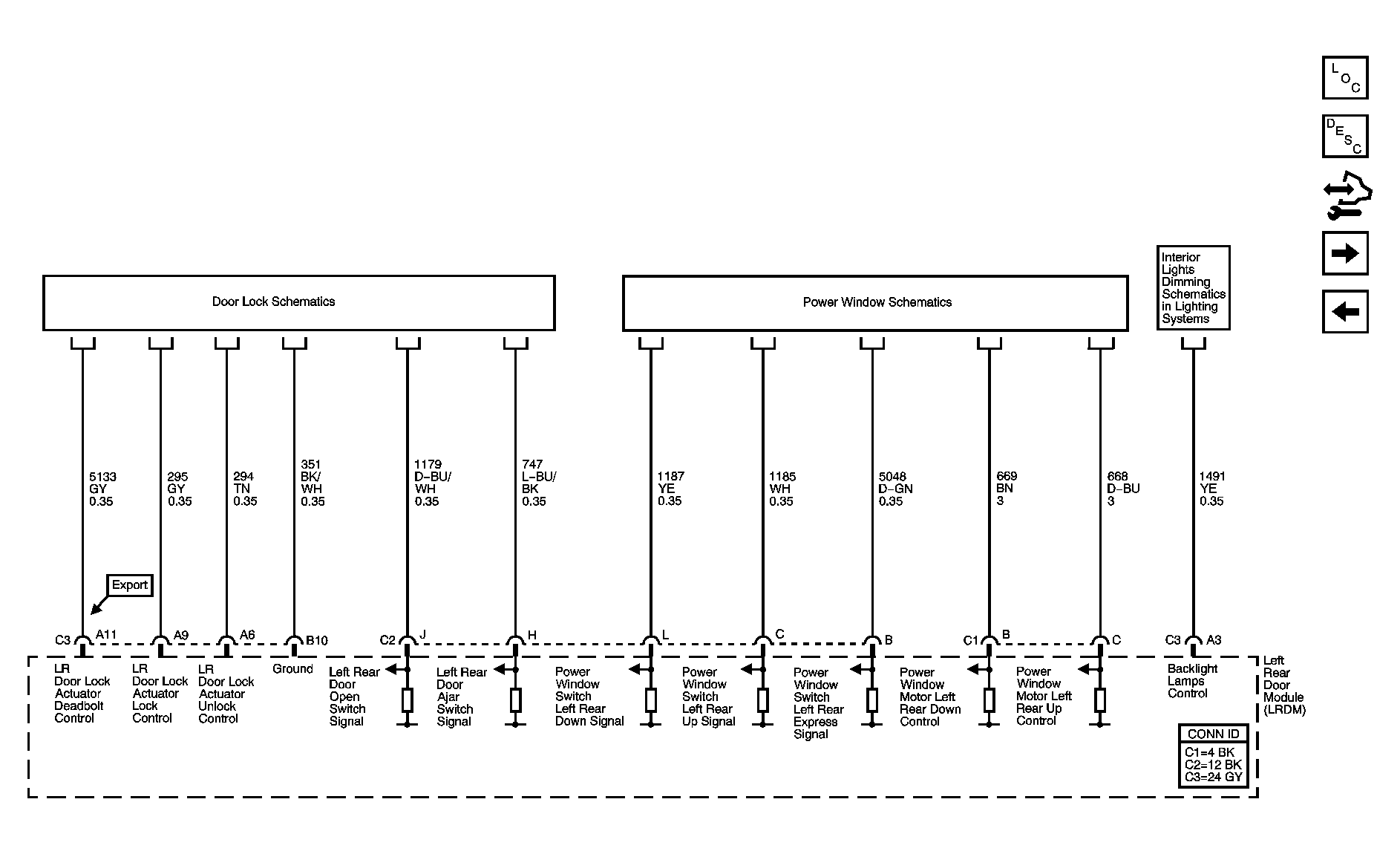

Fig 8: LRDM Signals/Controls

GM1614148

Courtesy of GENERAL MOTORS CORP.

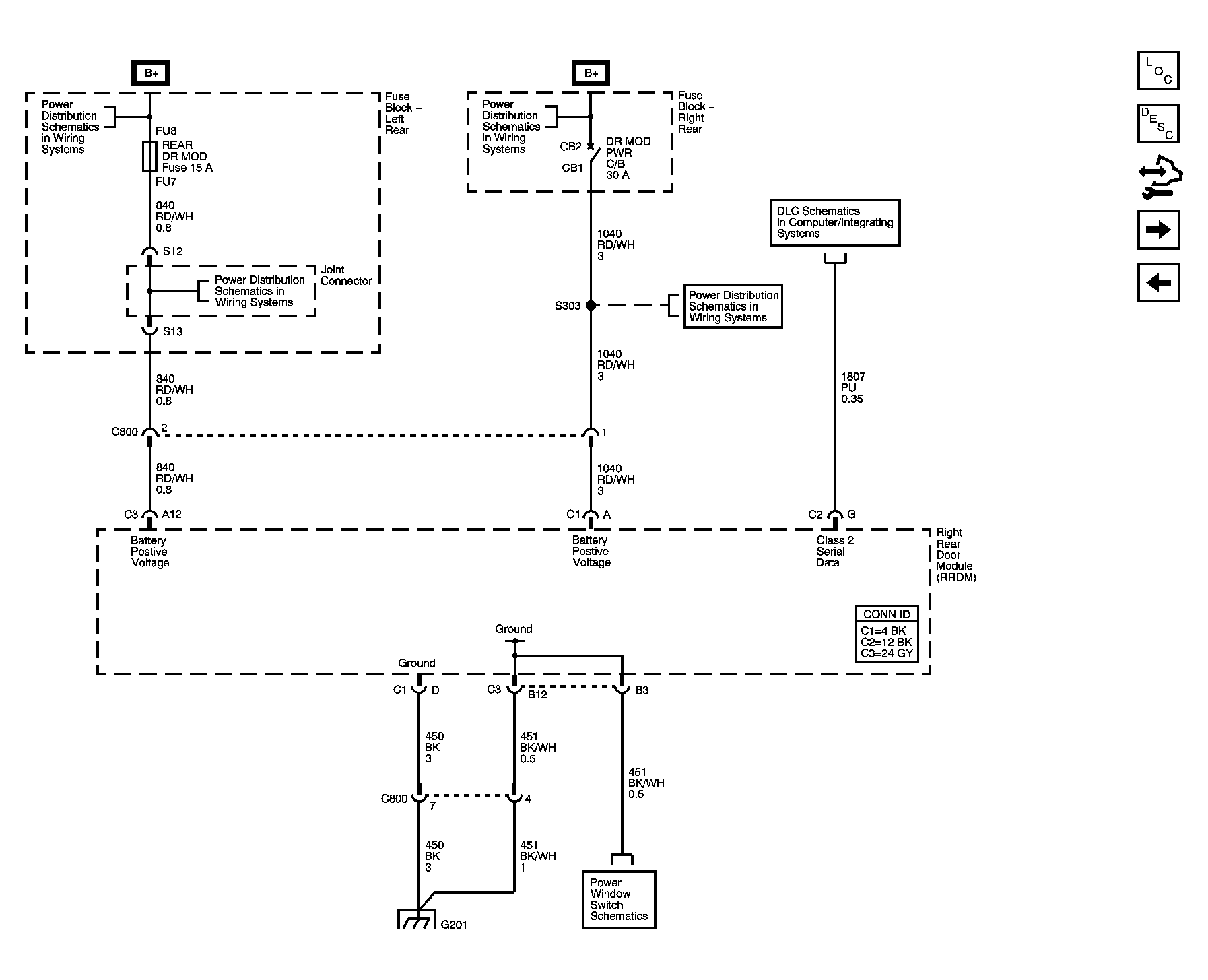

Fig 9: RRDM Power, Ground and Serial Data

GM1614152

Courtesy of GENERAL MOTORS CORP.

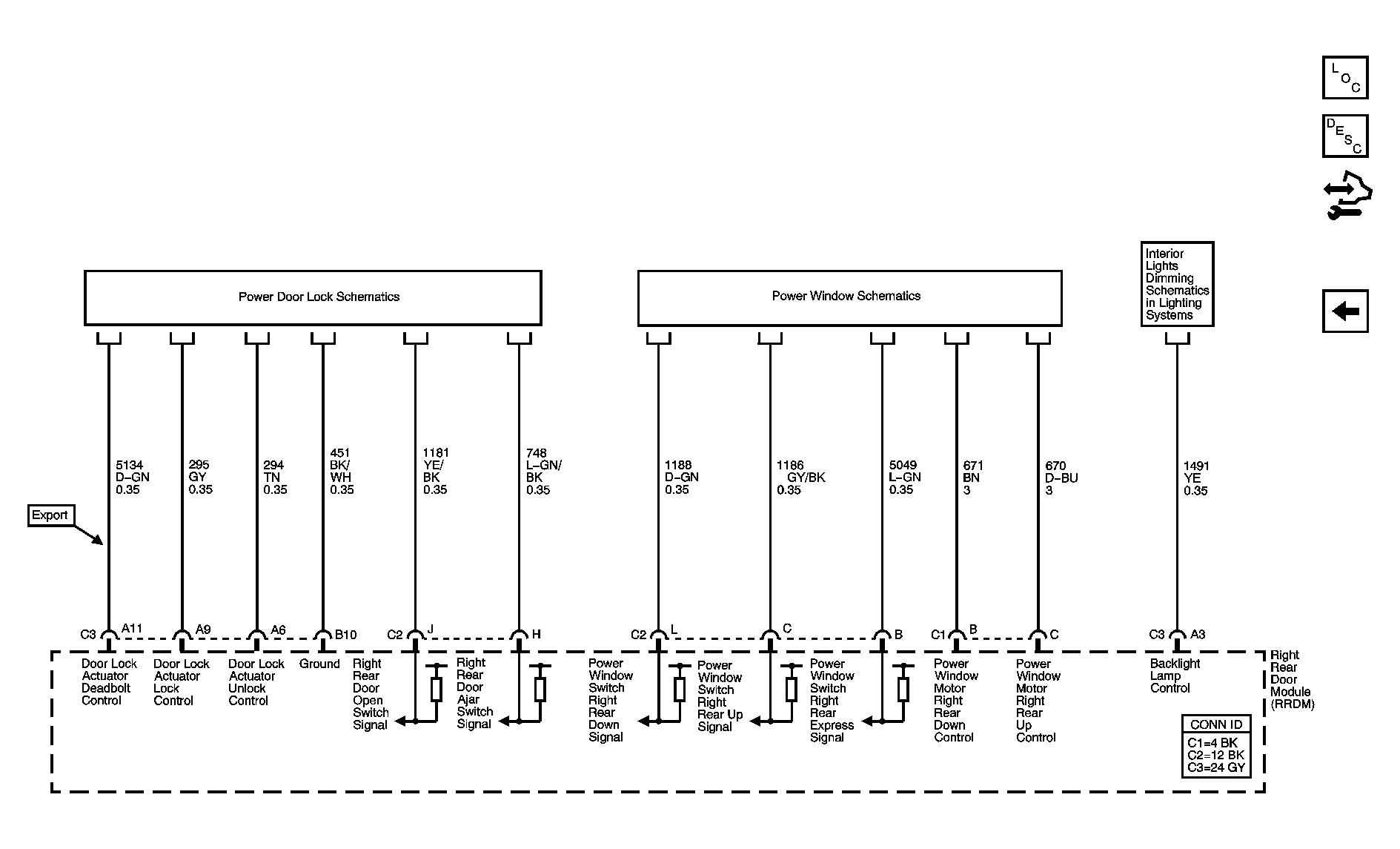

Fig 10: RRDM Signals/Controls

GM1614154

Courtesy of GENERAL MOTORS CORP.
