Object Detection Component Views

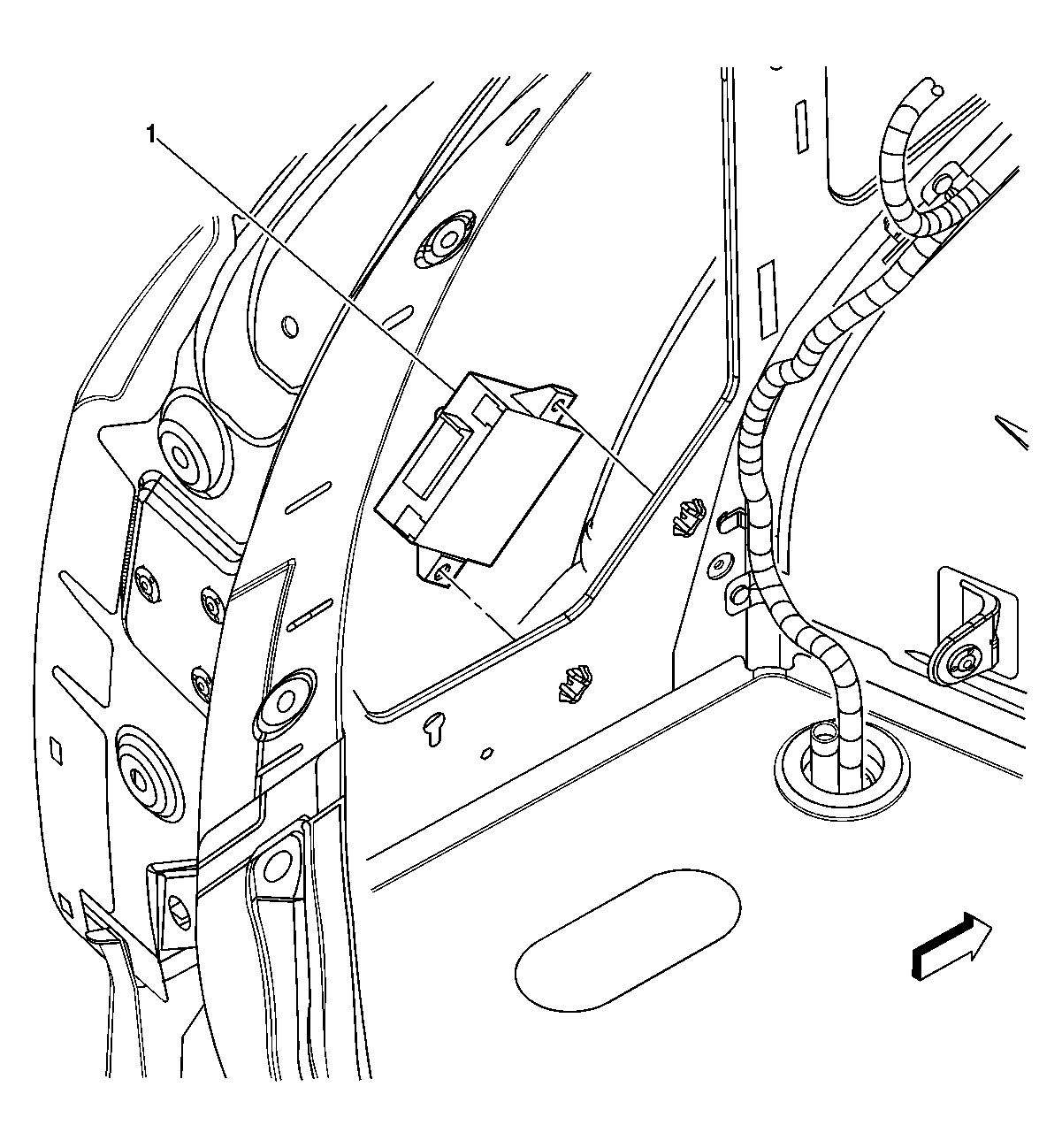

Fig 1: LR Of Cargo Area Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Parking Assist (RPA) Module

Fig 2: Rear Bumper Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Parking Assist (RPA) Object Sensor - Right Rear Corner
2	RPA Object Sensor - Right Rear Middle
3	RPA Object Sensor - Left Rear Middle
4	RPA Object Sensor - Left Rear Corner

Fig 3: Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Switch - Auxiliary (C57)
2	Blower Motor Switch - Rear Auxiliary (C57)
3	Courtesy/Reading Lamp - Rear
4	Rear Parking Assist (RPA) Display
5	Courtesy/Reading Lamp - Center
6	Courtesy/Reading Lamp - Front

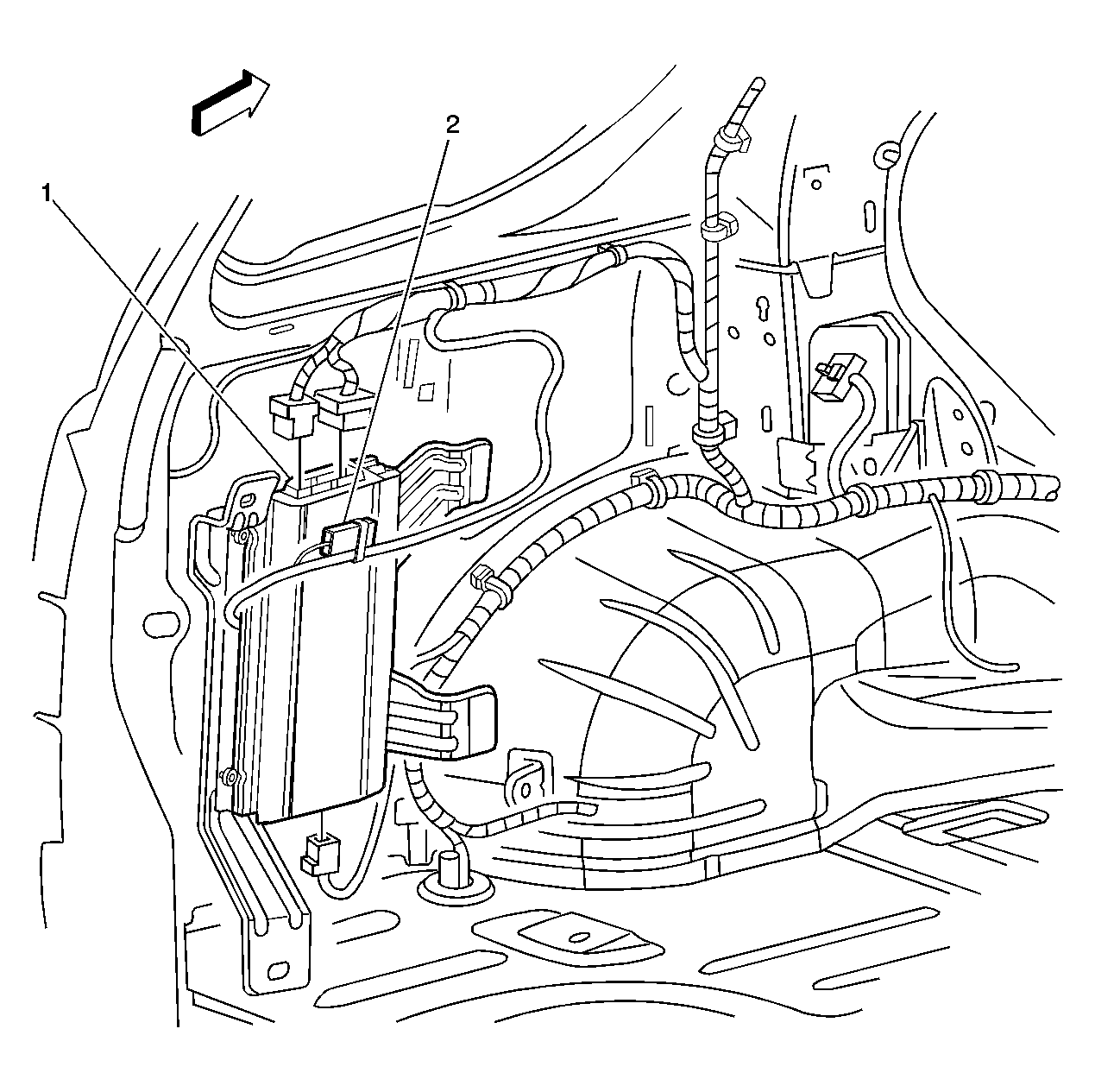

Fig 4: Left Rear Of Vehicle Behind Trim Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier
2	Rear Parking Assist (RPA) Diagnostic Connector
