Installation Procedure

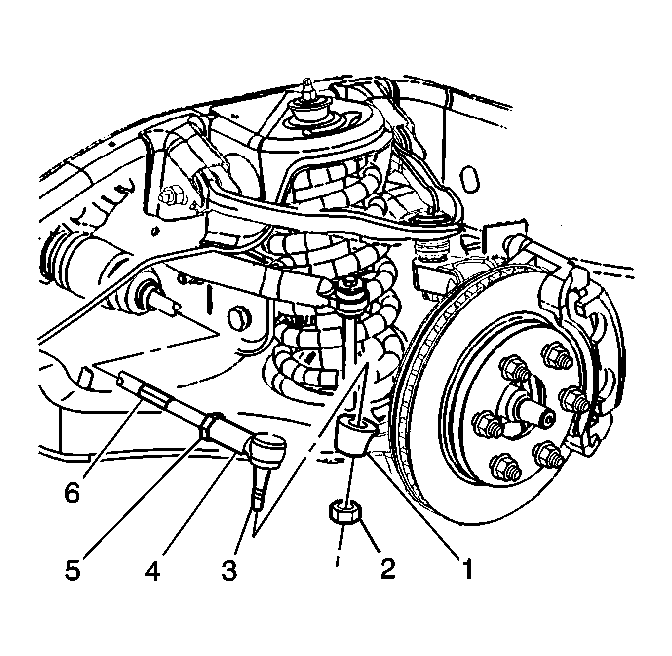

Fig 1: Front Tie Rod Components

Courtesy of GENERAL MOTORS CORP.

Lubricate the tie rod threads with chassis lubricant. Refer to Fluid and Lubricant Recommendations in Maintenance and Lubrication.
Install the tie rod end (4) to the shaft (6).
Install the outer tie rod ball stud (3) to the steering knuckle (1).

Fig 2: Front Tie Rod Components

Courtesy of GENERAL MOTORS CORP.

Install the new prevailing torque nut (2) to the outer tie rod ball stud (3).
Tighten:
- Tighten the nut to 50 N.m (37 lb ft) for 15 series vehicles.
- Tighten the nut to 65 N.m (48 lb ft) for 25/35 series vehicles.
Adjust the front toe. Refer to Measuring Wheel Alignment in Wheel Alignment.
