SIR Component Views

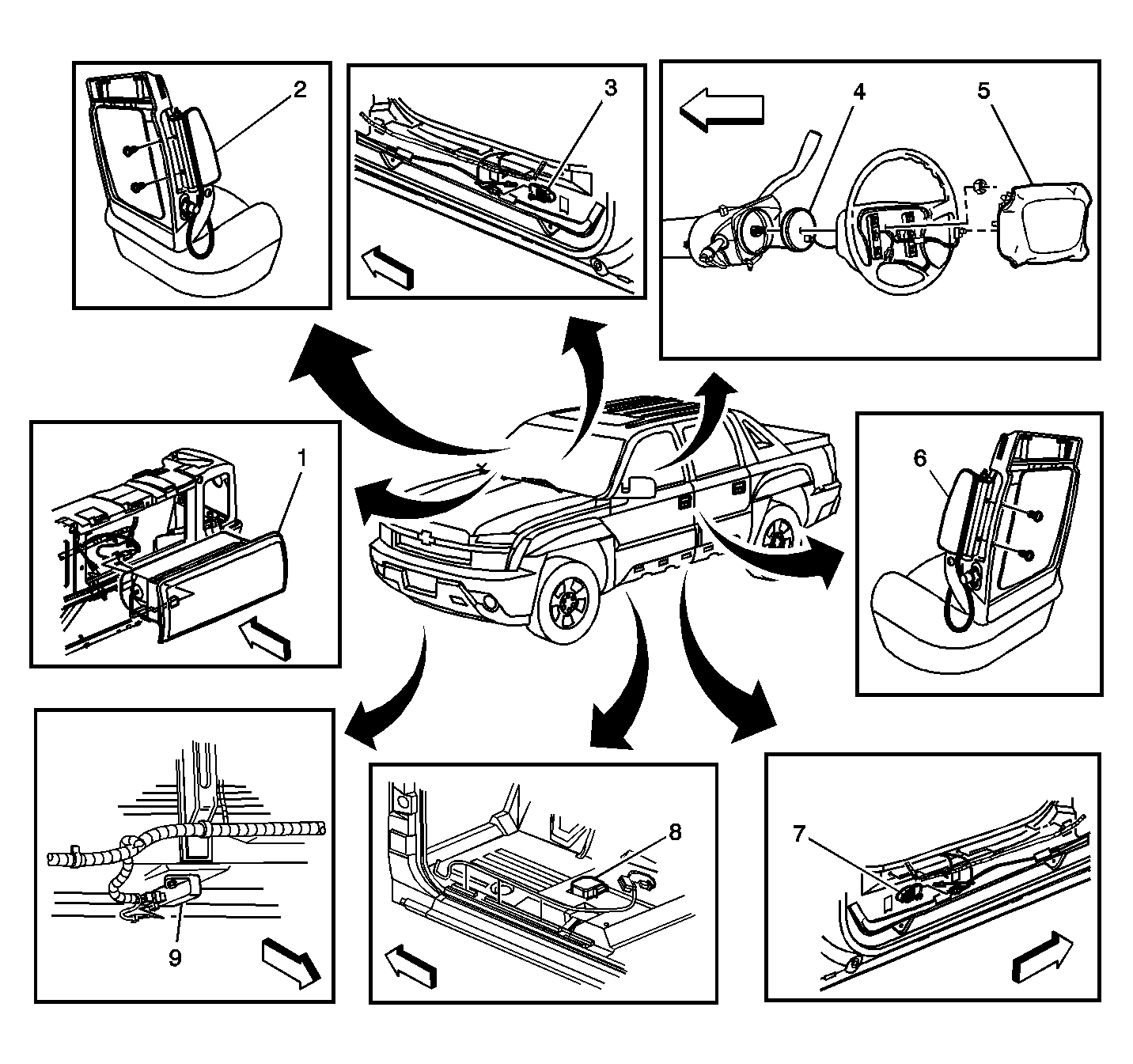

Fig 1: SIR Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module
2	Inflatable Restraint Side Impact Module - Right
3	Inflatable Restraint Side Impact Sensor (SIS) - Right
4	Inflatable Restraint Steering Wheel Module Coil
5	Inflatable Restraint Steering Wheel Module
6	Inflatable Restraint Side Impact Module - Left
7	Inflatable Restraint Side Impact Sensor (SIS) - Left
8	Inflatable Restraint Sensing and Diagnostic Module (SDM)
9	Inflatable Restraint Front End Discriminating Sensor

Fig 2: Passenger Presence Components - Under Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Horizontal Motor - Front Passenger (AN3)
2	Inflatable Restraint Passenger Presence System (PPS) Module (AL0)
3	Inflatable Restraint Passenger Presence System (PPS) Sensor (AL0)
4	Seat Front Vertical Motor - Front Passenger (AN3)
5	Seat Rear Vertical Motor - Front Passenger (AN3)
6	C399
7	Inflatable Restraint Seat Position Sensor - Right
8	Seat Recliner Motor - Front Passenger (AN3)

Fig 3: Passenger Presence Components - Side of Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back Cushion
2	Seat Adjuster Switch - Front Passenger (AN3)
3	Inflatable Restraint Passenger Seat Belt Tension Retractor Sensor Connector (AL0)
