Transfer Case Identification (New Venture Gear)

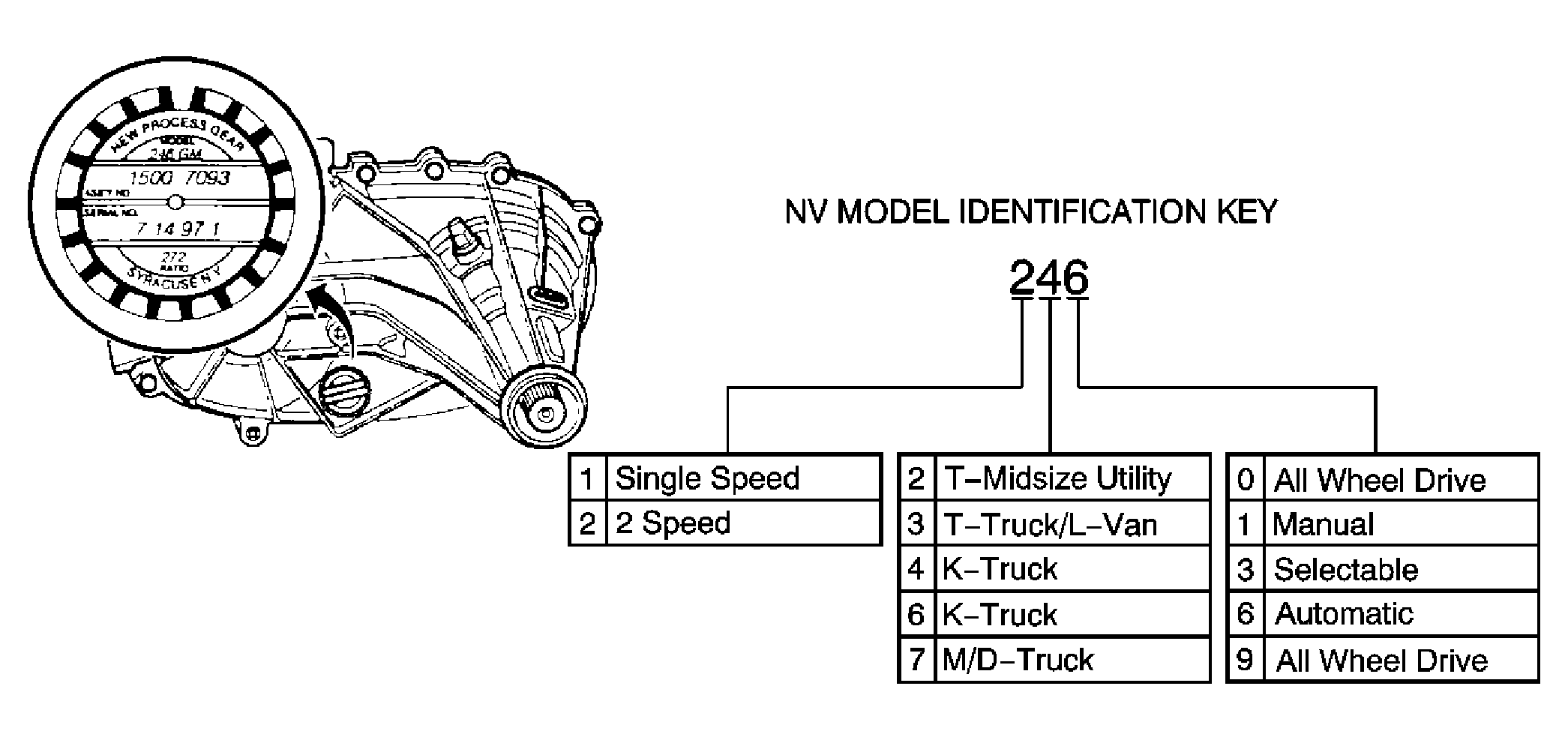

Fig 1: Locating Transfer Case Identification Key

Courtesy of GENERAL MOTORS CORP.

Fig 2: Explaining NVG 900 Transfer Case Identification Tag

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Position of Pin Stamp
2	P = Unit Passed End-of-Line Tests
3	Month, Day and Year the Unit was Built
4	Serial Number/Unit Number on Build Date
