Installation Procedure

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

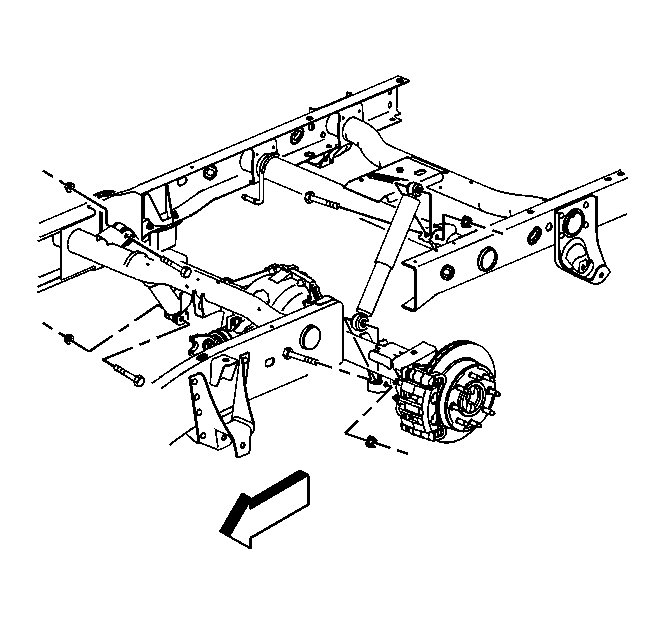

    Fig 1: Removing Upper Shock Absorber Nut And Bolt
    GM348391Courtesy of GENERAL MOTORS CORP.
  1. Install the shock absorber.
  2. Install the upper shock absorber nut and bolt.
    3. NOTE: Refer to Fastener Notice .
  3. Install the lower shock absorber nut and bolt.

    Tighten:  Tighten nuts to 95 N.m (70 lb ft).

  4. Connect the electrical connector if equipped with Selectable Ride.
  5. Remove the safety stands.
  6. Lower the vehicle.
