Park Brake Backing Plate Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

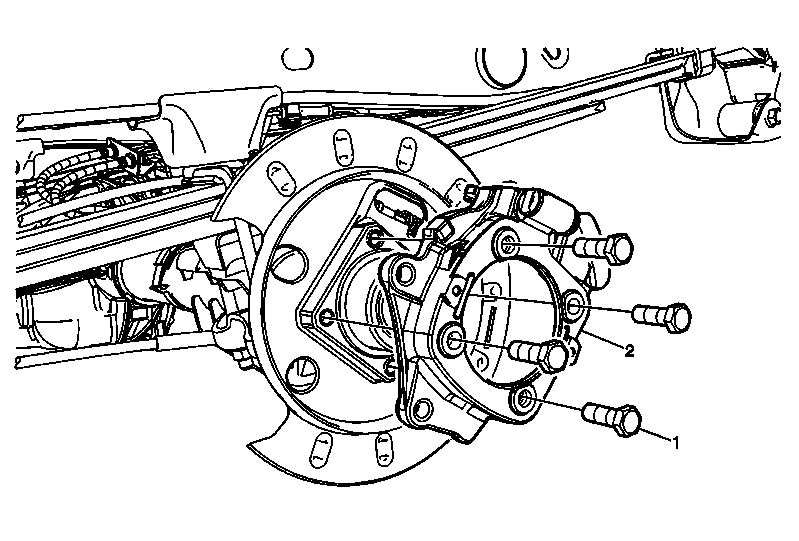

Fig 1: View Of Park Brake Backing Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . Preliminary Procedures Disable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Disabling . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the park brake shoe. Refer to Parking Brake Shoe Replacement (JD9) or Parking Brake Shoe Replacement (JH6, JH7) . Remove the rear axle shaft. Refer to Rear Axle Shaft Replacement (8.6, 9.5/9.5LD Inch Axles) or Rear Axle Shaft Replacement (8.6 Inch Axle w/Drum Brakes) . Disconnect the park brake cable from the actuator lever.
1	Park Brake Backing Plate Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Procedure Remove all traces of the adhesive patch on the park brake backing plate bolts. Clean the park brake backing plate bolt threads with denatured alcohol or equivalent and allow to dry. Apply threadlocker GM P/N 12345493 (Canadian P/N 10953488) to 2/3 of the threaded portion of the bolt. Tighten: 135 N.m (100 lb ft)
2	Park Brake Backing Plate Procedure Remove all traces of the adhesive patch in the rear axle flange threaded holes. Clean the rear axle flange threaded holes with denatured alcohol or equivalent and allow to dry. Enable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Enabling . Adjust the park brake. Refer to Park Brake Adjustment (Disc Brake) or Park Brake Adjustment (Drum Brake) .

Callout

Component Name

CAUTION: Refer to Brake Dust Caution .

Preliminary Procedures

Disable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Disabling .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the park brake shoe. Refer to Parking Brake Shoe Replacement (JD9) or Parking Brake Shoe Replacement (JH6, JH7) .
Remove the rear axle shaft. Refer to Rear Axle Shaft Replacement (8.6, 9.5/9.5LD Inch Axles) or Rear Axle Shaft Replacement (8.6 Inch Axle w/Drum Brakes) .
Disconnect the park brake cable from the actuator lever.

Park Brake Backing Plate Bolt (Qty: 4)

NOTE: Refer to Fastener Notice .

Procedure

Remove all traces of the adhesive patch on the park brake backing plate bolts.
Clean the park brake backing plate bolt threads with denatured alcohol or equivalent and allow to dry.
Apply threadlocker GM P/N 12345493 (Canadian P/N 10953488) to 2/3 of the threaded portion of the bolt.

Tighten: 135 N.m (100 lb ft)

Park Brake Backing Plate

Procedure

Remove all traces of the adhesive patch in the rear axle flange threaded holes.
Clean the rear axle flange threaded holes with denatured alcohol or equivalent and allow to dry.
Enable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Enabling .
Adjust the park brake. Refer to Park Brake Adjustment (Disc Brake) or Park Brake Adjustment (Drum Brake) .
