Escalade EXT
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Door System, Mirror System & Window System
>>
Schematic and Routing Diagrams
>>
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

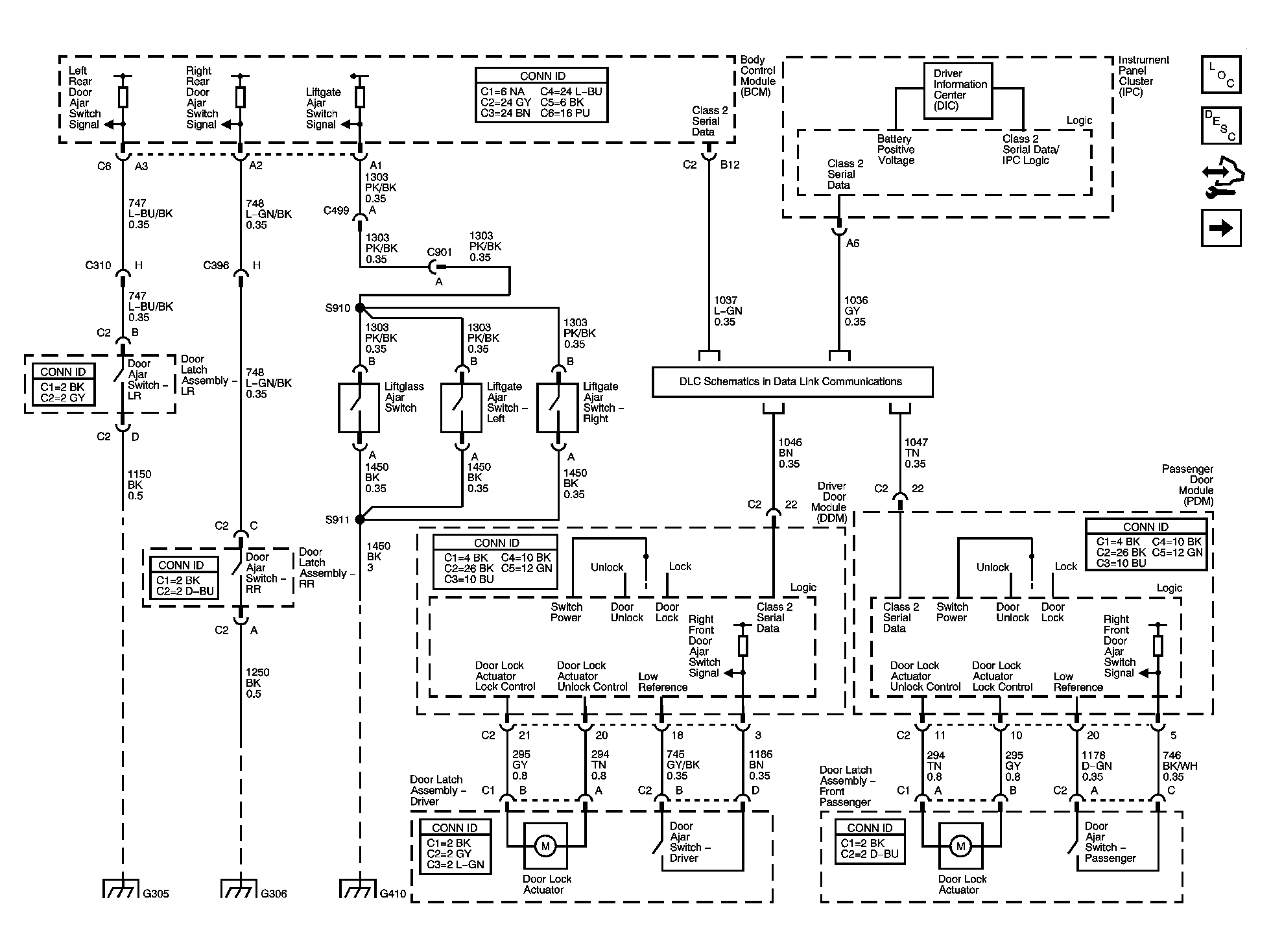

Fig 1: Driver and Front Passenger Locks and Indicator Schematics
Courtesy of GENERAL MOTORS CORP.

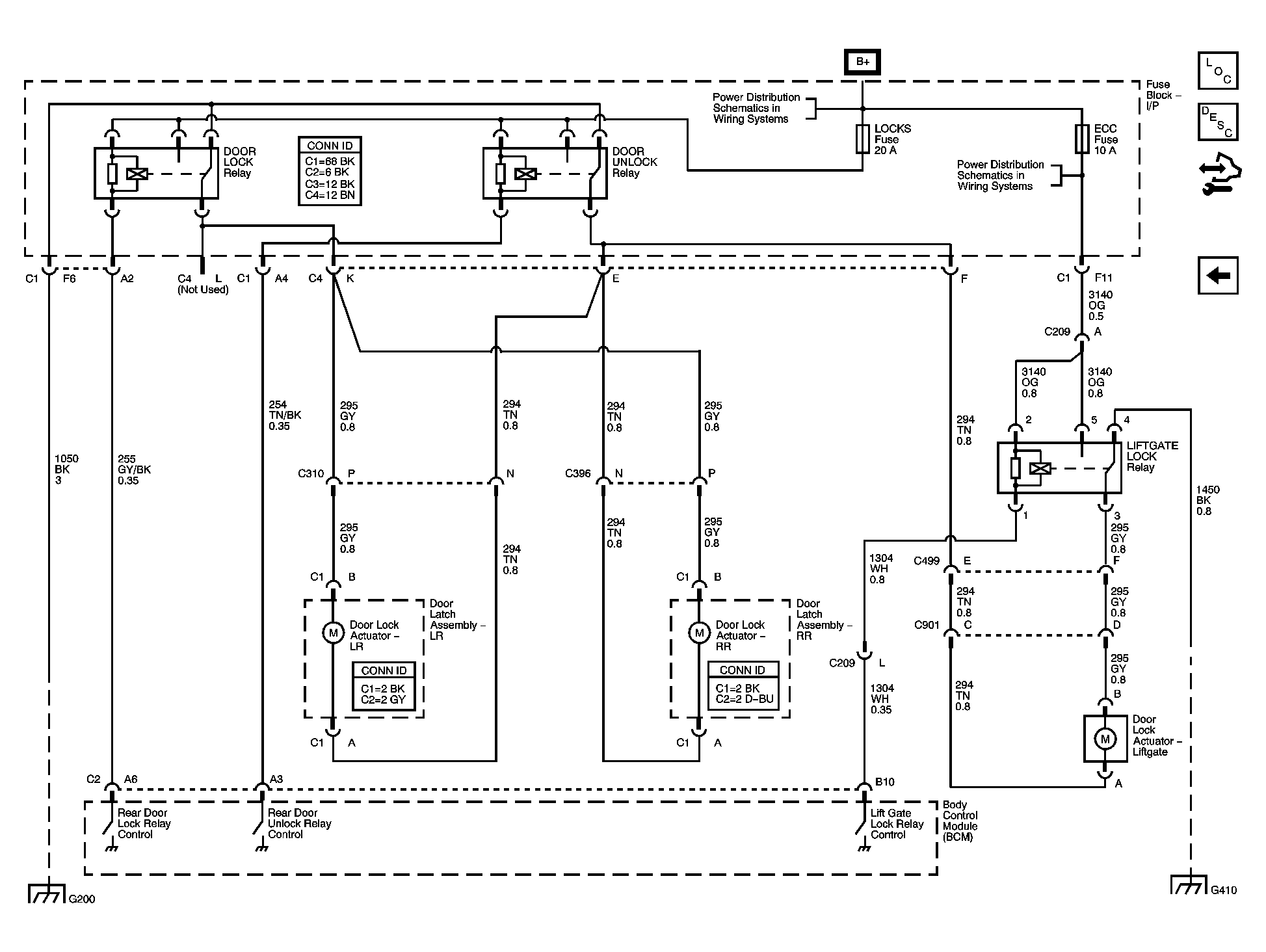

Fig 2: Rear Door and Liftgate Locks
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
