Power Roof Systems Component Views

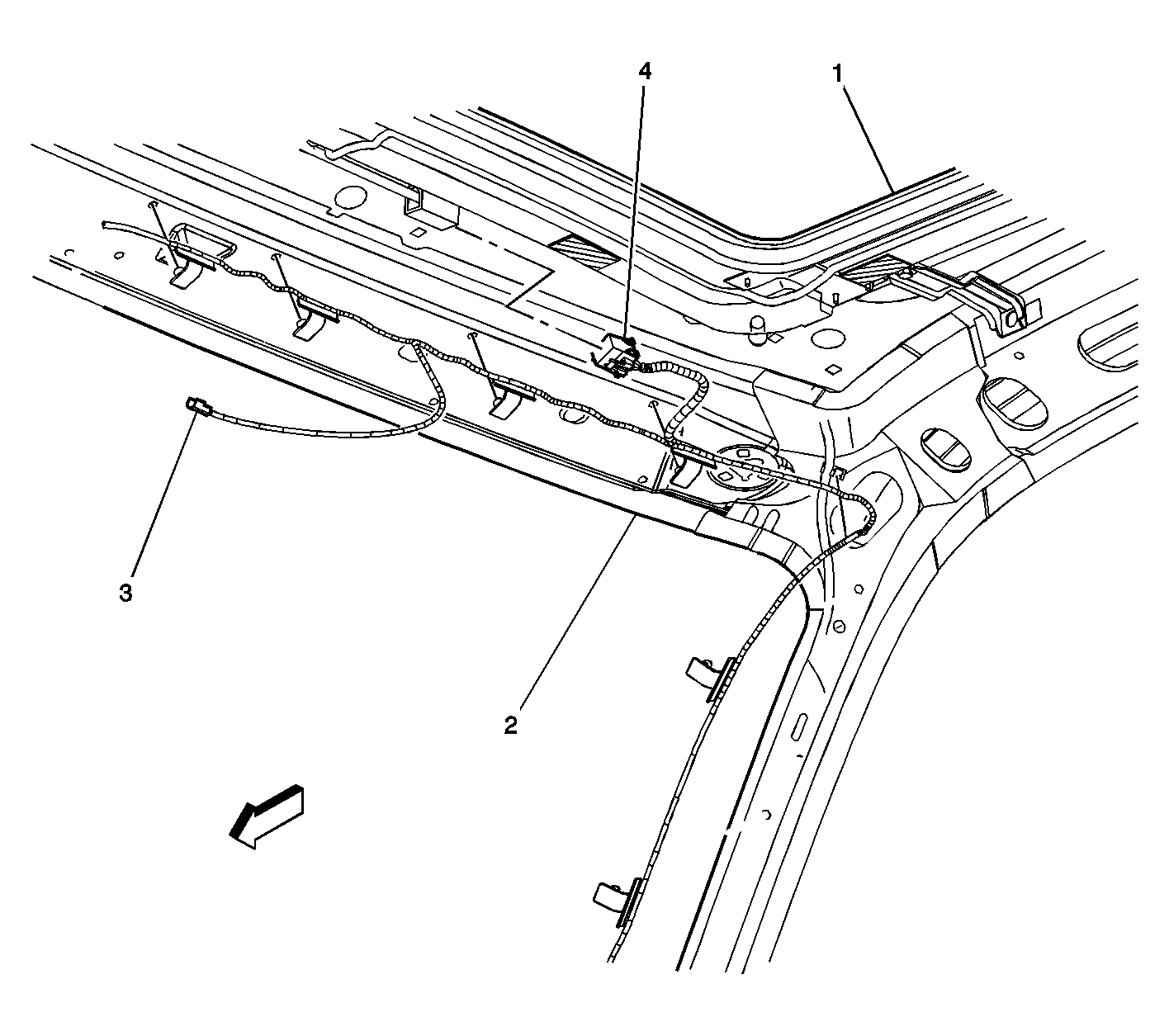

Fig 1: Right A-Pillar Component View - Top

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Opening
2	Front Roof Panel
3	Cellular Microphone Connector
4	C353

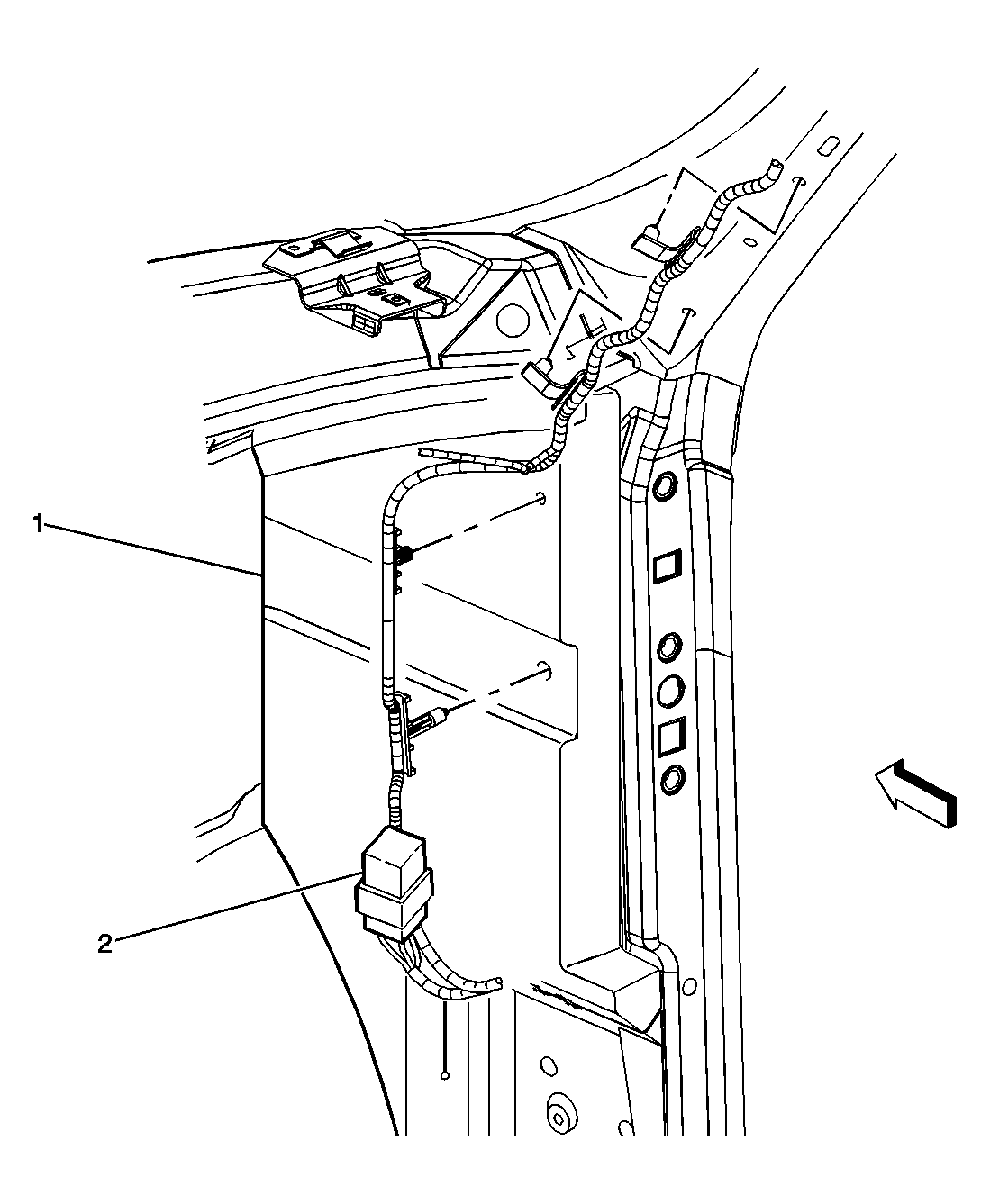

Fig 2: Right A-Pillar Component View - Middle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right A-Pillar
2	Sunroof Relay
