Object Detection Schematics

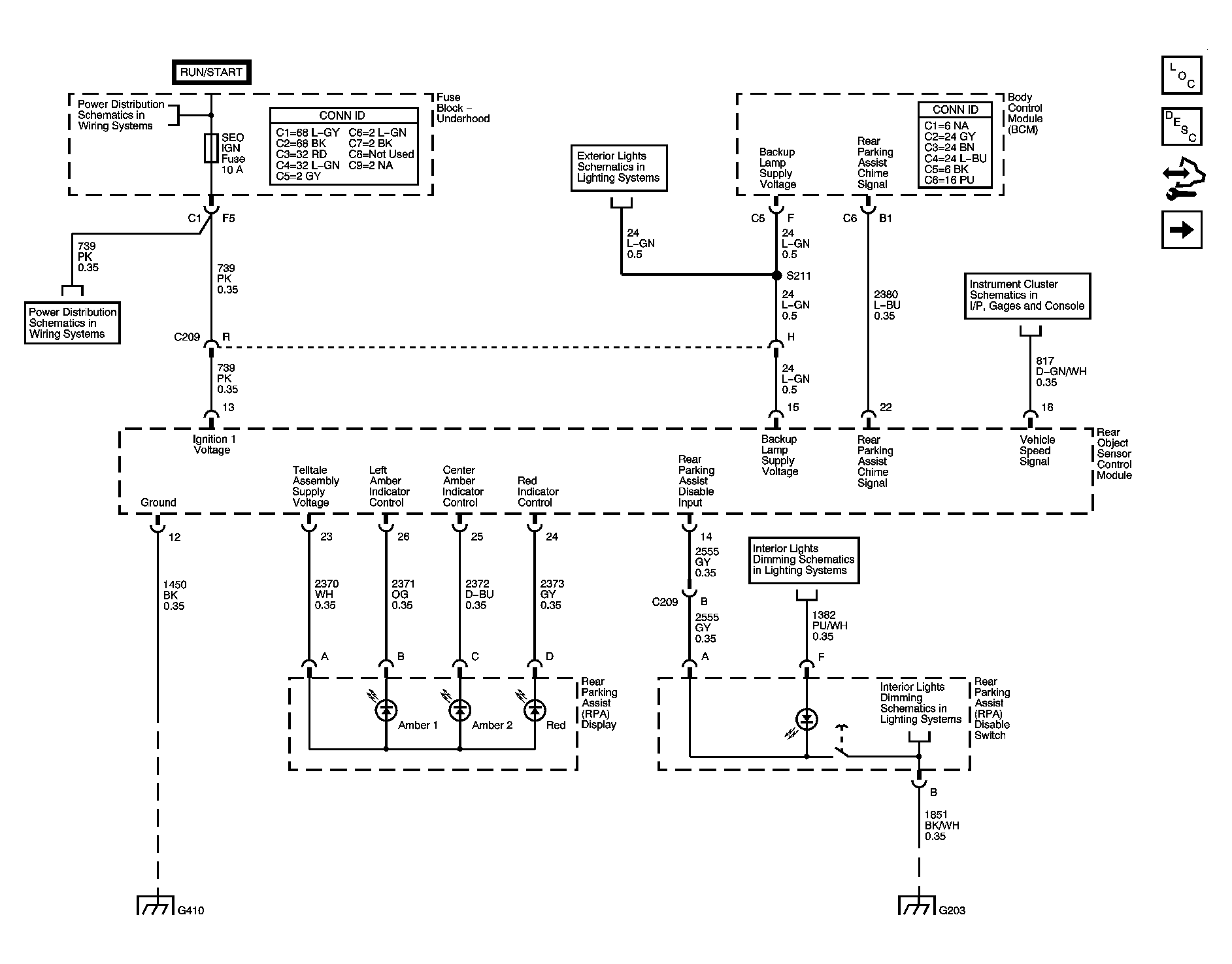

Fig 1: Rear Object Sensor Control Module, RPA Display, and RPA Disable Switch
GM1608950Courtesy of GENERAL MOTORS CORP.

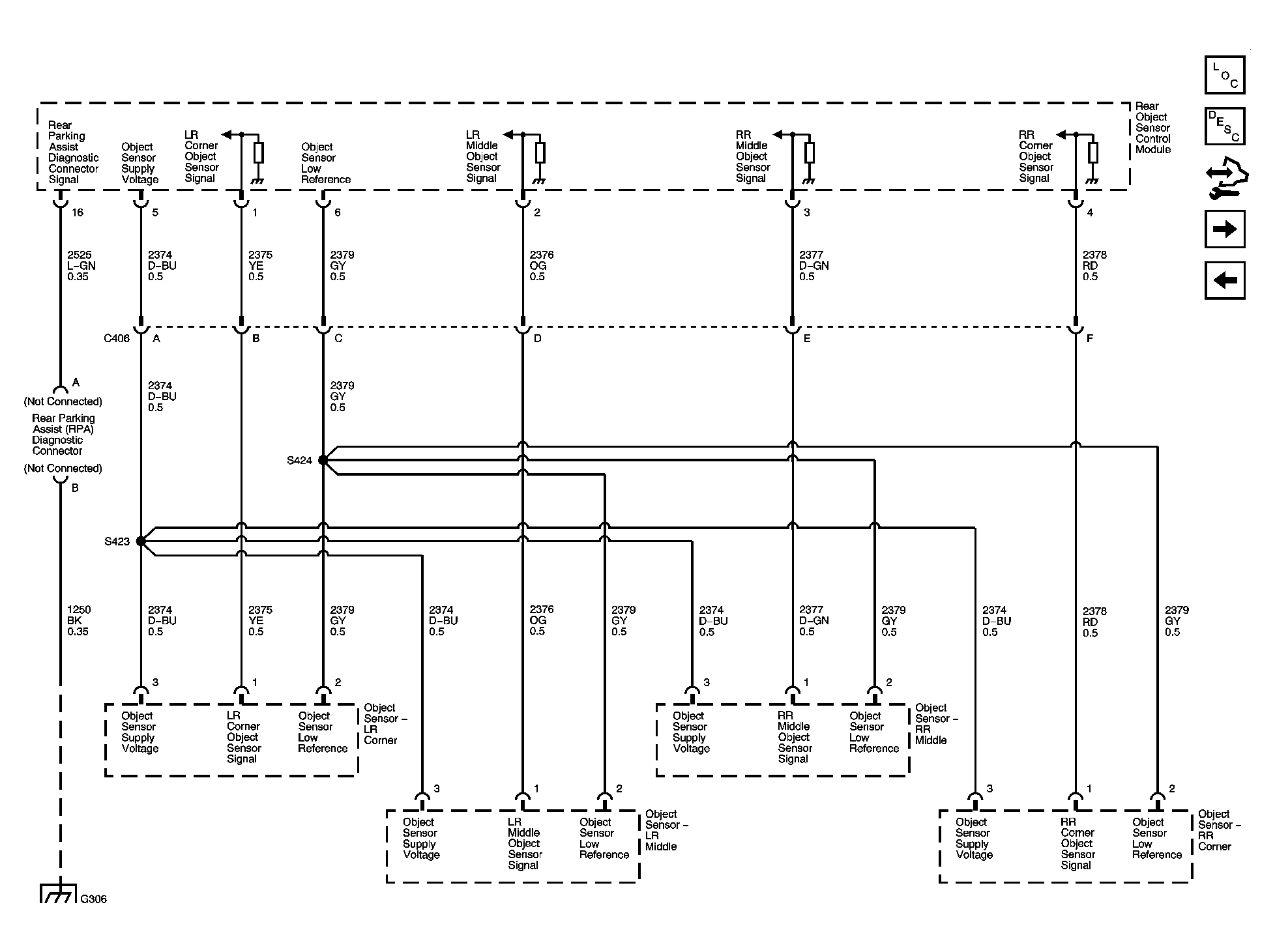

Fig 2: Rear Object Sensor Control Module and Object Sensors
GM1608951Courtesy of GENERAL MOTORS CORP.

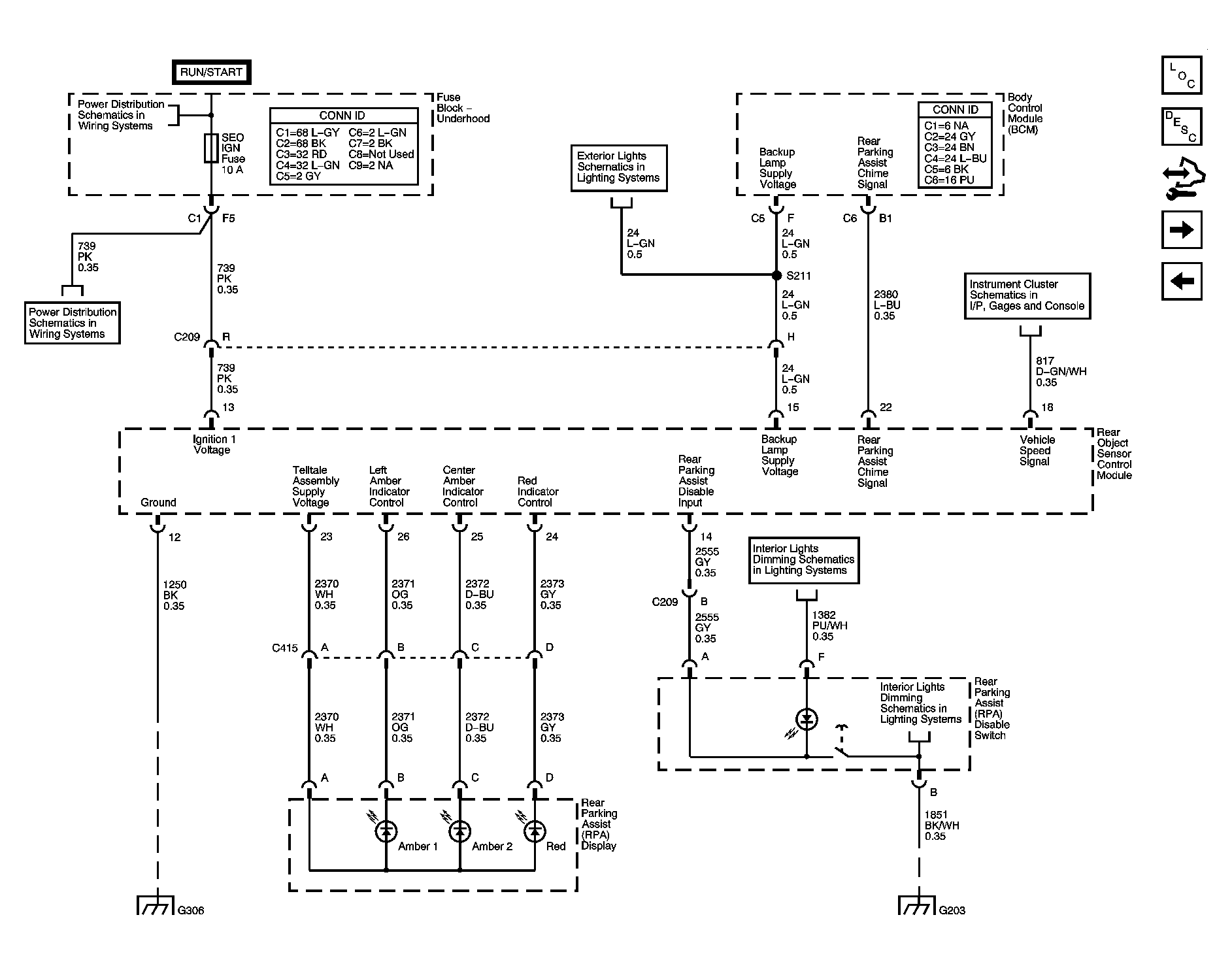

Fig 3: Rear Object Sensor Control Module, RPA Display and Disable Switch - Escalade EXT
GM1608953Courtesy of GENERAL MOTORS CORP.

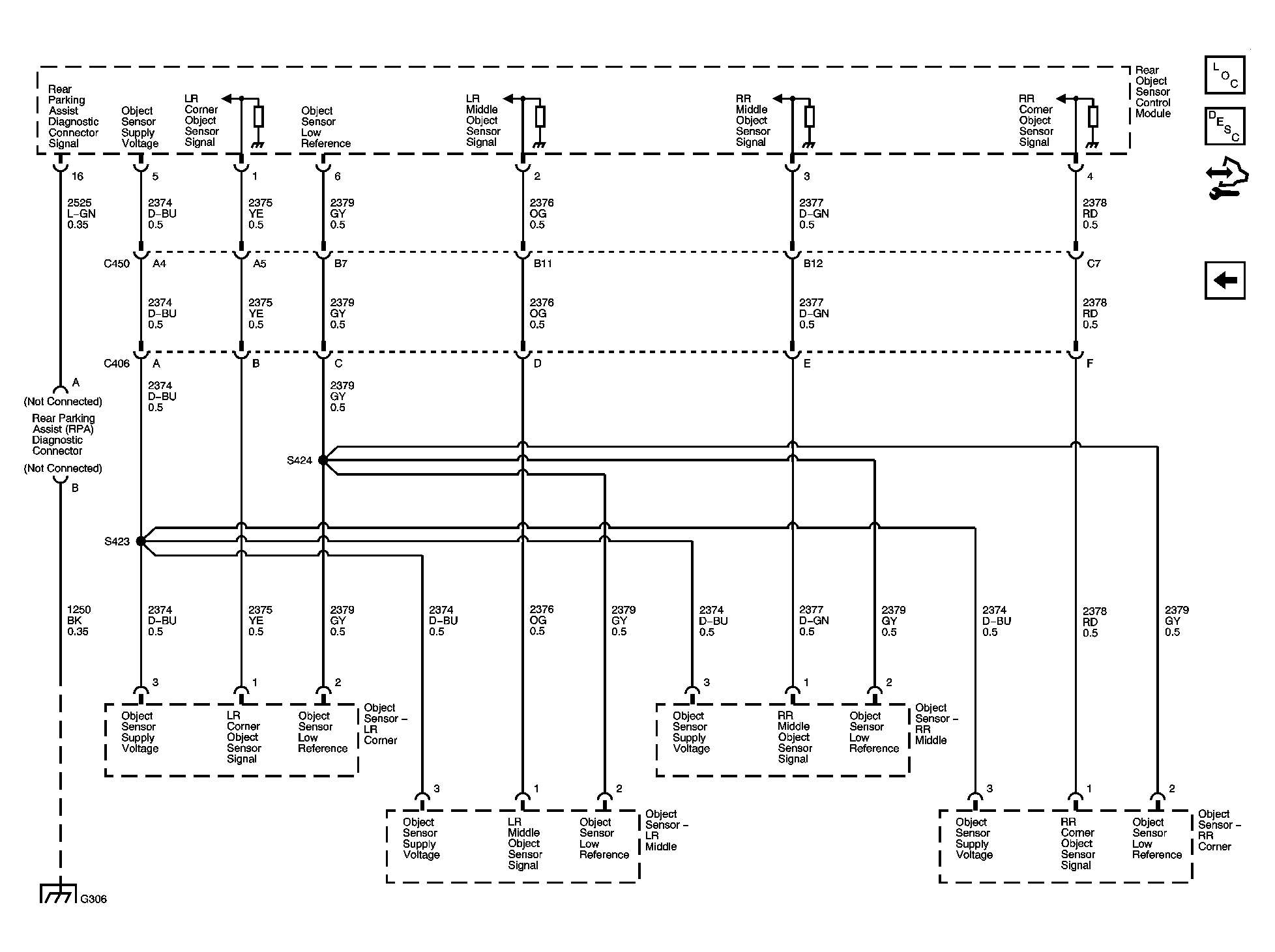

Fig 4: Rear Object Sensor Control Module and Object Sensors - Escalade EXT
GM1608954Courtesy of GENERAL MOTORS CORP.
