Driver Seat Adjuster Memory Switch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

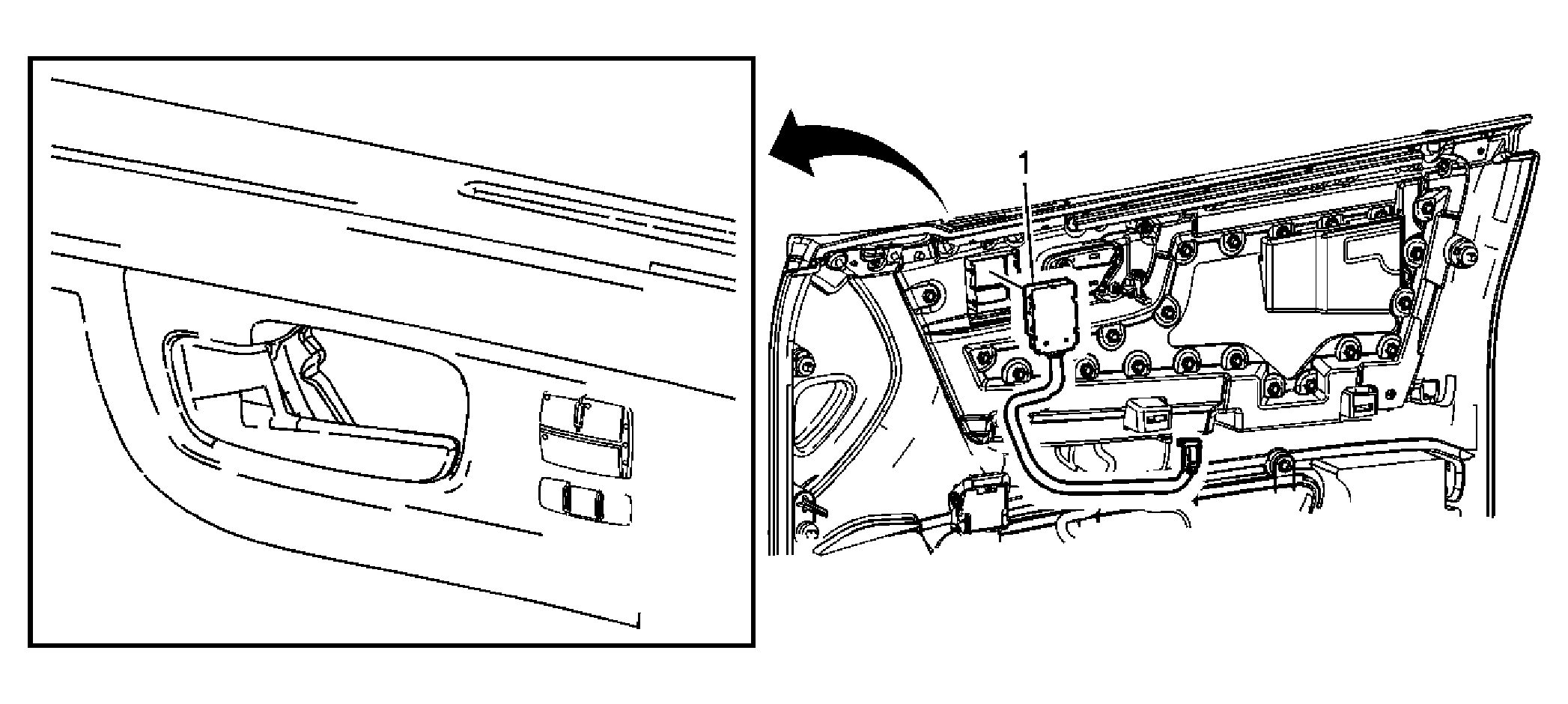

Fig 1: Memory Seat Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the front side door air duct from the trim panel.
1	Front Seat Memory Switch Tip: Disconnect the electrical connector.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the front side door air duct from the trim panel.

Front Seat Memory Switch
Tip: Disconnect the electrical connector.
