Installation Procedure

IMPORTANT: Clean any existing oxidation from the contact face of the battery and battery cable using a wire brush prior to installing the battery cable to the battery.

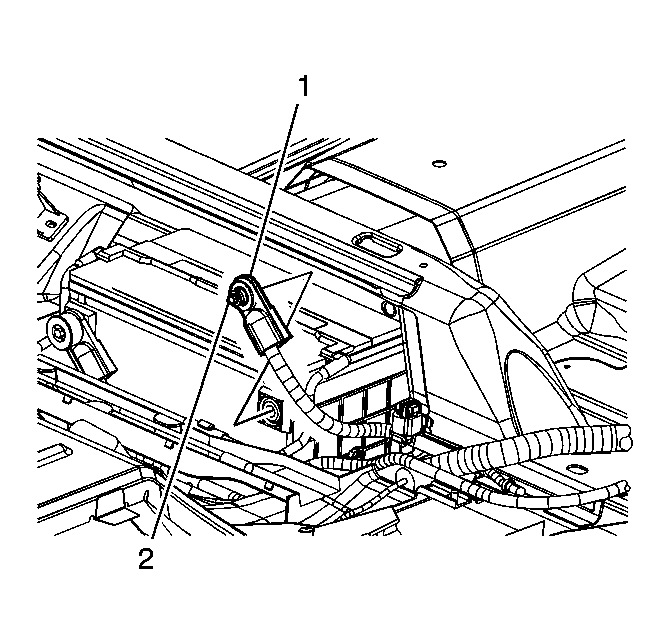

    Fig 1: Locating Battery
    GM1669904Courtesy of GENERAL MOTORS CORP.
  1. Position the negative battery cable to the battery.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Tighten the negative battery cable bolt.

    Tighten:  Tighten the bolt to 17 N.m (13 lb ft).

  3. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
