Rain Sensor Module Connector End View (CE1)

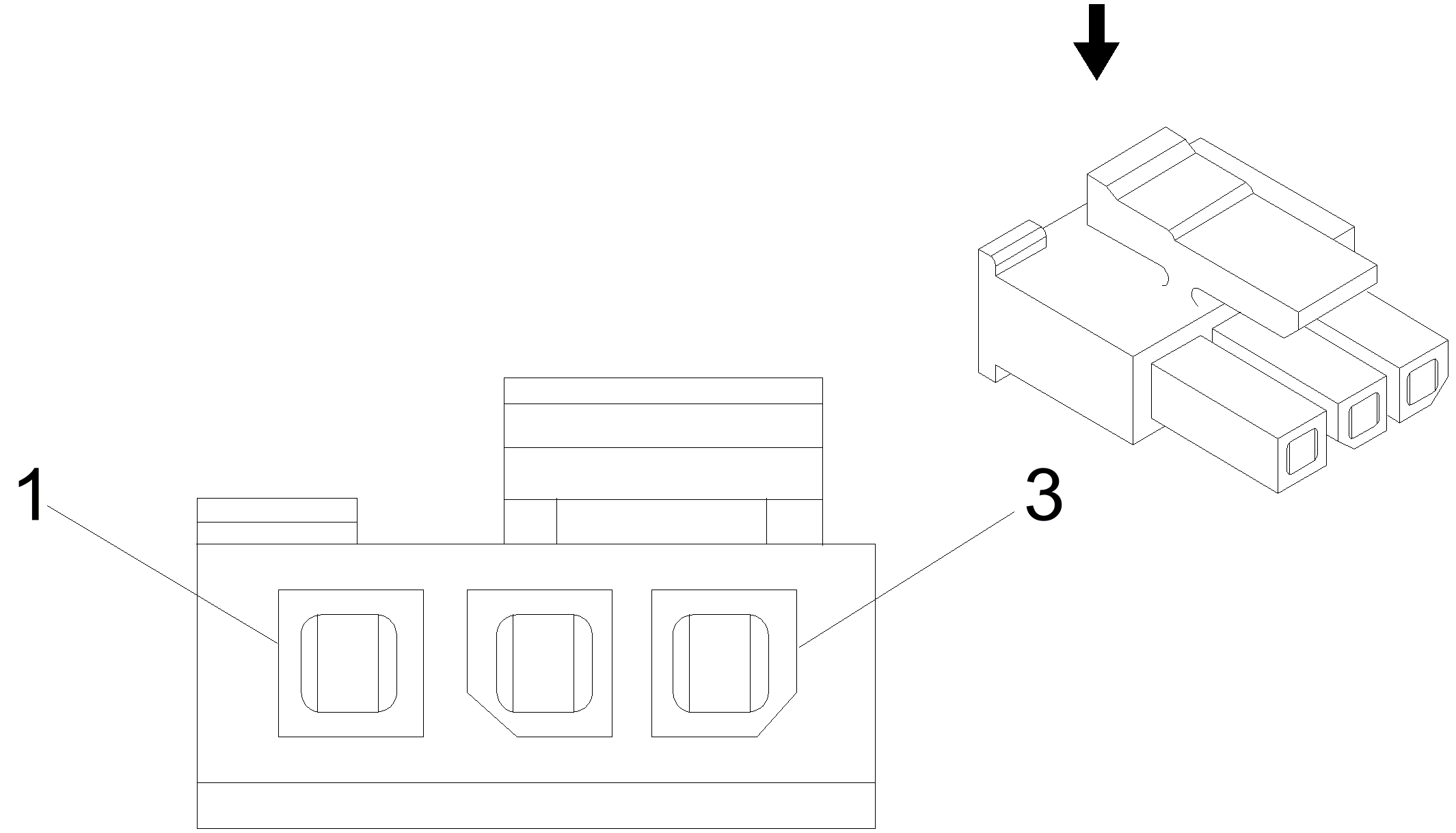

Fig 1: Rain Sensor Module (CE1) Connector End View

Courtesy of GENERAL MOTORS CORP.

Wiper/Washer System Connector End Views

Connector Part Information  OEM: 43645-0400 Service: 15306387 Description: 3-Way F Micro Fit (BK)

Terminal Part Information  Terminal/Tray: TBD Core/Insulation Crimp: TBD Release Tool/Test Probe: TBD

Rain Sensor Module (CE1)

Pin	Wire Color	Circuit No.	Function
1	L-GN	482	Rain Sense Signal (2)
2	TN/YE	481	Rain Sense Signal (1)
3	BK	850	Ground
4	YE	643	Accessory Voltage
