Keyless Entry Schematics

Fig 1: Remote Control Door Lock Receiver - RCDLR

GM1616377

Courtesy of GENERAL MOTORS CORP.

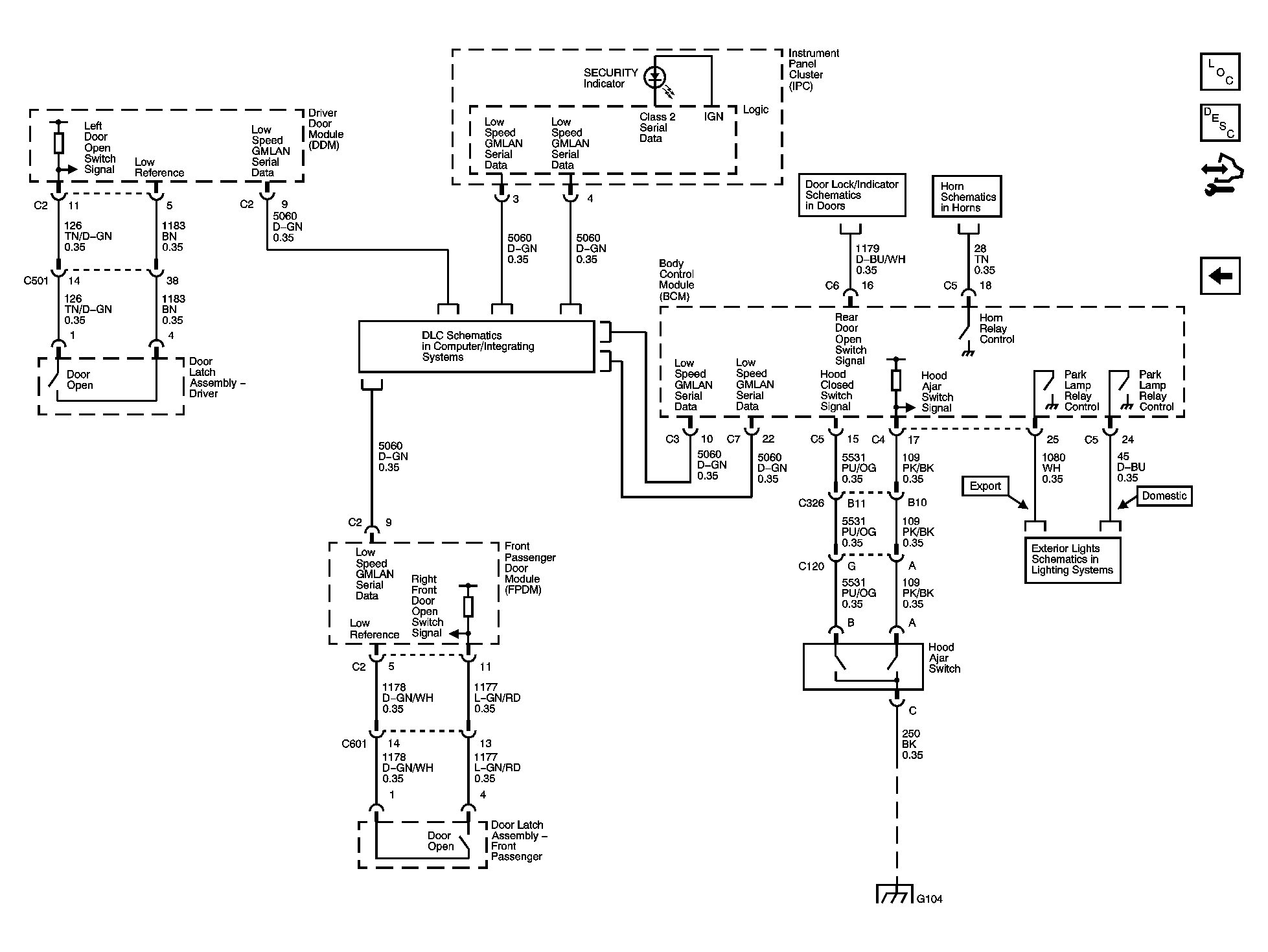

Fig 2: Door Latch Assemblies and Hood Ajar Switch

GM1616379

Courtesy of GENERAL MOTORS CORP.
