Power Moding Schematics

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

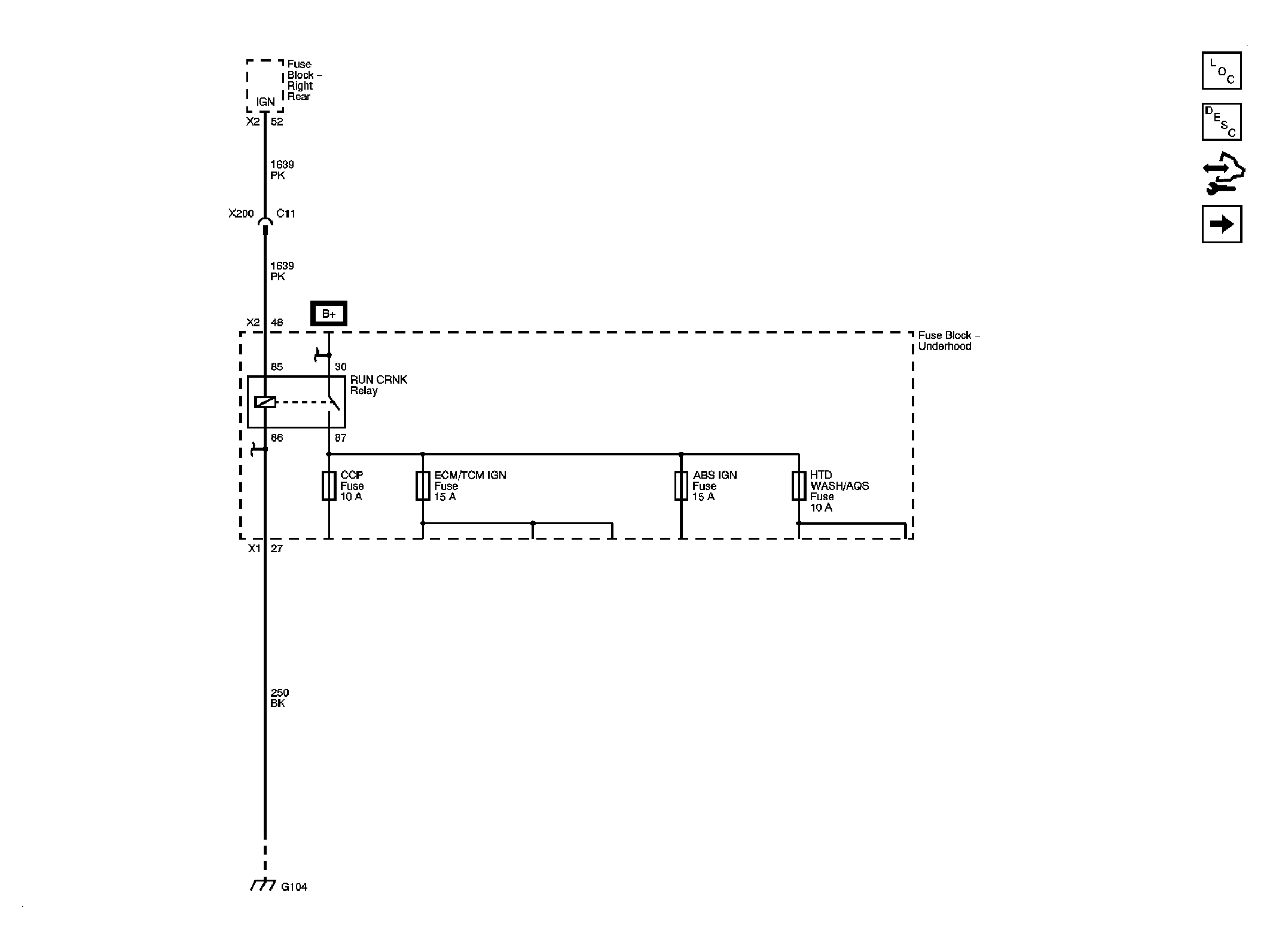

Fig 1: RUN/CRNK Relay

Courtesy of GENERAL MOTORS CORP.

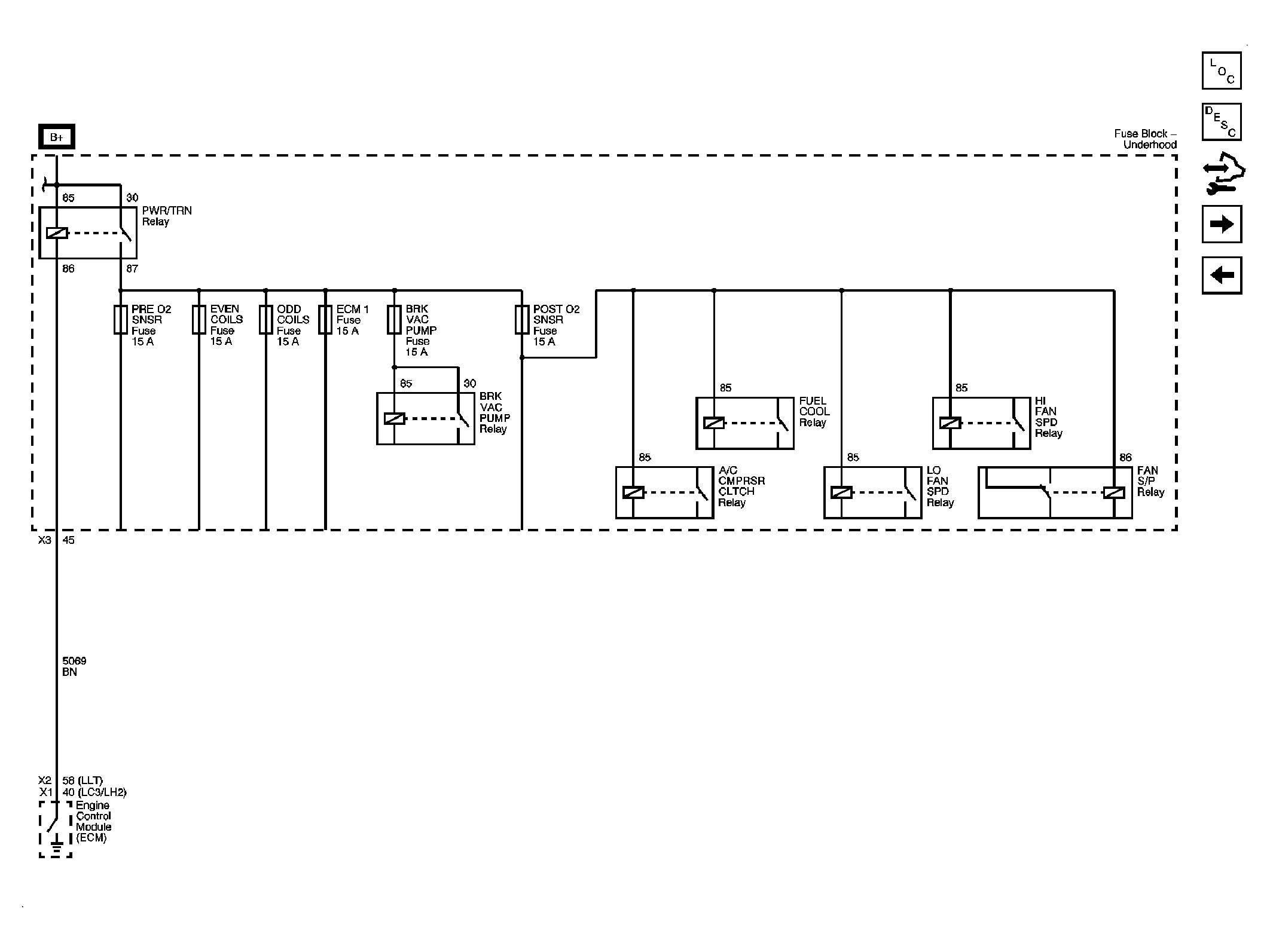

Fig 2: PWR/TRN Relay

Courtesy of GENERAL MOTORS CORP.

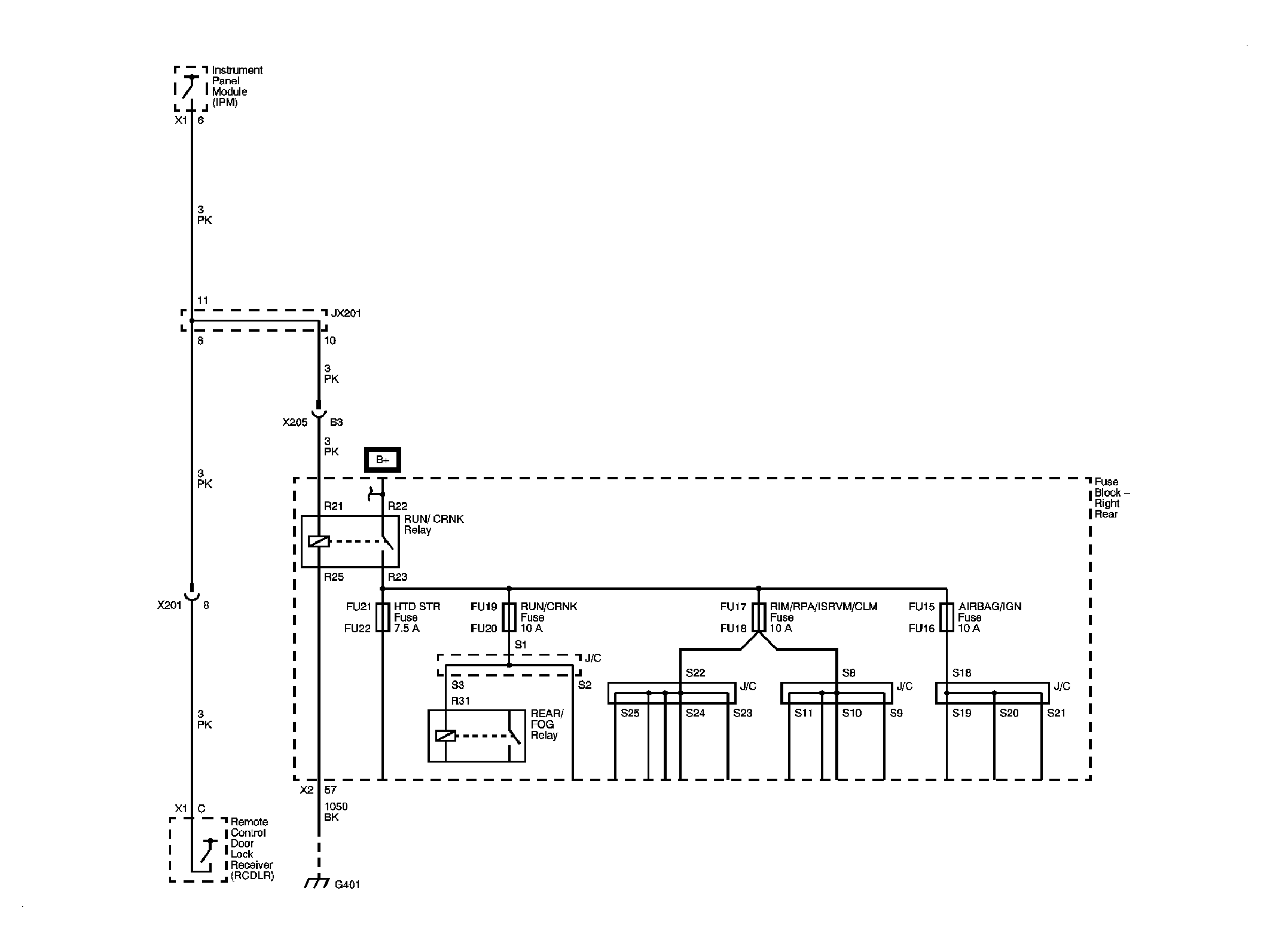

Fig 3: RUN/CRNK Relay

Courtesy of GENERAL MOTORS CORP.

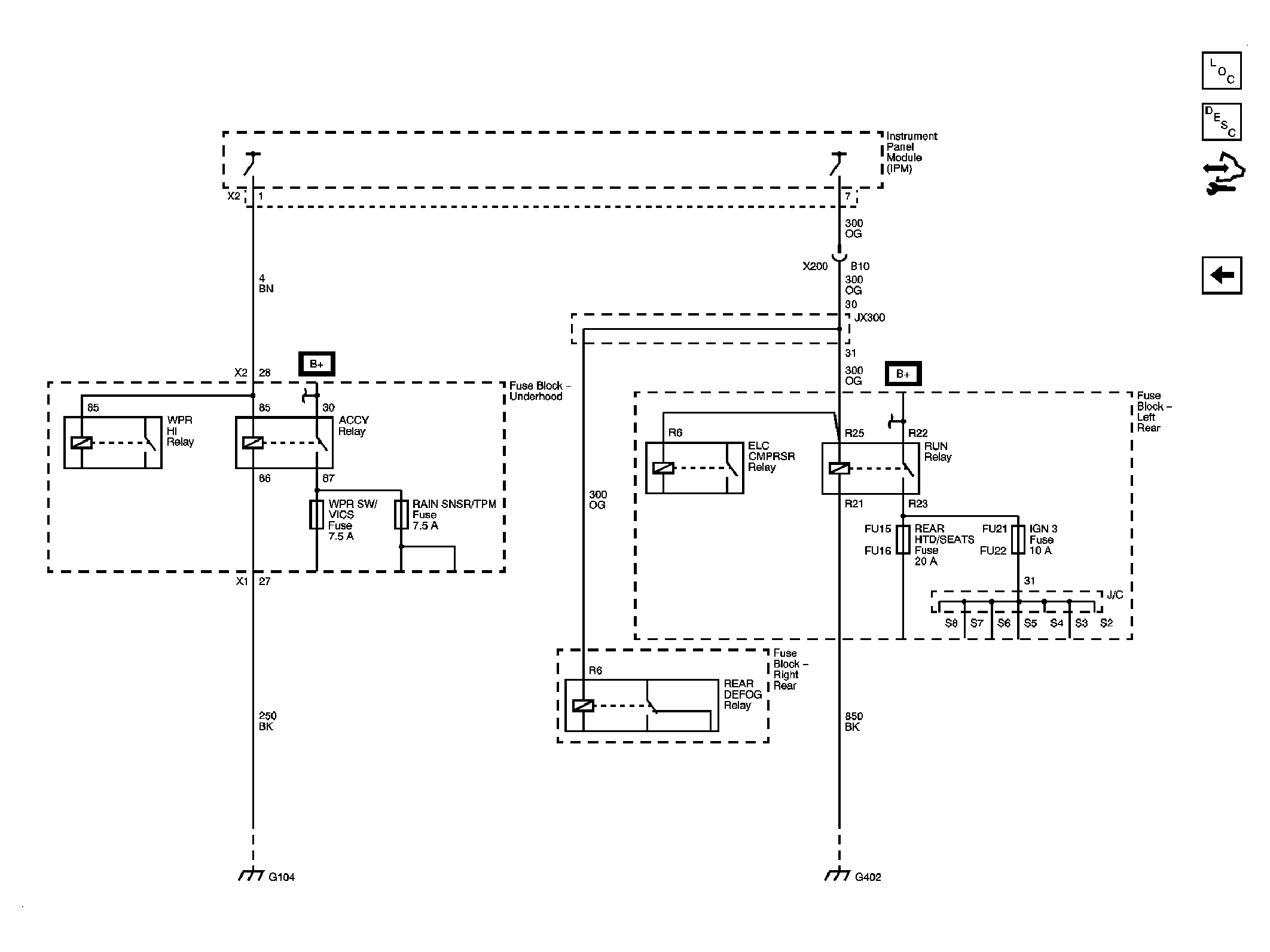

Fig 4: ACCY and RUN Relay

Courtesy of GENERAL MOTORS CORP.
