Mode 6 - Cts
>>
2003
Mode 6 - Cts: 2003

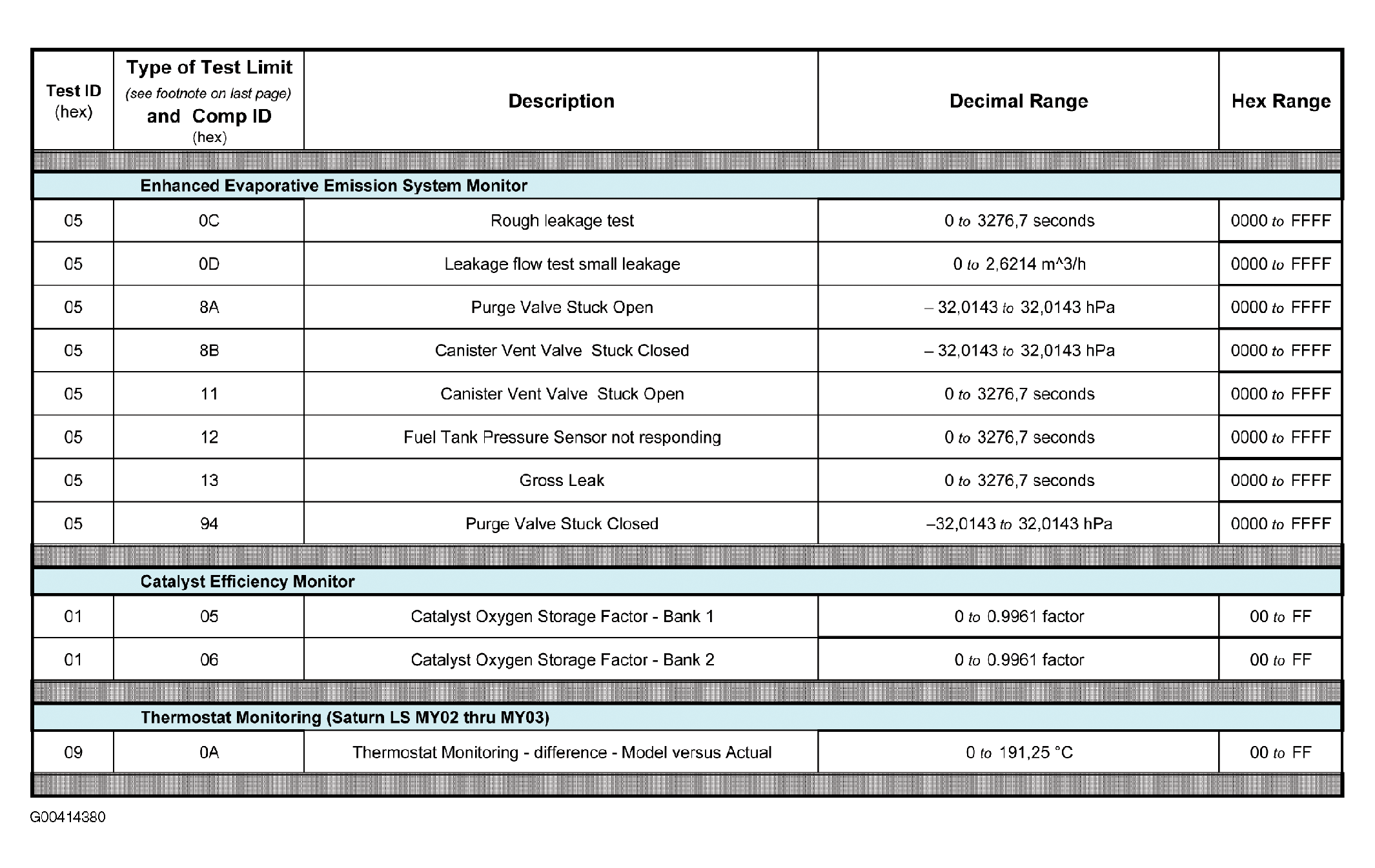

Fig 1: Mode $06 Data Definitions For 2003 CTS (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

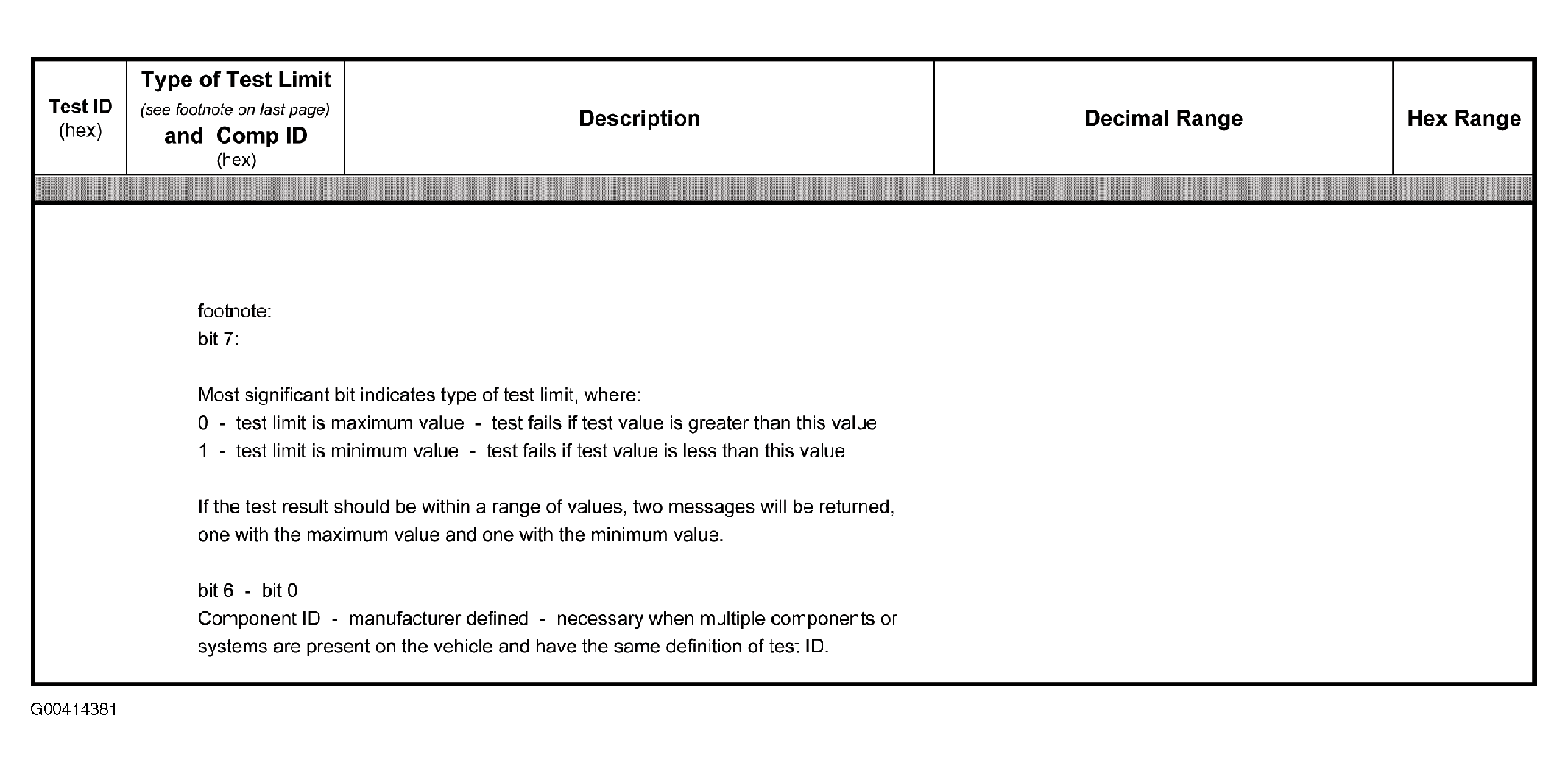

Fig 2: Mode $06 Data Definitions For 2003 CTS (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
