Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    IMPORTANT: Ensure that the hoist is clear of the left front fender to allow the lower fender to be moved away for access to the washer container.
  2. Remove the left front wheel. Refer to Tire and Wheel Removal and Installation .

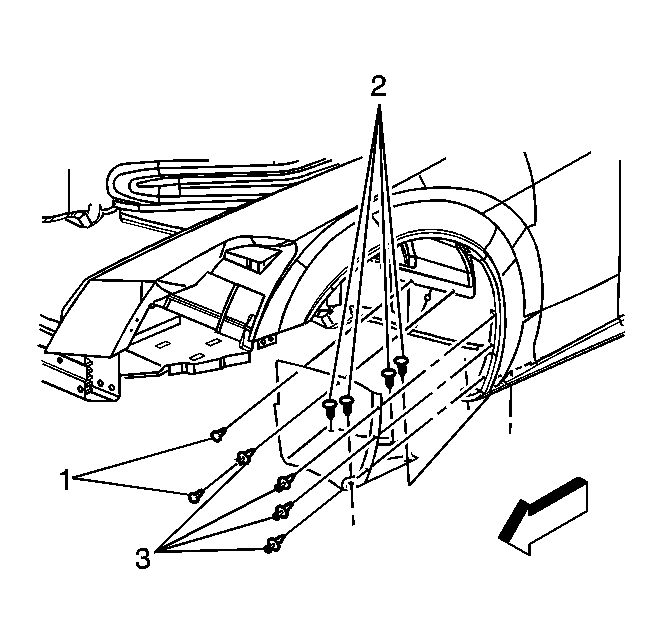

    3. Fig 1: View Of Wheelhouse Splash Shield Fasteners
    GM929129Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Note the position of the fender for installation alignment.
  3. Remove the left front lower wheelhouse splash shield fasteners (1, 2, 3) at the rear of the wheelhouse.
  4. Remove the shield.

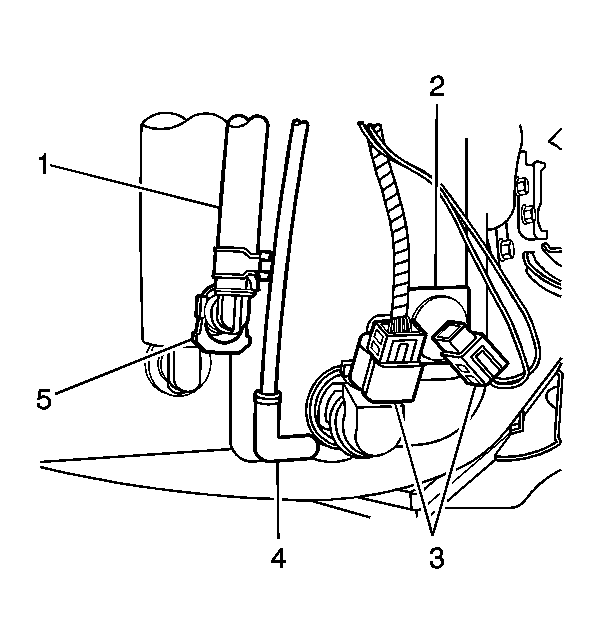

    5. Fig 2: View Of Headlamp Washer Output Hose, Lock & Electrical Connectors
    GM929131Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the output hose (4) from the washer pump. Drain the contents into a suitable container.
  6. Disconnect the electrical connector from the level sensor (2).
    7. IMPORTANT: Note the orientation of the level sensor, with the electrical connector on top.
  7. Remove the washer solvent container level sensor (2) by twisting the sensor out of the washer solvent container.
