Controlled/Monitored Subsystem References Schematics

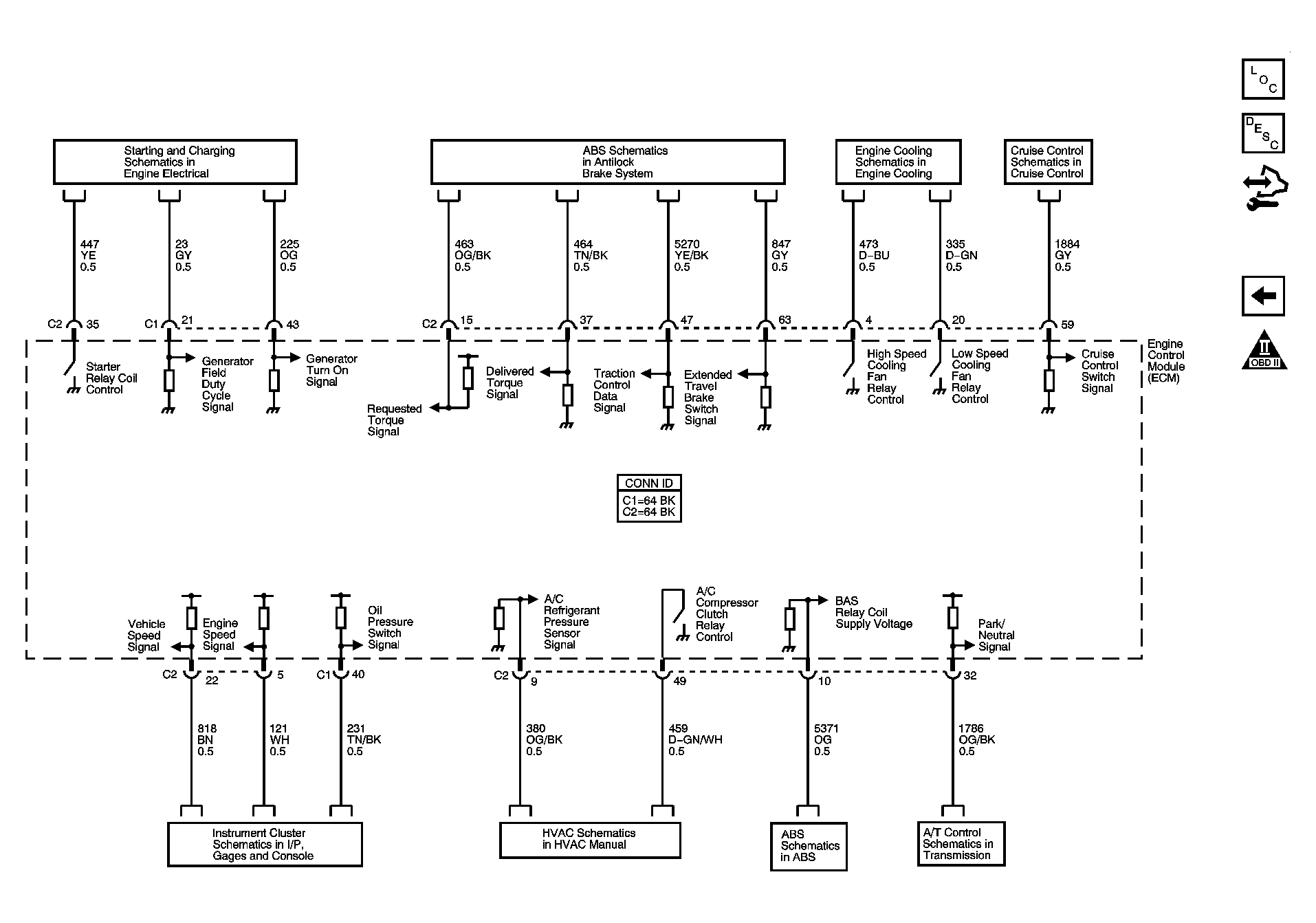

Fig 1: Controlled/Monitored Subsystem References

GM1592593

Courtesy of GENERAL MOTORS CORP.
