Power and Grounding Component Views

Fig 1: Engine Electrical Components (LY7) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Cable Connection to Starter
2	Starter
3	Generator
4	Battery Positive Cable Connection to Generator

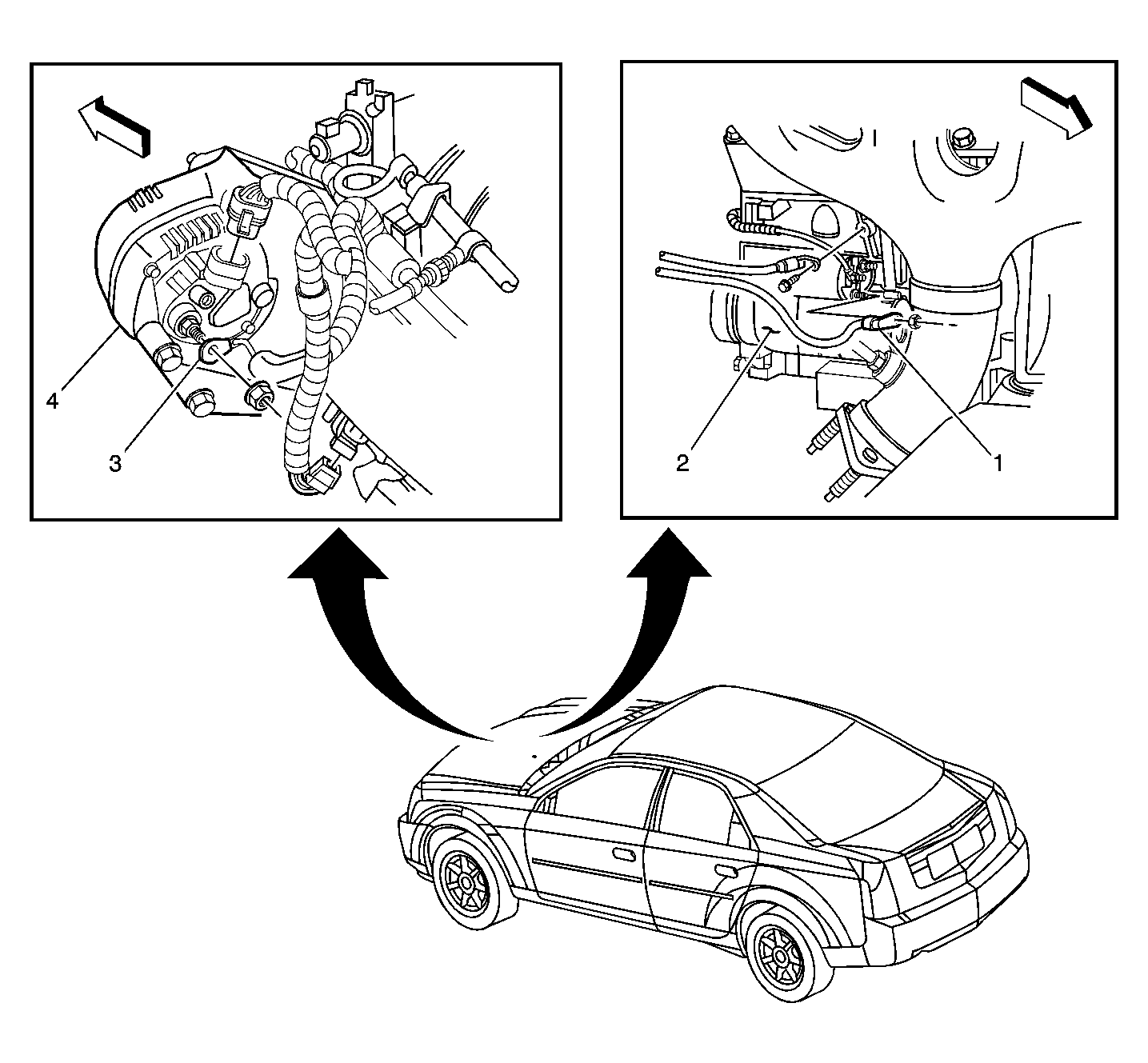

Fig 2: Battery Positive Cable - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Cable Connection to Starter
2	Starter
3	Battery Positive Cable Connection to Generator
4	Generator

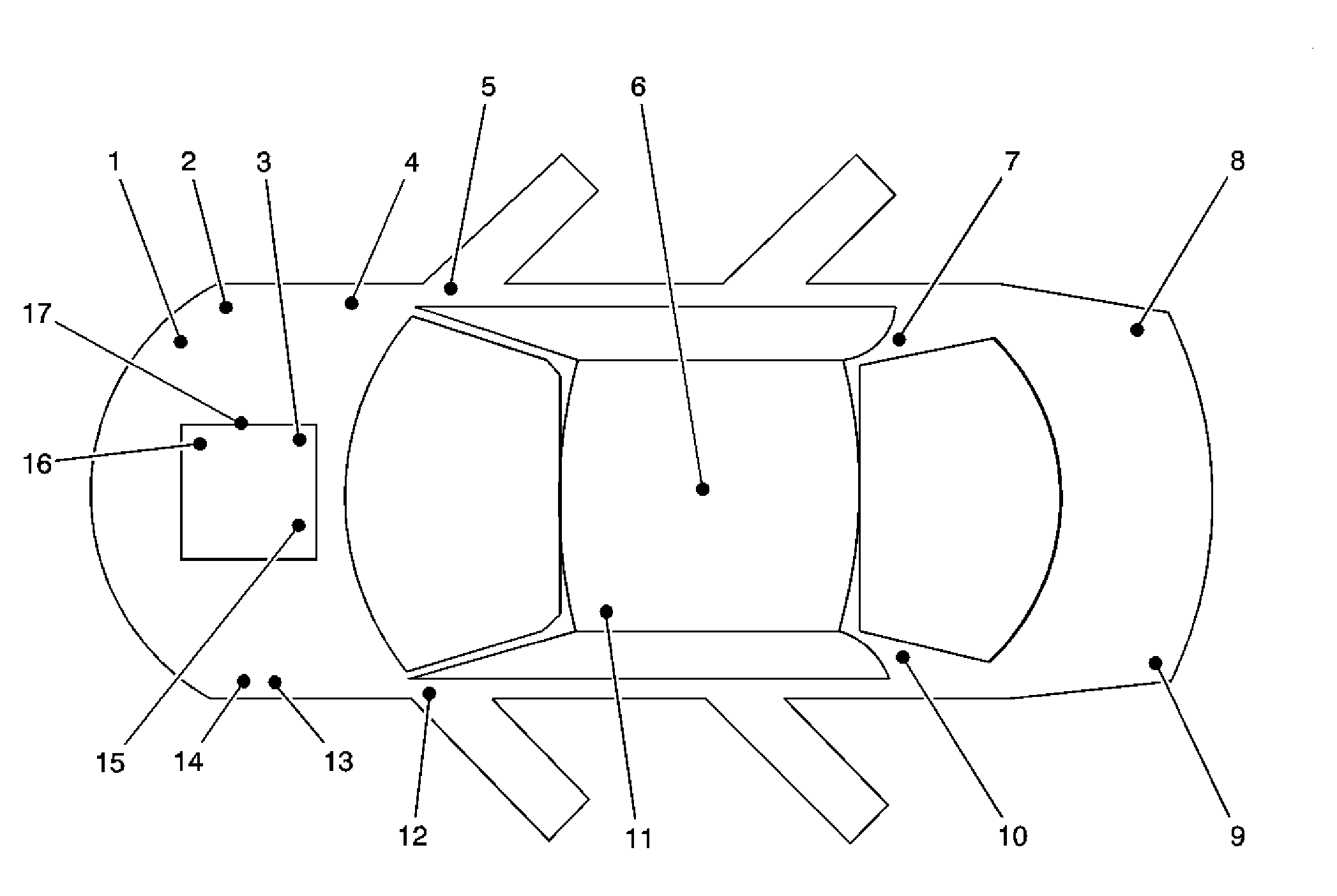

Fig 3: Ground Locations

Courtesy of GENERAL MOTORS CORP.

Fig 4: Battery Negative Cable Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground G102
2	Battery Negative Cable Connection to Battery
3	Ground G105
4	C103

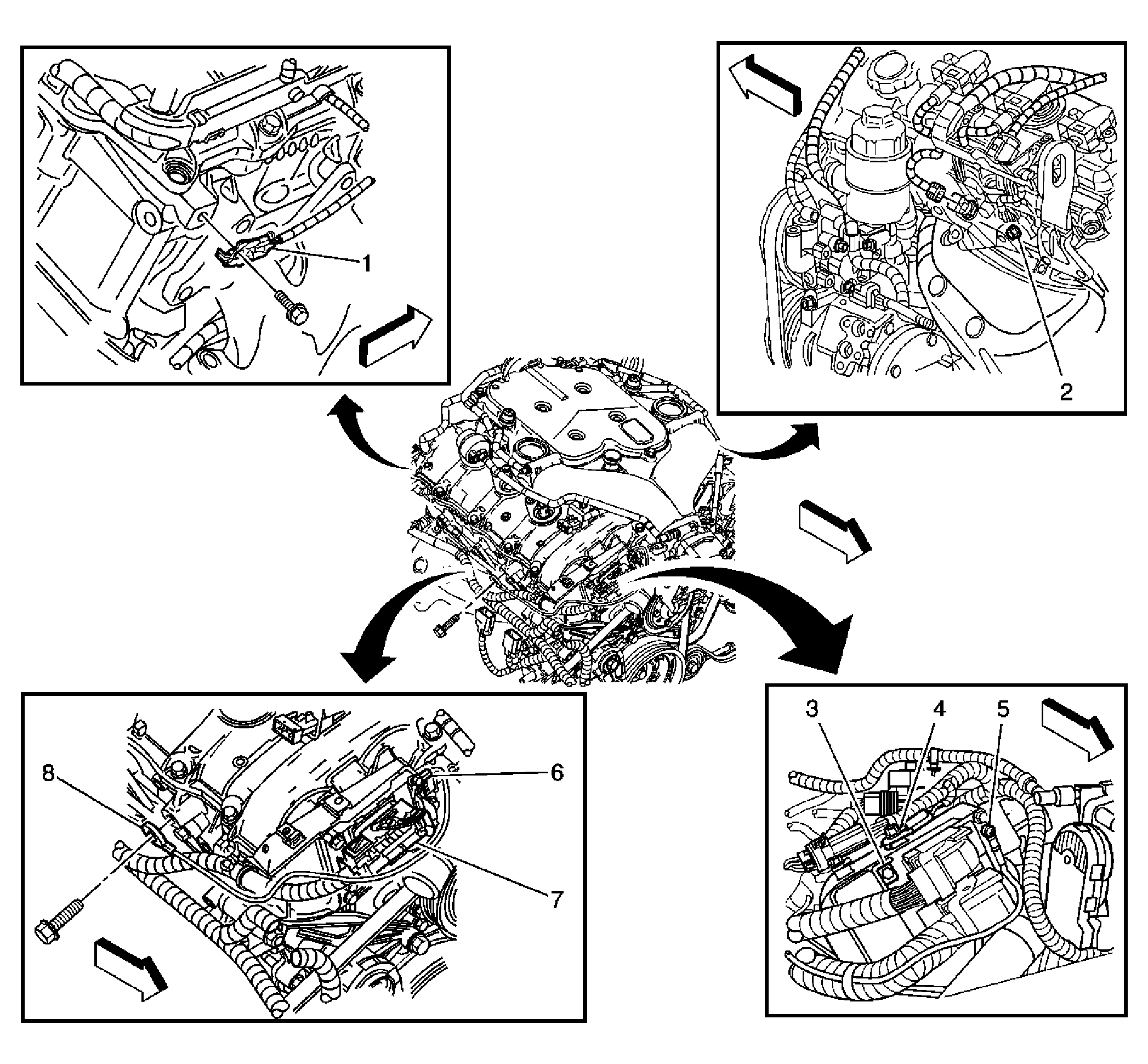

Fig 5: Engine Grounds (LY7) Component View

Courtesy of GENERAL MOTORS CORP.

Fig 6: Battery Negative Cable - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Negative Cable Connection to Battery
2	C103
3	Ground G105
4	Ground G102

Fig 7: Engine Grounds - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground G141
2	Manifold Absolute Pressure (MAP) Sensor
3	Ground G142
4	Camshaft Position (CMP) Sensor
5	Engine Oil Pressure (EOP) Sensor
6	Ground G140

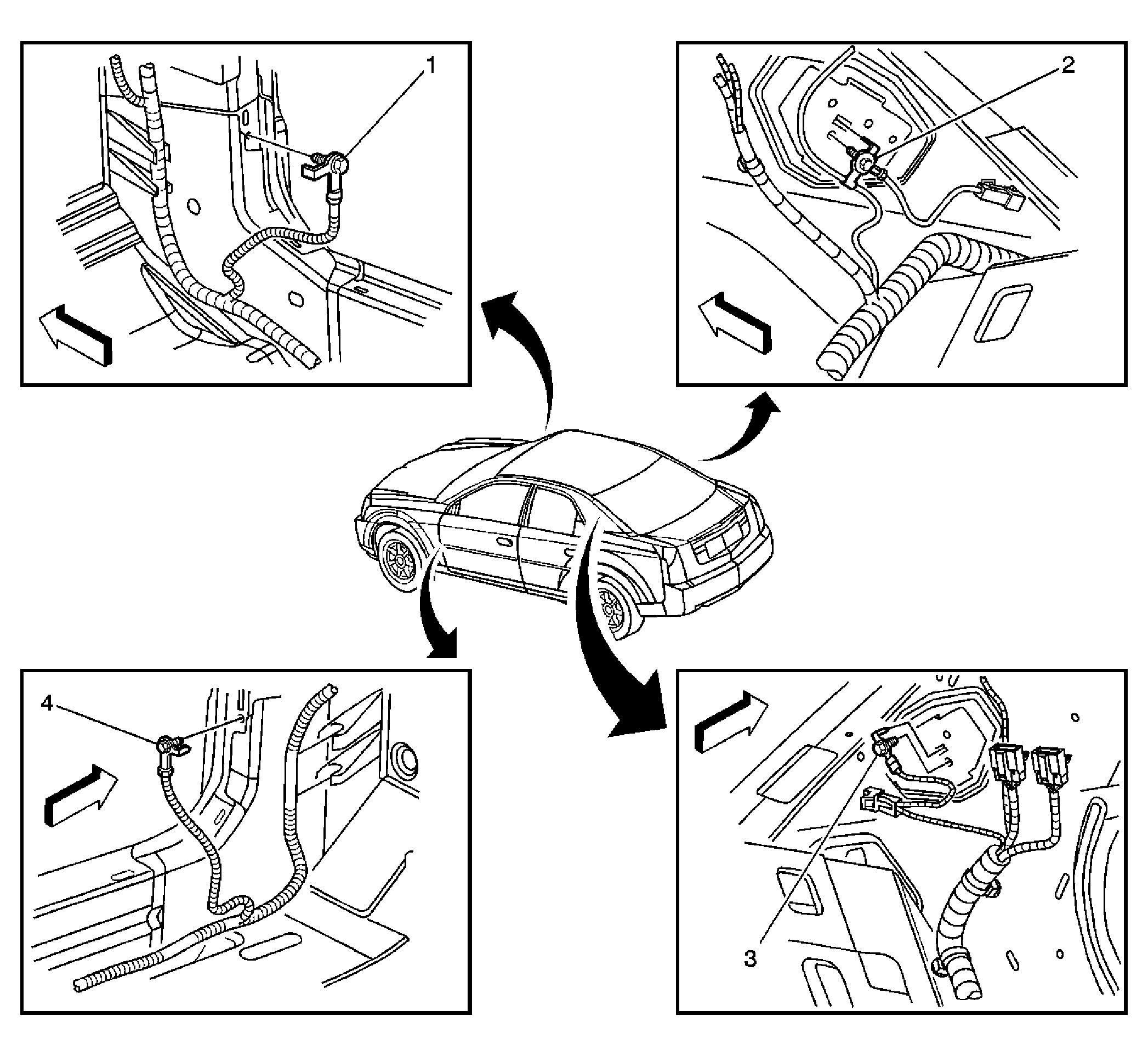

Fig 8: Passenger Compartment Grounds 1 of 2

Courtesy of GENERAL MOTORS CORP.

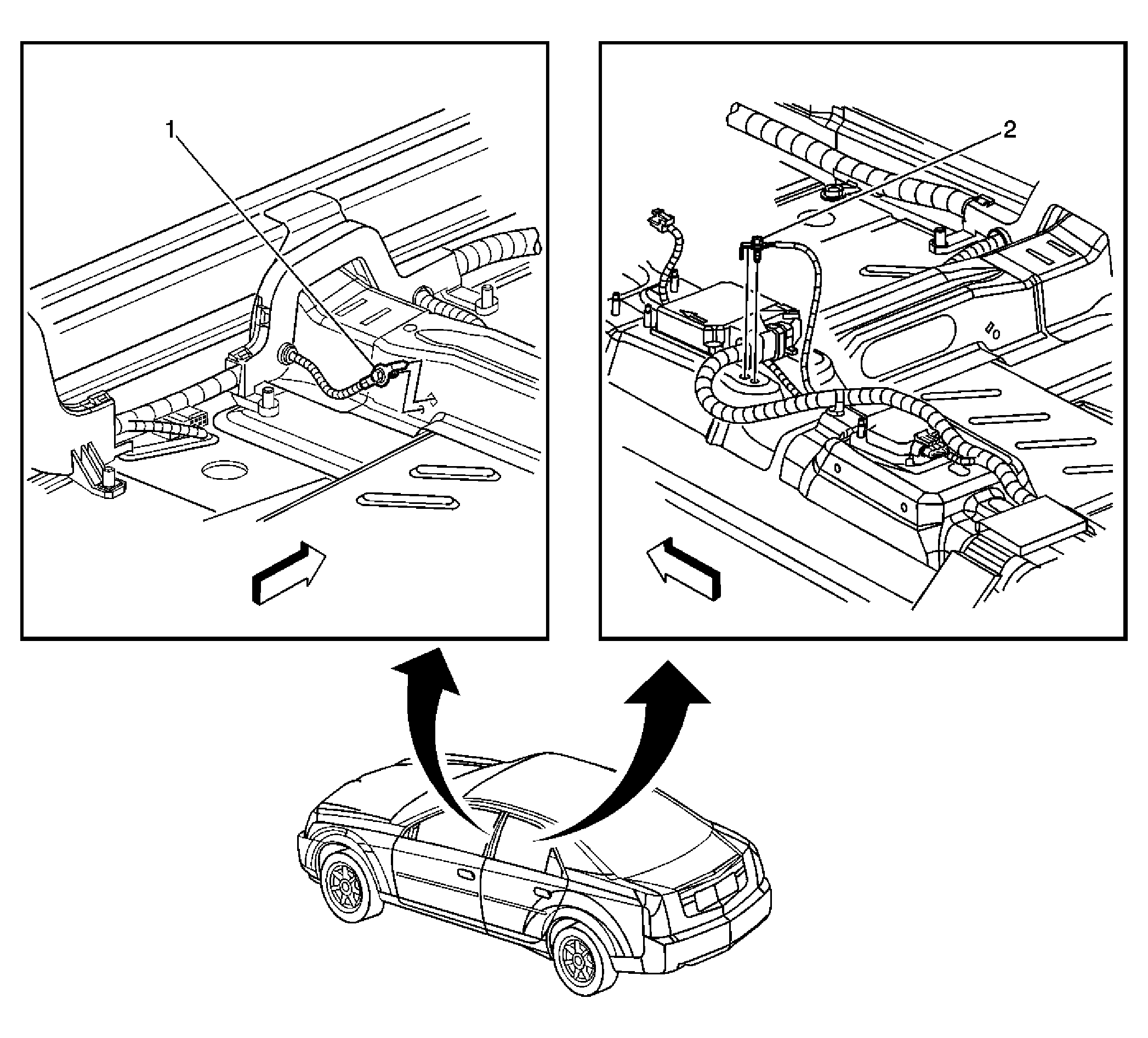

Fig 9: Passenger Compartment Grounds 2 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness Ground G307
2	Body Harness Ground G306

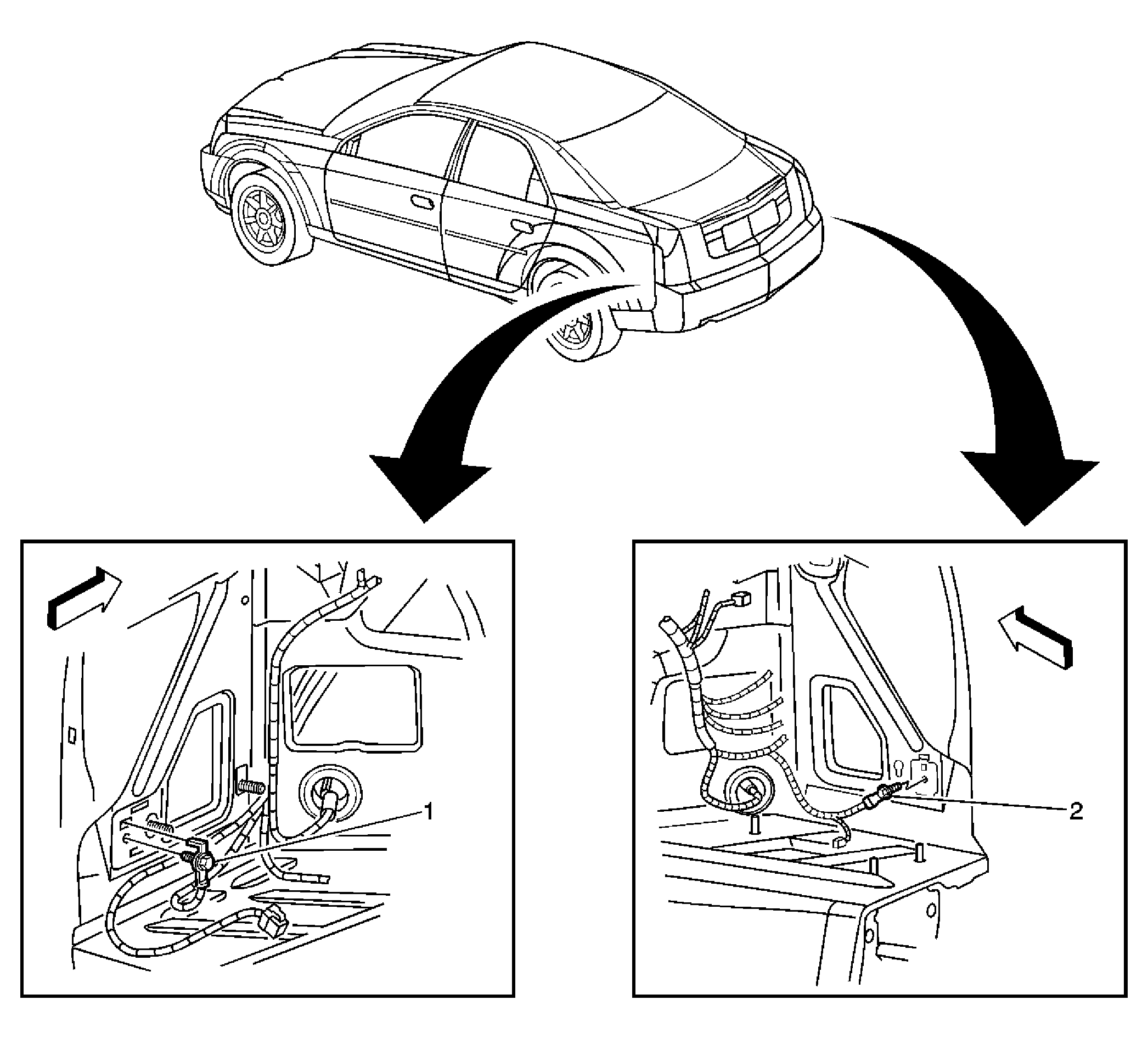

Fig 10: Rear Compartment Grounds

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness Ground G402
2	Body Harness Ground G401
