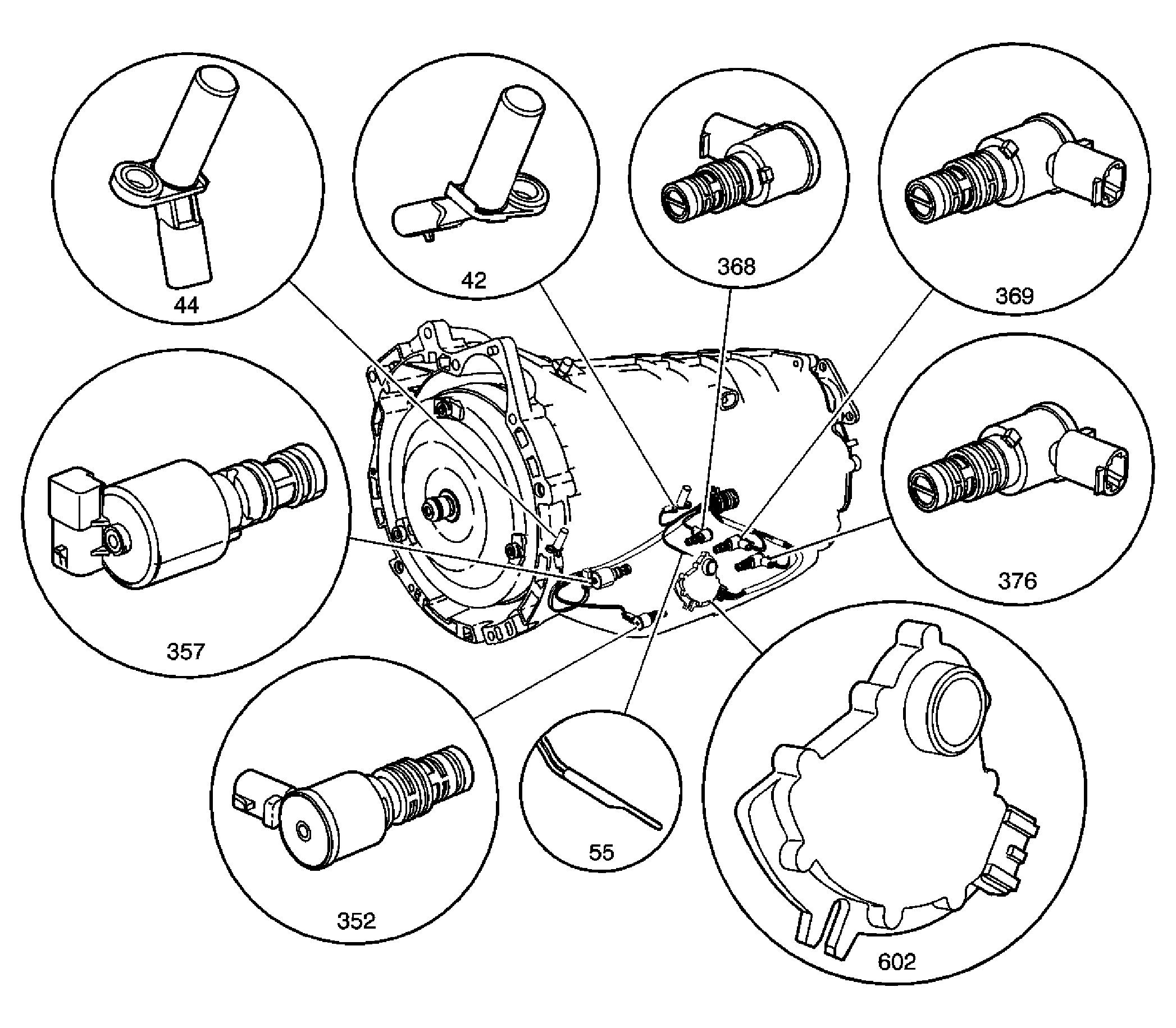

Automatic Transmission Electronic Component Views
| Callout | Component Name |
|---|---|
| 42 | Output Speed Sensor (OSS) |
| 44 | Input Speed Sensor (ISS) |
| 55 | Transmission Fluid Temperature (TFT) Sensor - Part of Automatic Transmission Wiring Harness (55) |
| 352 | TCC PWM Solenoid Valve |
| 357 | Pressure Control Solenoid (PCS) Assembly |
| 368 | 1-2 Shift Solenoid (SS) Valve Assembly |
| 369 | 2-3 Shift Solenoid (SS) Valve Assembly |
| 376 | 4-5 Shift Solenoid (SS) Valve Assembly |
| 602 | Transmission Manual Shift Shaft Switch Assembly |
