Windows
>>
Door System, Mirror System & Window System
>>
Schematic and Routing Diagrams
>>
Door Control Module Schematics
Door Control Module Schematics

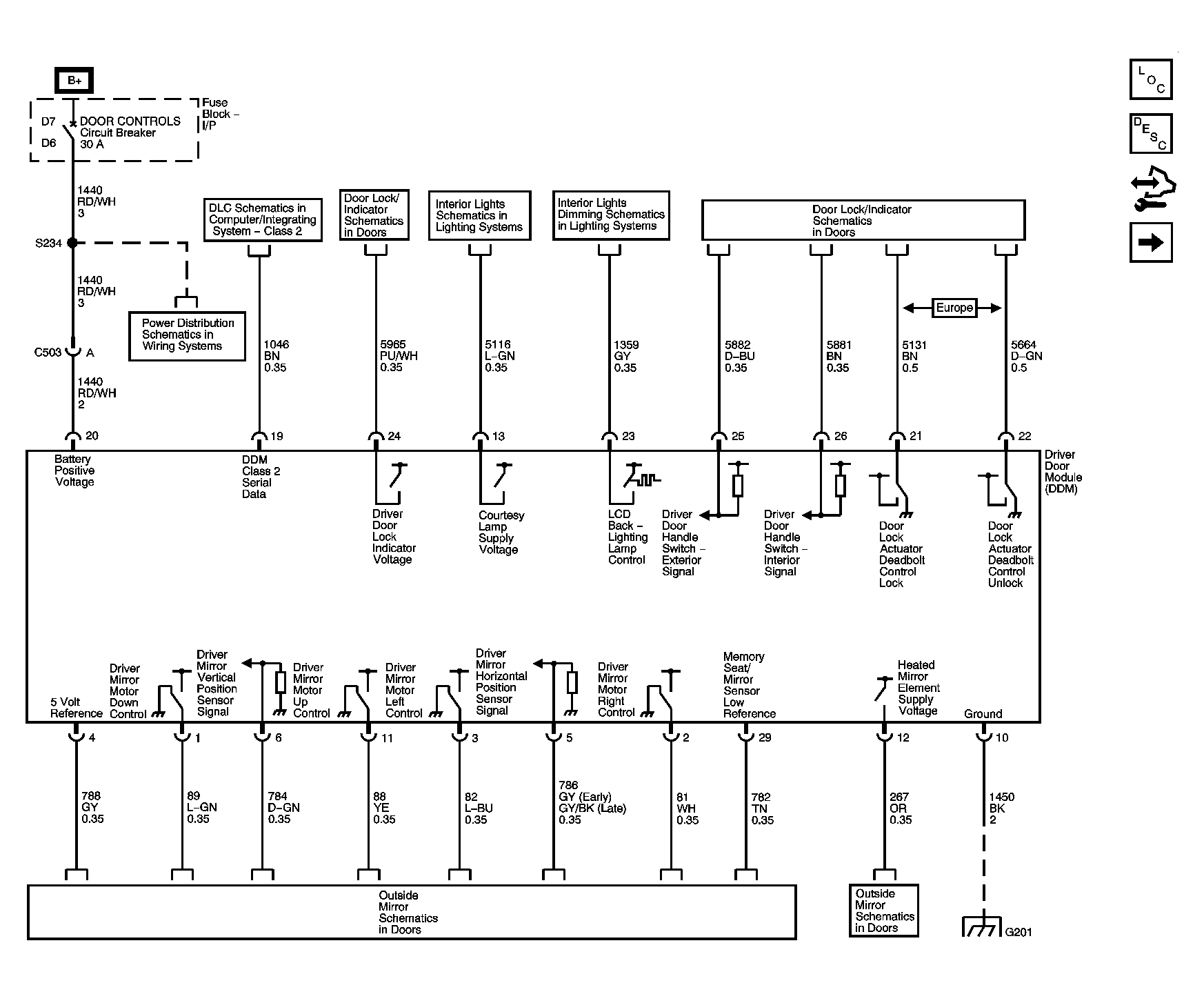

Fig 1: Driver Door Control Module Schematics
Courtesy of GENERAL MOTORS CORP.
Fig 2: Passenger Door Control Module Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
