Body Control System Schematics

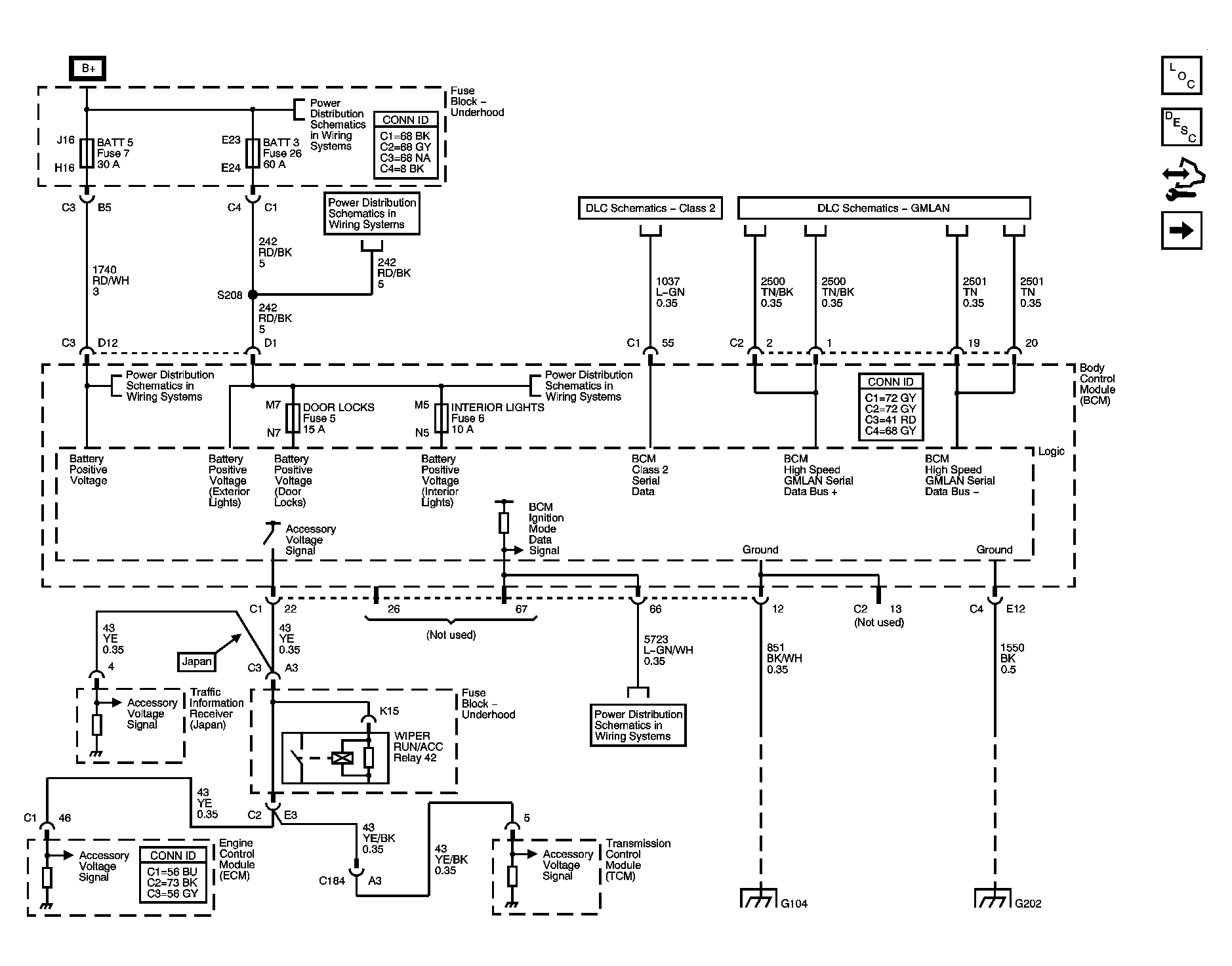

Fig 1: DLC, Ground and Power Schematics
GM1480875Courtesy of GENERAL MOTORS CORP.
Fig 2: Lighting References Schematics - 1 of 2
GM1480877Courtesy of GENERAL MOTORS CORP.
Fig 3: Lighting References Schematics - 2 of 2
GM1480879Courtesy of GENERAL MOTORS CORP.
Fig 4: Subsystems References Schematics
GM1480880Courtesy of GENERAL MOTORS CORP.
Fig 5: Auxiliary Power Schematics
GM1480882Courtesy of GENERAL MOTORS CORP.
