Installation Procedure

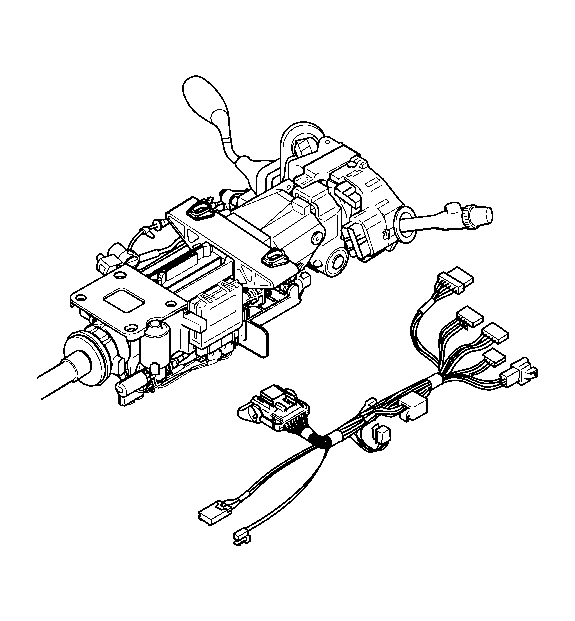

    Fig 1: View Of Bulkhead Connector (Power Tilt and Telescope)
    GM588840Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR Inflator Module Coil Caution in Cautions and Notices.
  1. Slide the bulkhead connector into the column shift and tilt motor bracket assembly.
  2. Connect all of the connectors to the wire harness assembly.
  3. Install the upper and lower trim cover. Refer to Steering Column Trim Covers Replacement .
  4. Install the steering column into the vehicle. Refer to Steering Column Replacement .
  5. Install the steering wheel onto the steering column. Refer to Steering Wheel Replacement .
  6. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
