Automatic Transmission Controls Schematics

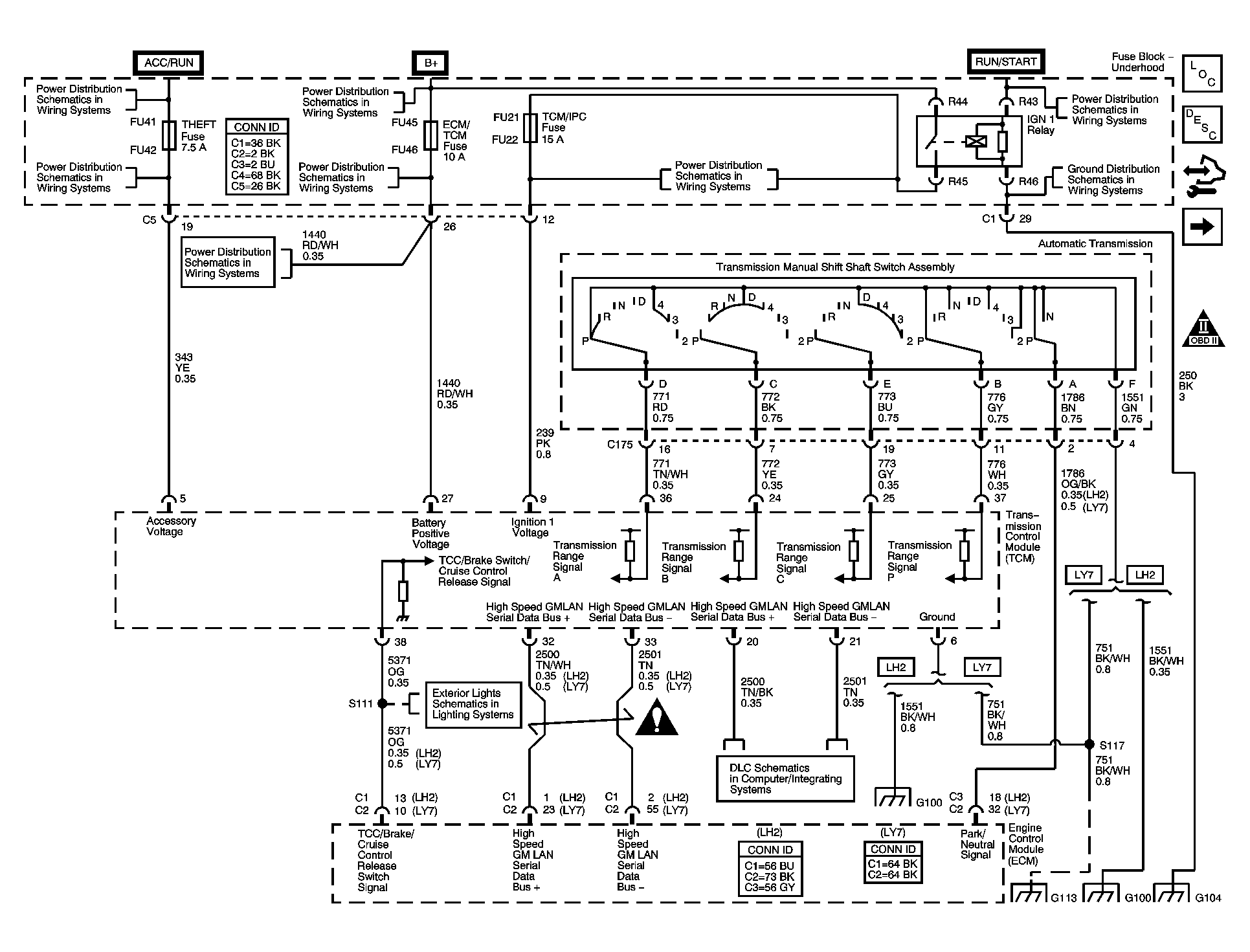

Fig 1: Power, Ground, Serial Data & Switches Schematic

Courtesy of GENERAL MOTORS CORP.

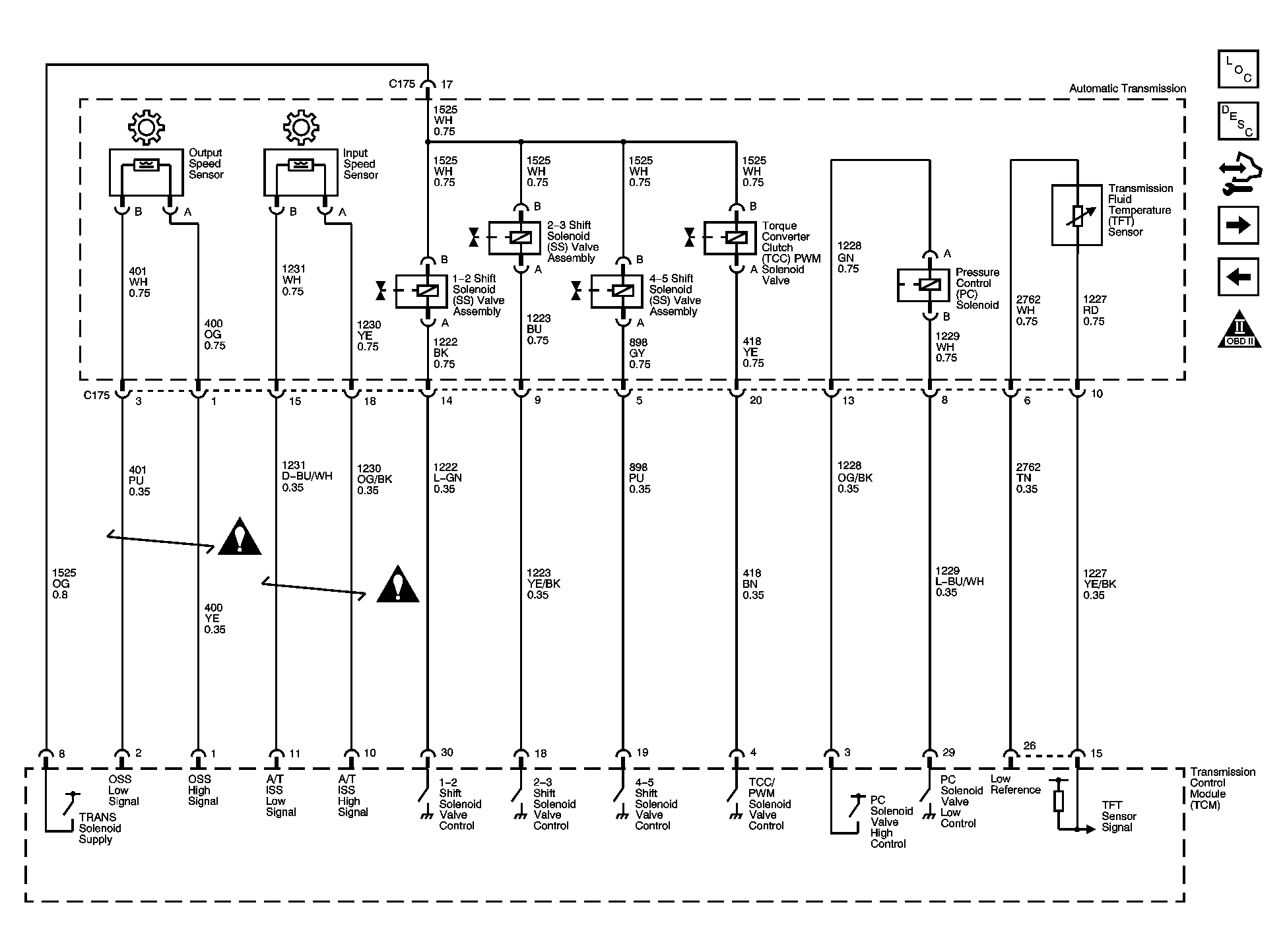

Fig 2: Sensors & Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

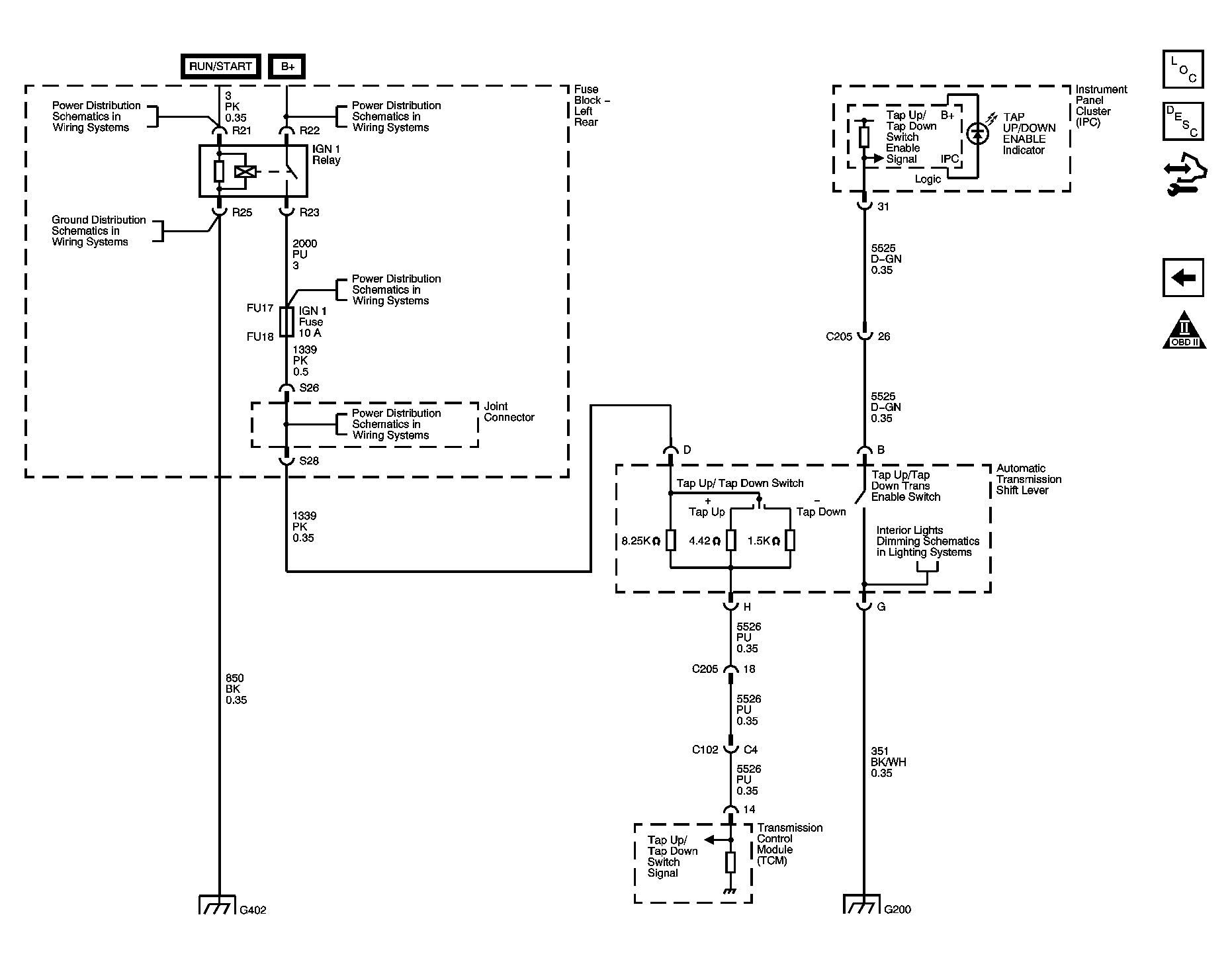

Fig 3: Shift Lever Schematic

Courtesy of GENERAL MOTORS CORP.
