Installation Procedure

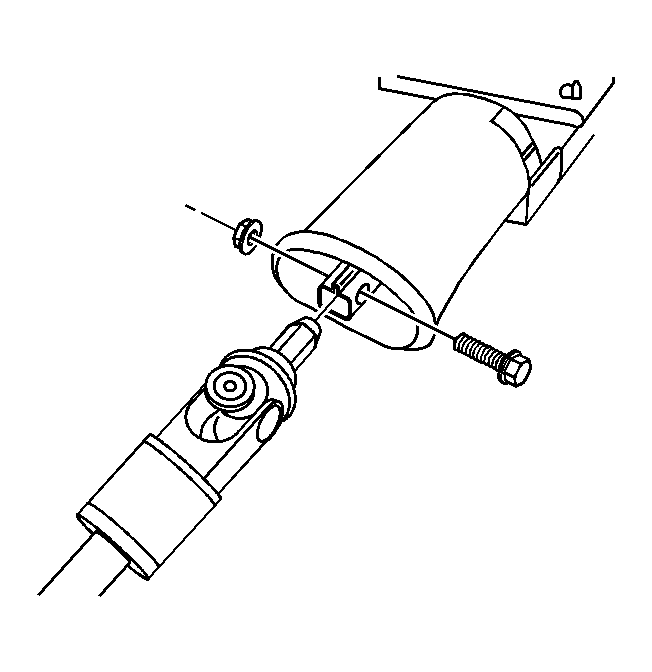

    Fig 1: View Of Upper Intermediate Shaft-To-Steering Column Retaining Bolt
    GM754894Courtesy of GENERAL MOTORS CORP.
  1. Install the upper intermediate shaft to the steering column.
    2. NOTE: Refer to Fastener Notice .
  2. Install the retaining bolt that secures the upper intermediate shaft to the steering column.

    Tighten:  Tighten the bolt to 48 N.m (35 lb ft).

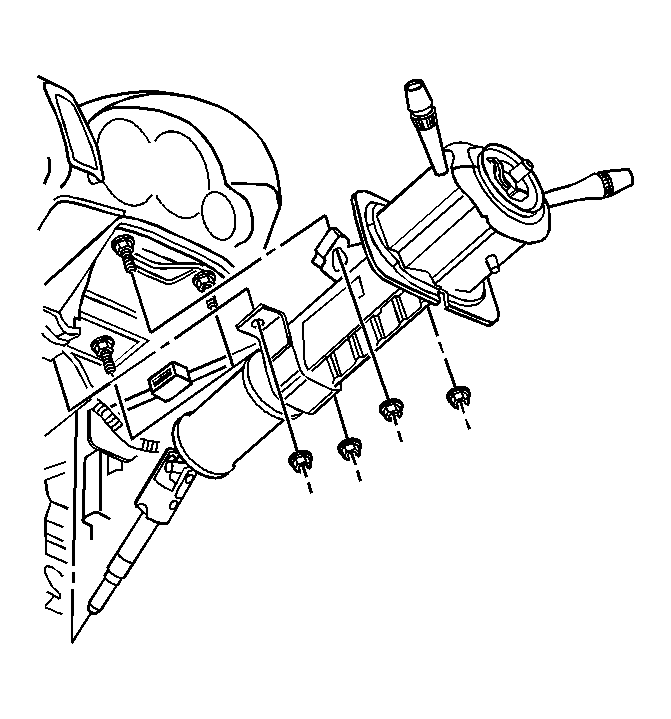

    3. Fig 2: View Of Steering Column
    GM754994Courtesy of GENERAL MOTORS CORP.
  3. Install the steering column.
  4. Install the steering column mounting nuts.

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

  5. Connect the steering column electrical connectors.
  6. Install the knee bolster. Refer to Knee Bolster Bracket Replacement - Left .
  7. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  8. Raise the vehicle.
  9. Install the intermediate shaft - upper to the intermediate shaft - center.
  10. Install the retaining bolt that secures the intermediate shaft - upper to the intermediate shaft - center.

    Tighten:  Tighten the bolt to 48 N.m (35 lb ft).

  11. Lower the vehicle.
    12. Fig 3: Identifying J 42640
    GM333146Courtesy of GENERAL MOTORS CORP.
  12. Unlock the steering column by removing J 42640  from the steering column lower trim cover access hole.
  13. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
