Removal Procedure

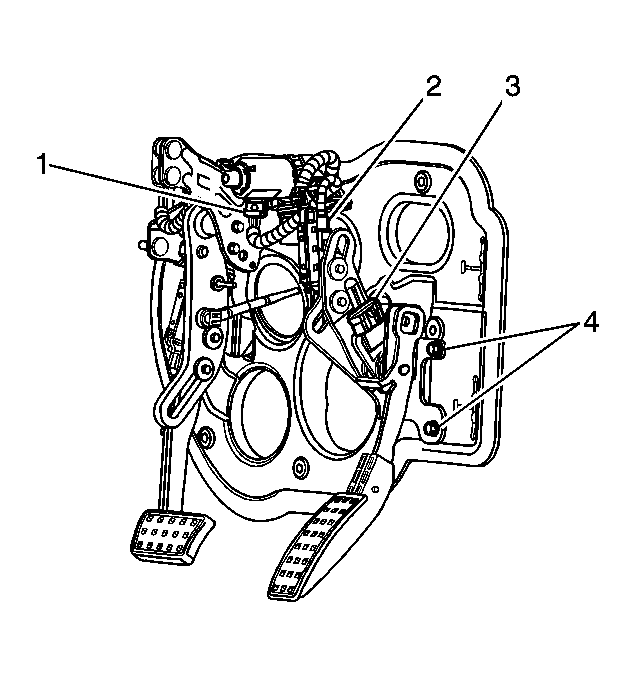

    Fig 1: View Of Accelerator Pedal Assembly
    GM1206251Courtesy of GENERAL MOTORS CORP.
  1. Remove the knee bolster bracket. Refer to Knee Bolster Bracket Replacement - Left in Instrument Panel, Gages, and Console.
  2. Remove the accelerator pedal assembly mounting nuts (4).
  3. Remove the pedal assembly from the studs.
  4. Disconnect the electrical connector from the electronic throttle control sensor (3).

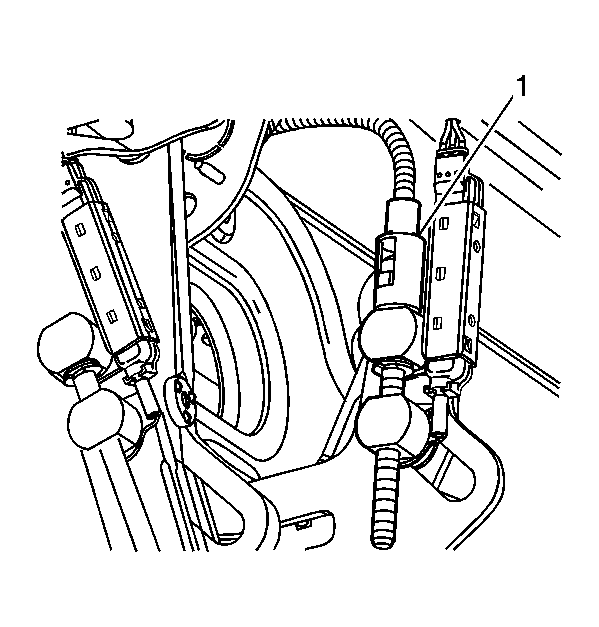

    5. Fig 2: Locating Accelerator Pedal Cable
    GM1206242Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the linear position sensor.
  6. Carefully lift the retaining tabs on the end of the accelerator pedal cable (1) using 2 thin-bladed tools.
  7. Disconnect the adjustable accelerator pedal cable (1) from the pedal assembly.
  8. Remove the accelerator pedal assembly from the vehicle.
