Body Control System Schematics

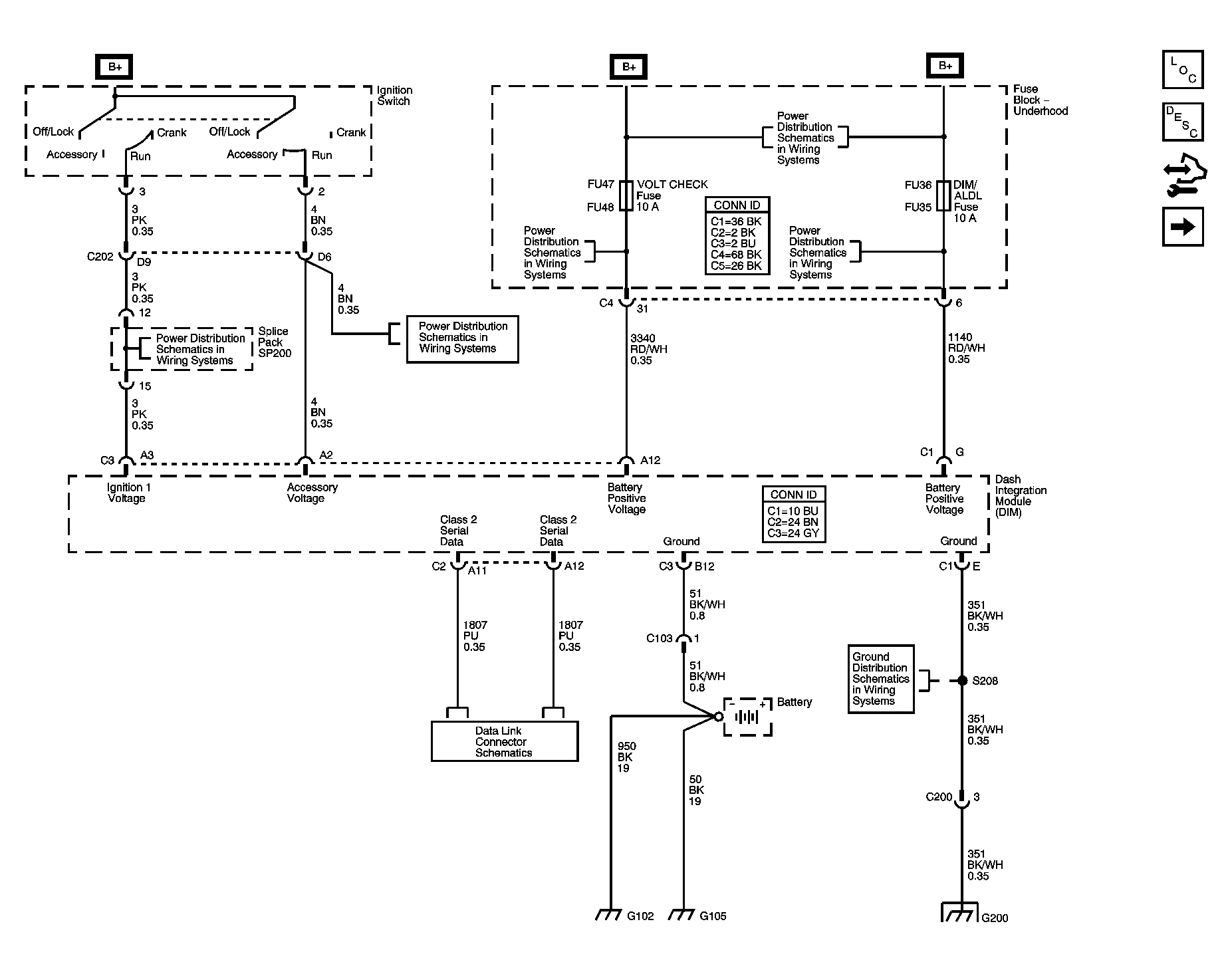

Fig 1: DIM Power, Ground & Serial Data Schematic
GM1451450Courtesy of GENERAL MOTORS CORP.

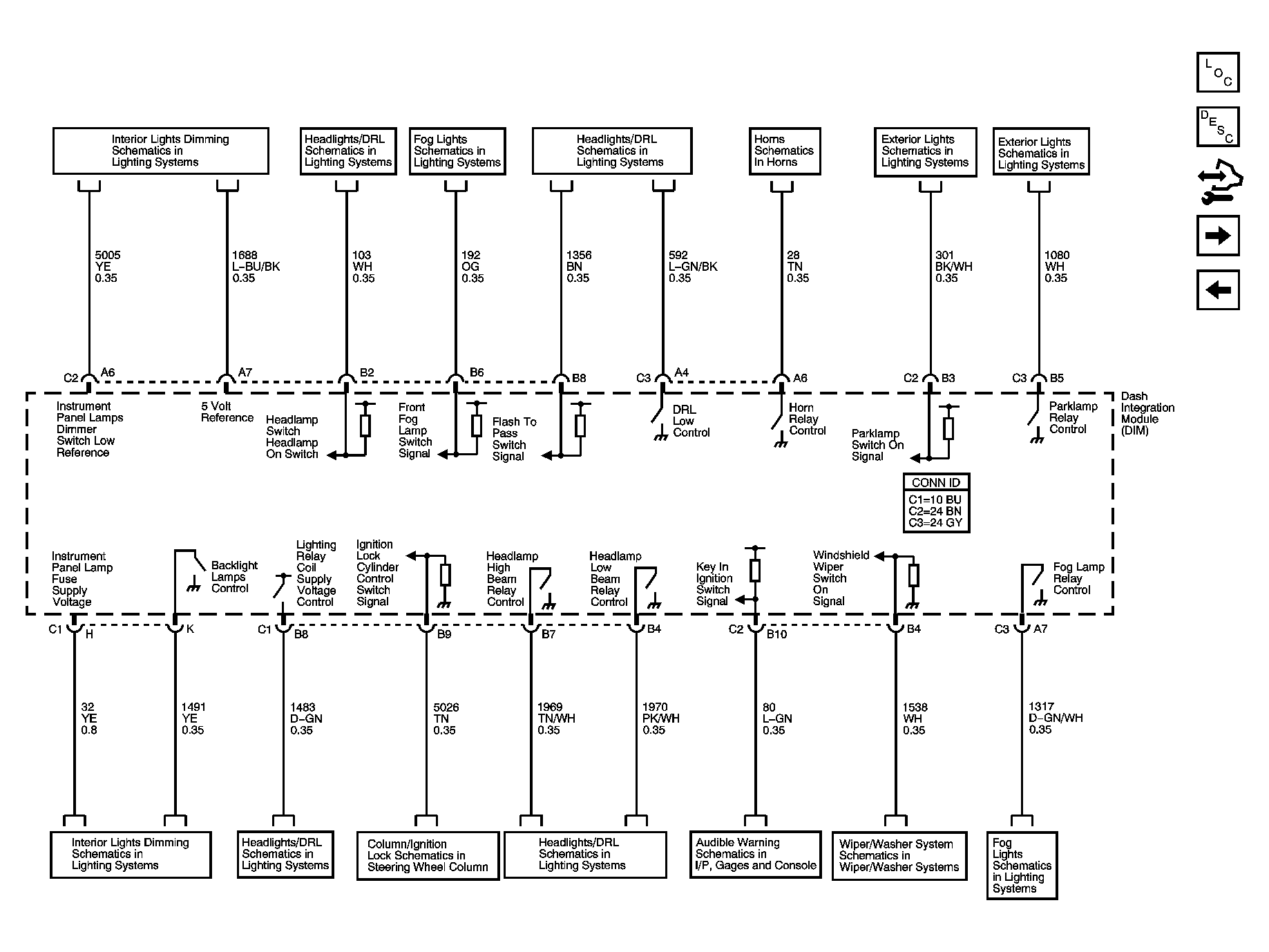

Fig 2: DIM Inputs & Outputs Schematic - 1 of 2
GM1451452Courtesy of GENERAL MOTORS CORP.

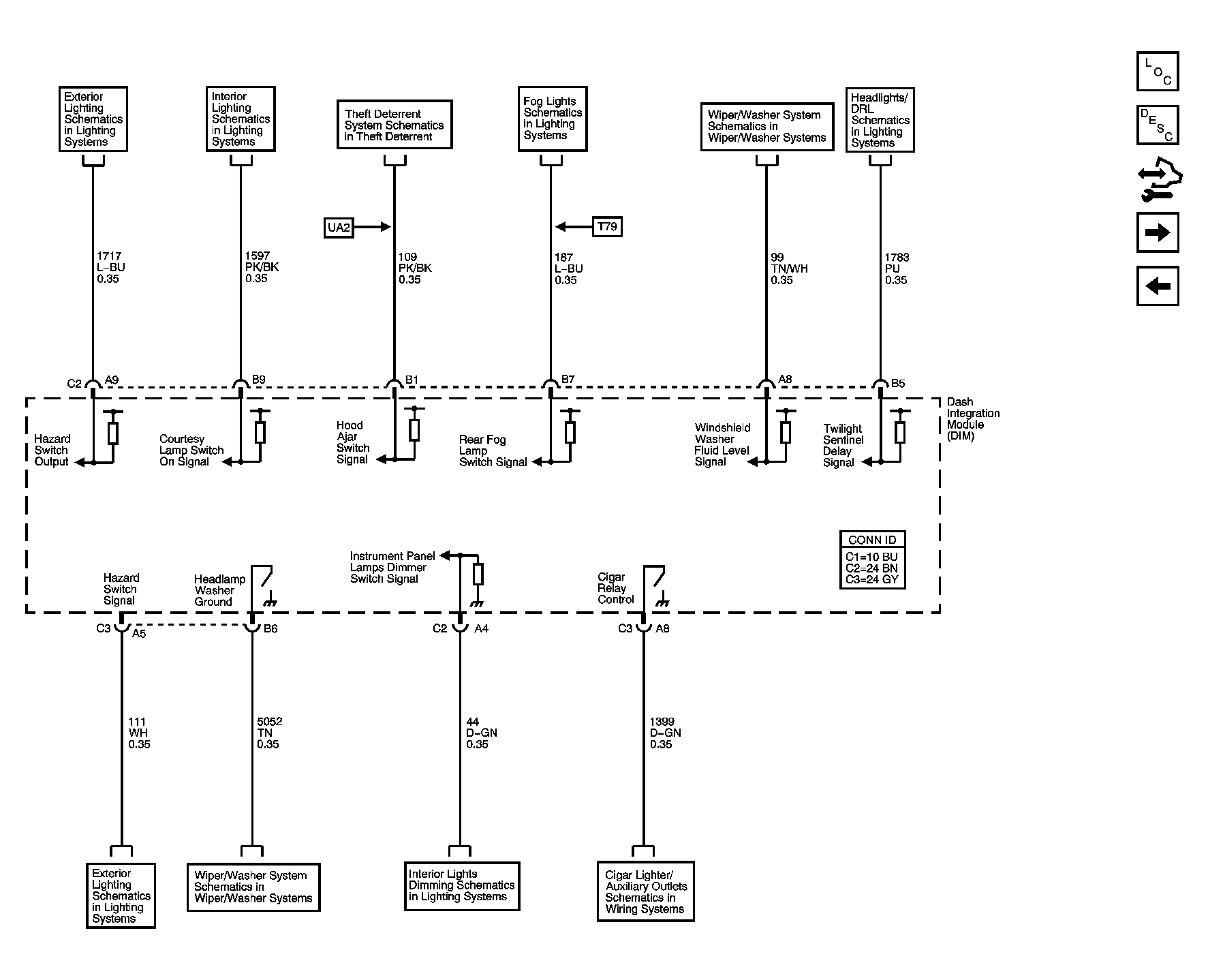

Fig 3: DIM Inputs & Outputs Schematic - 2 of 2
GM1451454Courtesy of GENERAL MOTORS CORP.

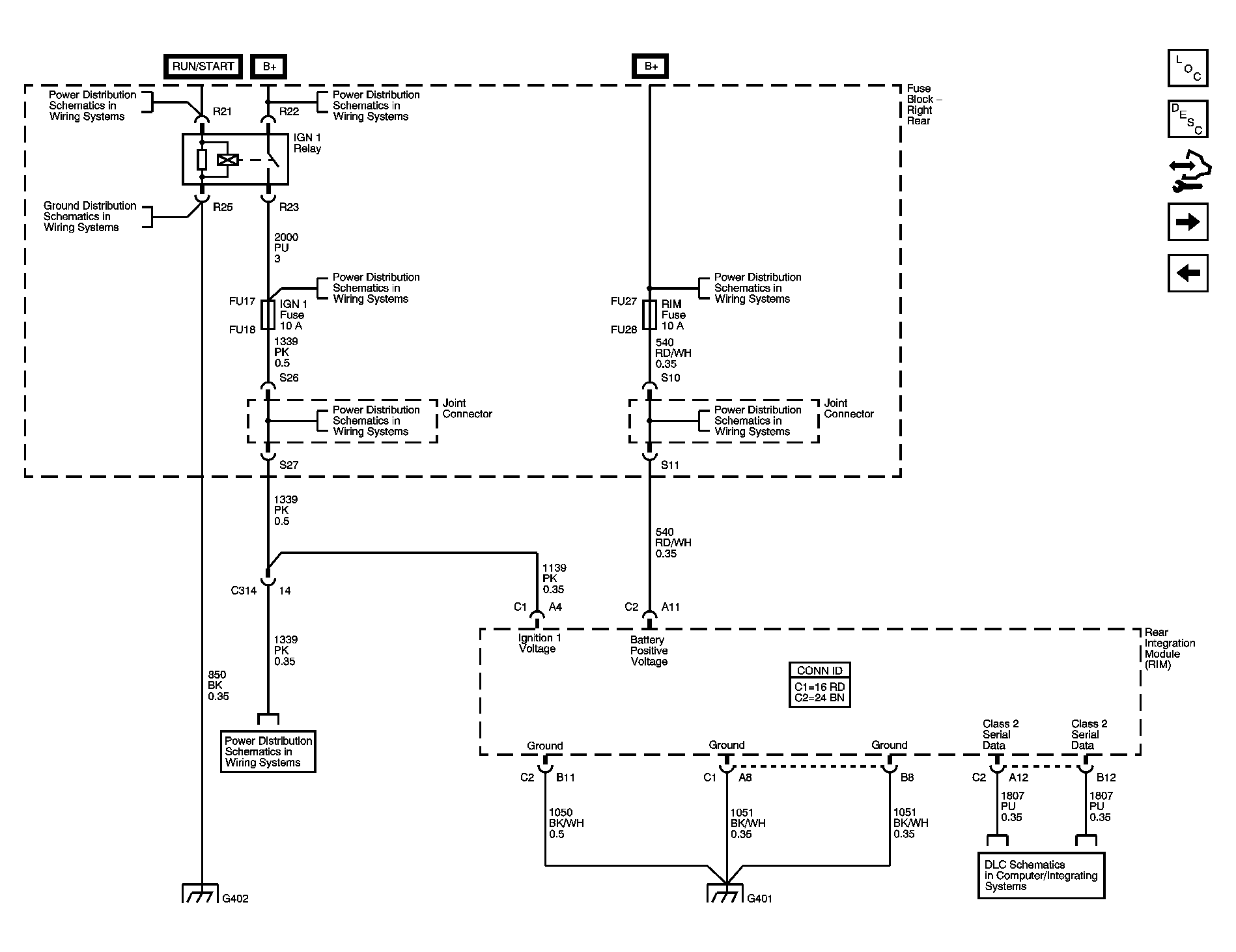

Fig 4: RIM Power, Ground & Serial Data Schematic
GM1451457Courtesy of GENERAL MOTORS CORP.

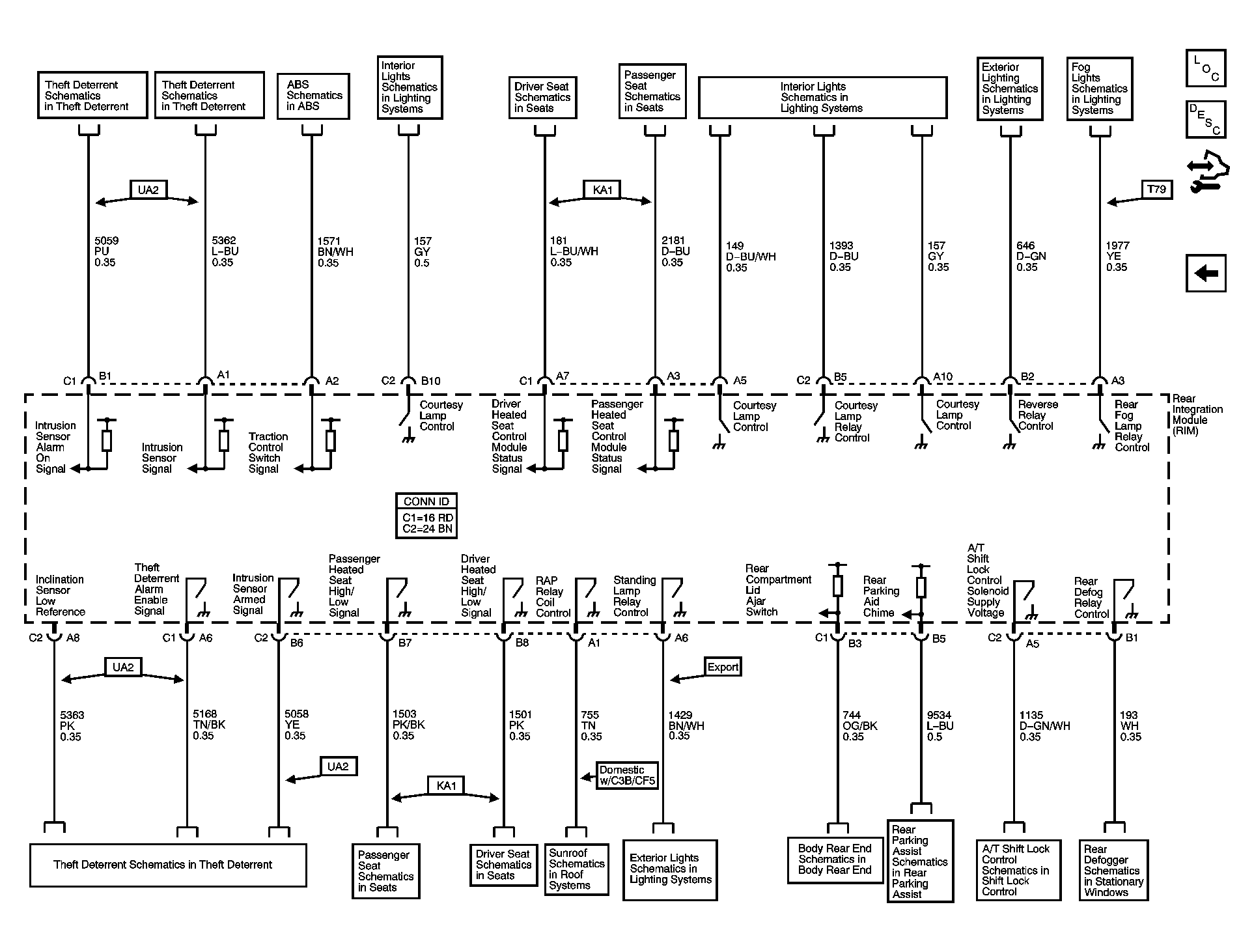

Fig 5: RIM Inputs & Outputs Schematic
GM1451458Courtesy of GENERAL MOTORS CORP.
