Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

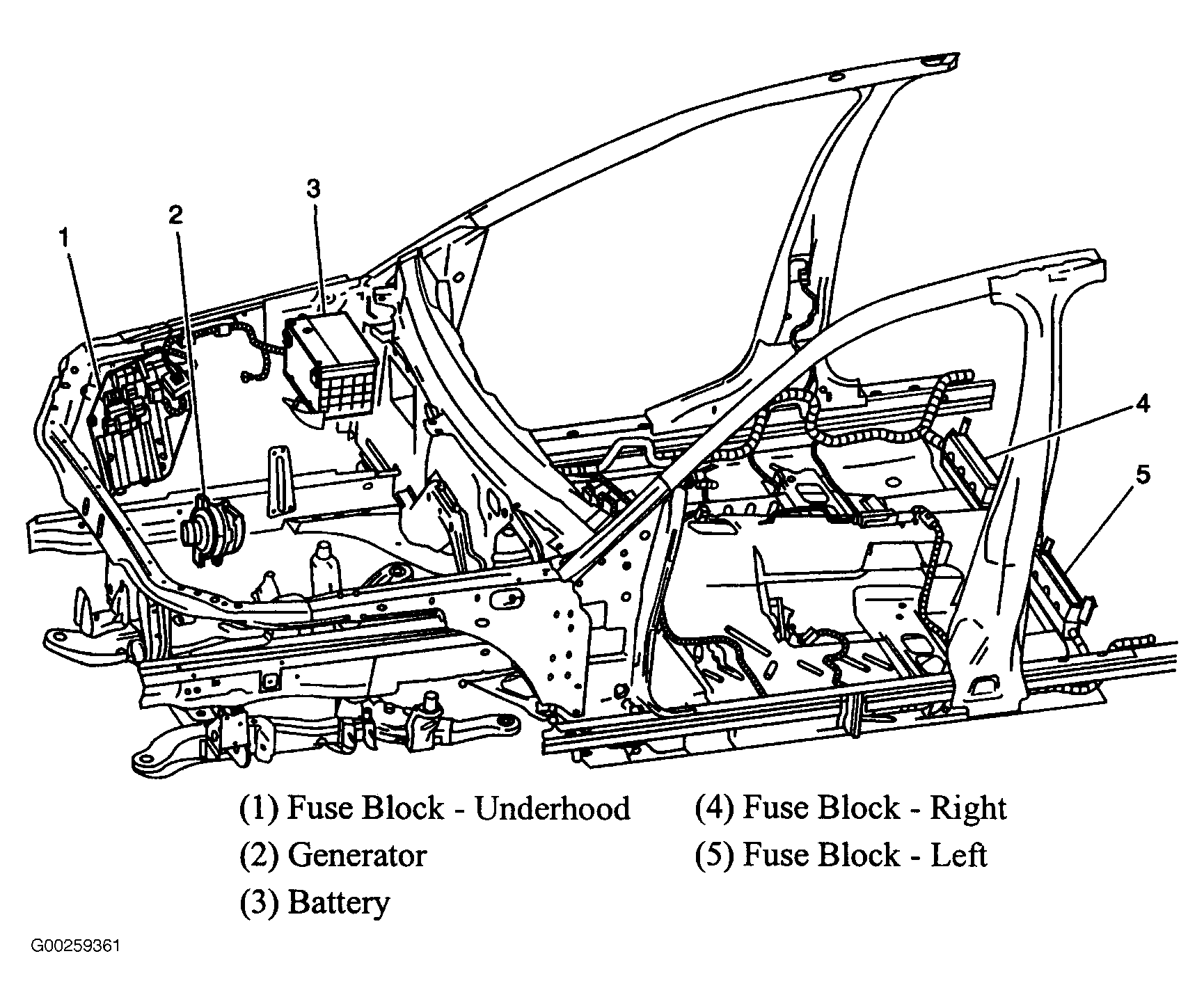

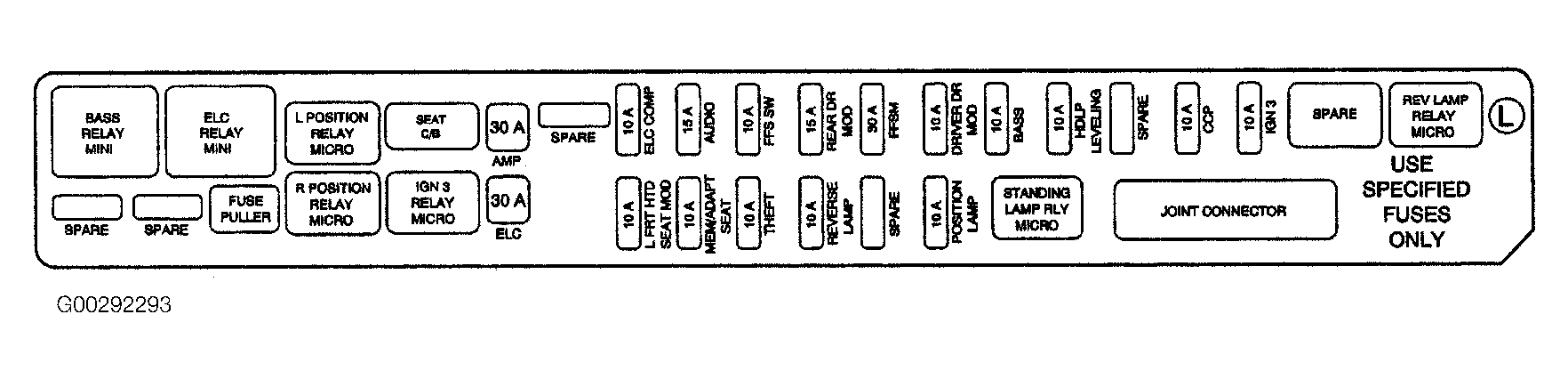

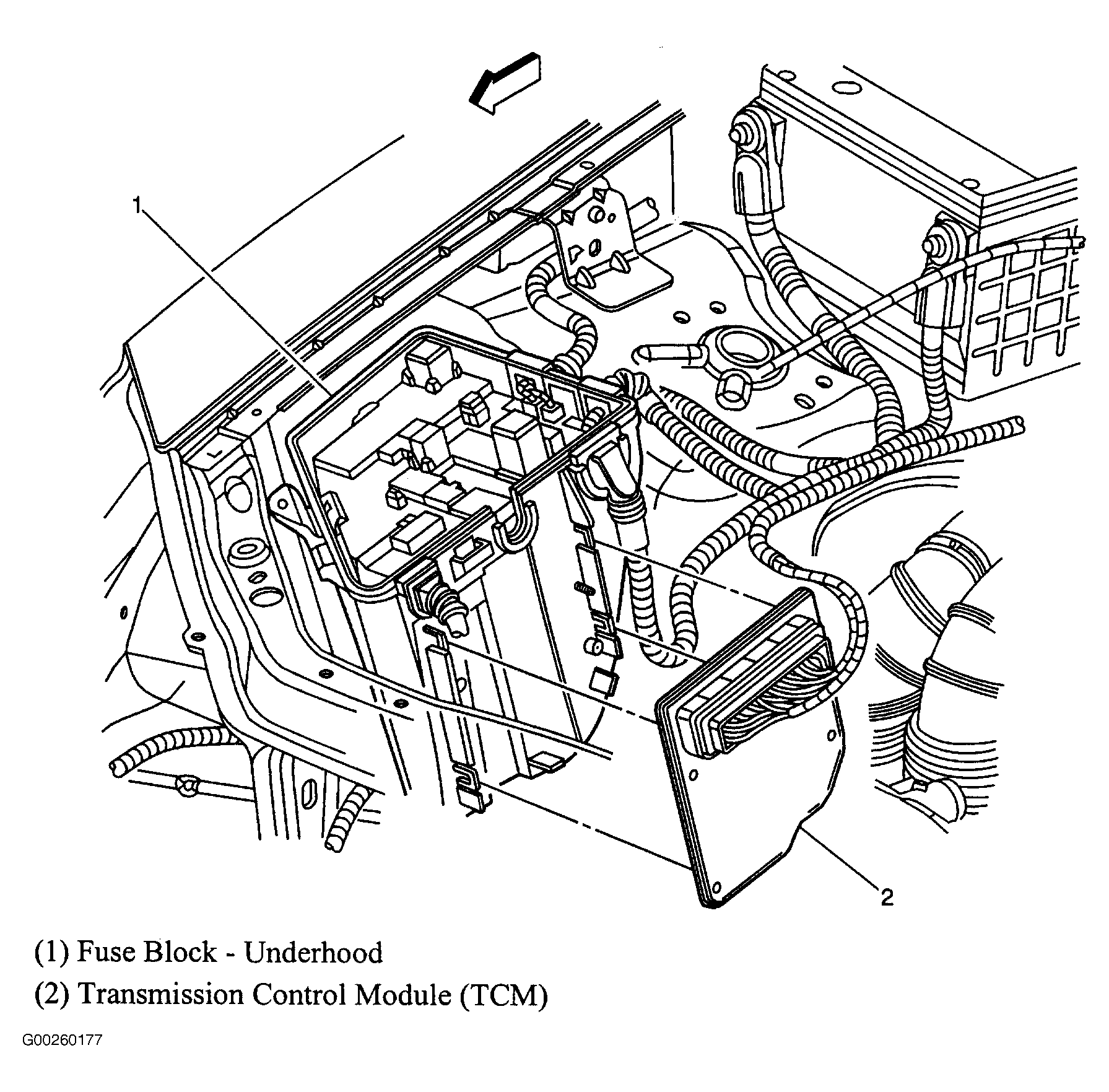

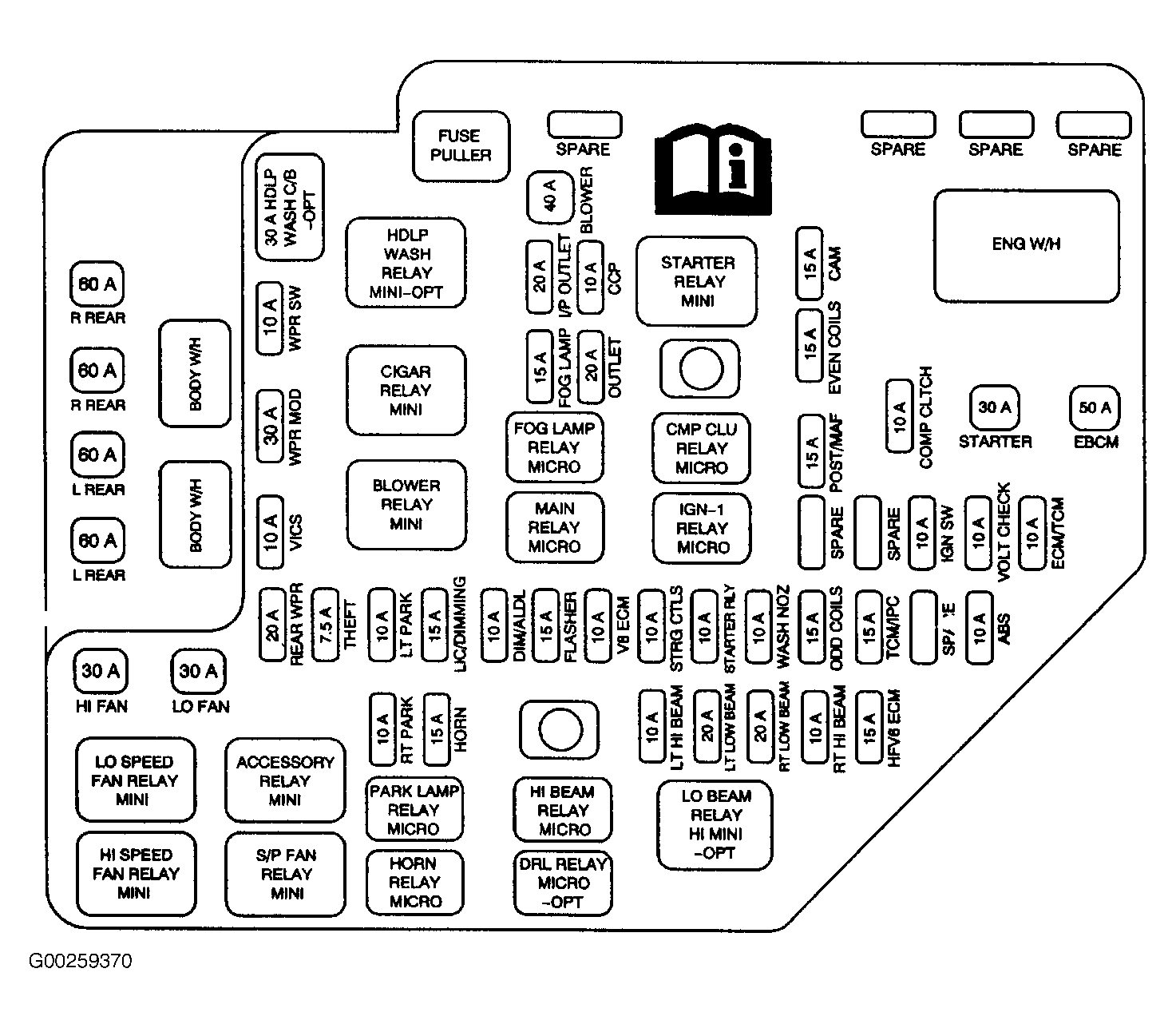

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

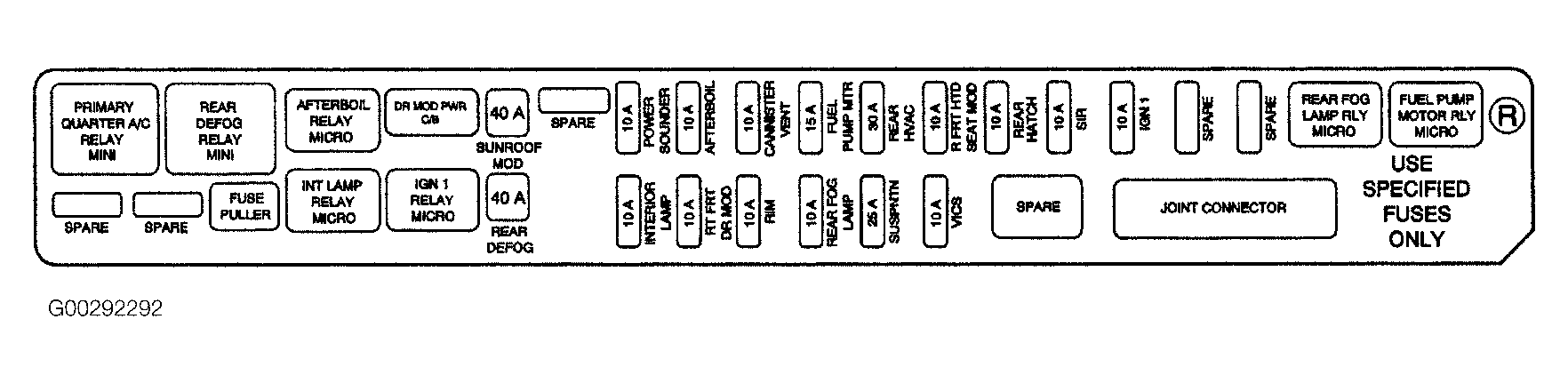

Fig 2: Right Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

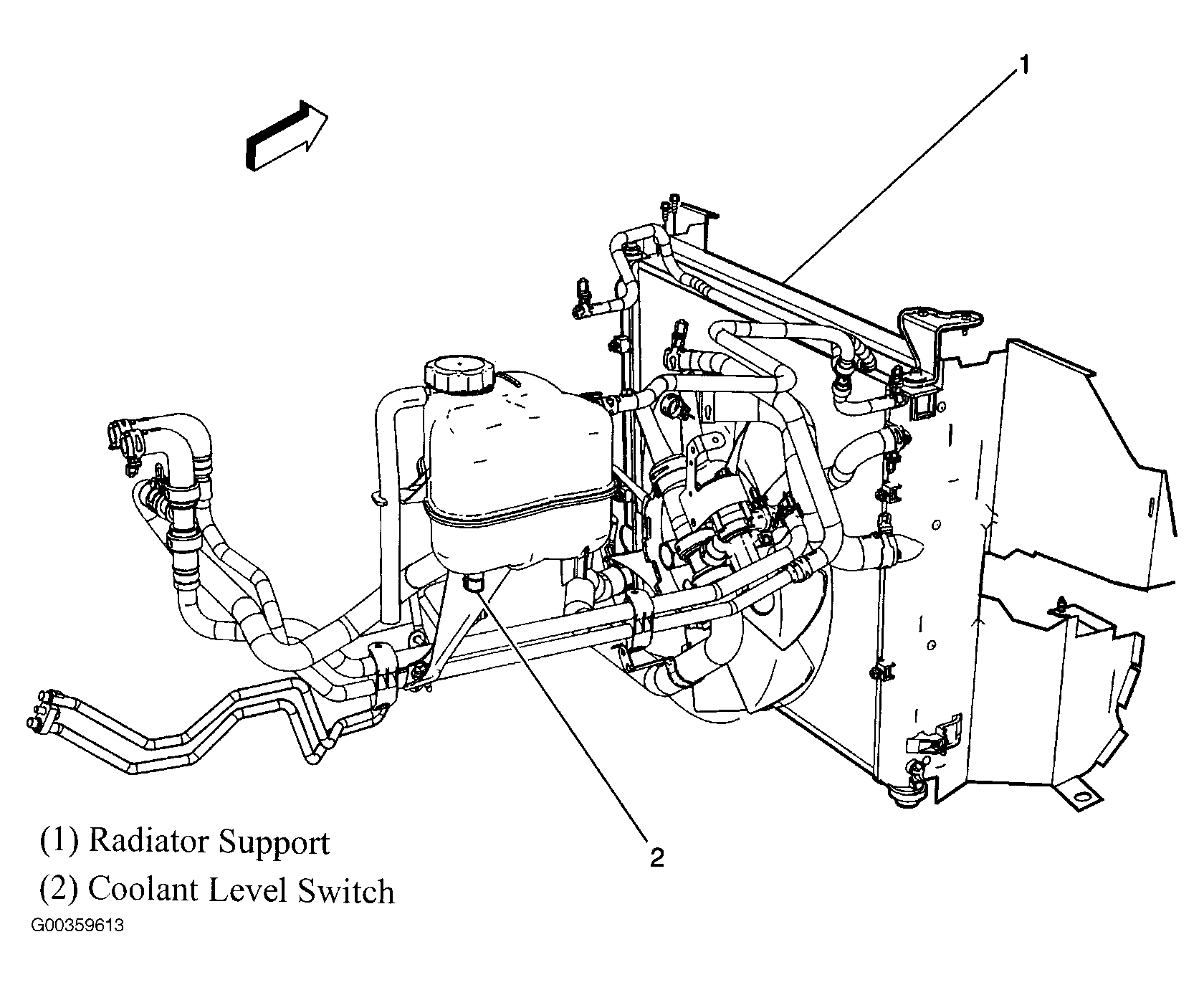

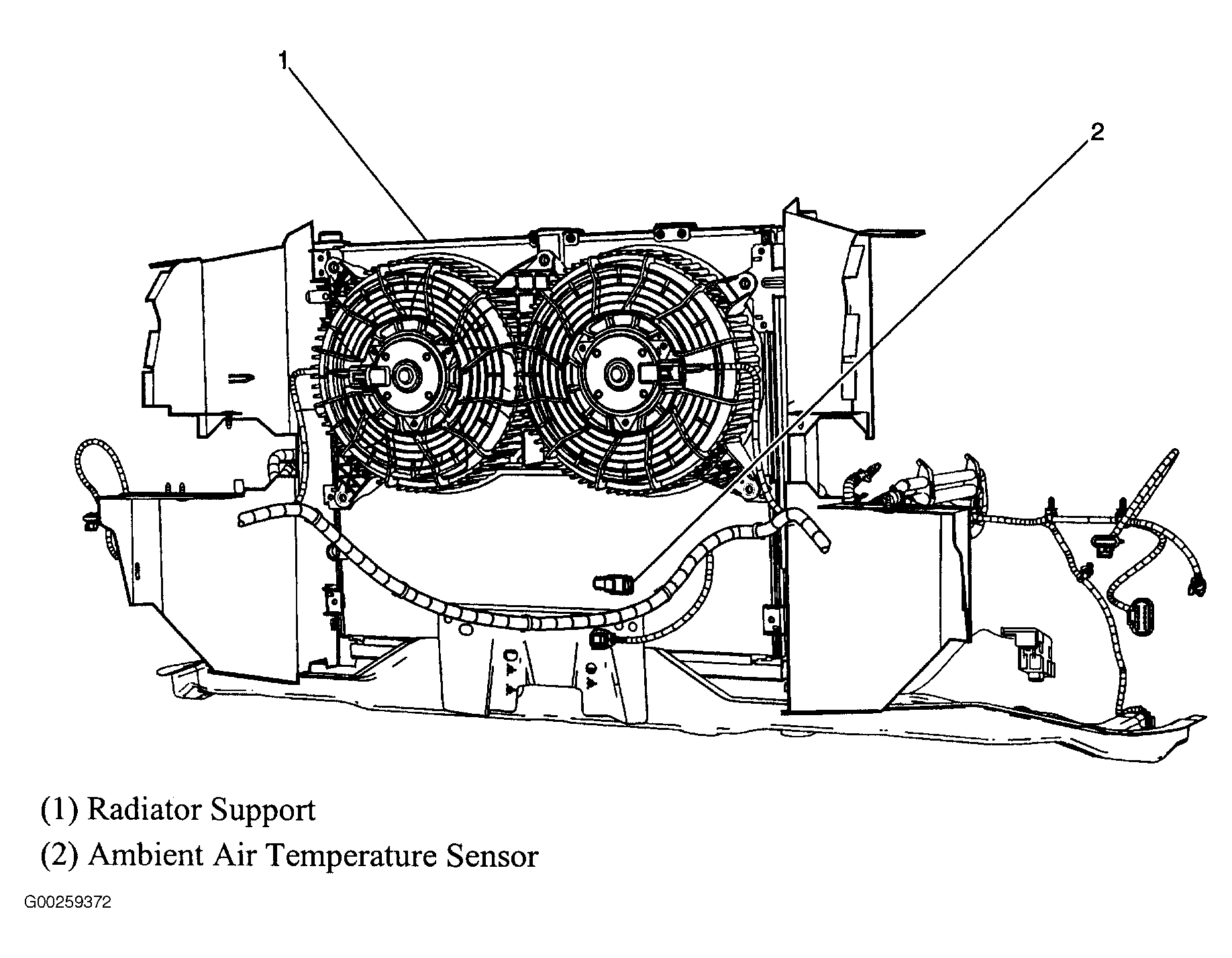

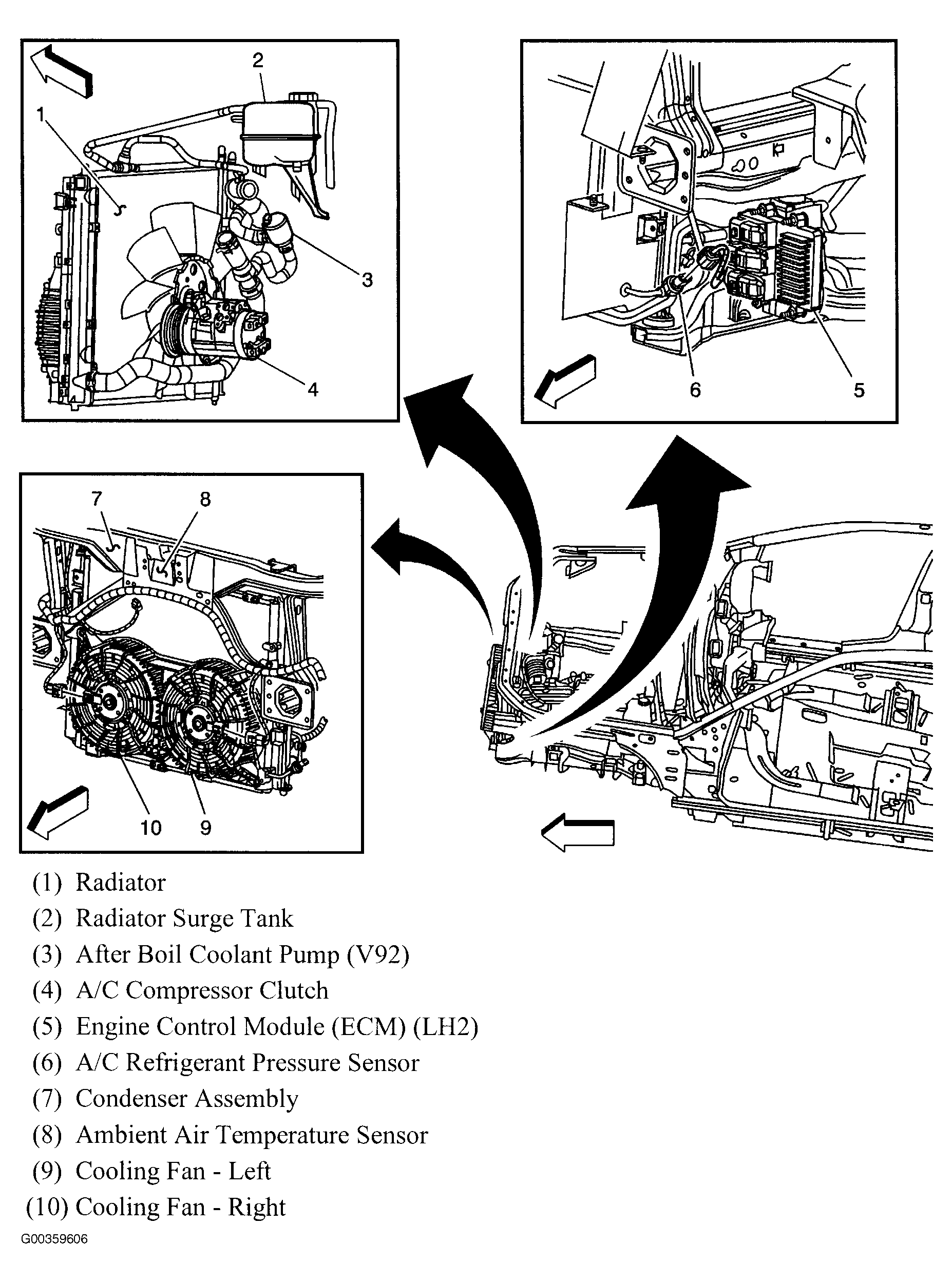

Fig 4: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

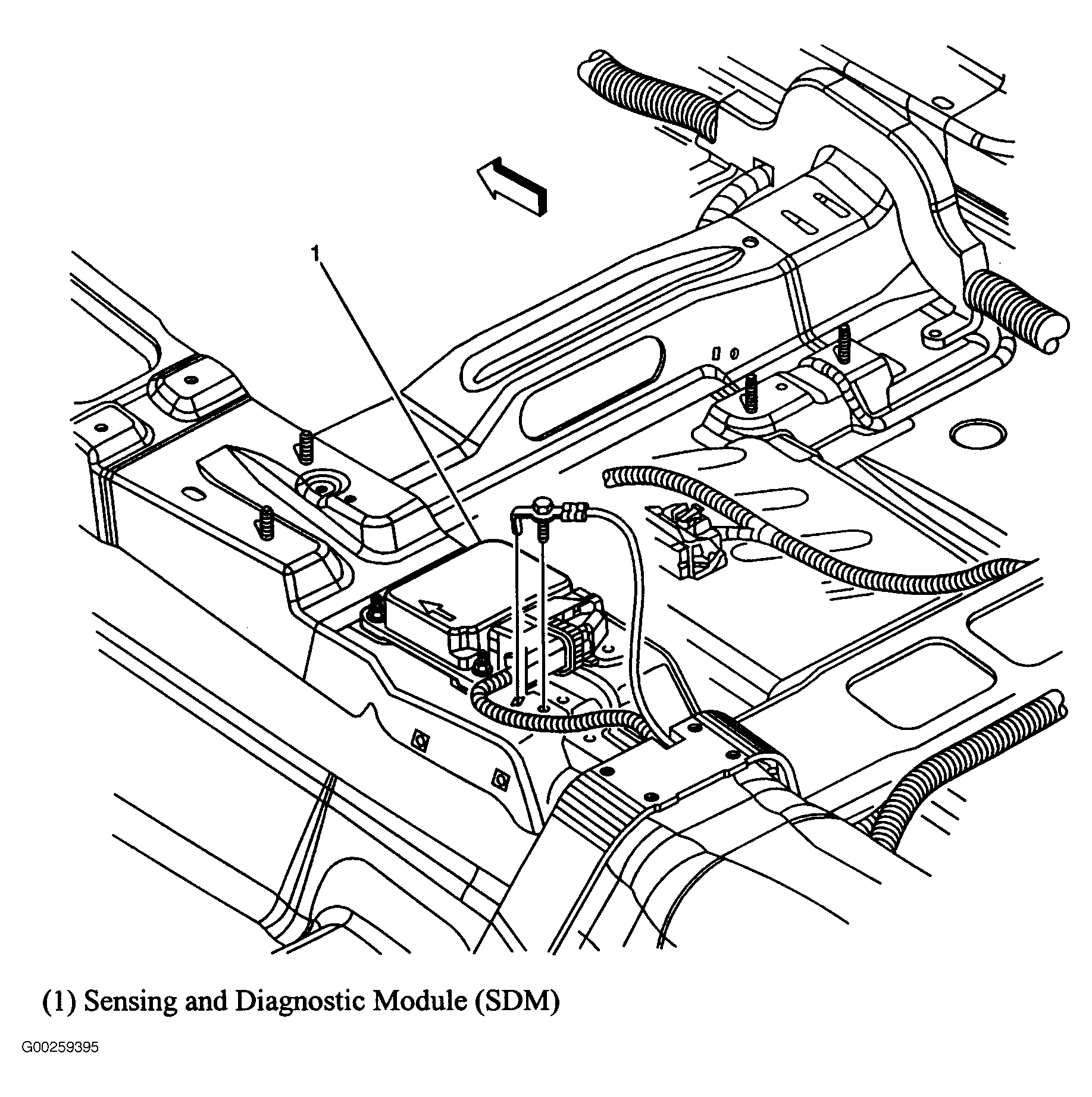

Fig 5: Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

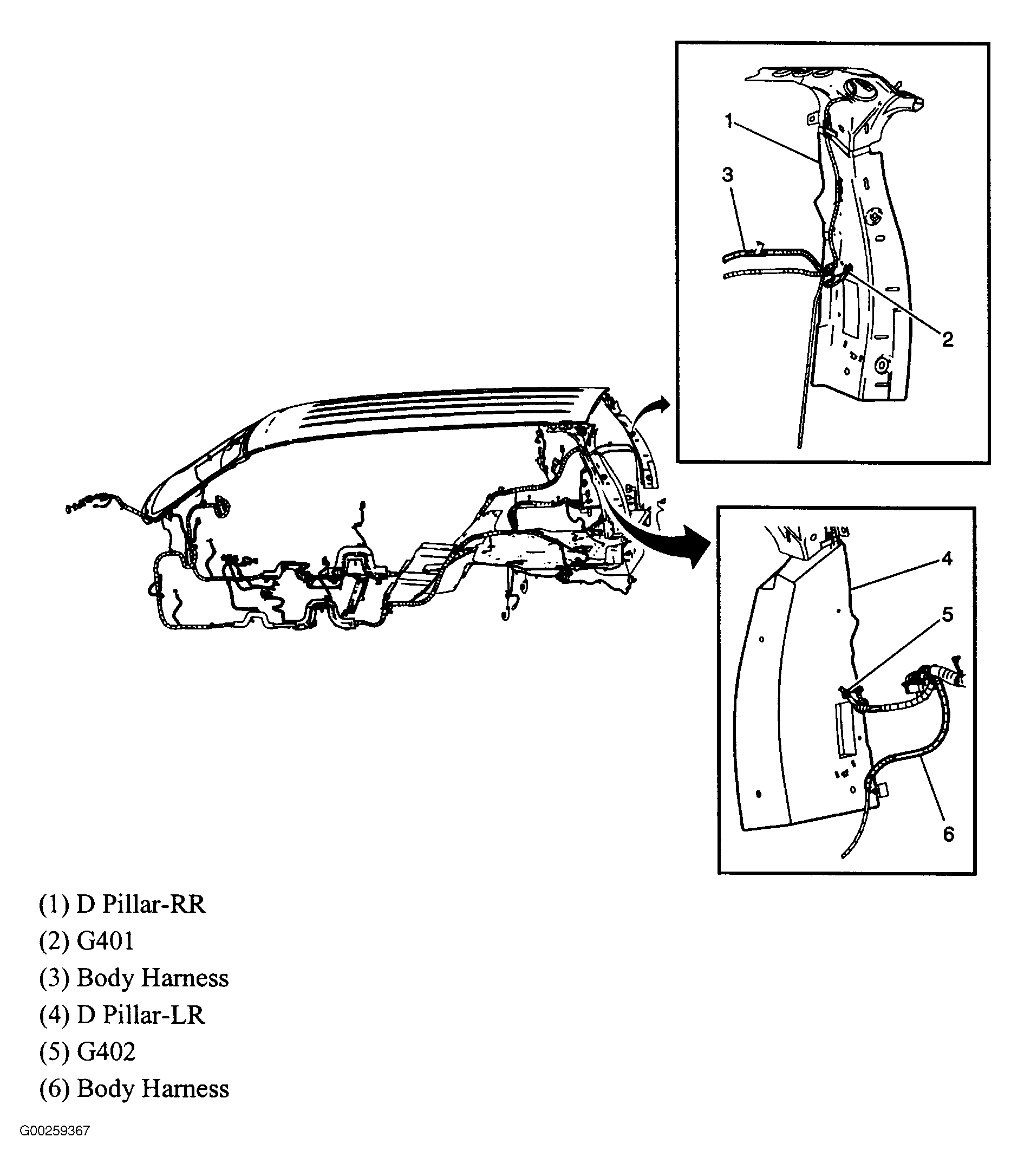

Fig 6: Left & Right "D" Pillars
Courtesy of GENERAL MOTORS CORP.

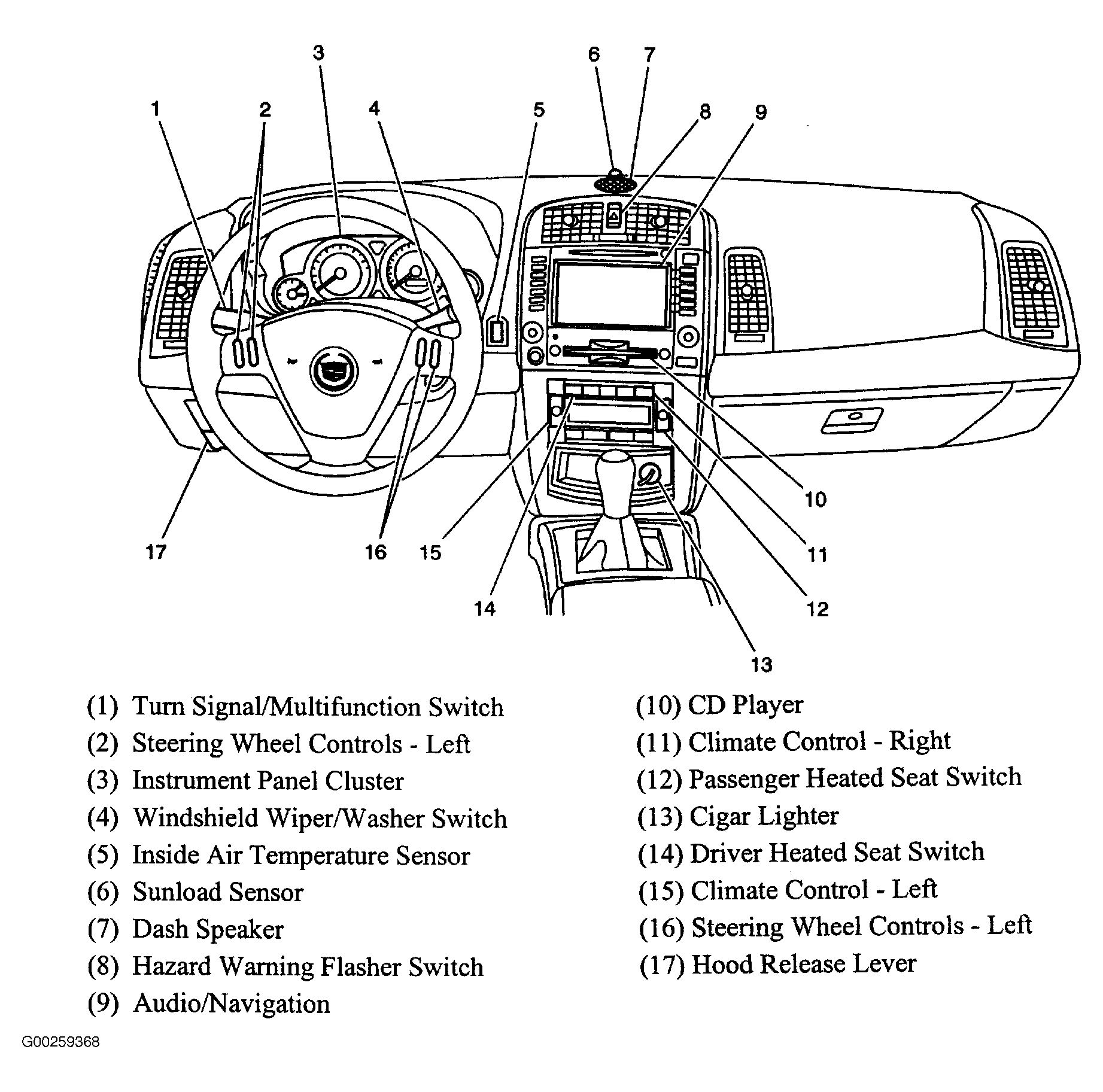

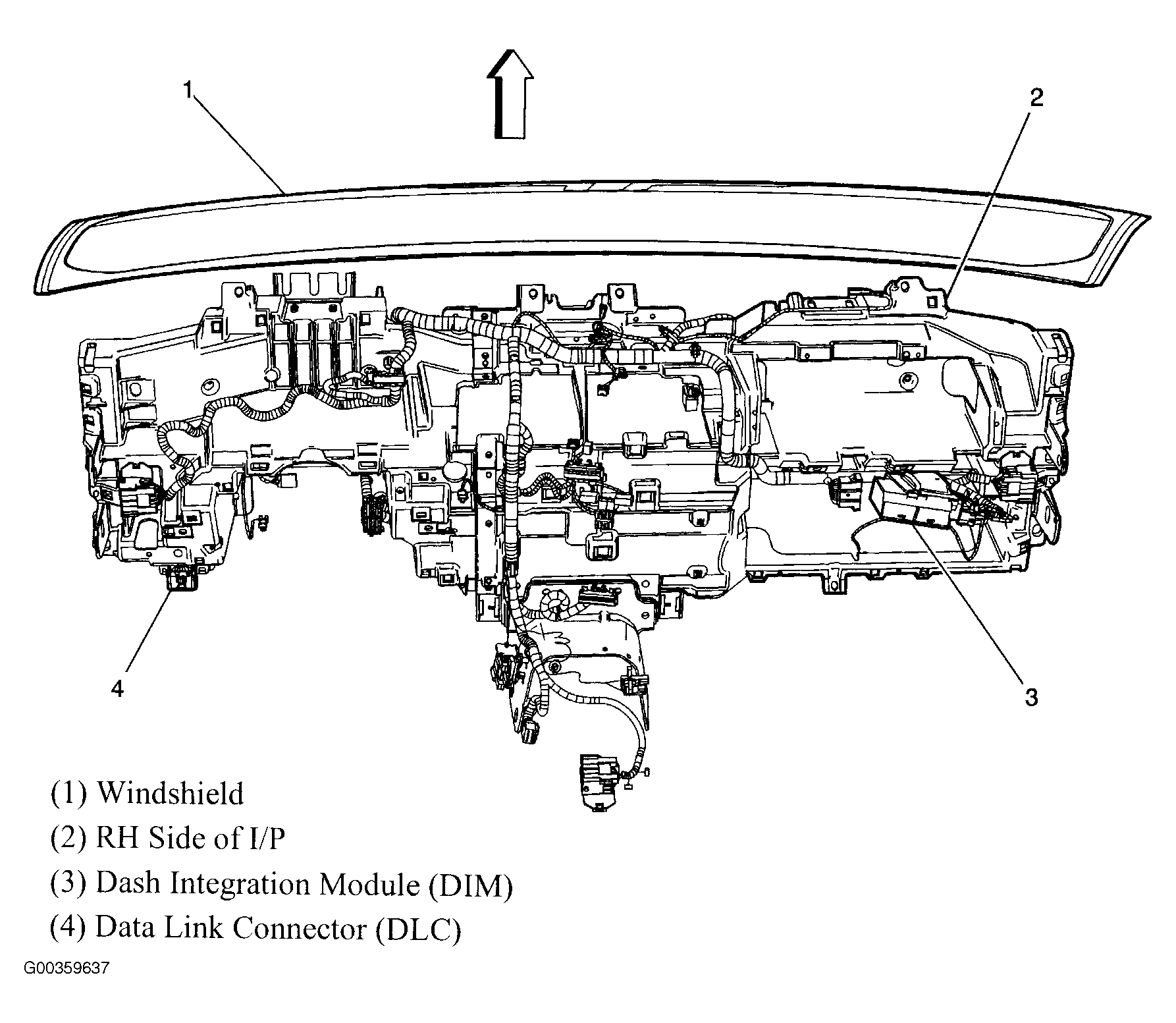

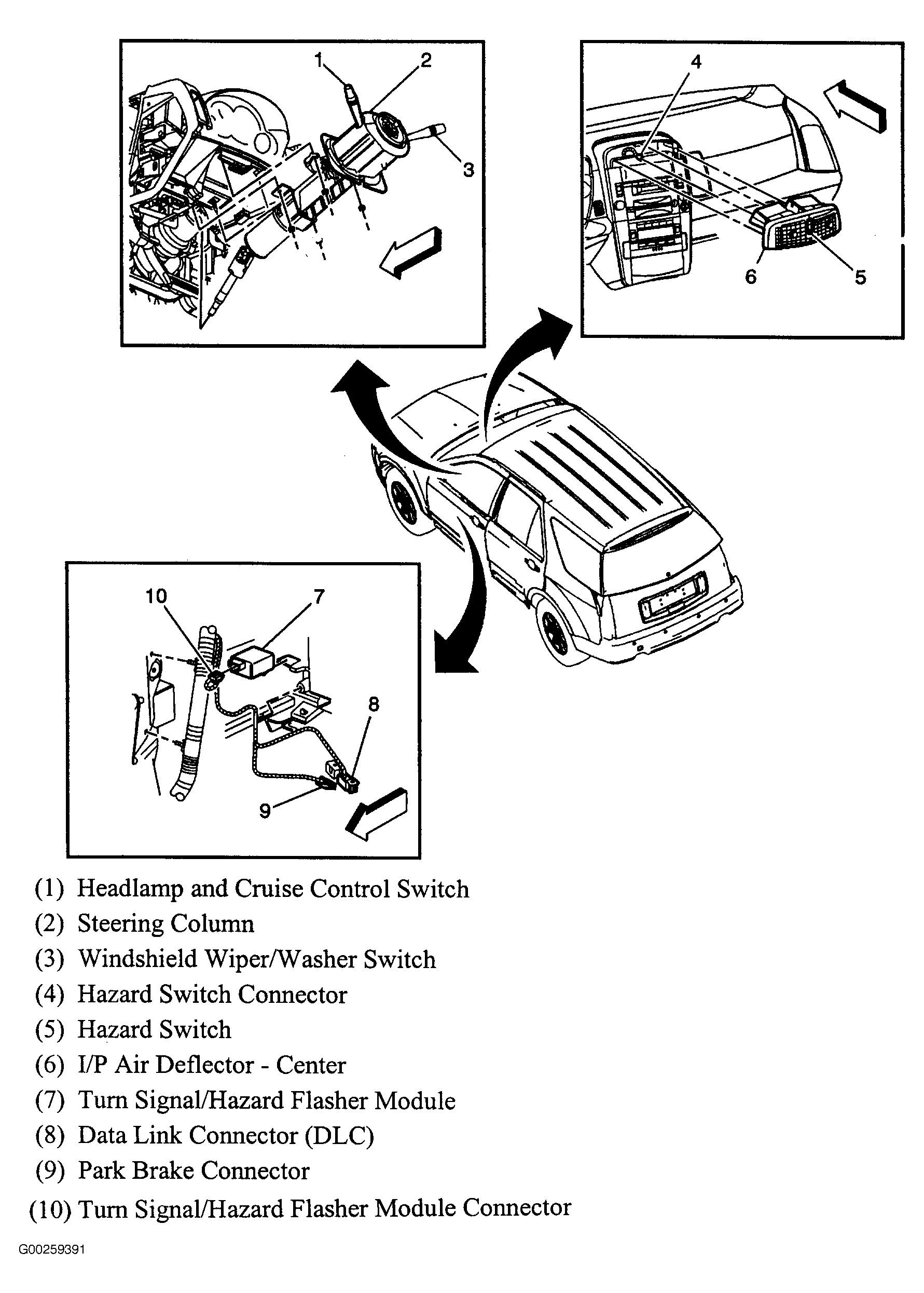

Fig 7: Dash
Courtesy of GENERAL MOTORS CORP.

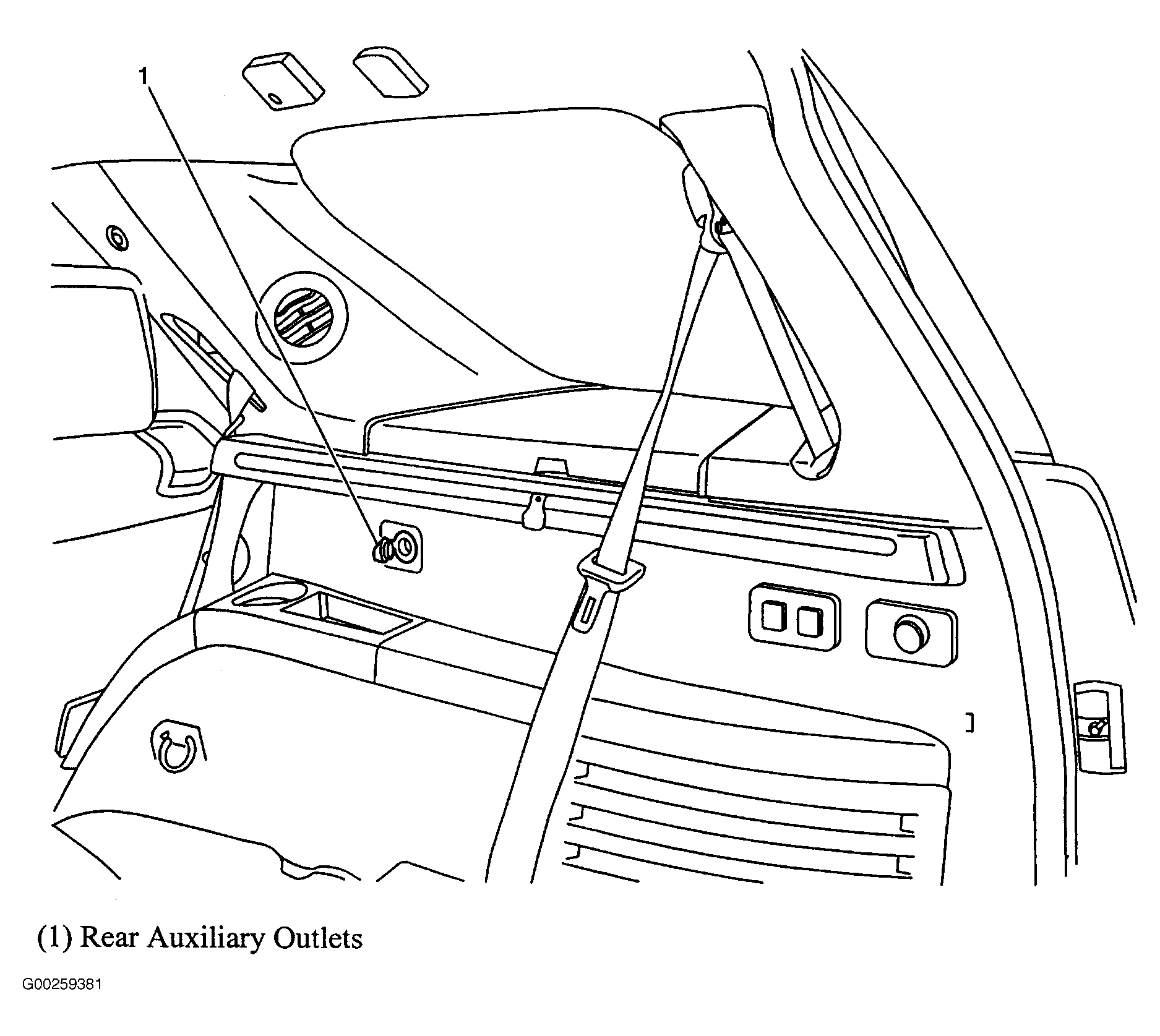

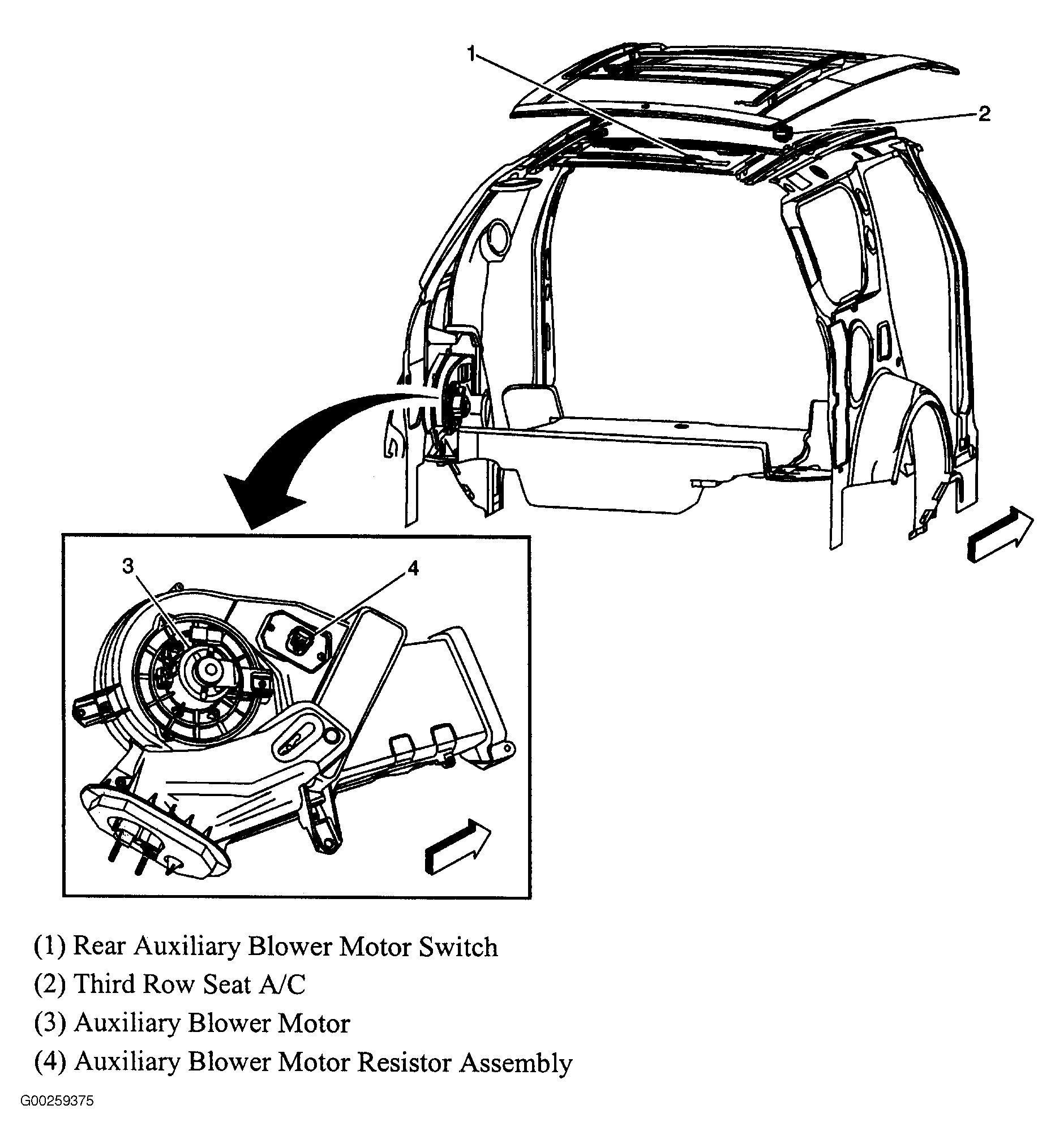

Fig 8: Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.

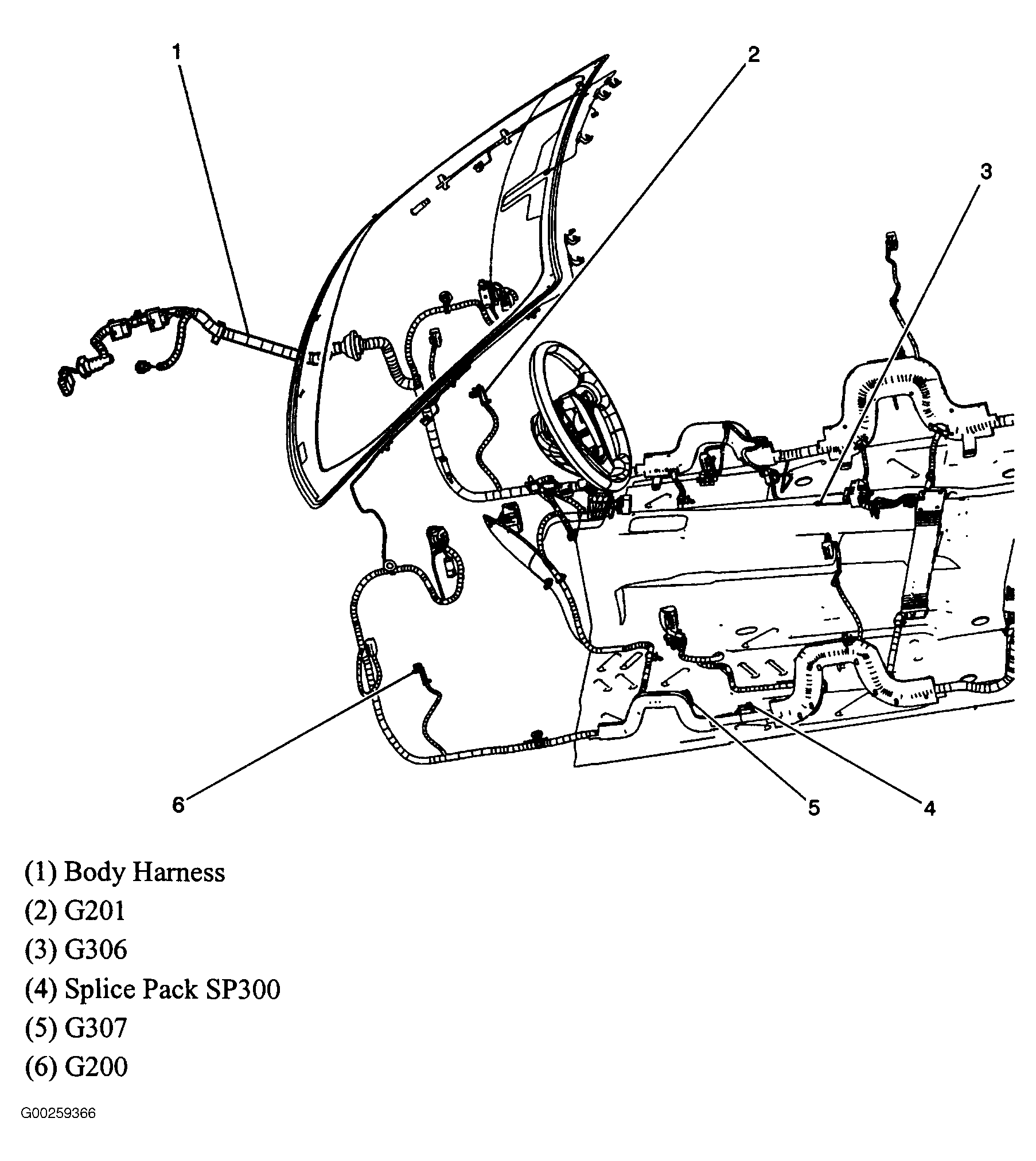

Fig 9: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

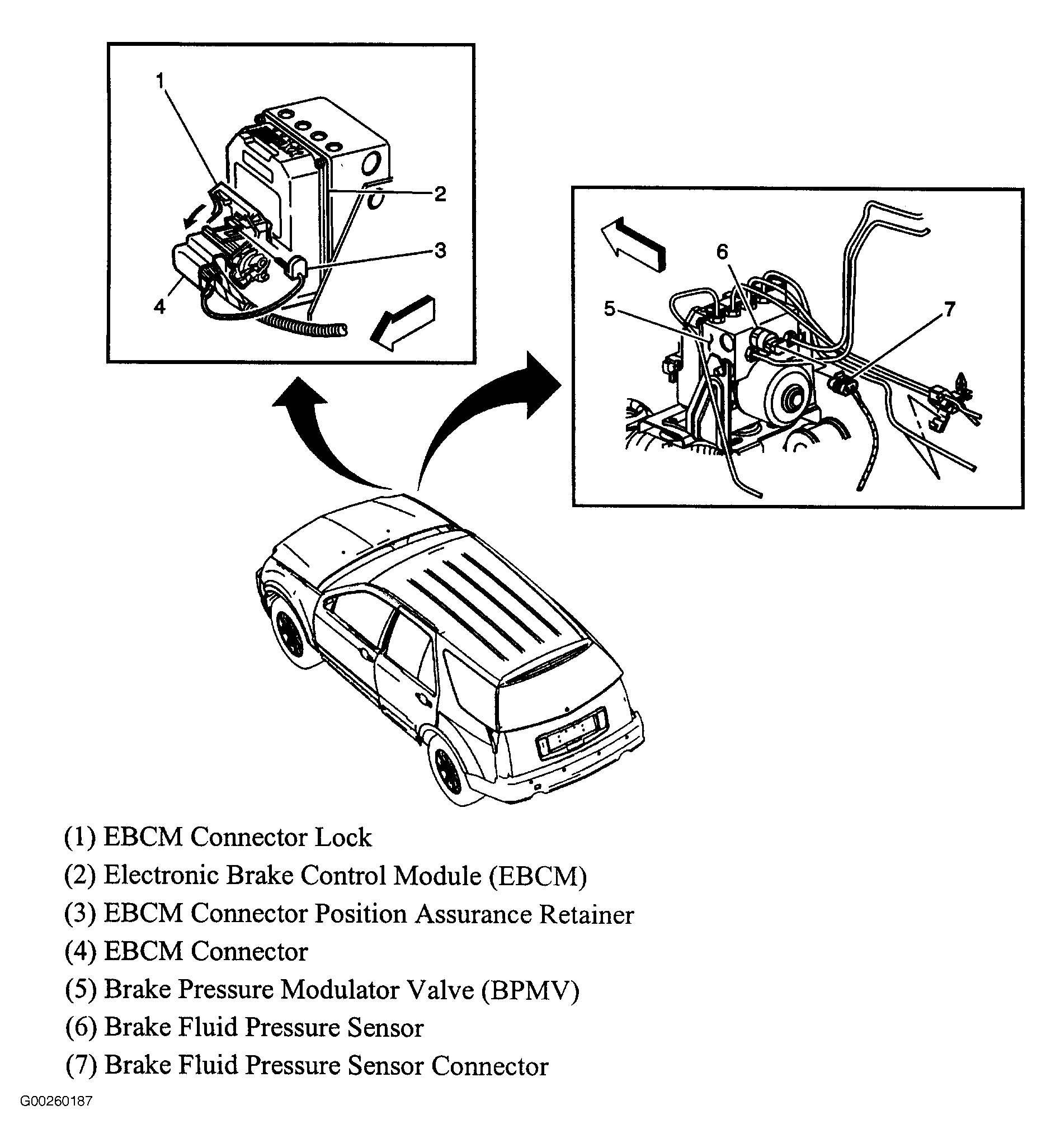

Fig 10: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

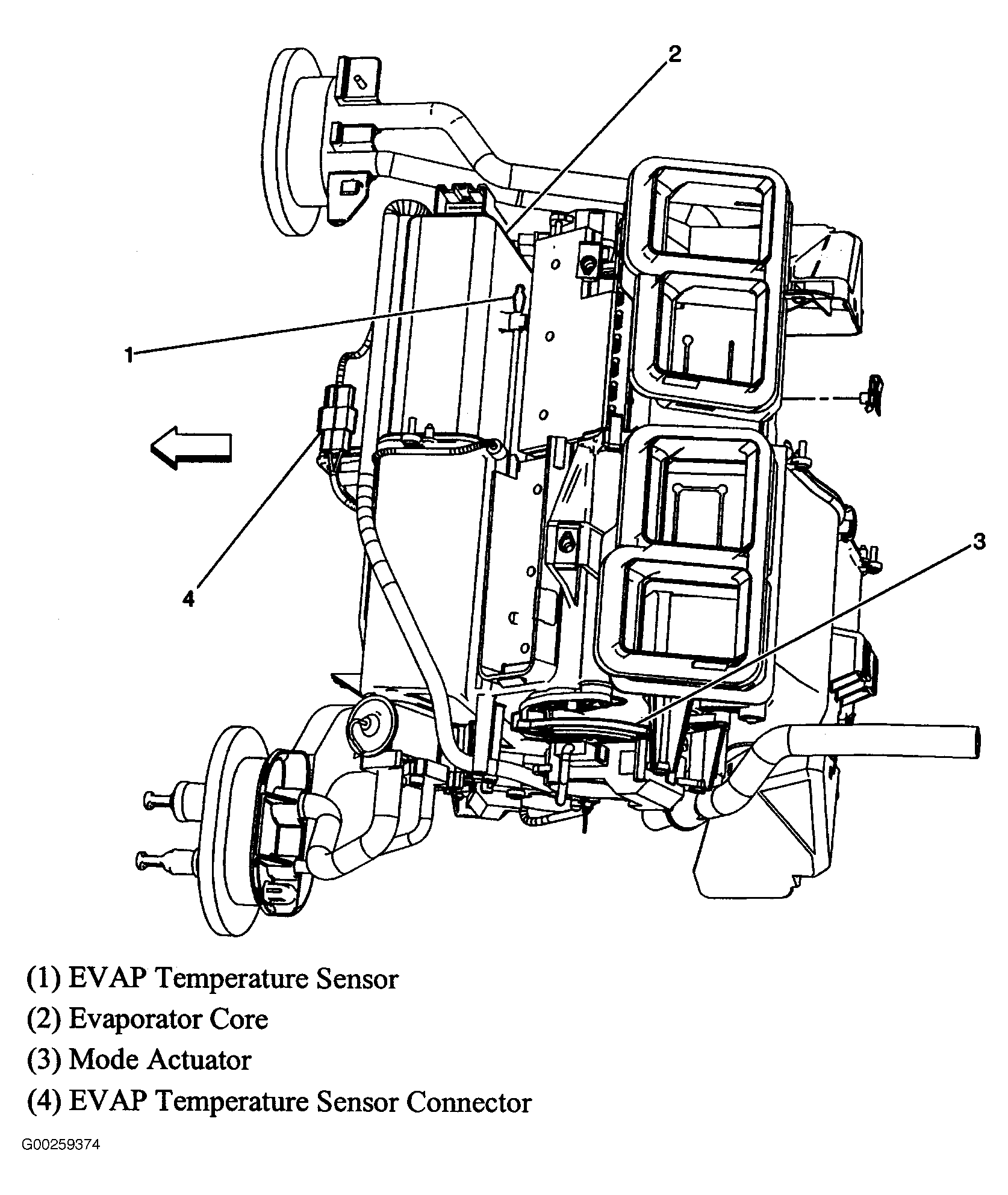

Fig 11: Top Of Evaporator
Courtesy of GENERAL MOTORS CORP.

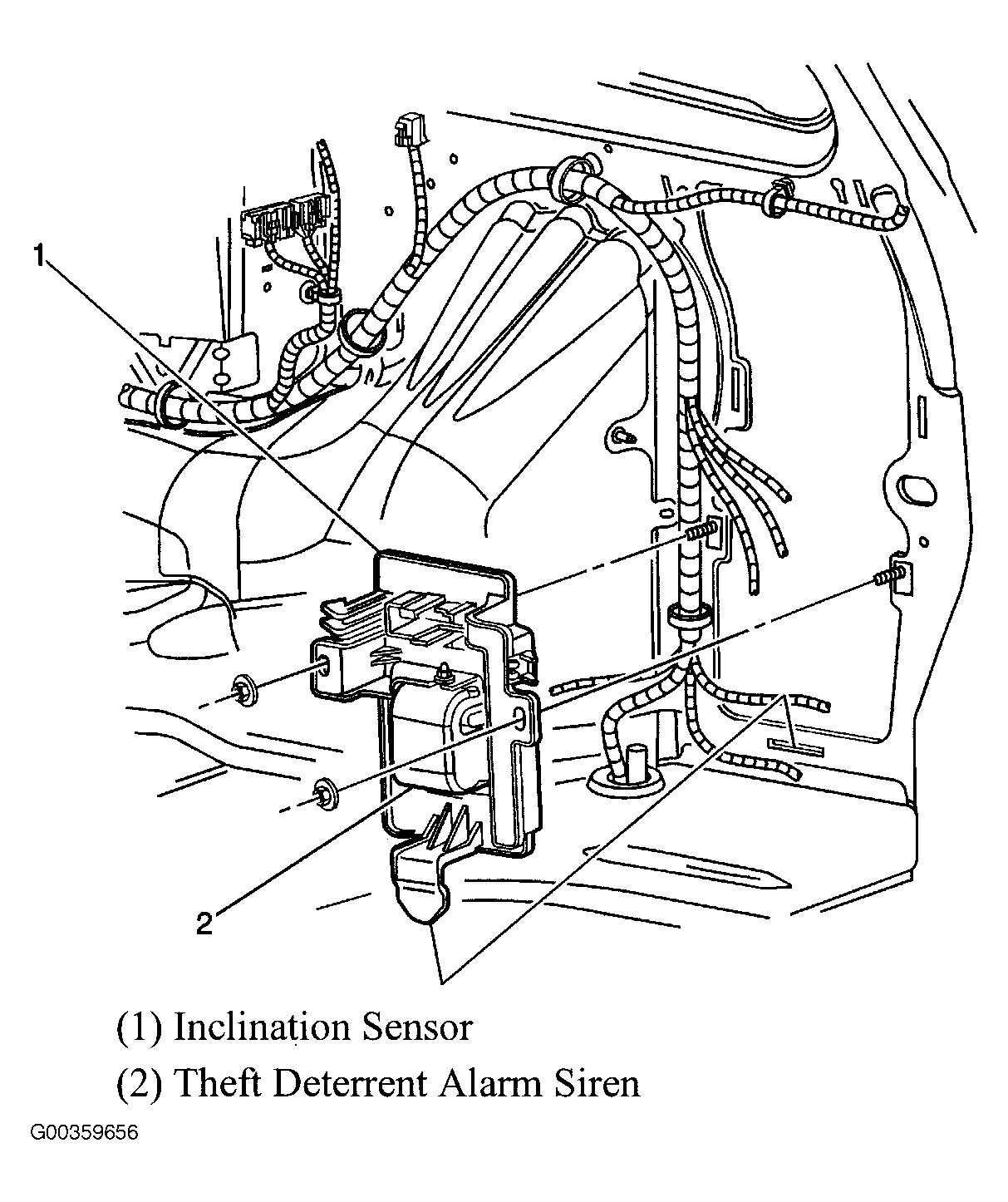

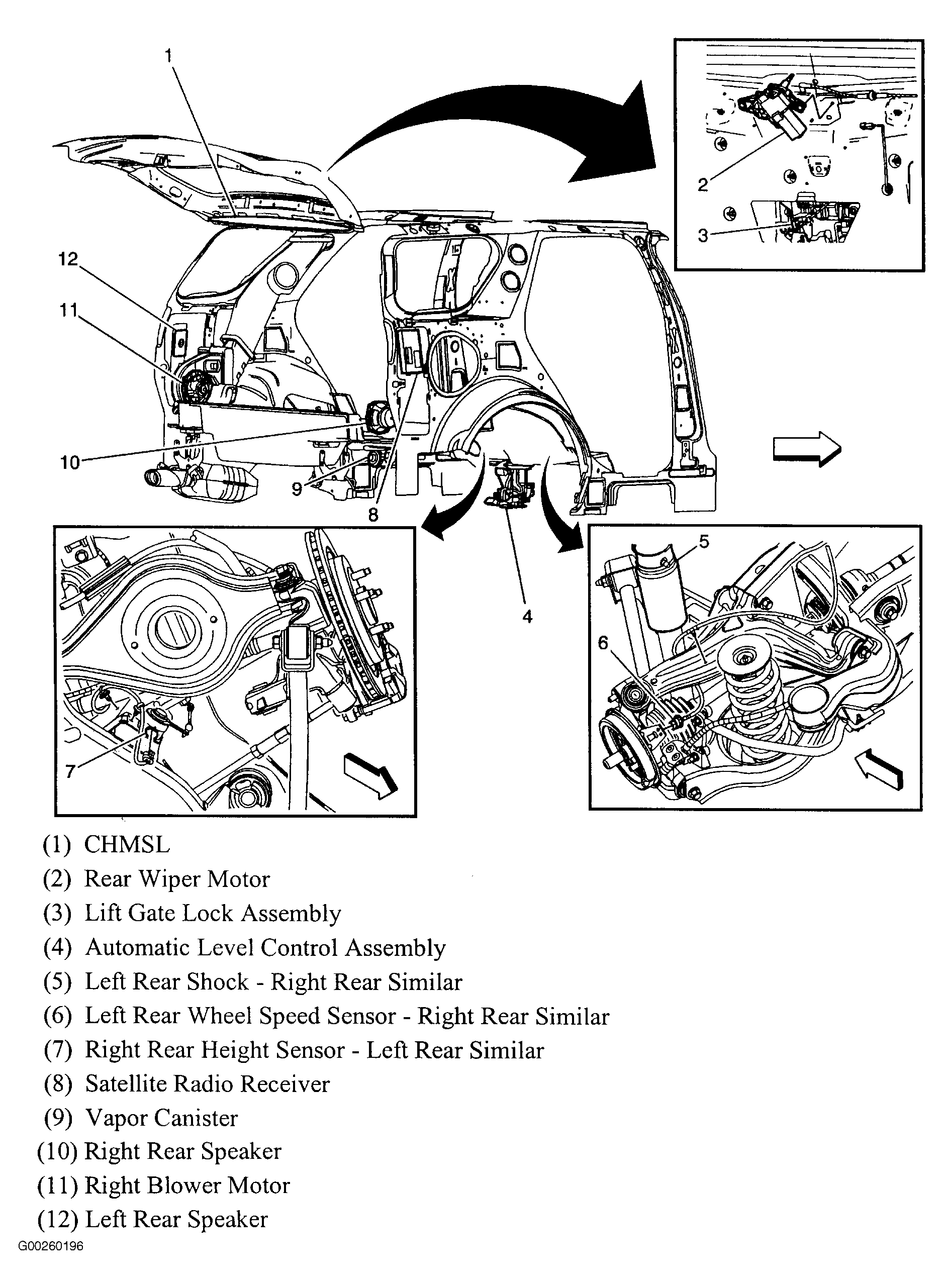

Fig 12: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

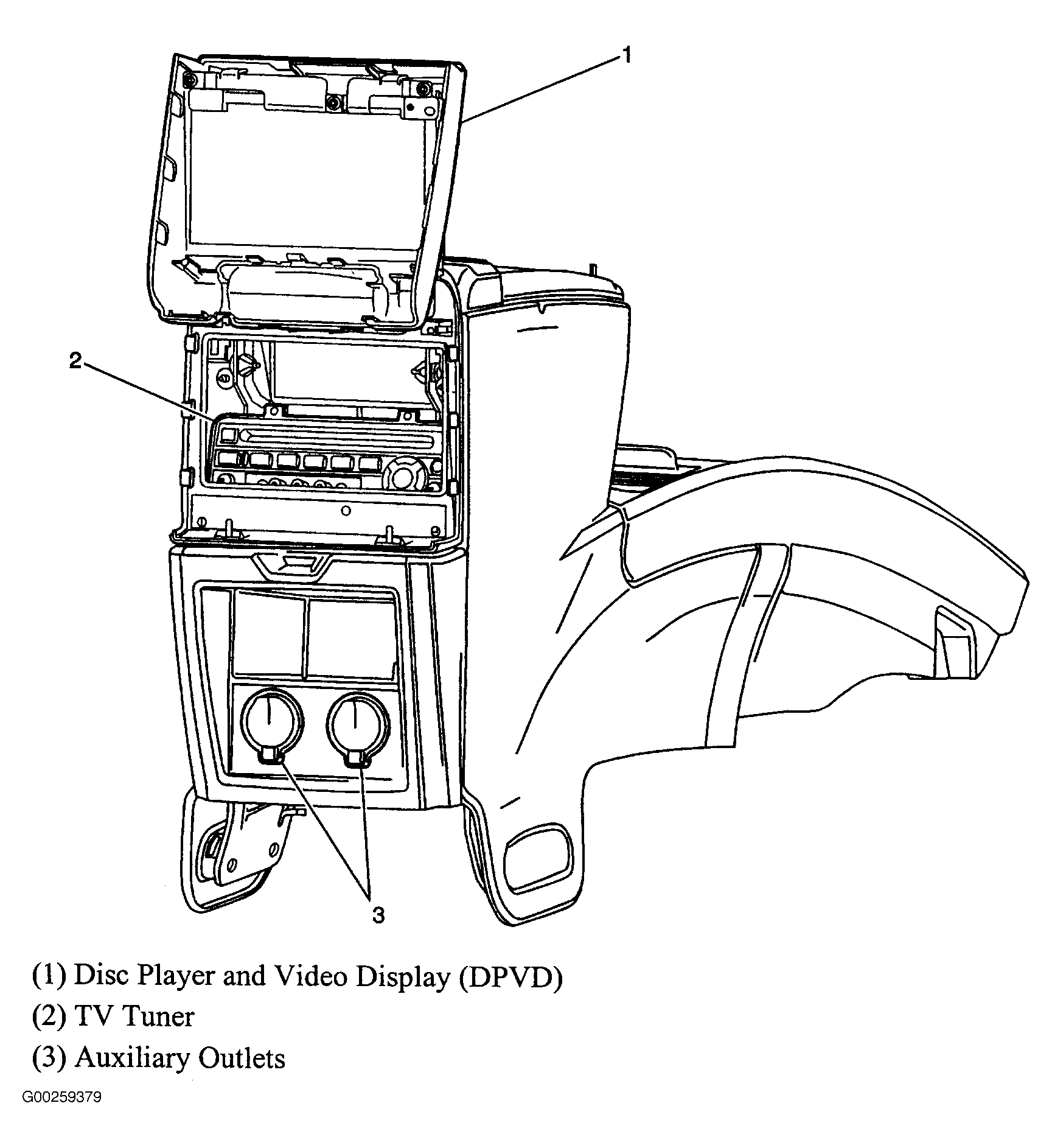

Fig 13: Rear Of Center Console
Courtesy of GENERAL MOTORS CORP.

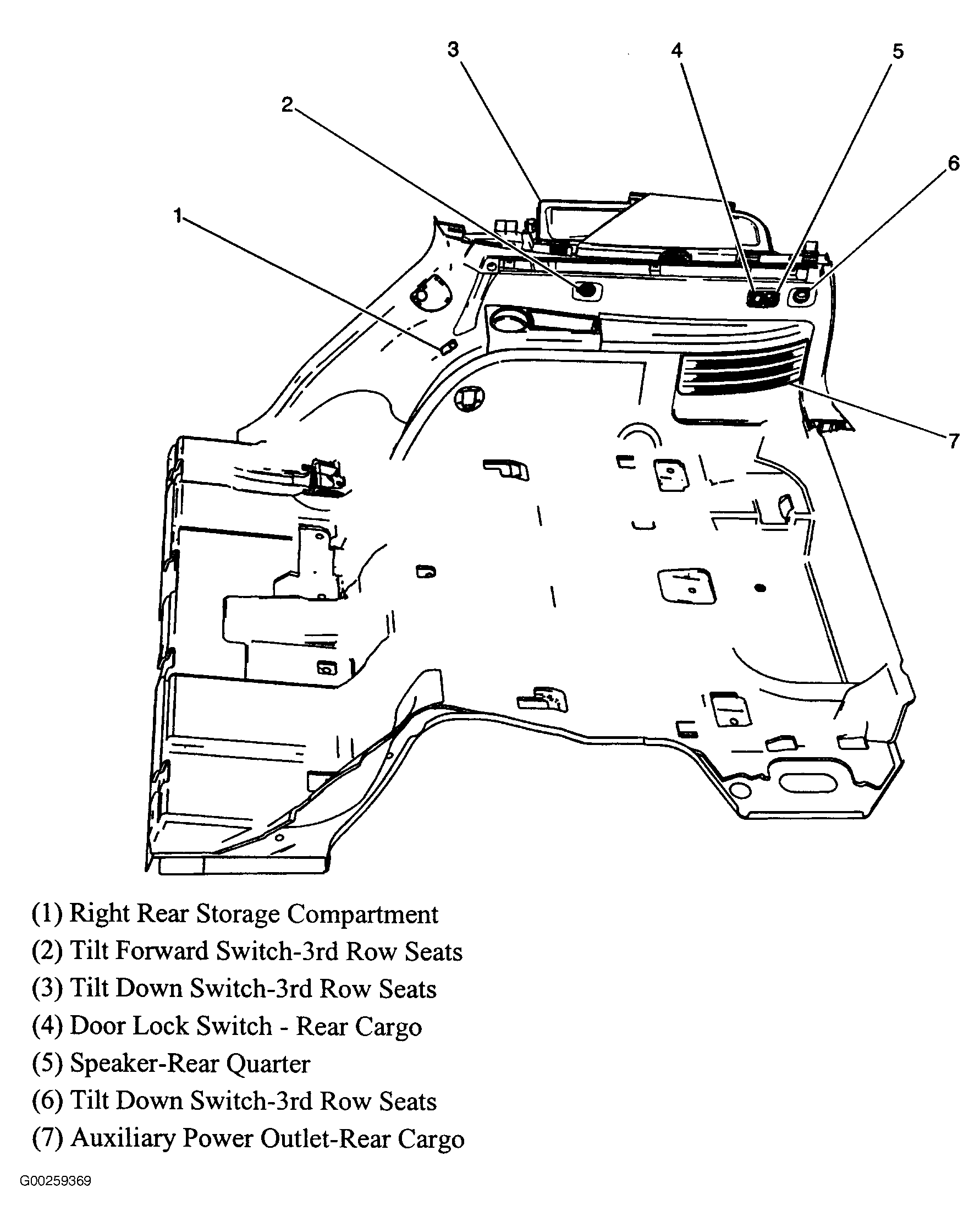

Fig 14: Right Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.

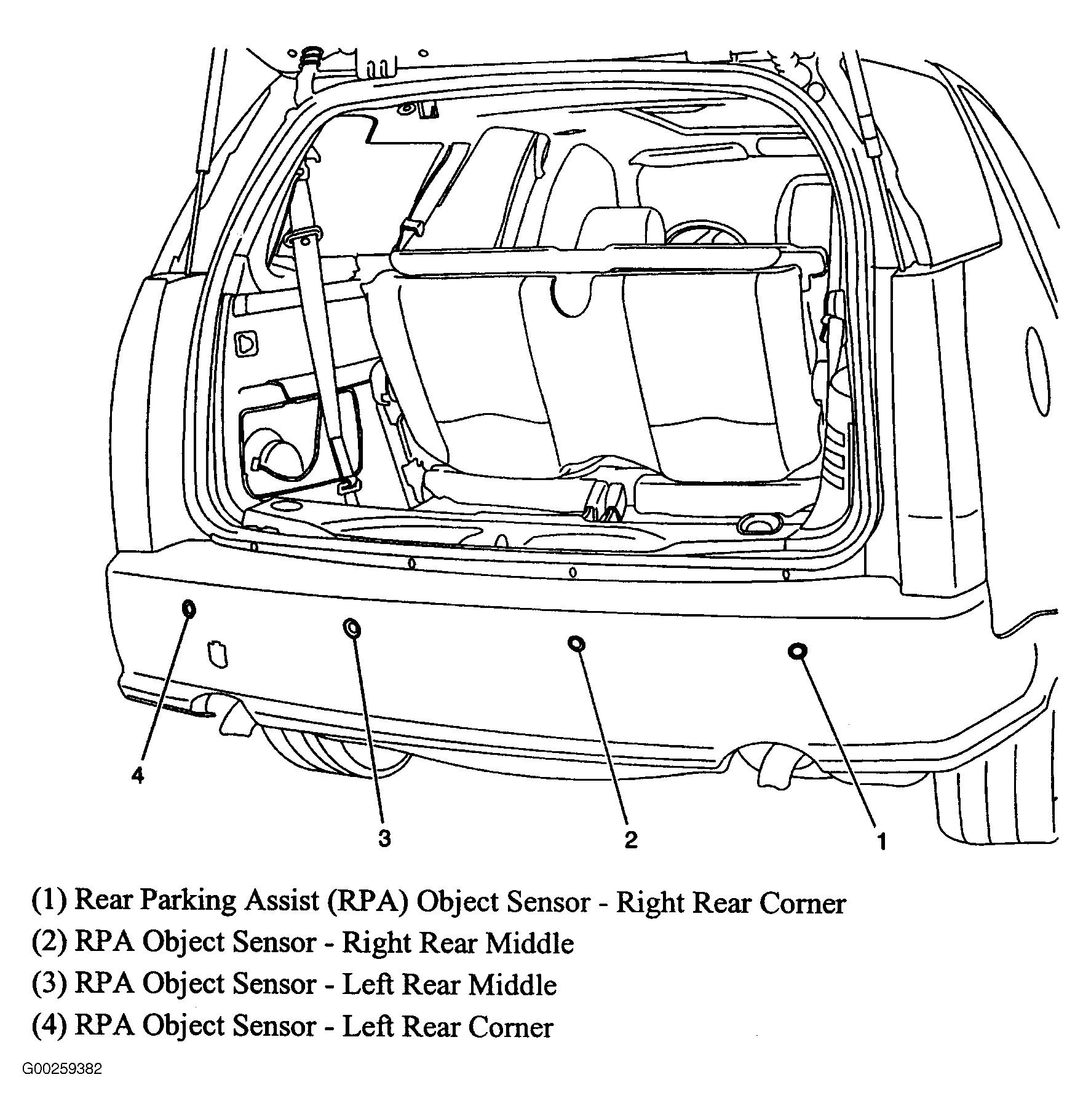

Fig 15: Rear Bumper
Courtesy of GENERAL MOTORS CORP.

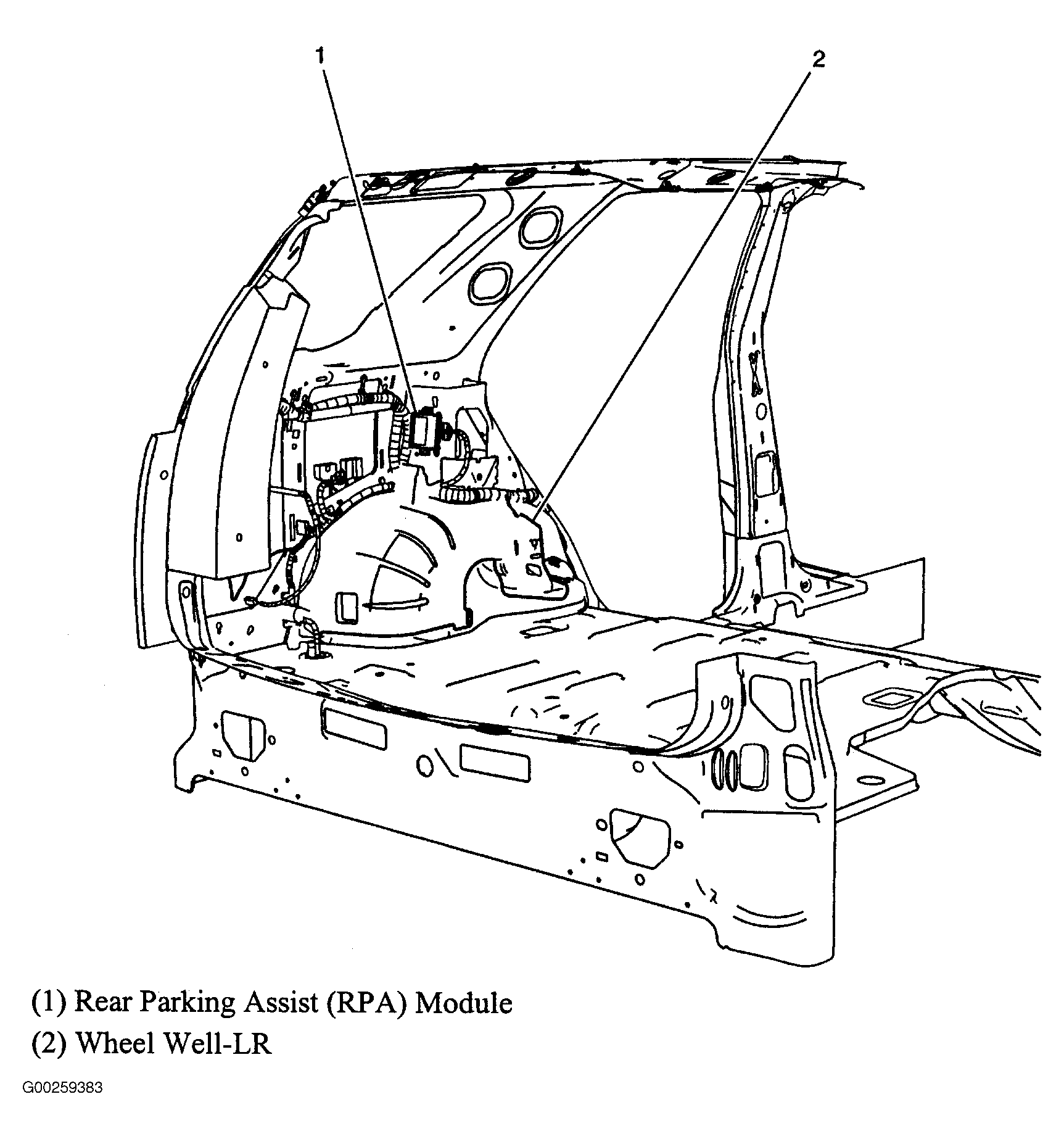

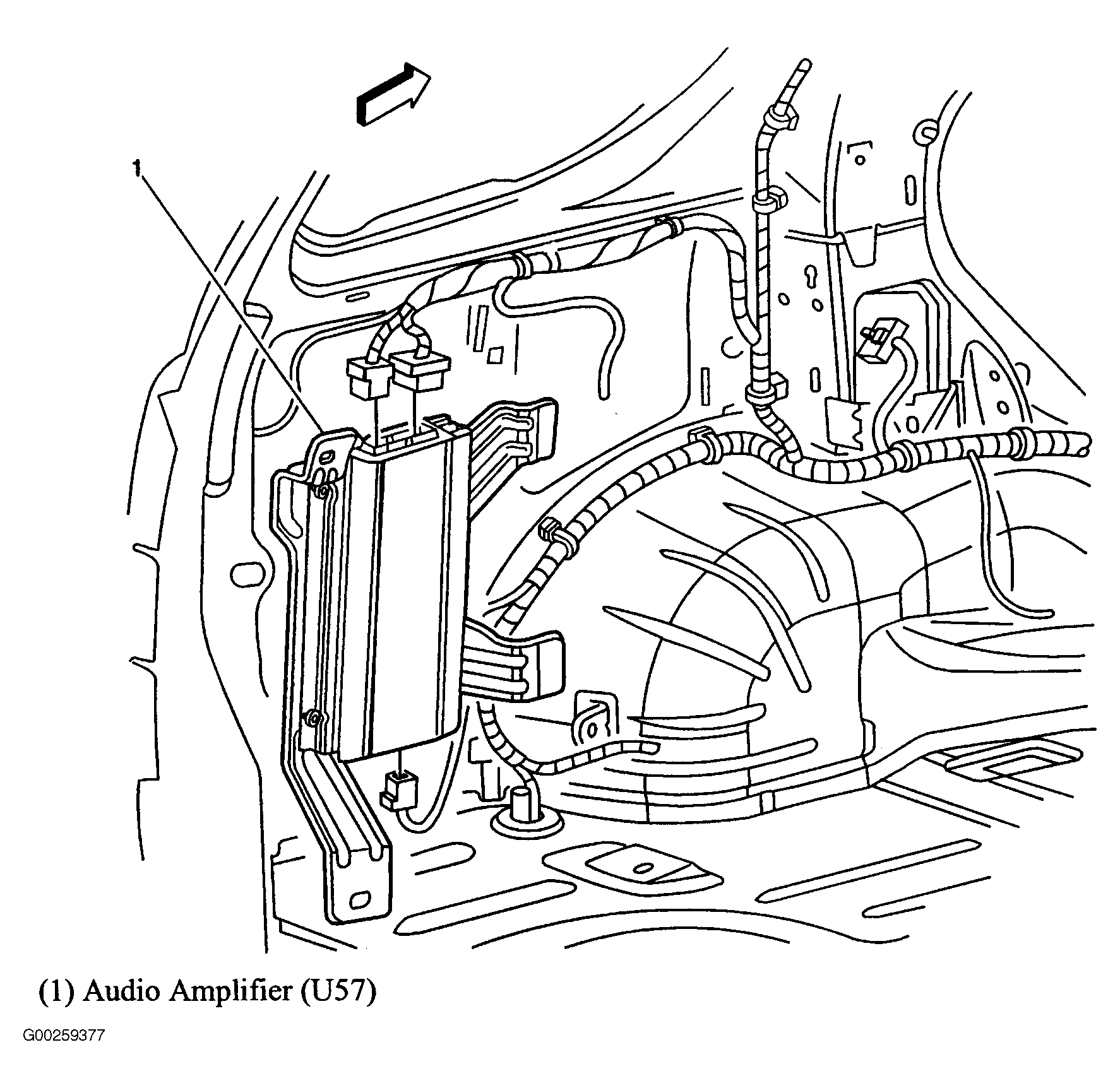

Fig 16: Left Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.

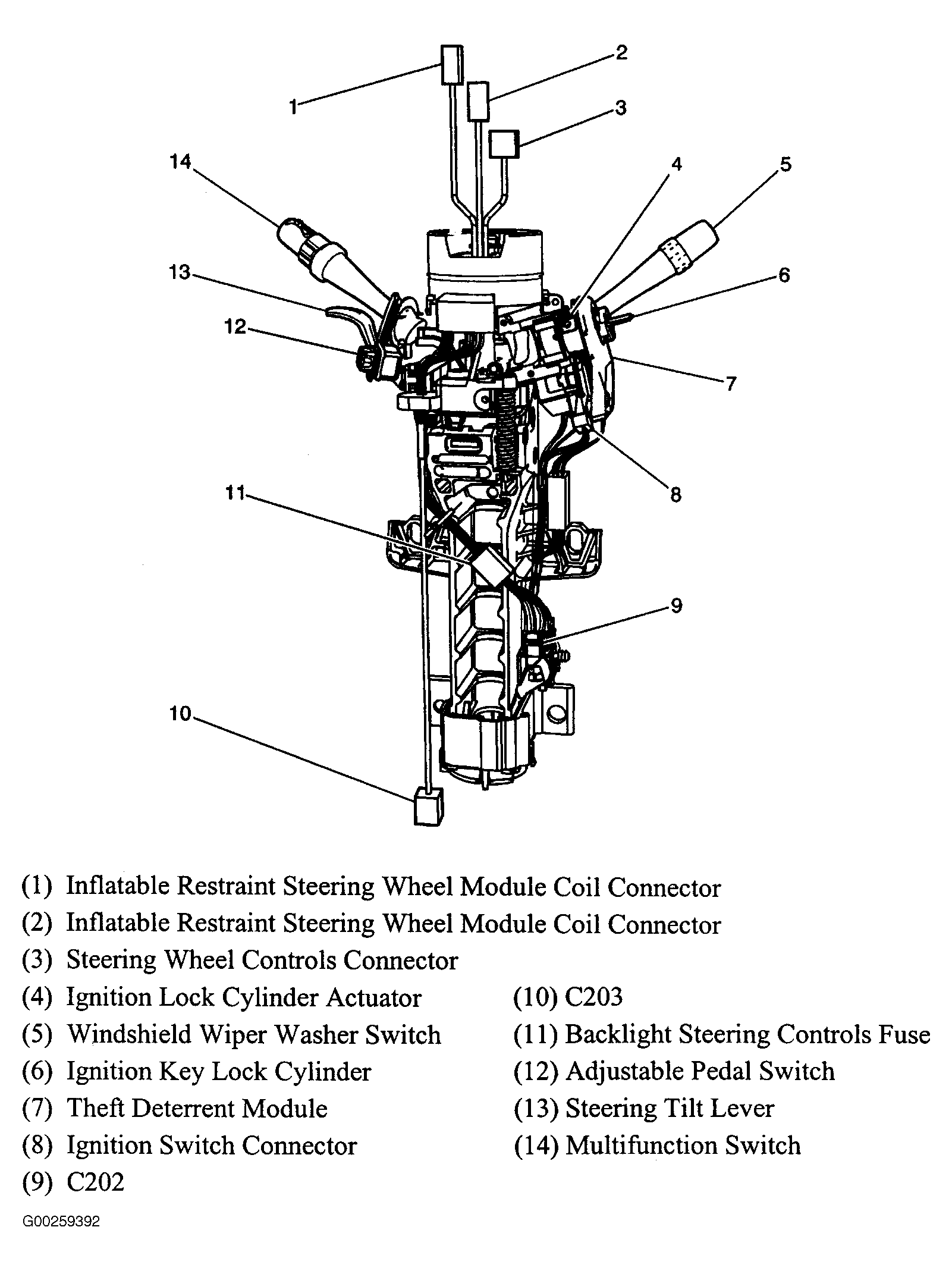

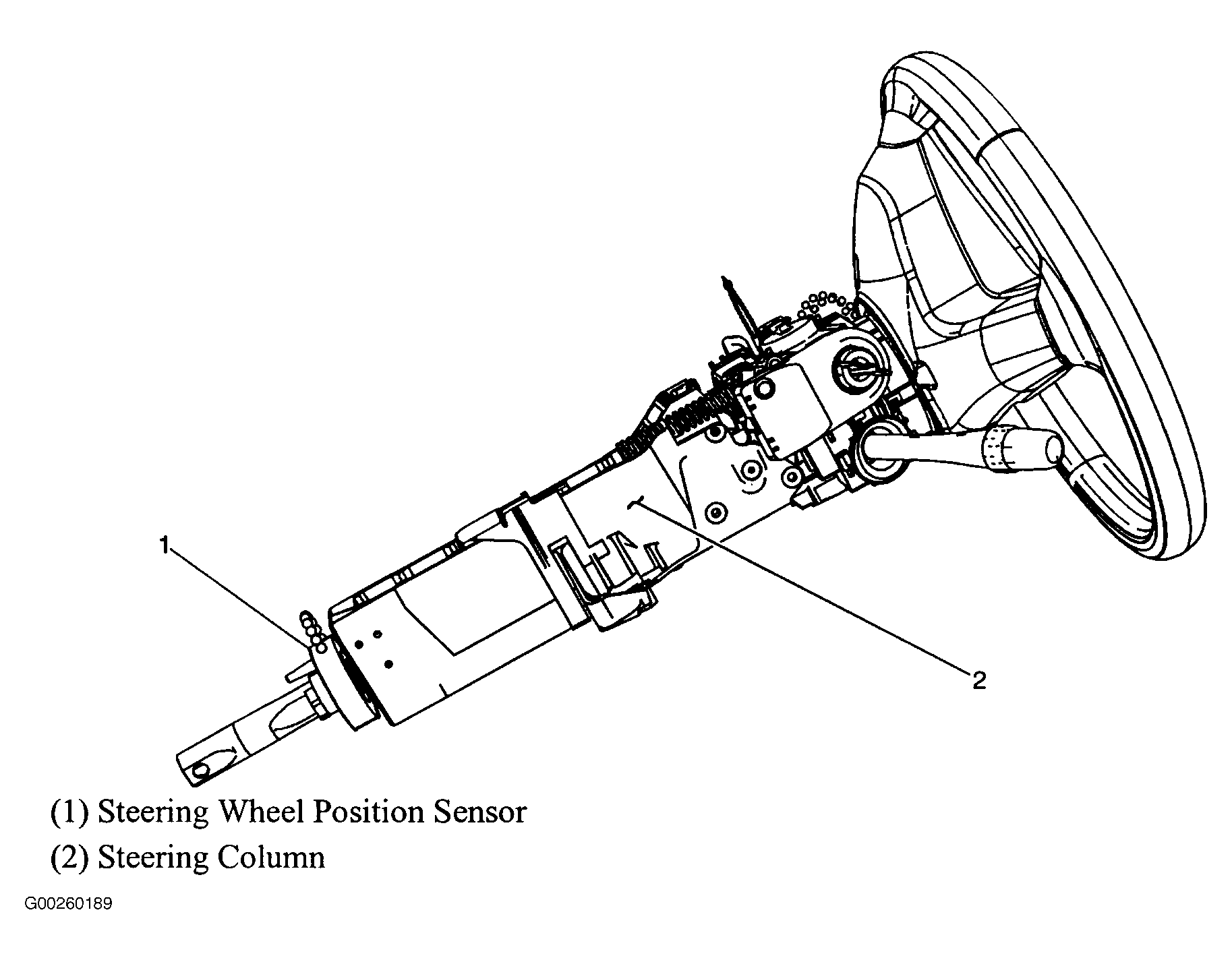

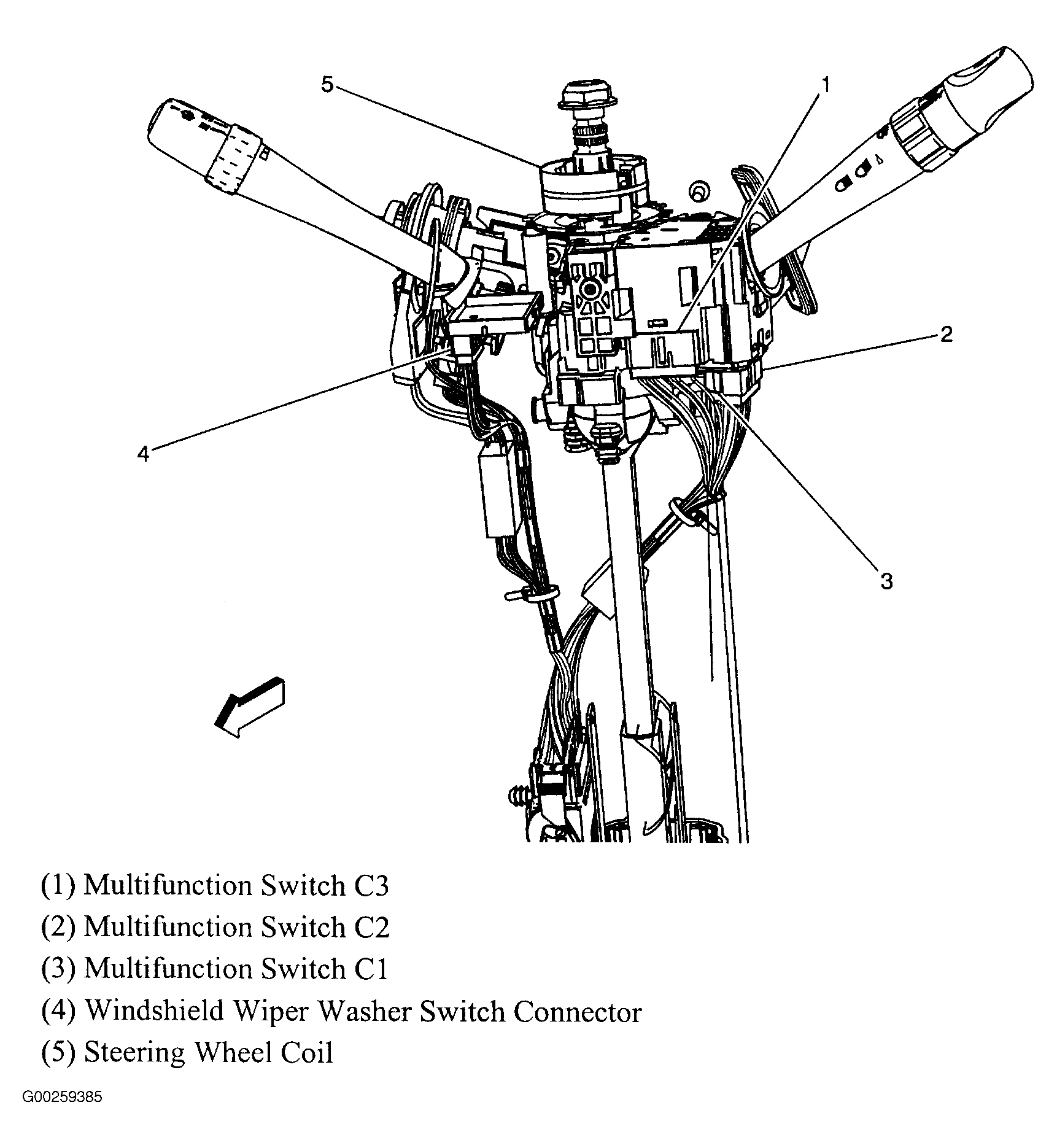

Fig 17: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.

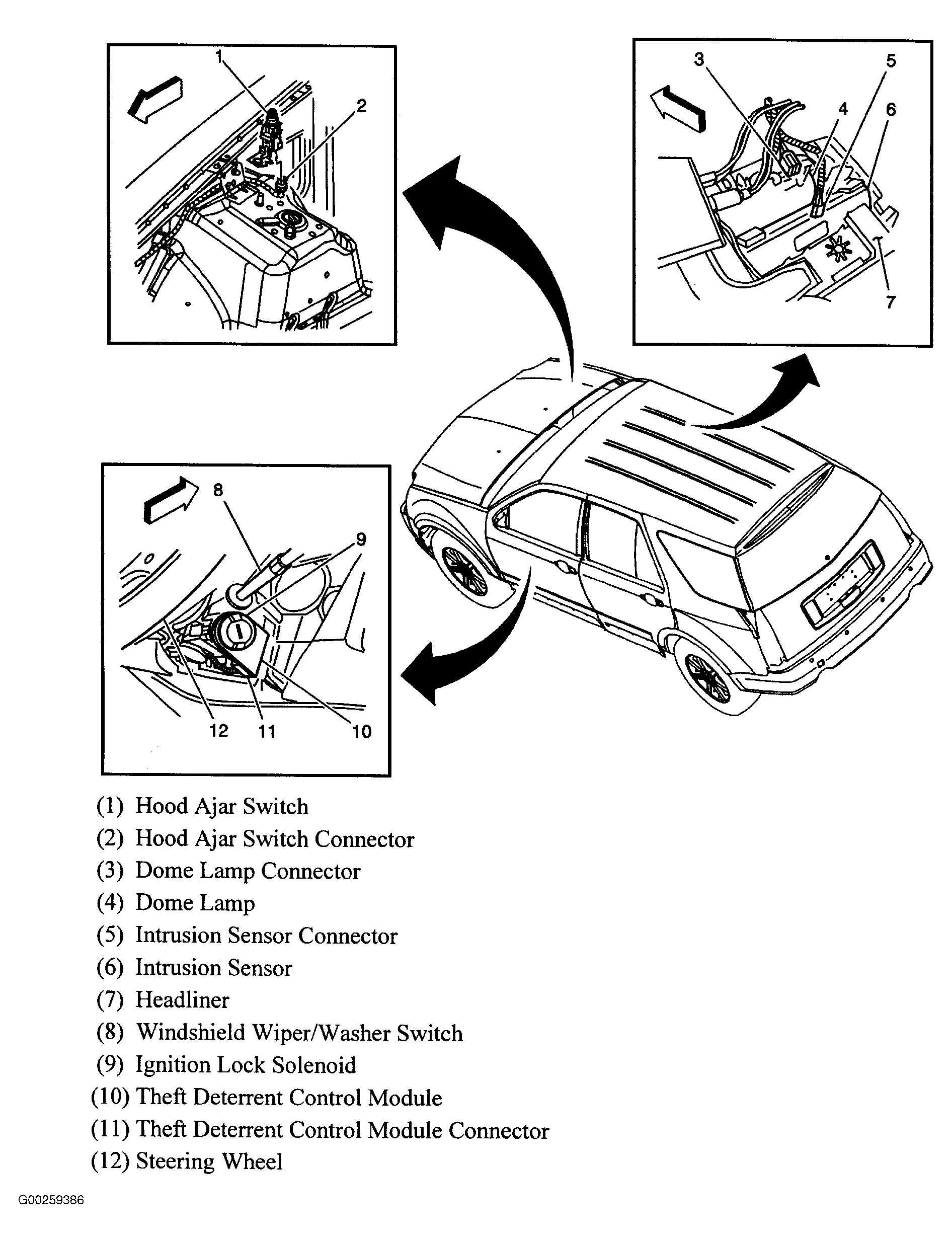

Fig 18: Right Side Of Engine Compartment, Center Rear Of Headliner & Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

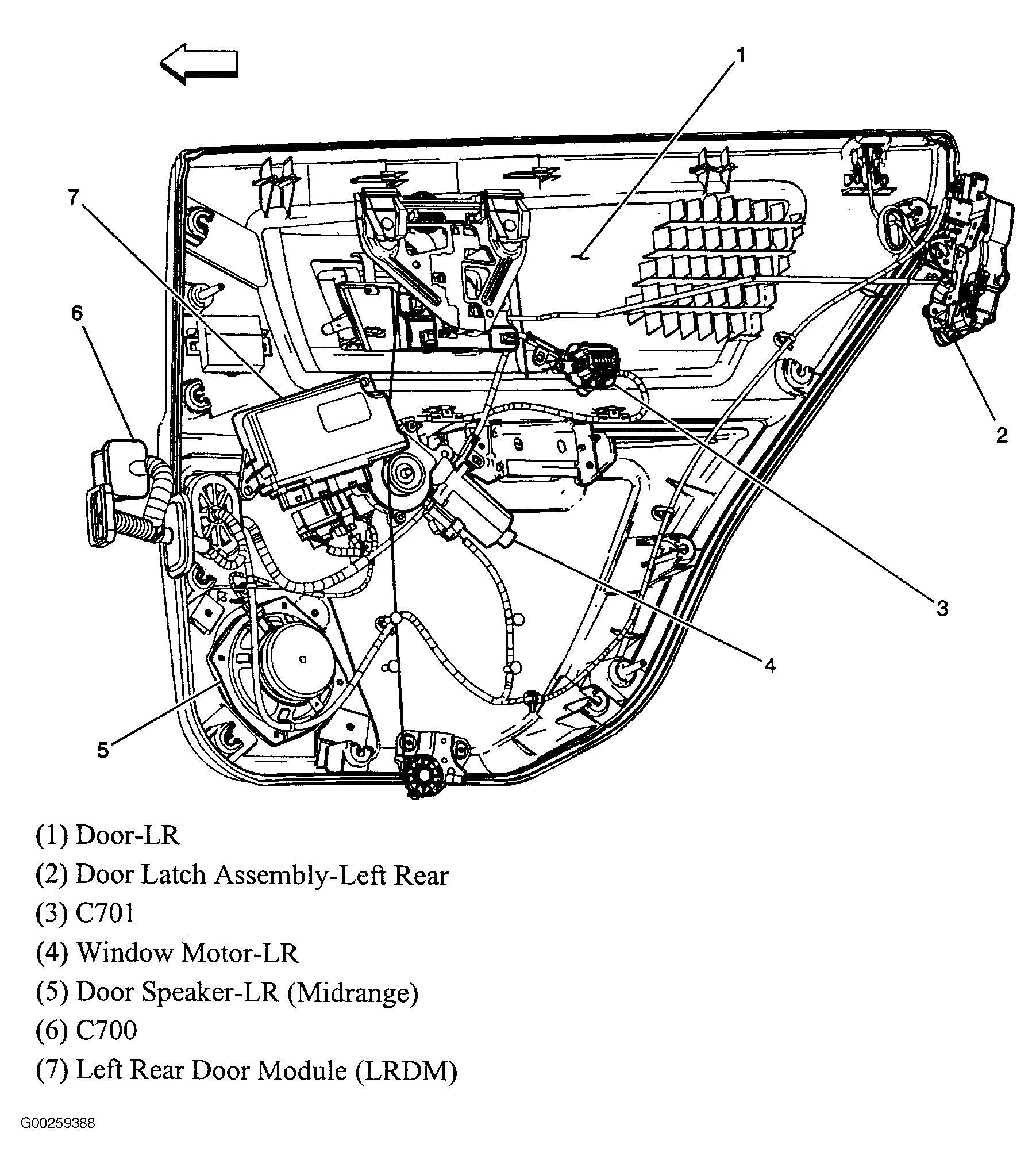

Fig 19: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 20: Left Rear Of Cargo Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 21: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 22: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.

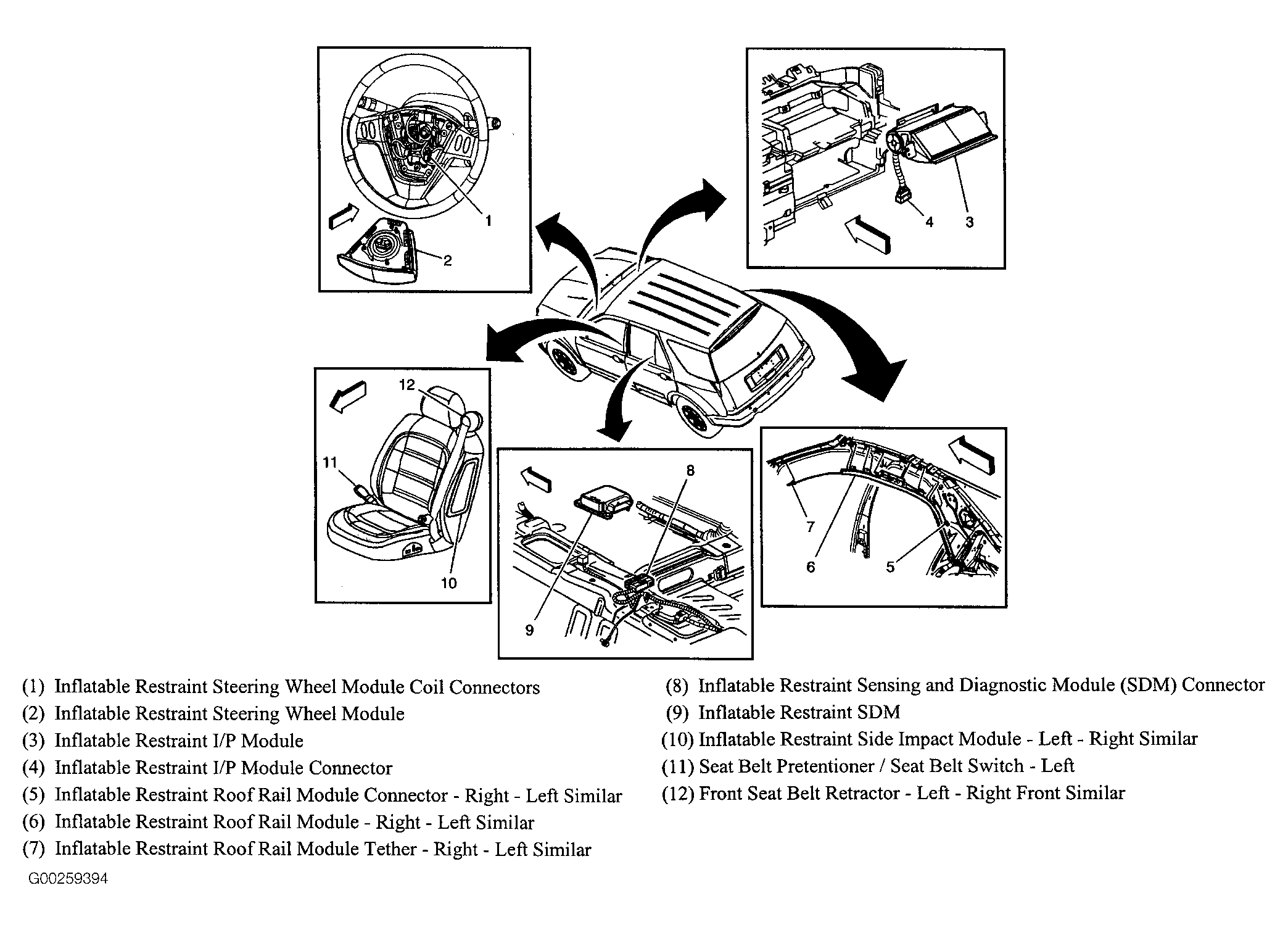

Fig 23: SIR Components Location
Courtesy of GENERAL MOTORS CORP.

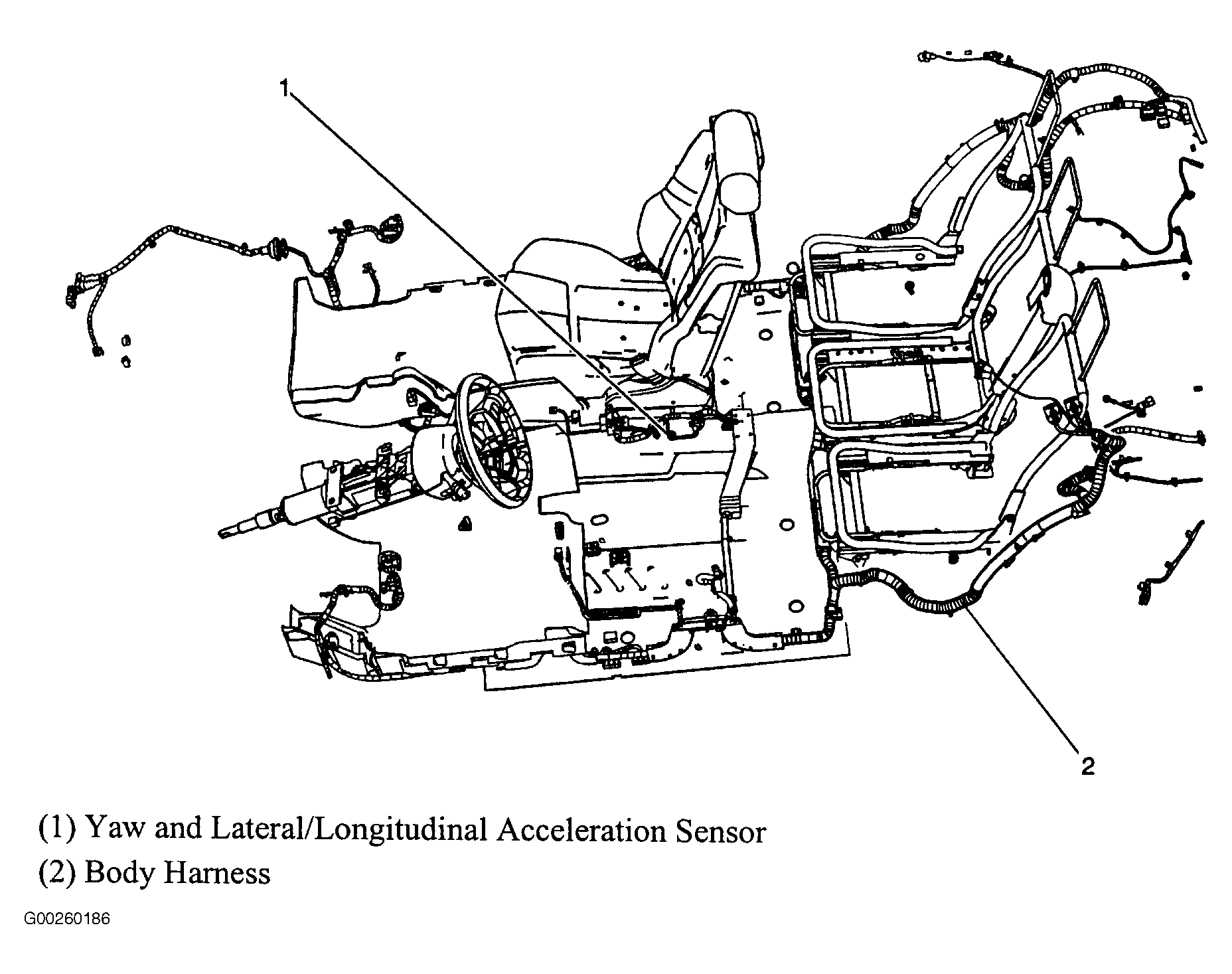

Fig 24: Under Center Console
Courtesy of GENERAL MOTORS CORP.

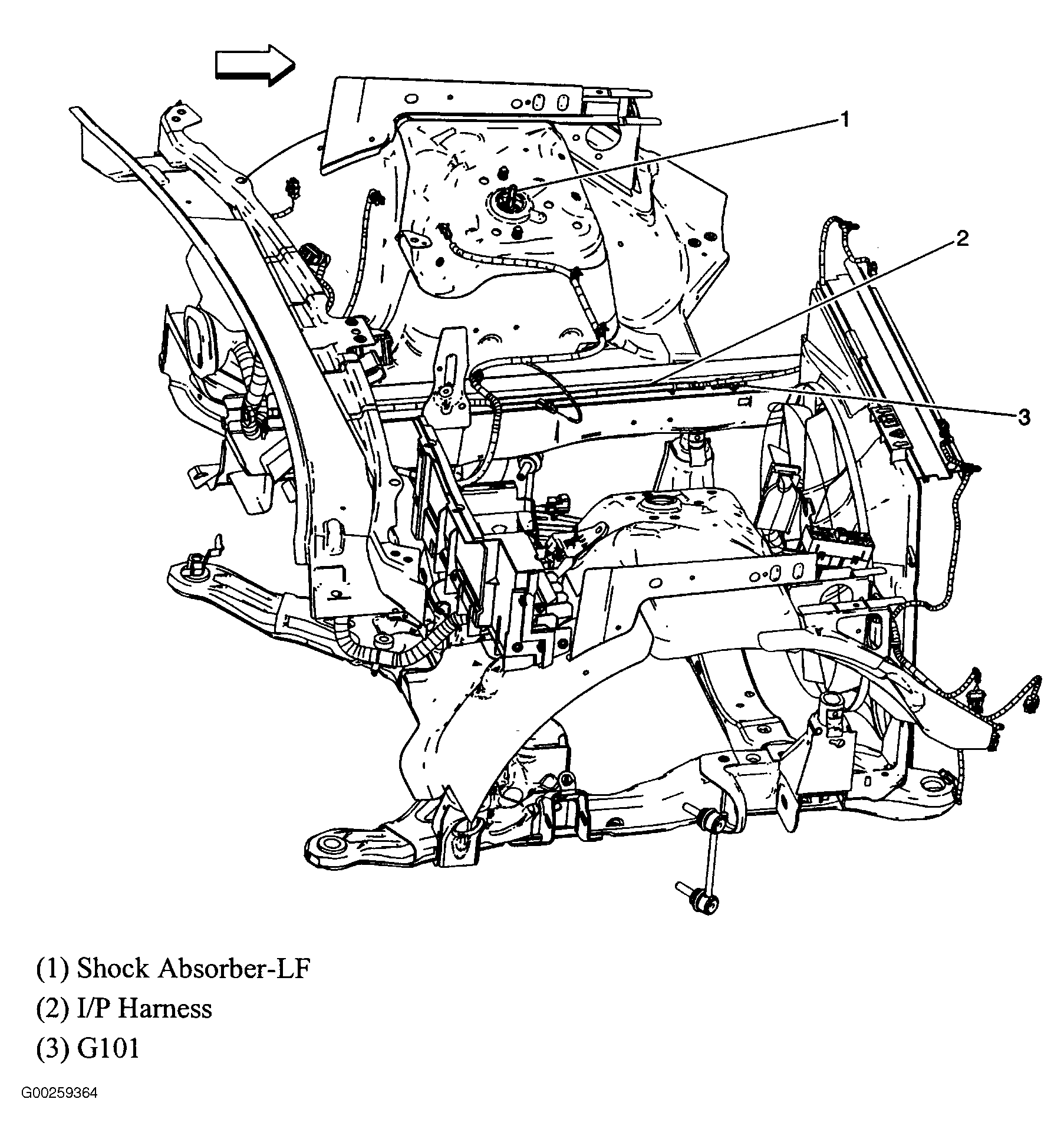

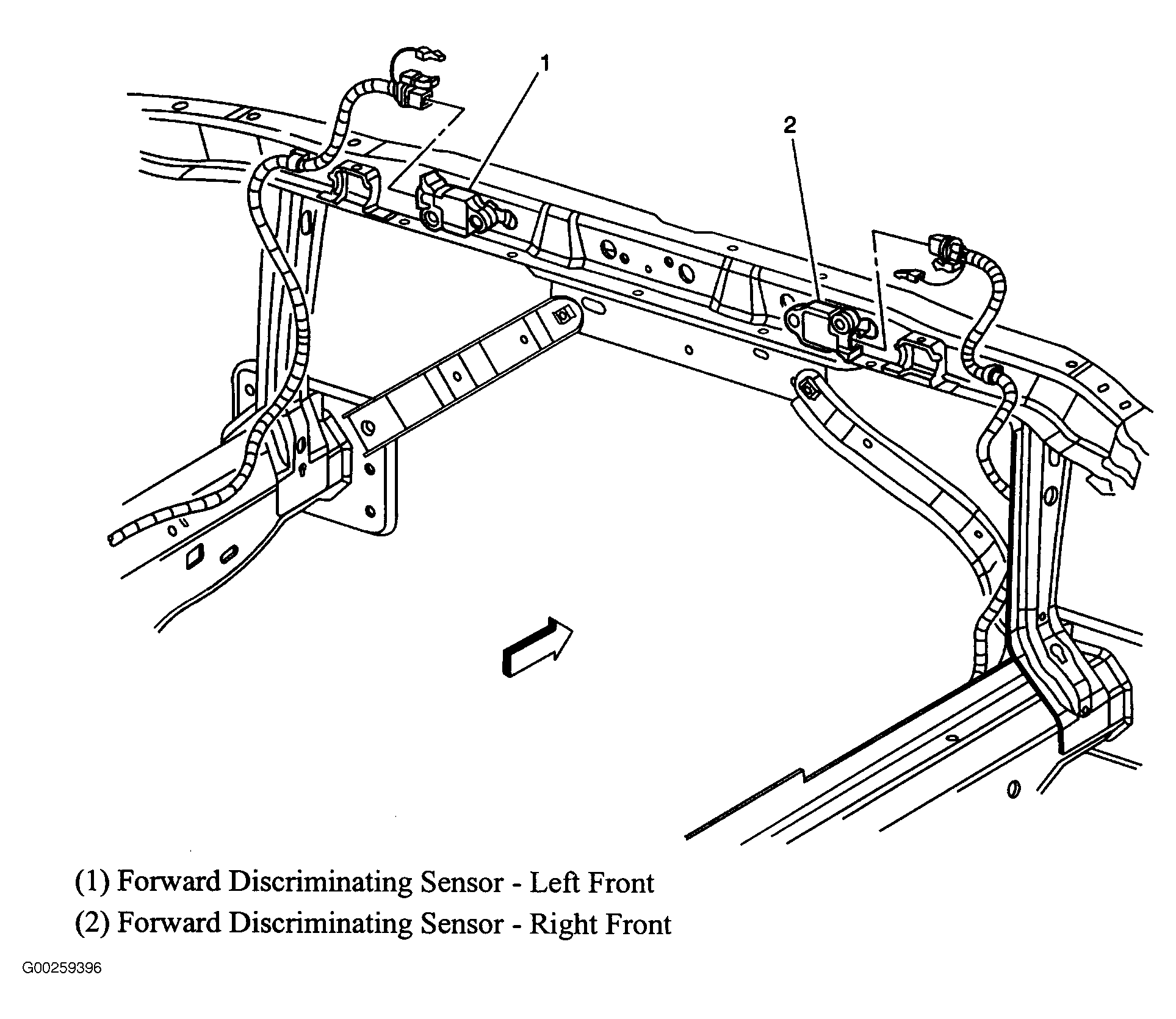

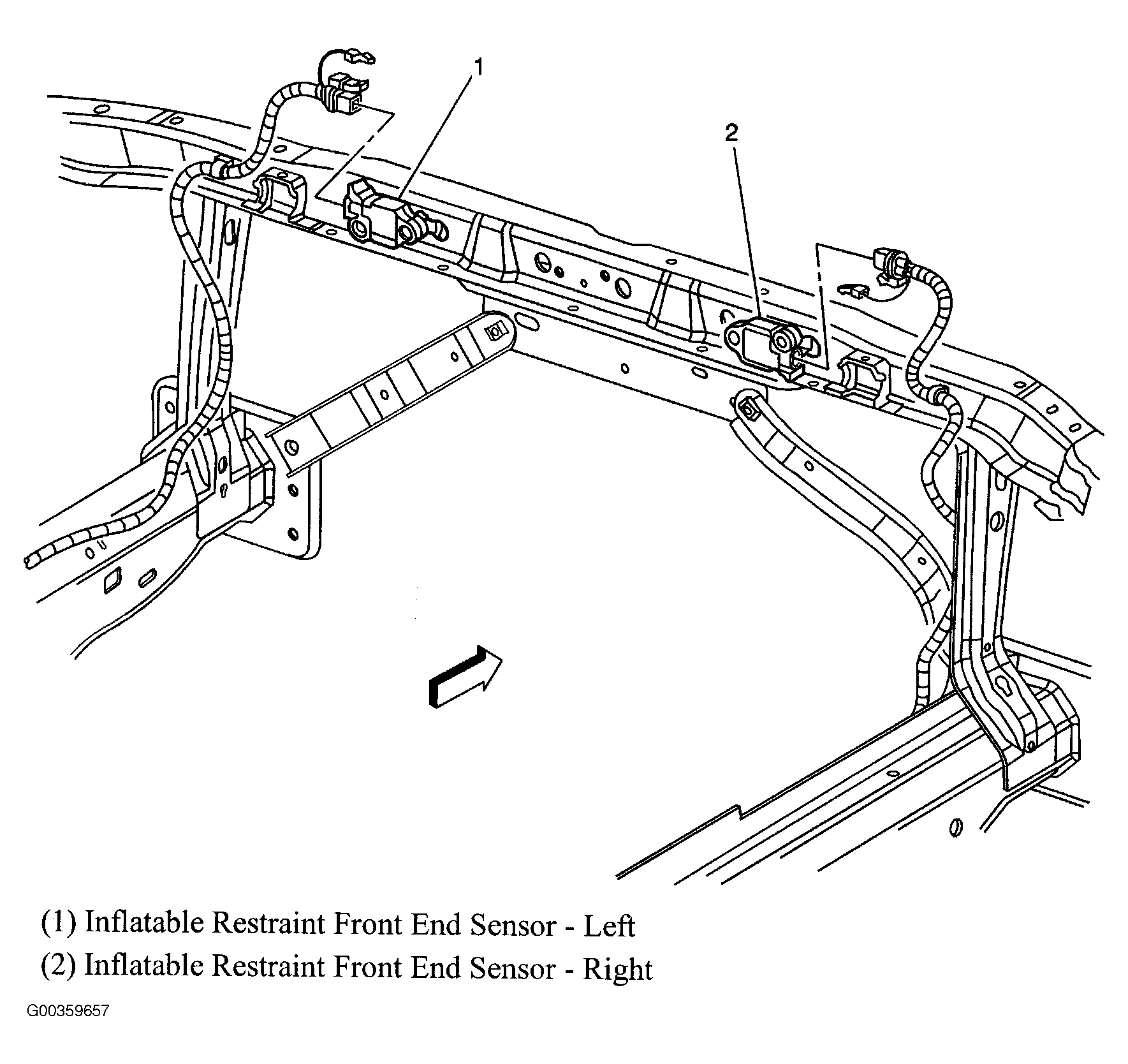

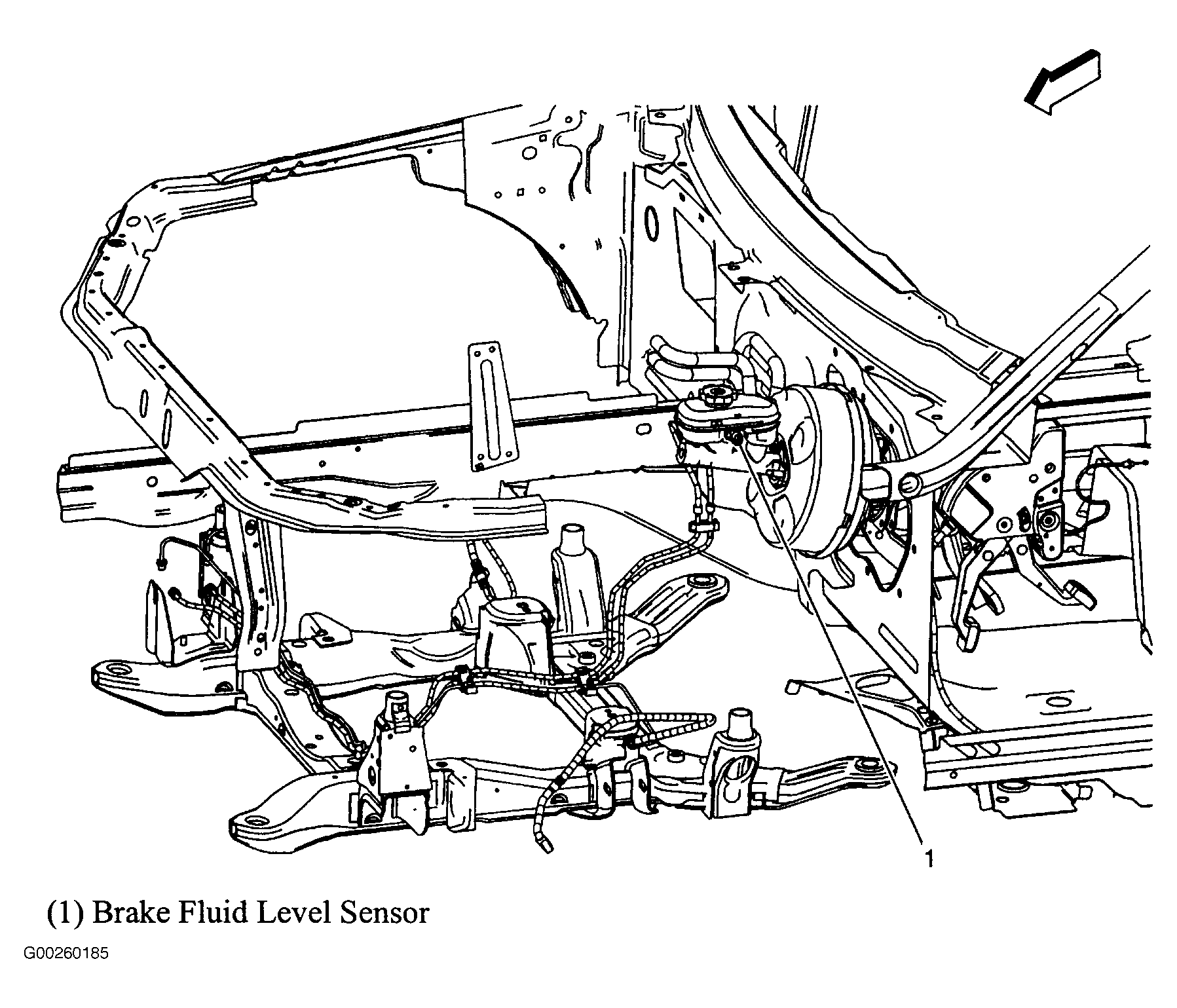

Fig 25: Front Of Vehicle Frame
Courtesy of GENERAL MOTORS CORP.

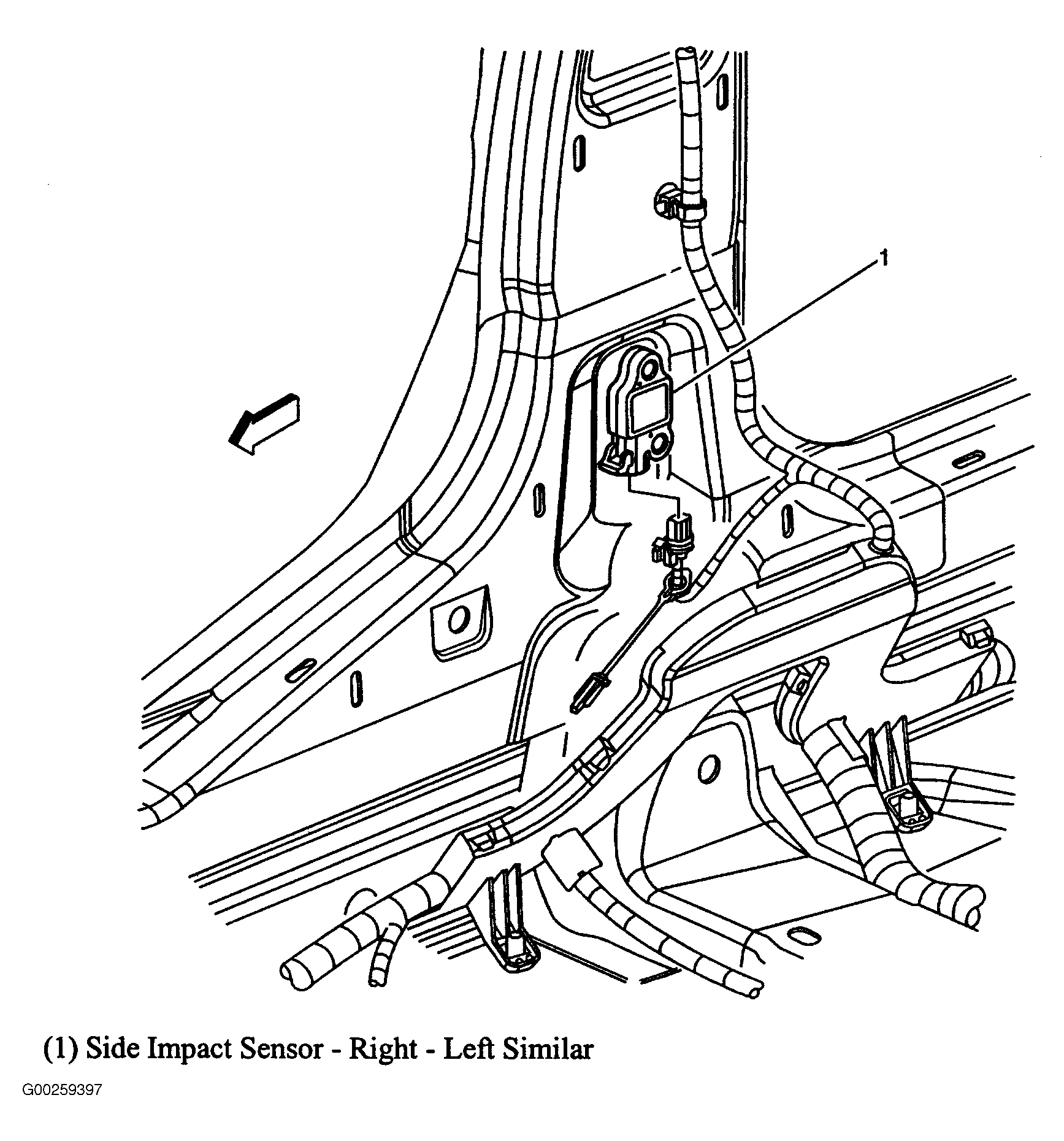

Fig 26: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

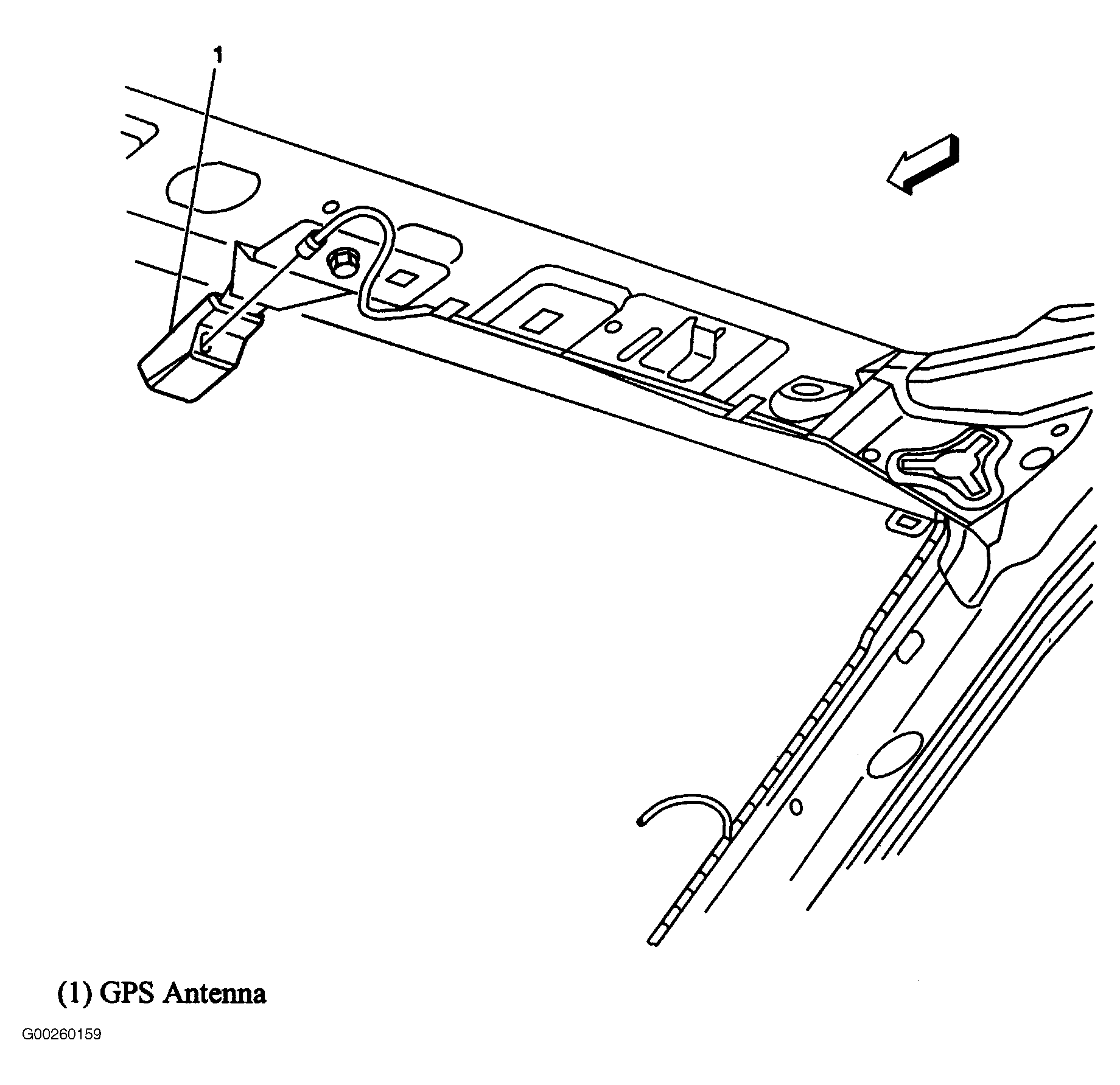

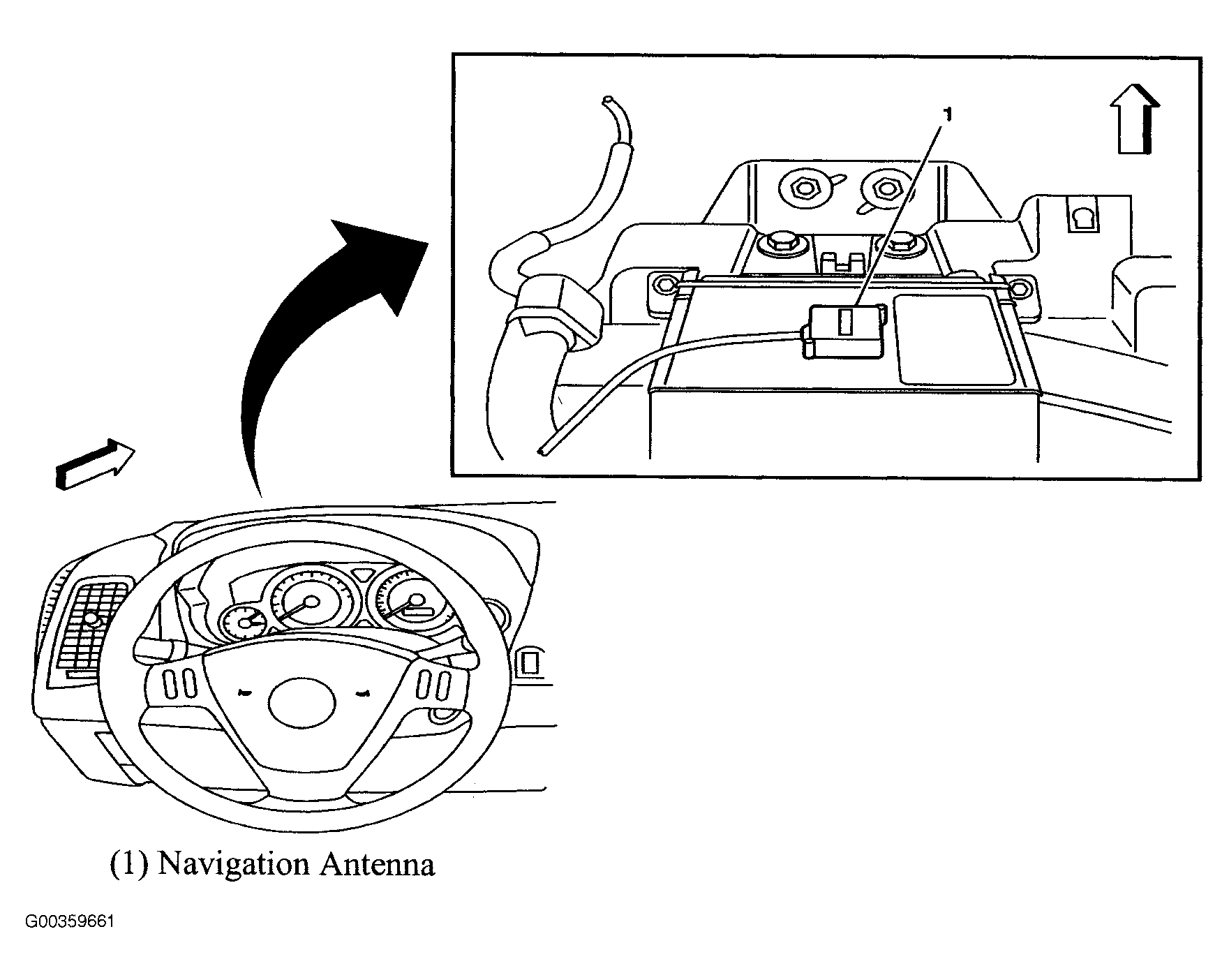

Fig 27: Upper Center Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 28: Under Center Console
Courtesy of GENERAL MOTORS CORP.

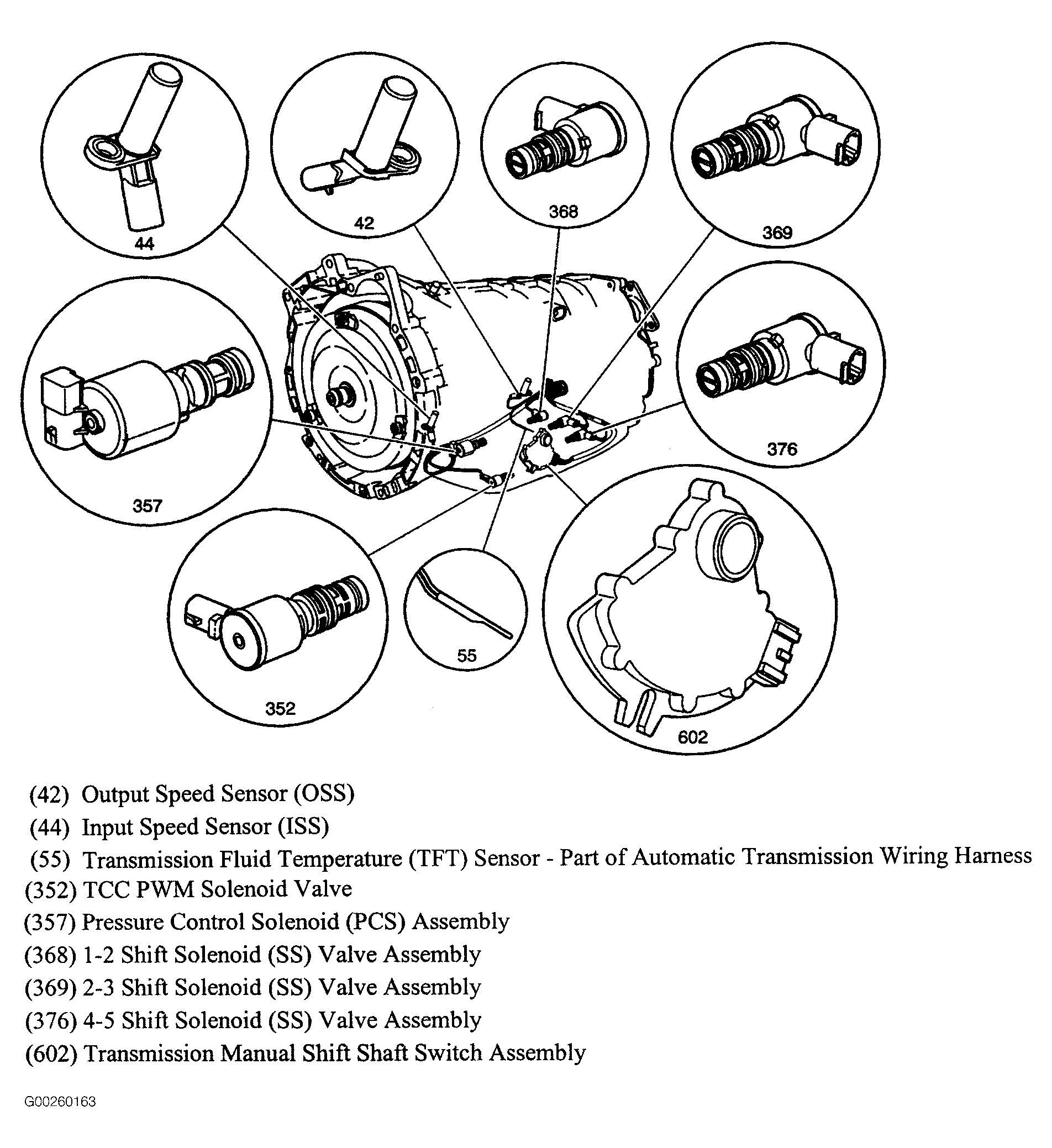

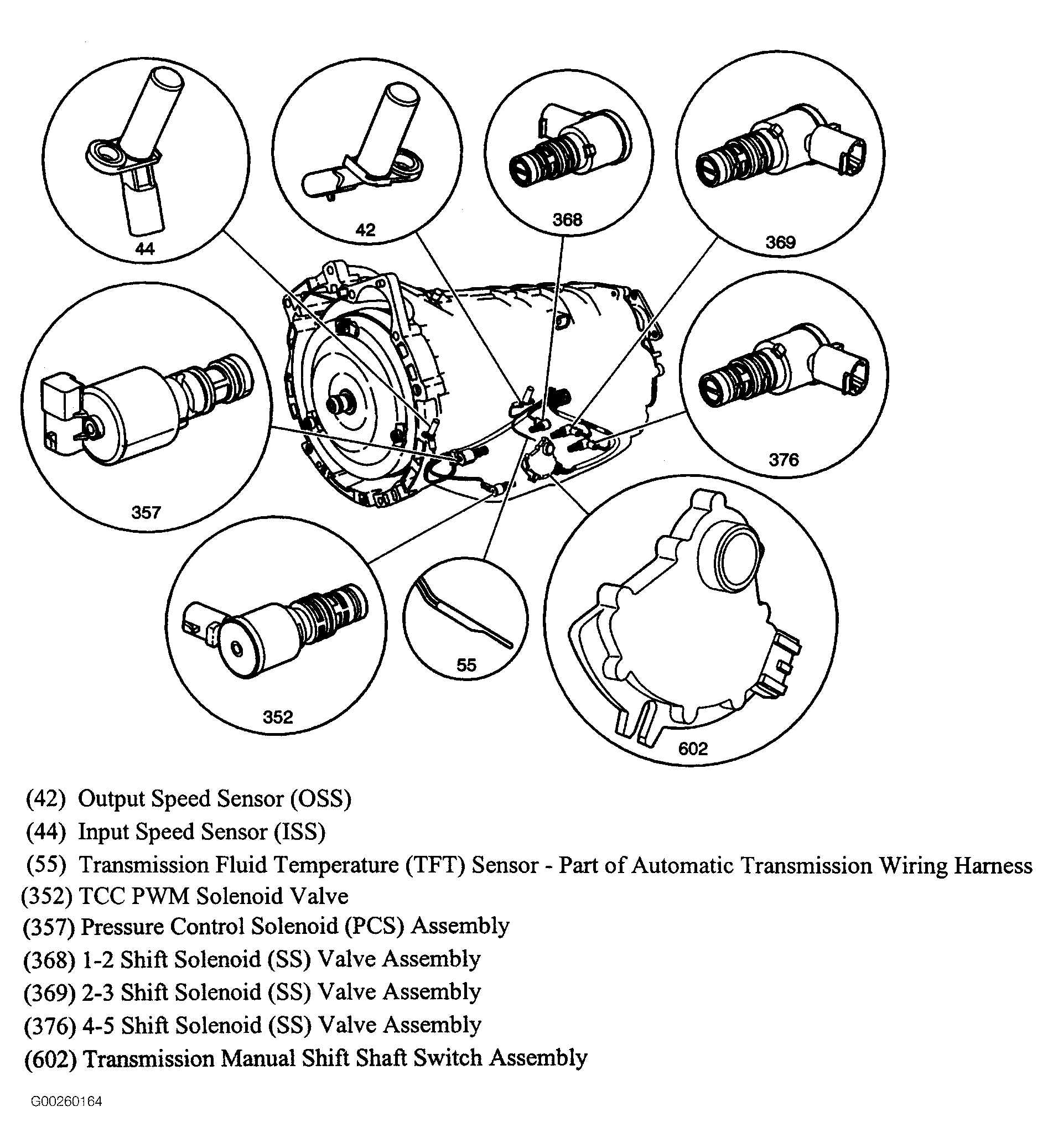

Fig 29: Automatic Transmission (5L40-E)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Automatic Transmission (5L50-E)
Courtesy of GENERAL MOTORS CORP.

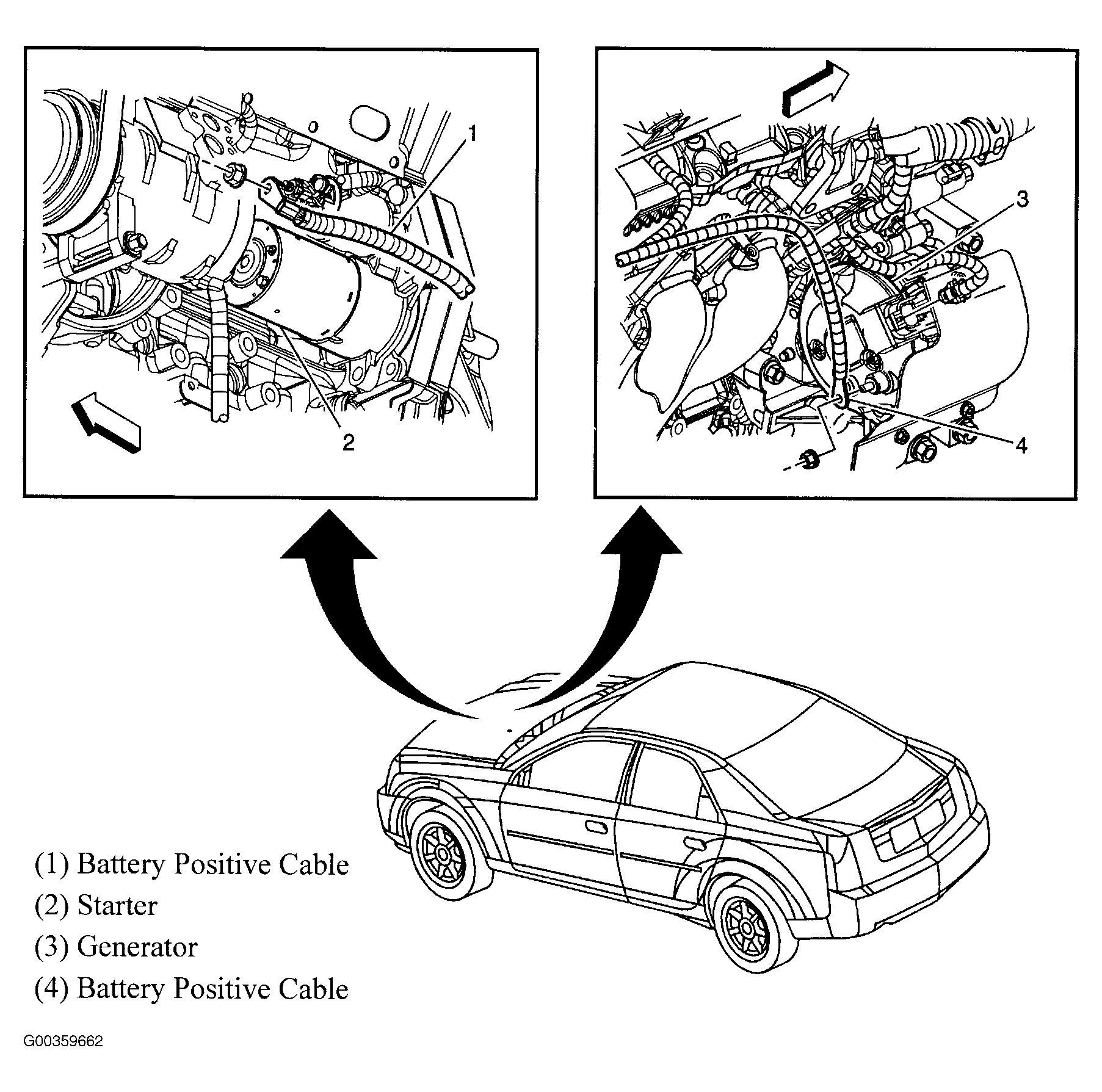

Fig 31: Front Of Engine & Passenger Compartments
Courtesy of GENERAL MOTORS CORP.

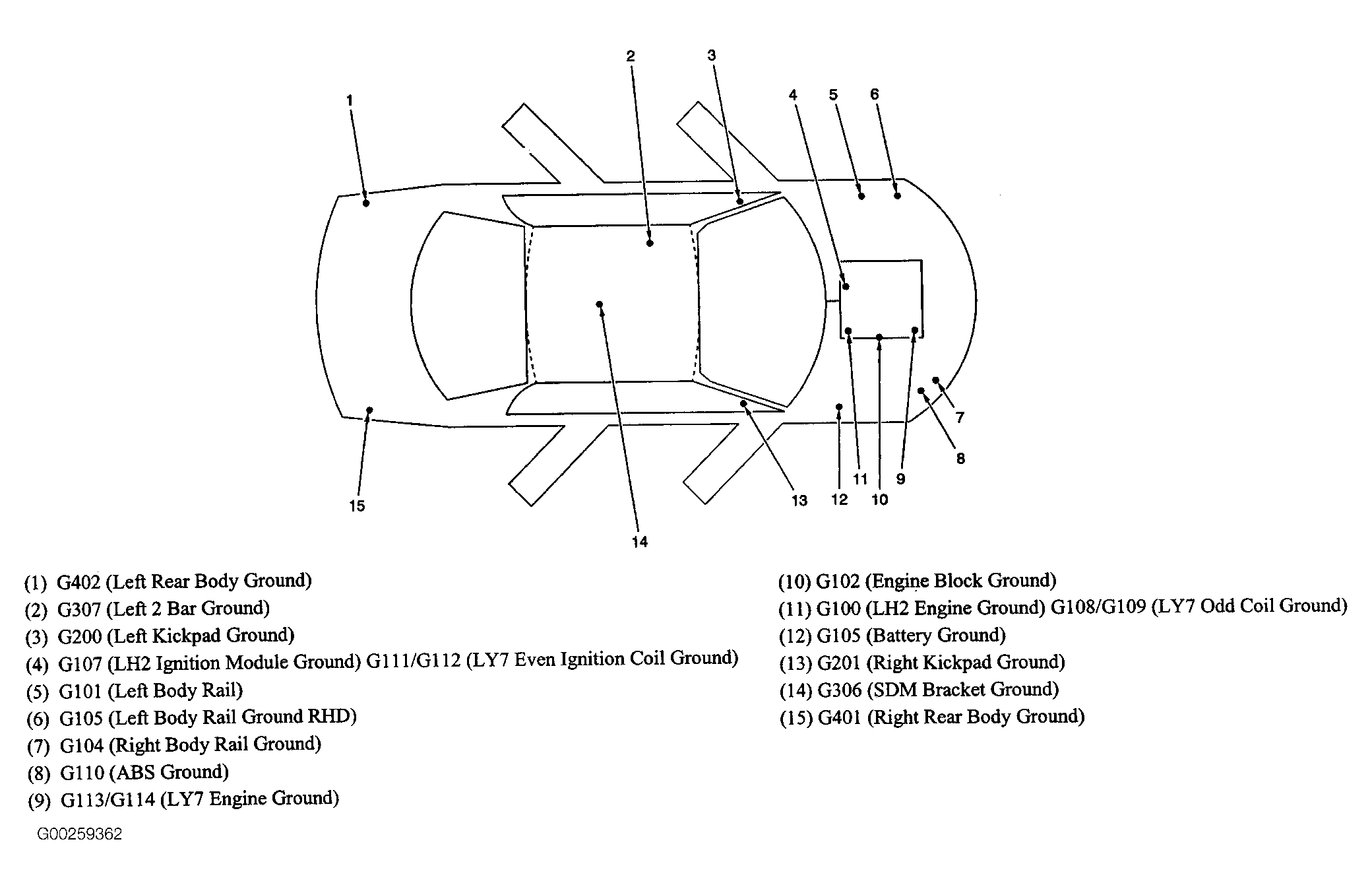

Fig 32: Overview Of Vehicle Grounds
Courtesy of GENERAL MOTORS CORP.

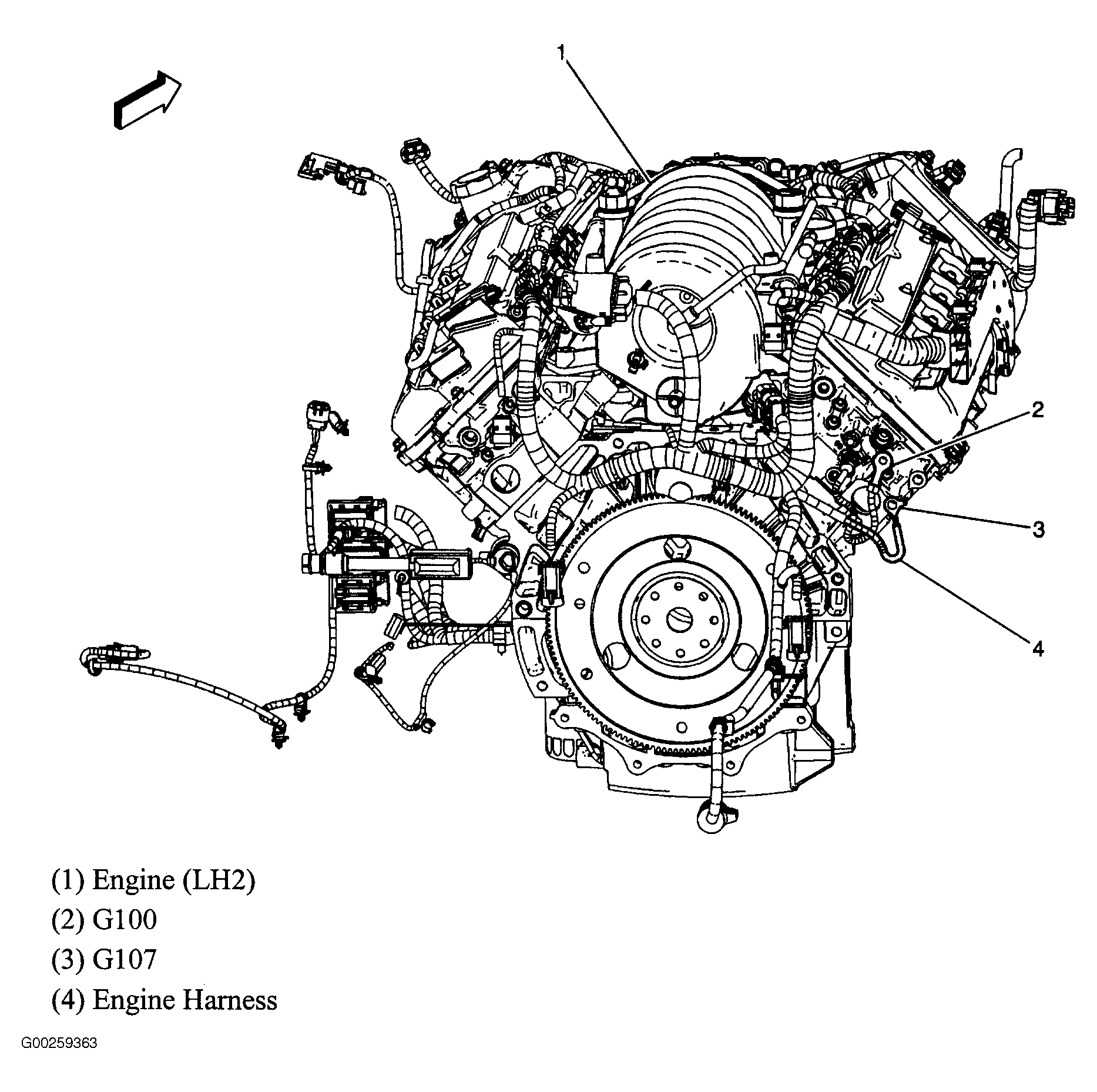

Fig 33: Rear Of Engine (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.

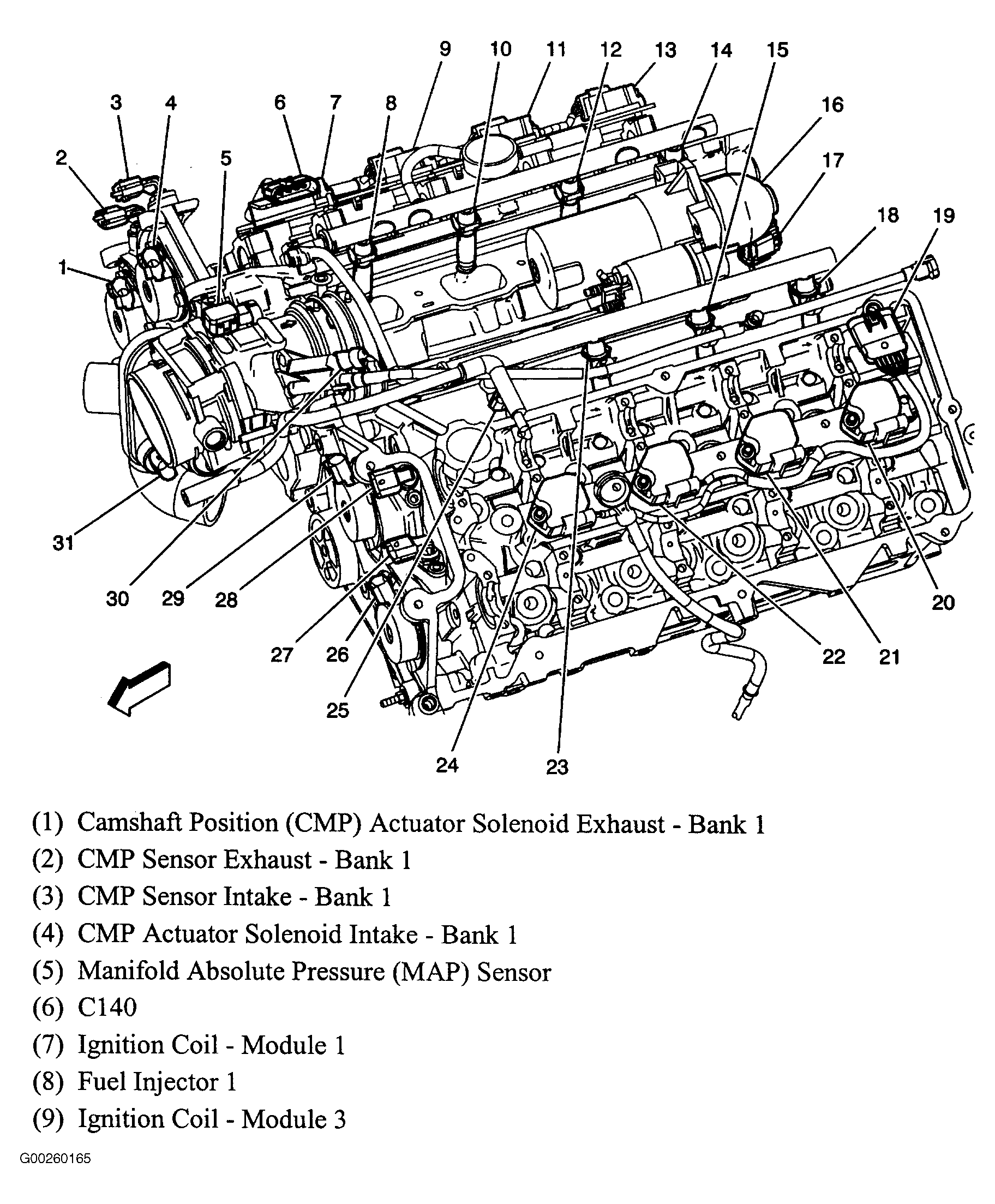

Fig 34: Top Of Engine (4.6L VIN A) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

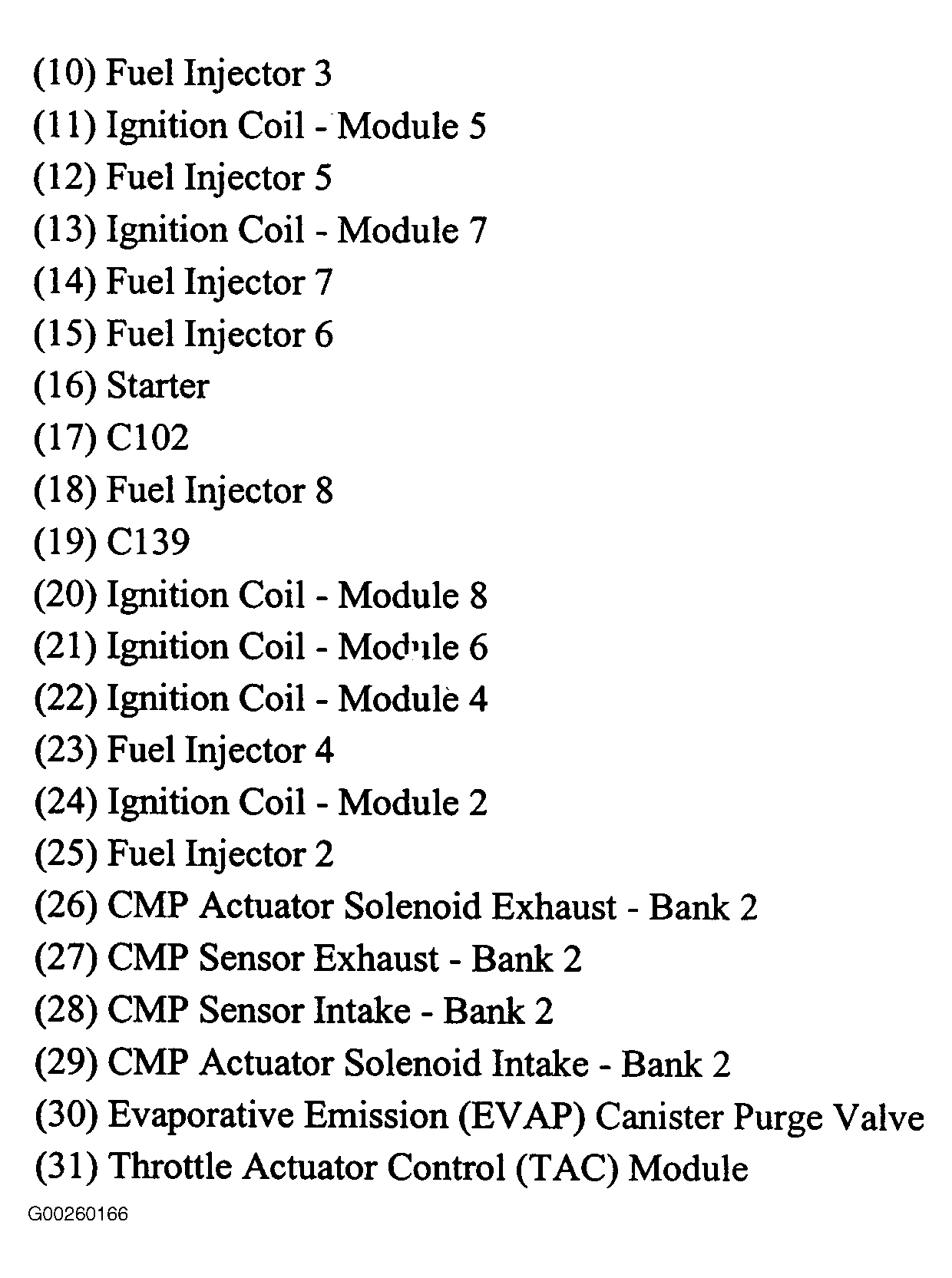

Fig 35: Top Of Engine (4.6L VIN A) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Top Right Of Engine (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.

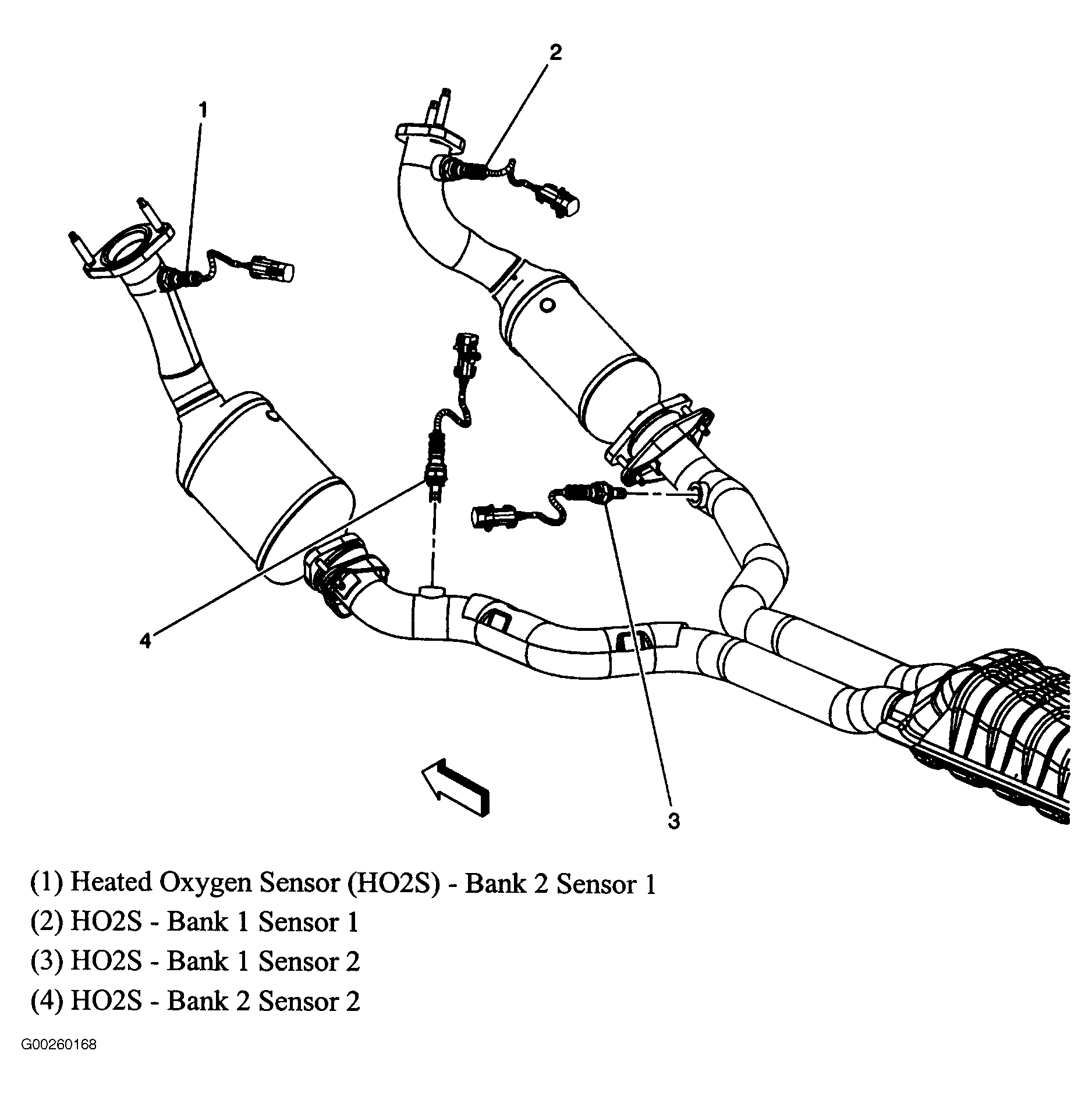

Fig 37: Front Exhaust Pipes
Courtesy of GENERAL MOTORS CORP.

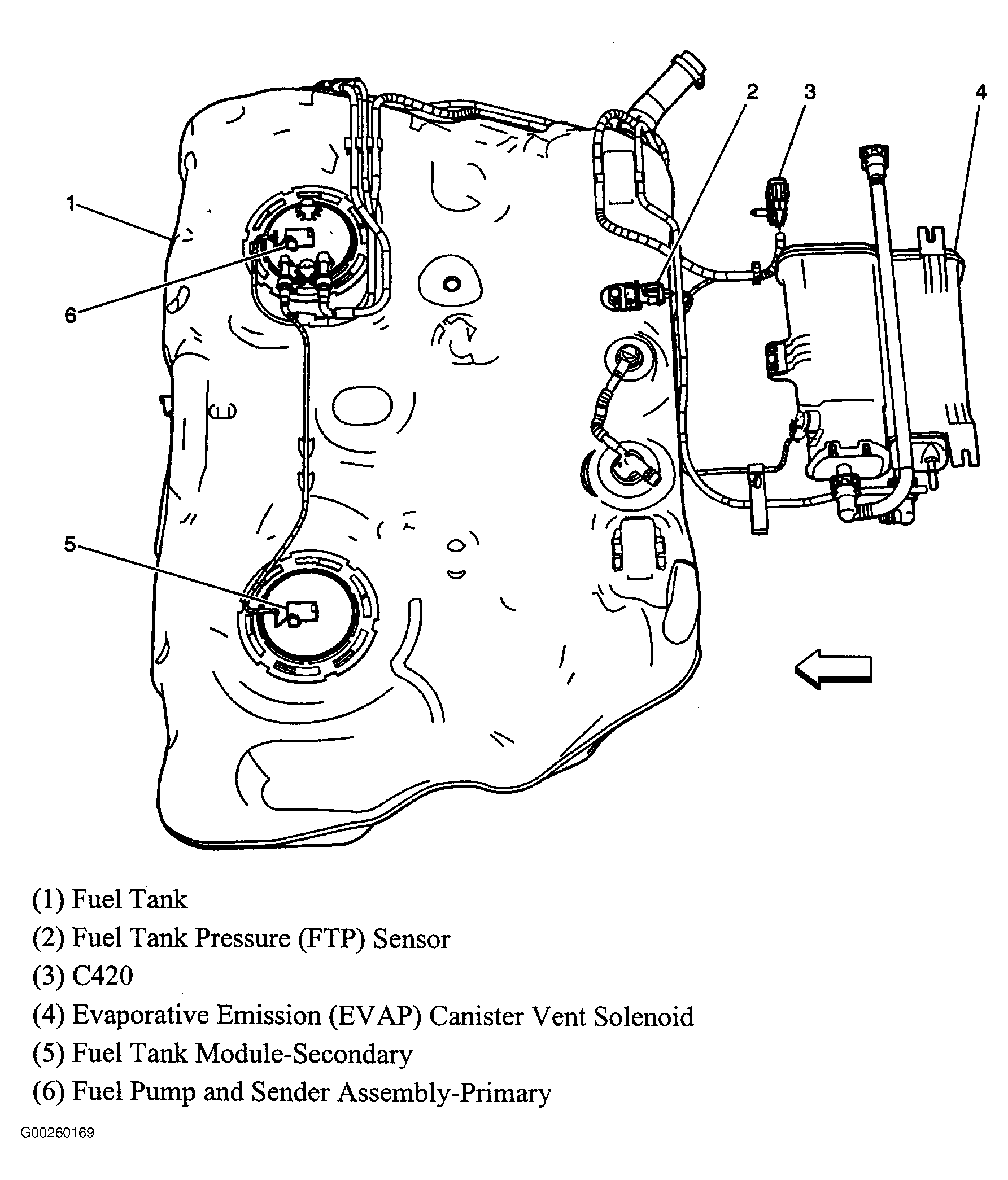

Fig 38: Fuel Tank (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.

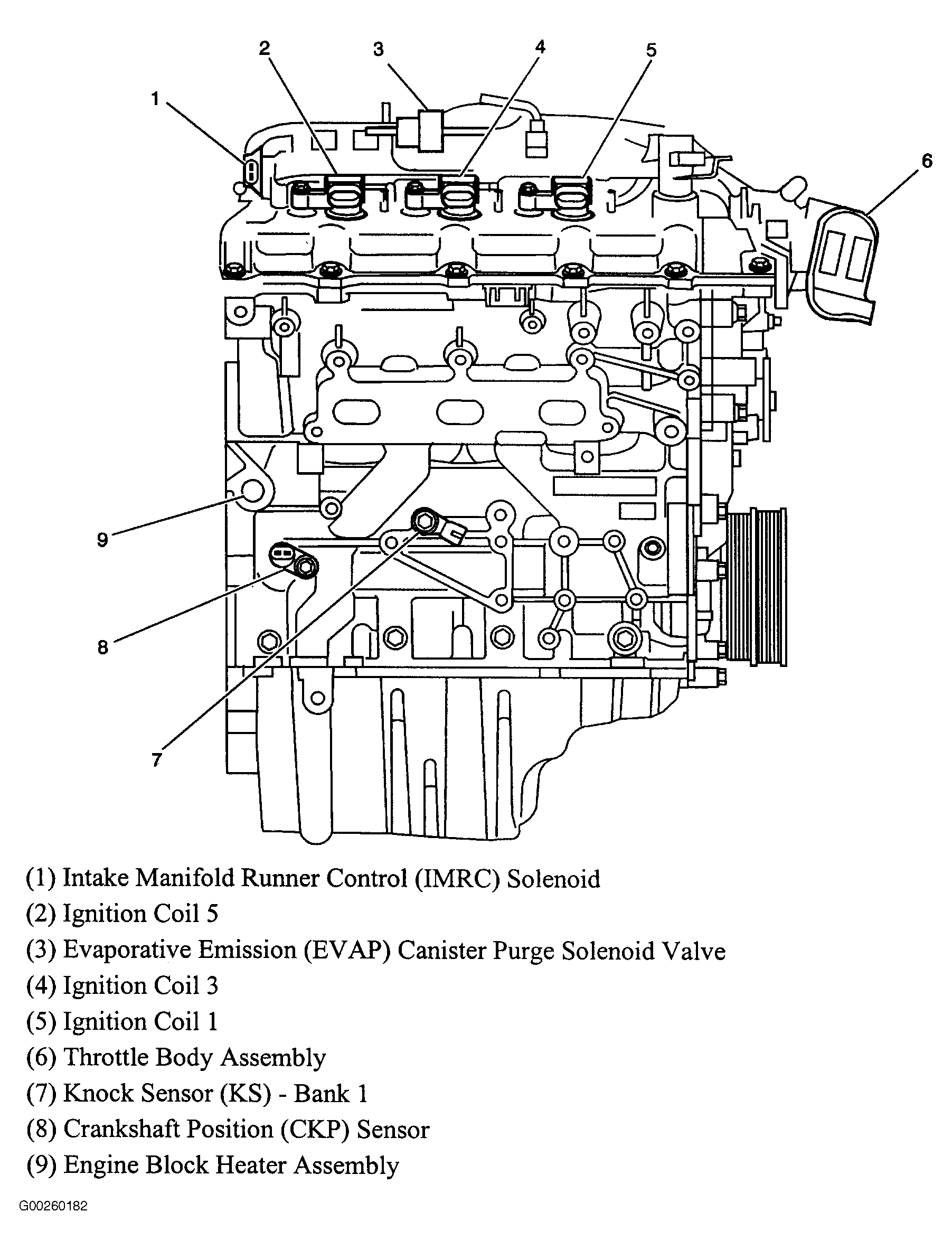

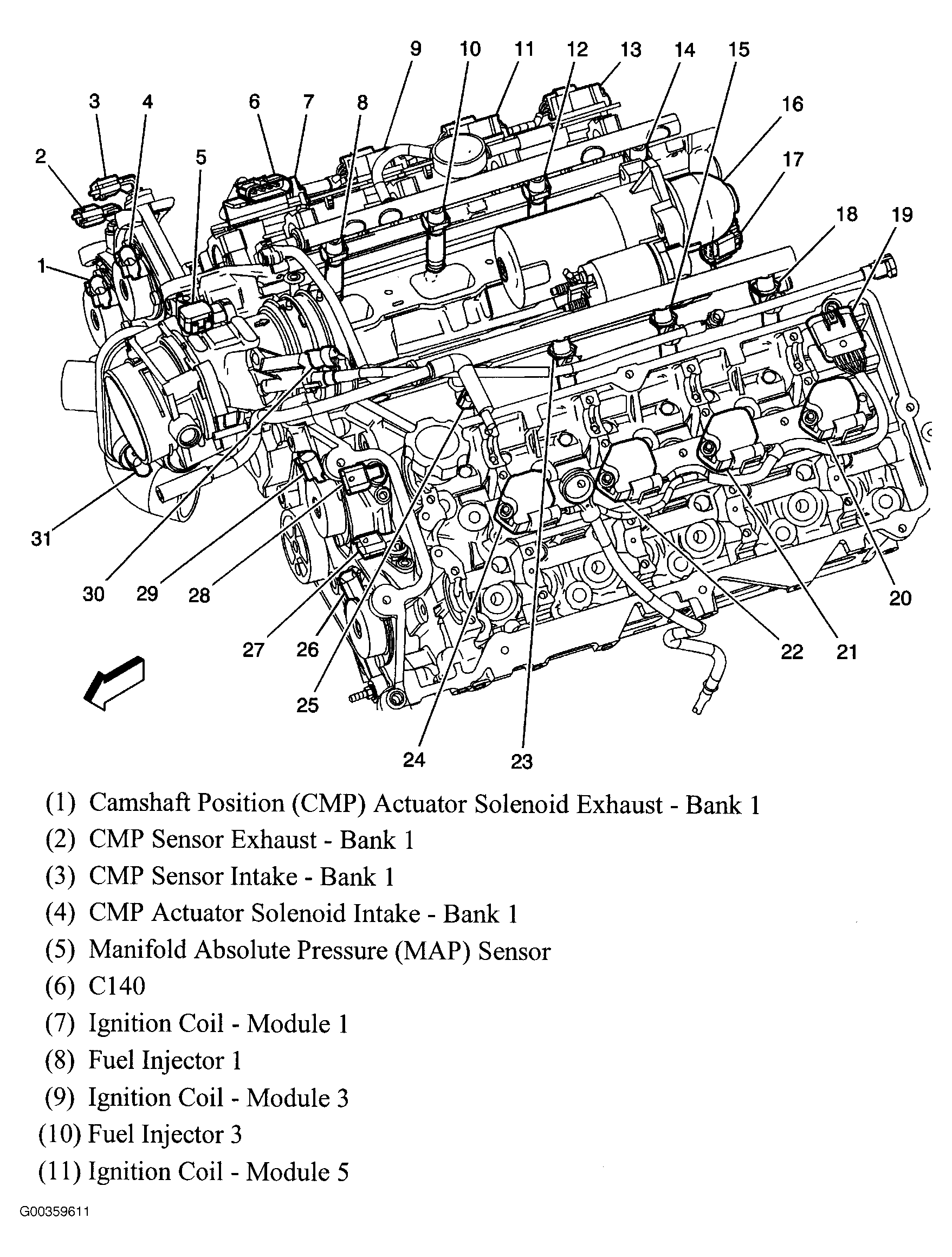

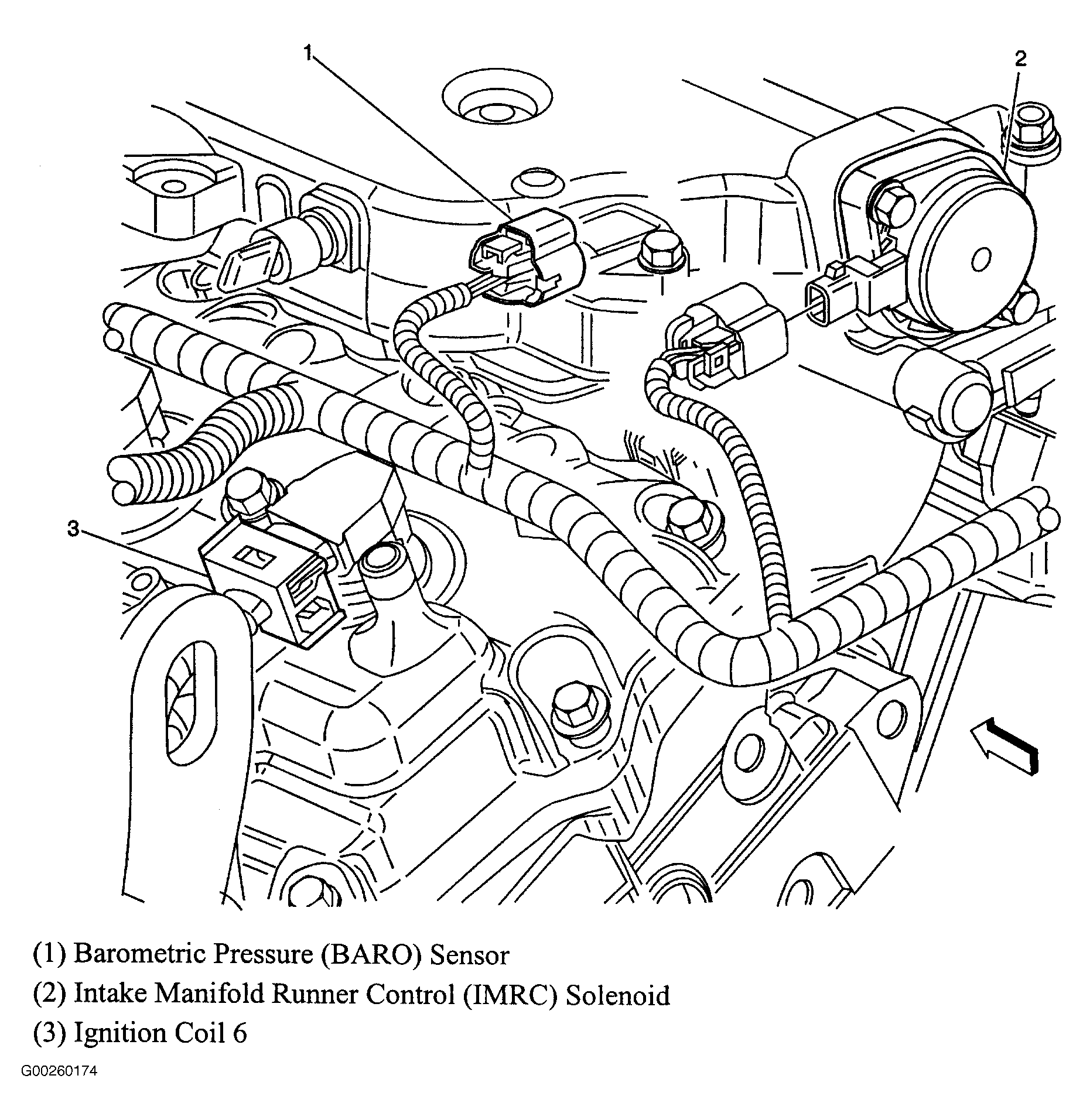

Fig 39: Left Side Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Right Rear Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Left Rear Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.

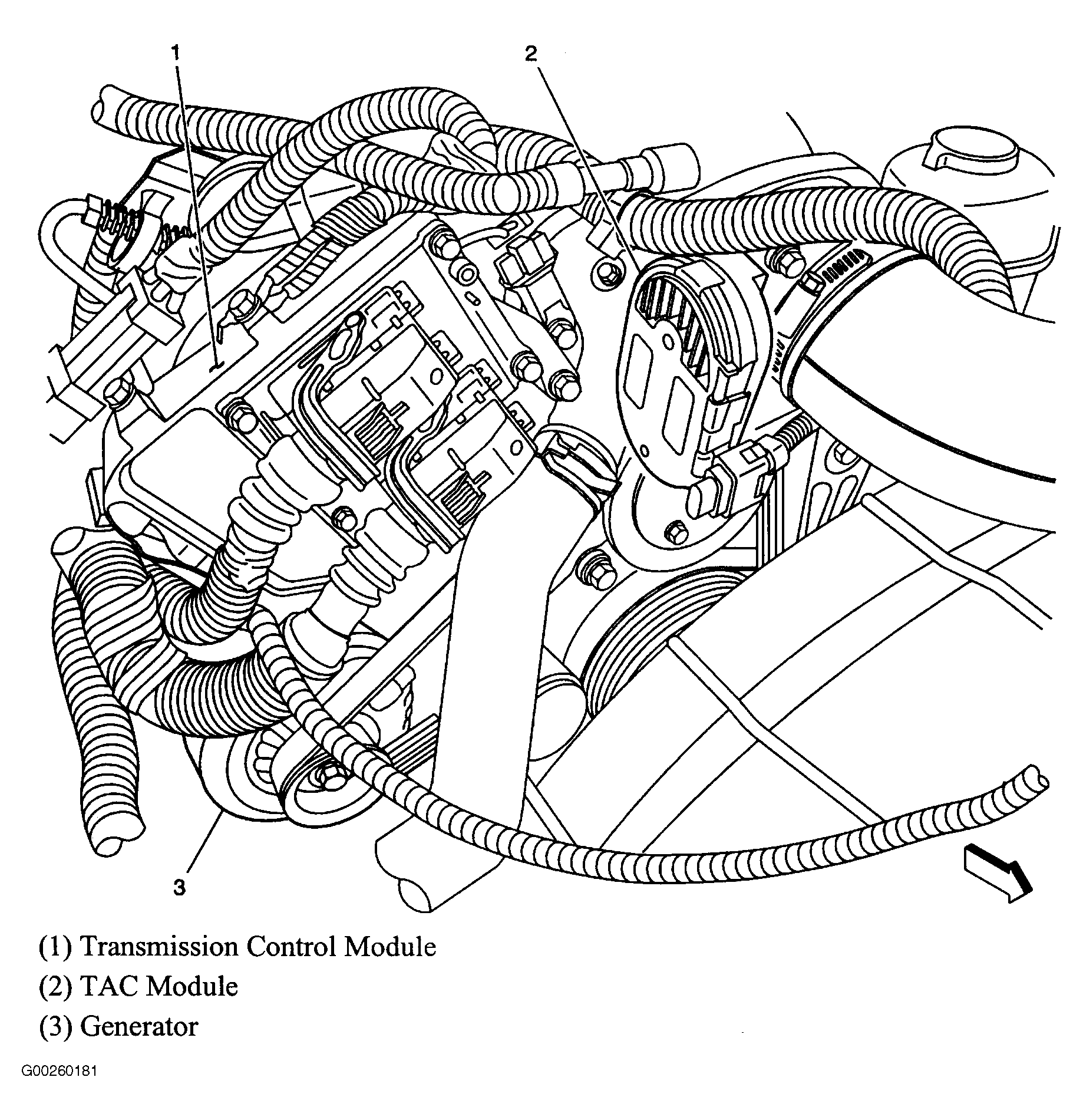

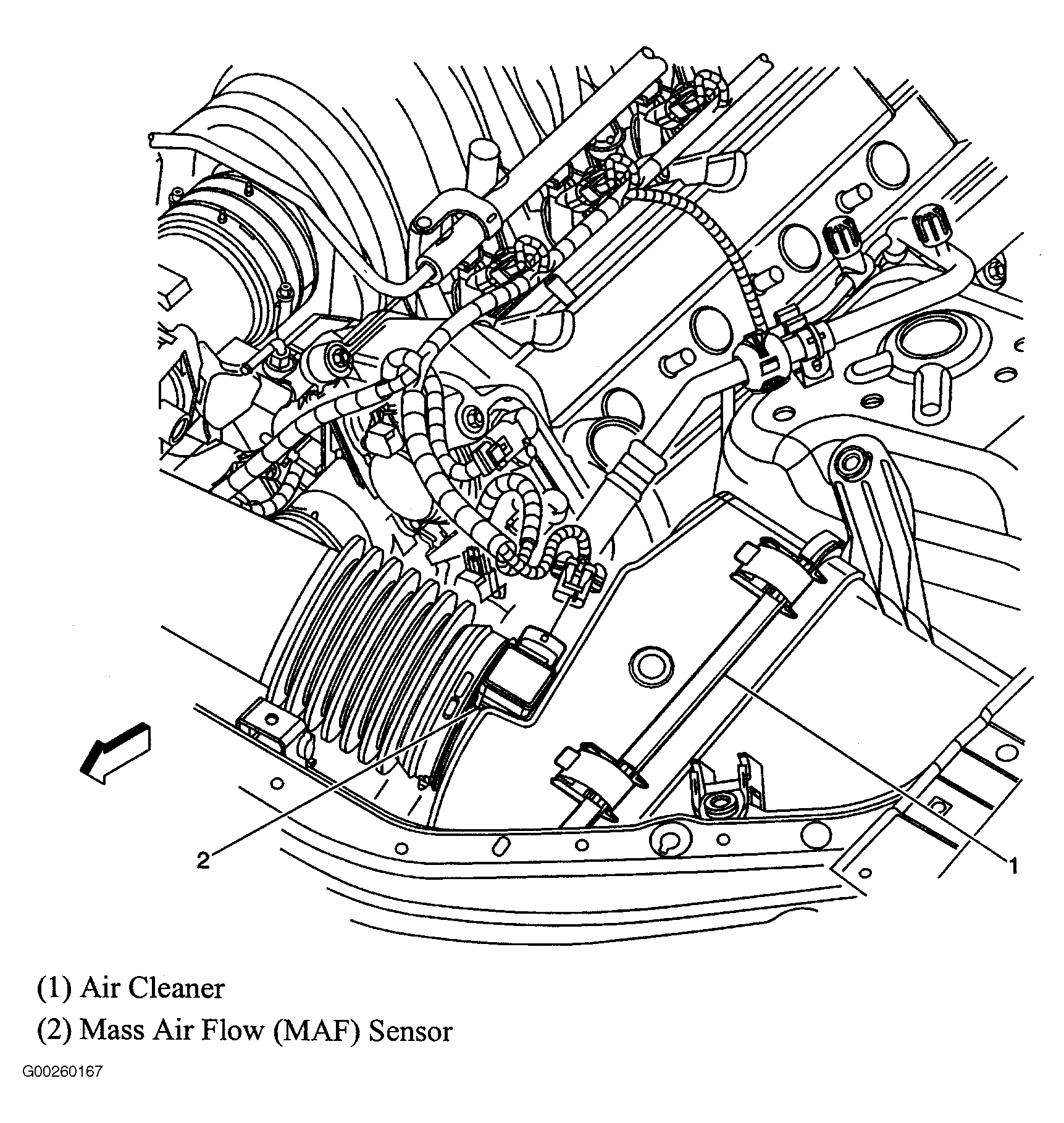

Fig 42: Right Side Of Engine Compartment (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.

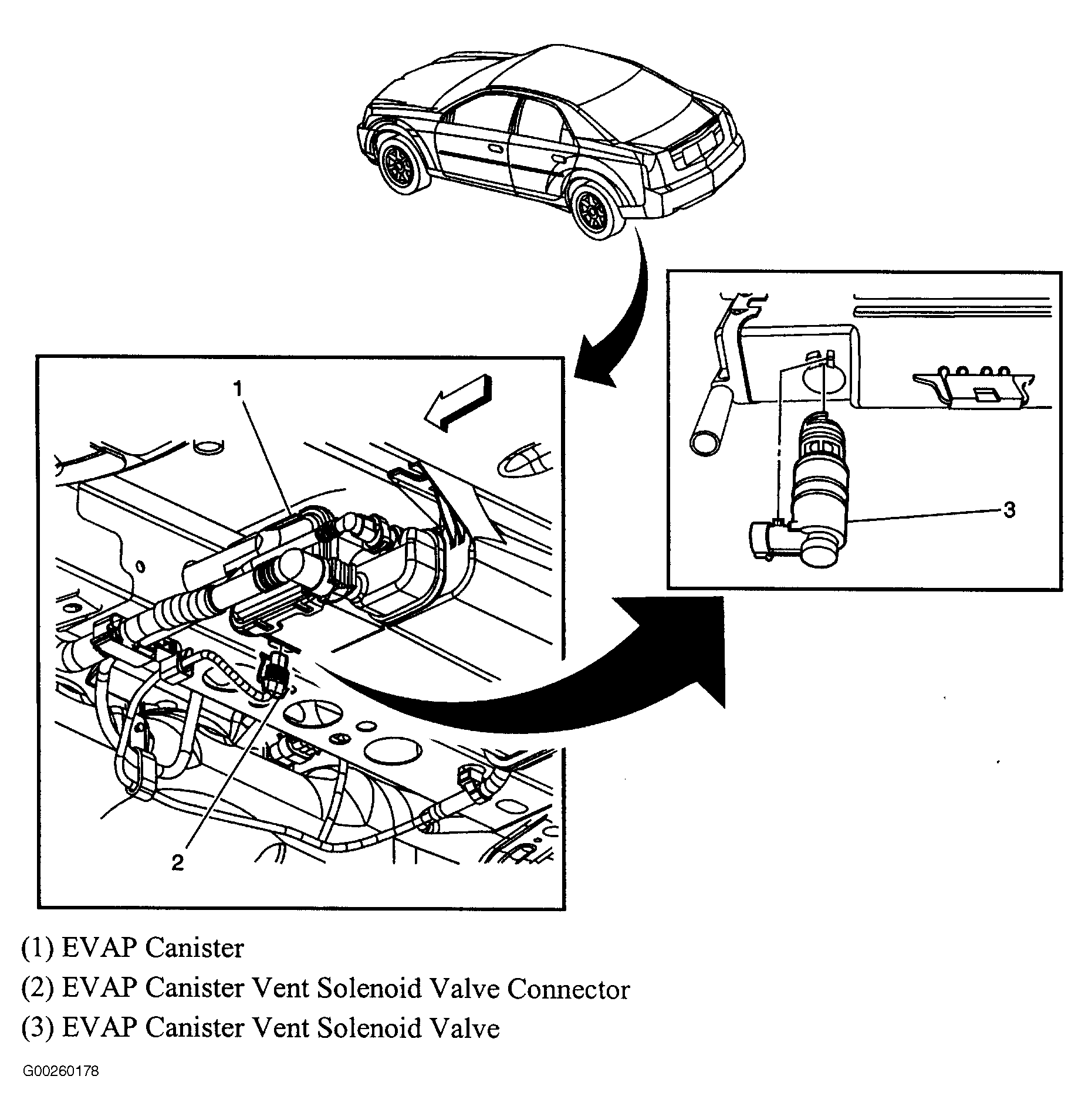

Fig 43: Rear Underside Of Vehicle
Courtesy of GENERAL MOTORS CORP.

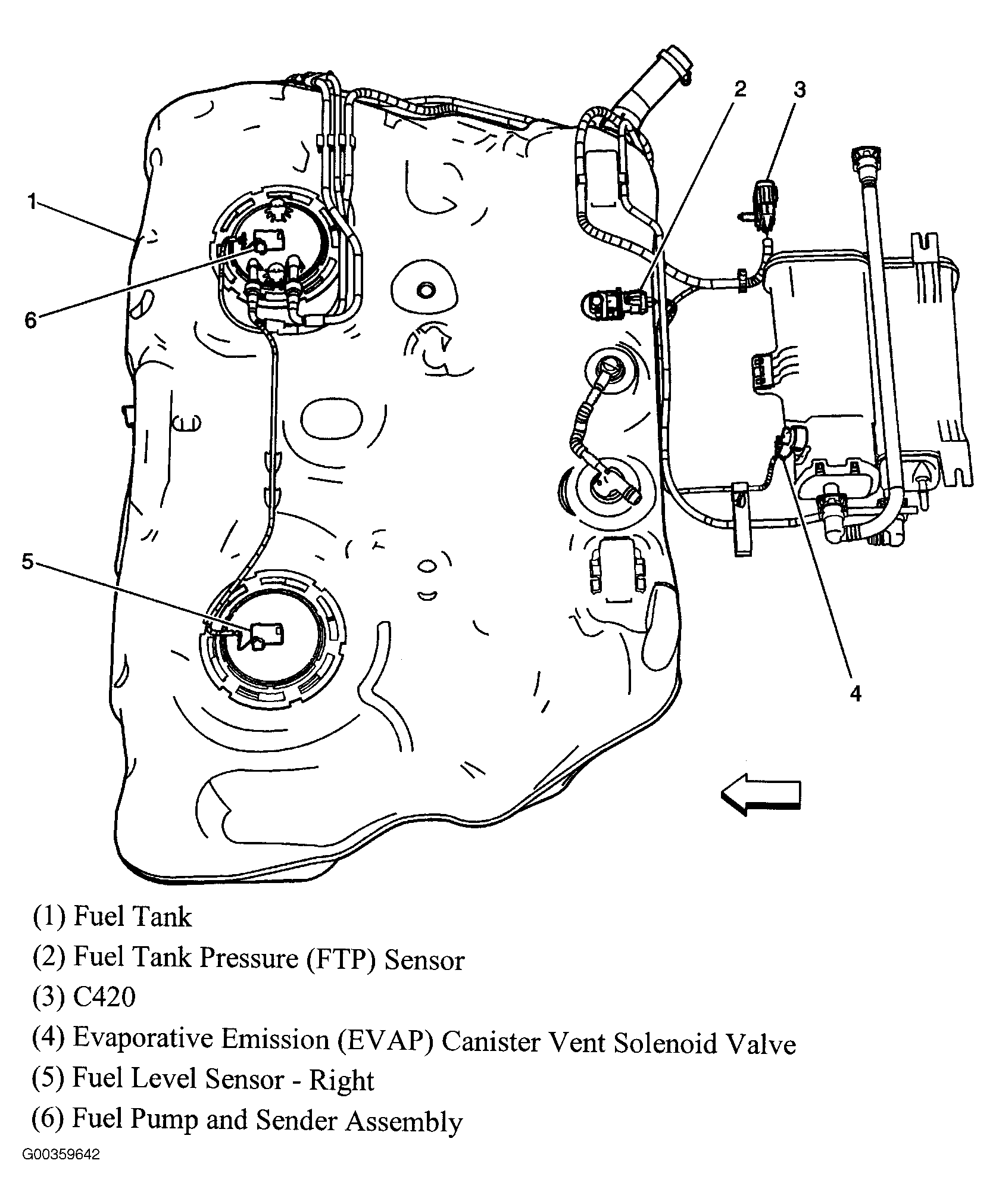

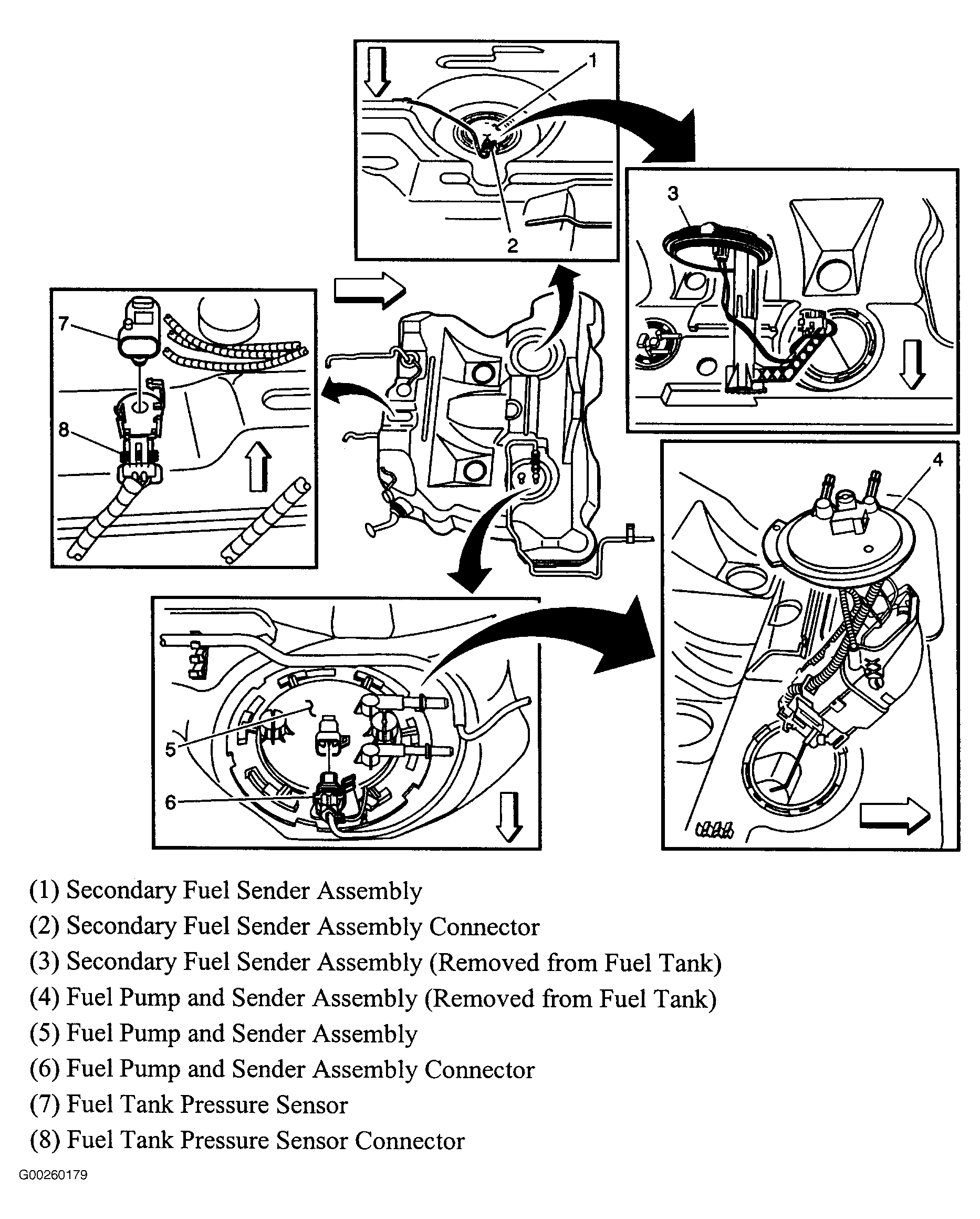

Fig 44: Fuel Tank (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.

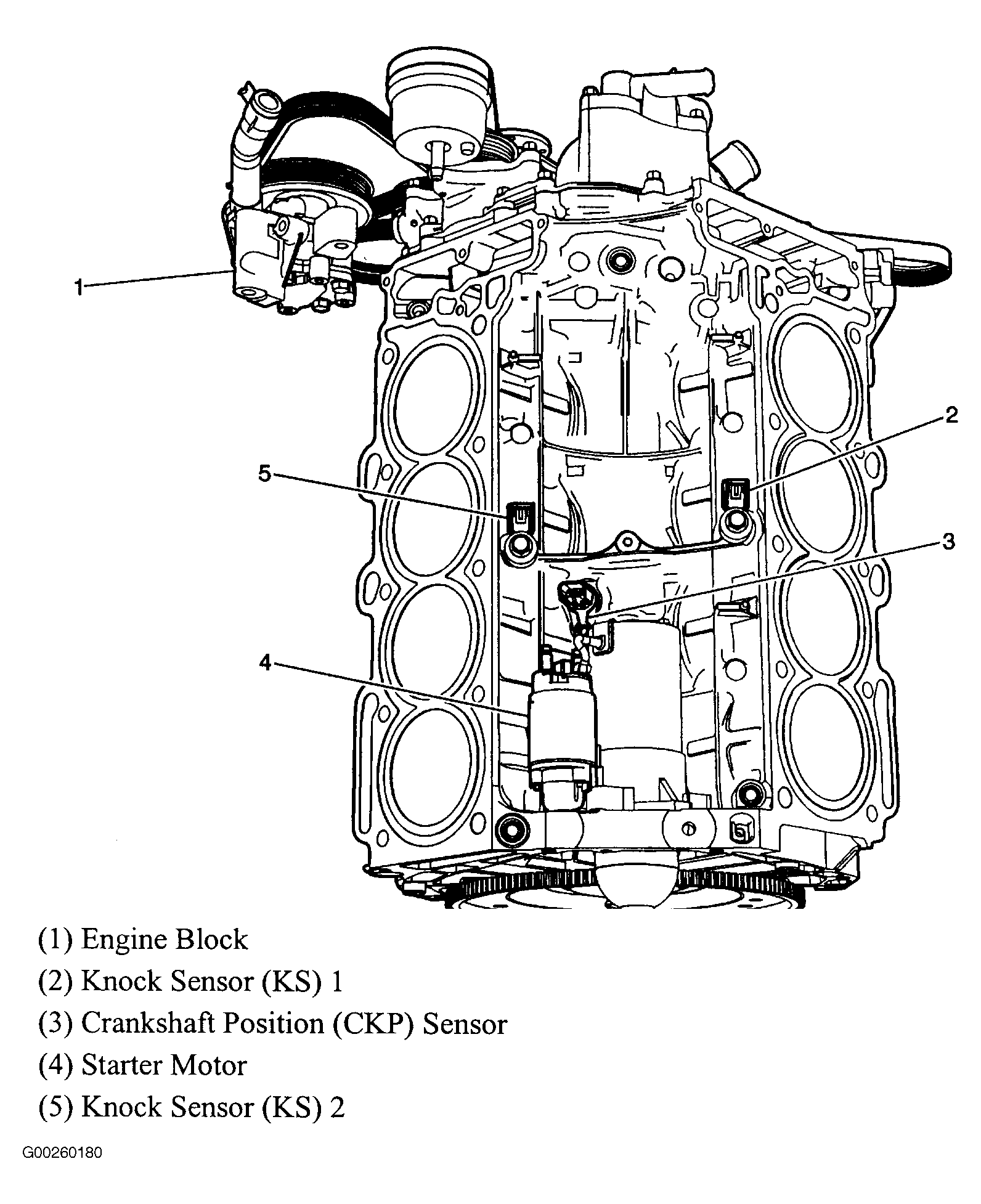

Fig 45: Top Of Engine (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.

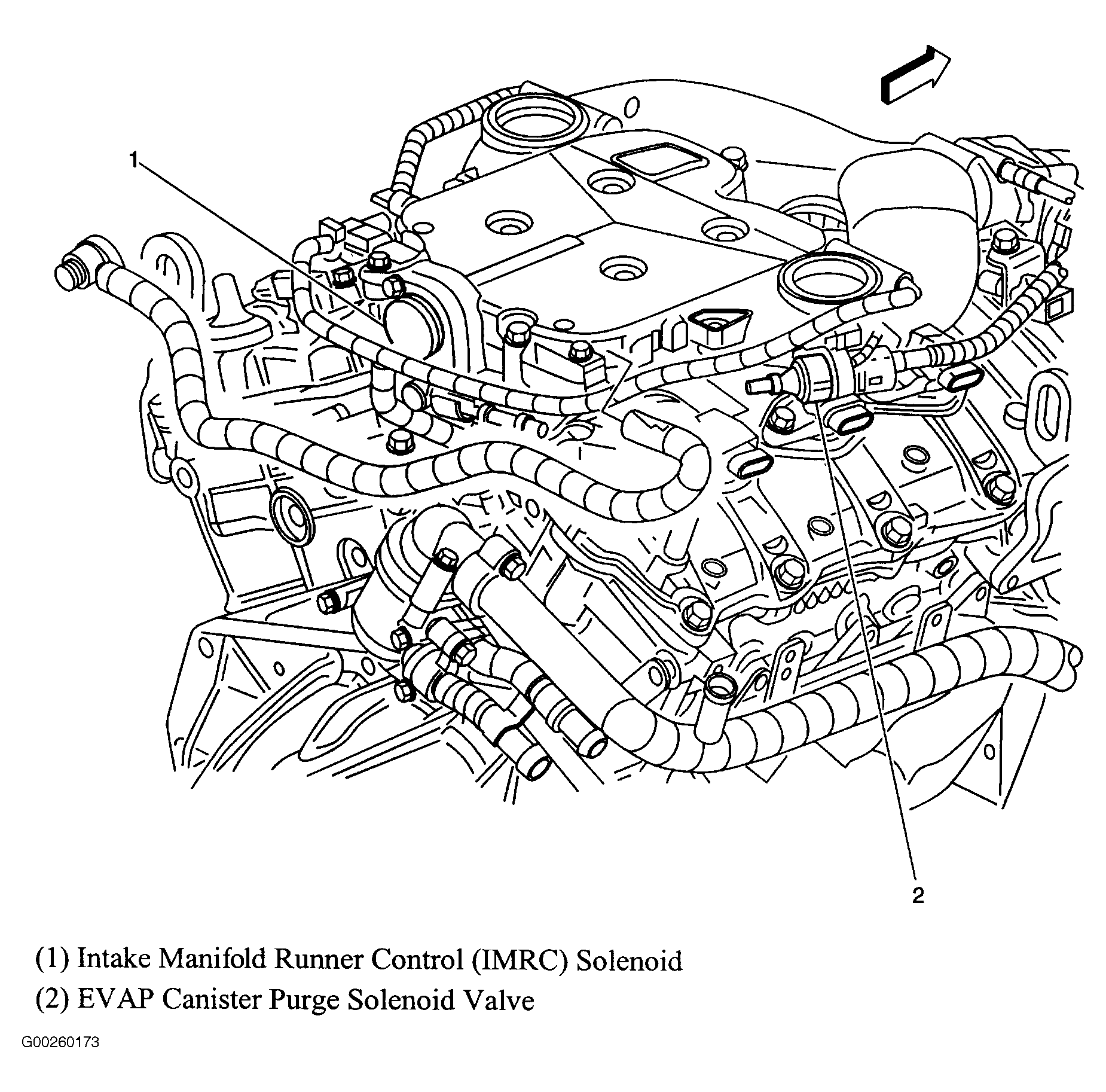

Fig 46: Top Front Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.

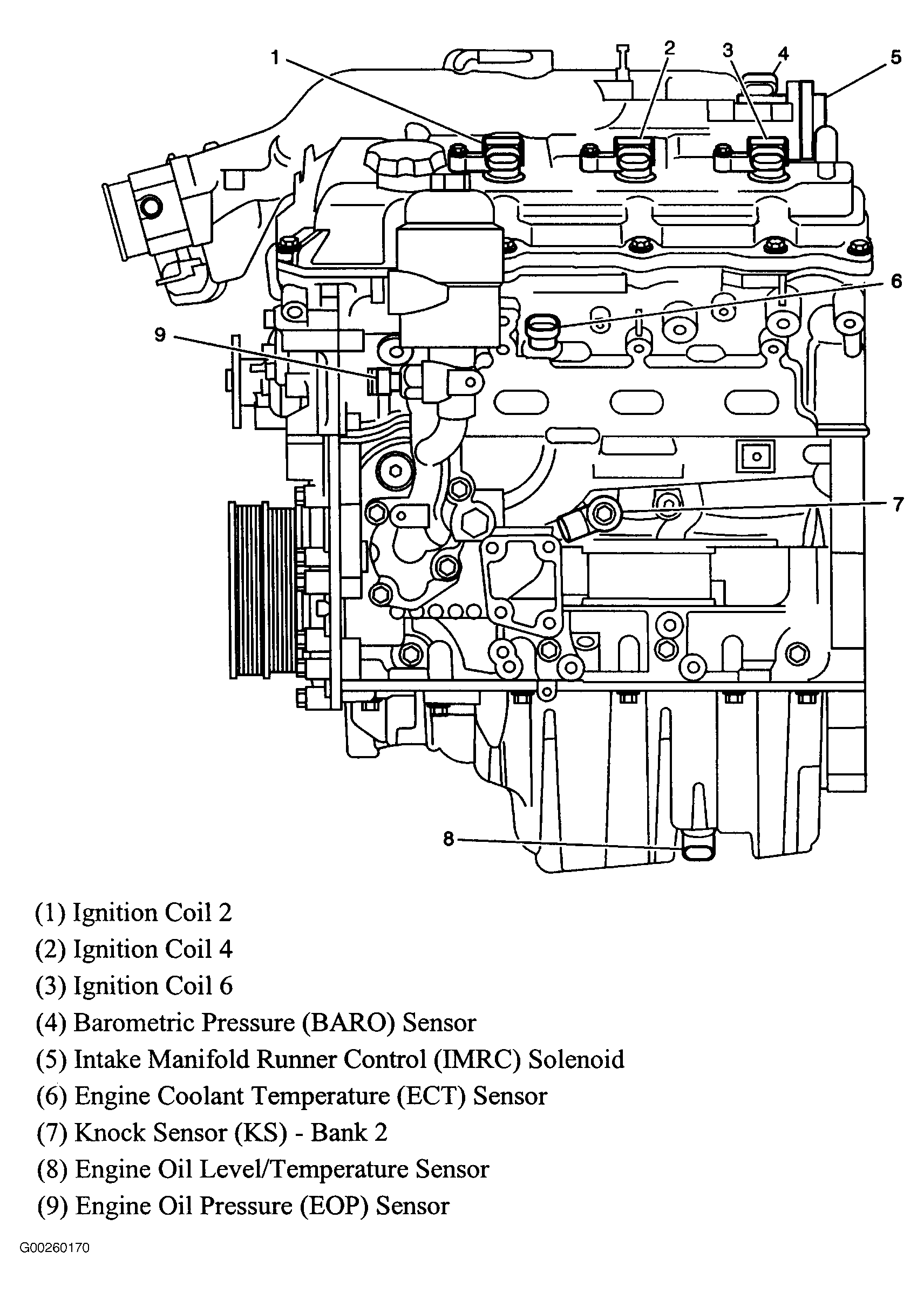

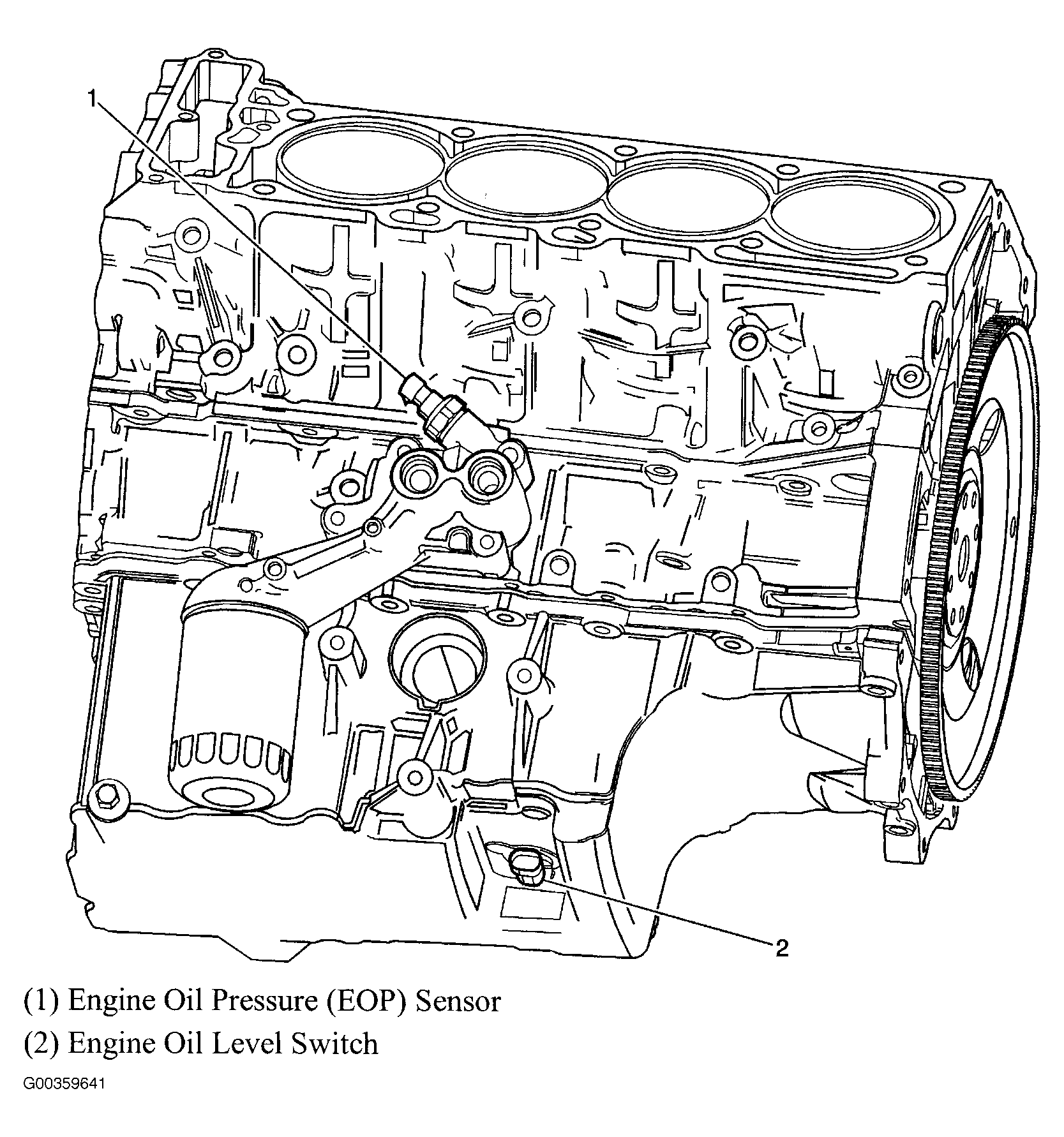

Fig 47: Right Side Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.

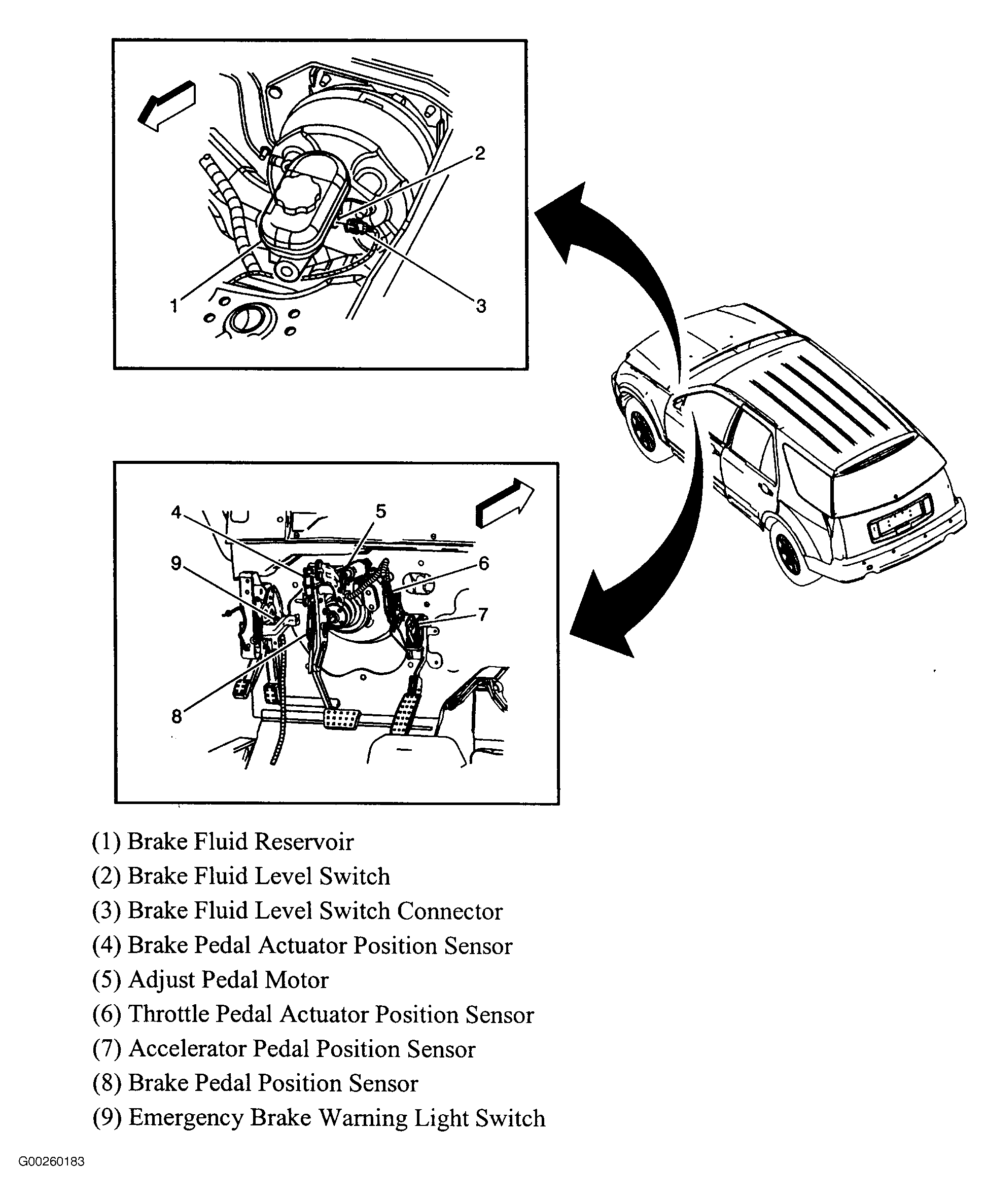

Fig 48: Left Side Of Dash & Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

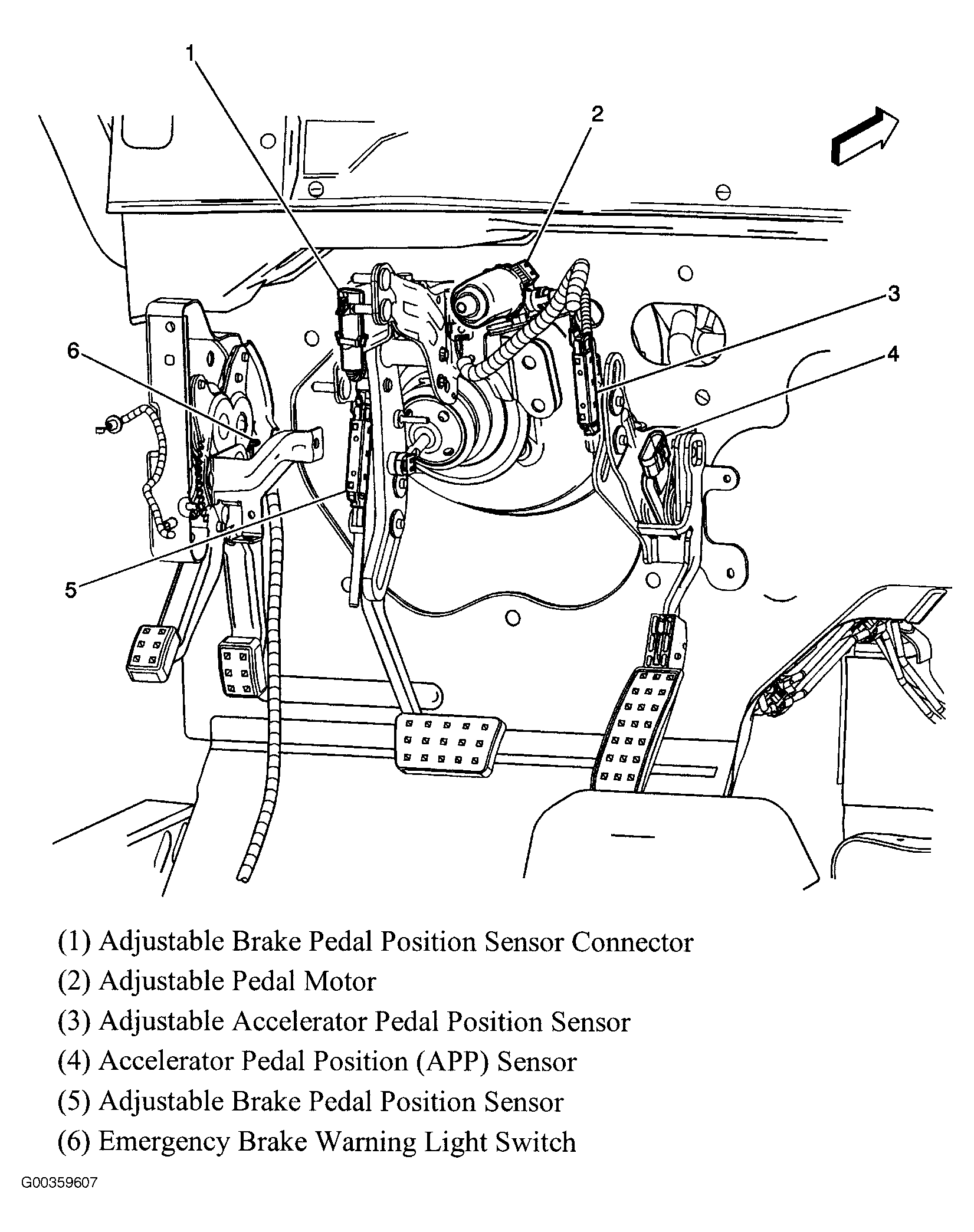

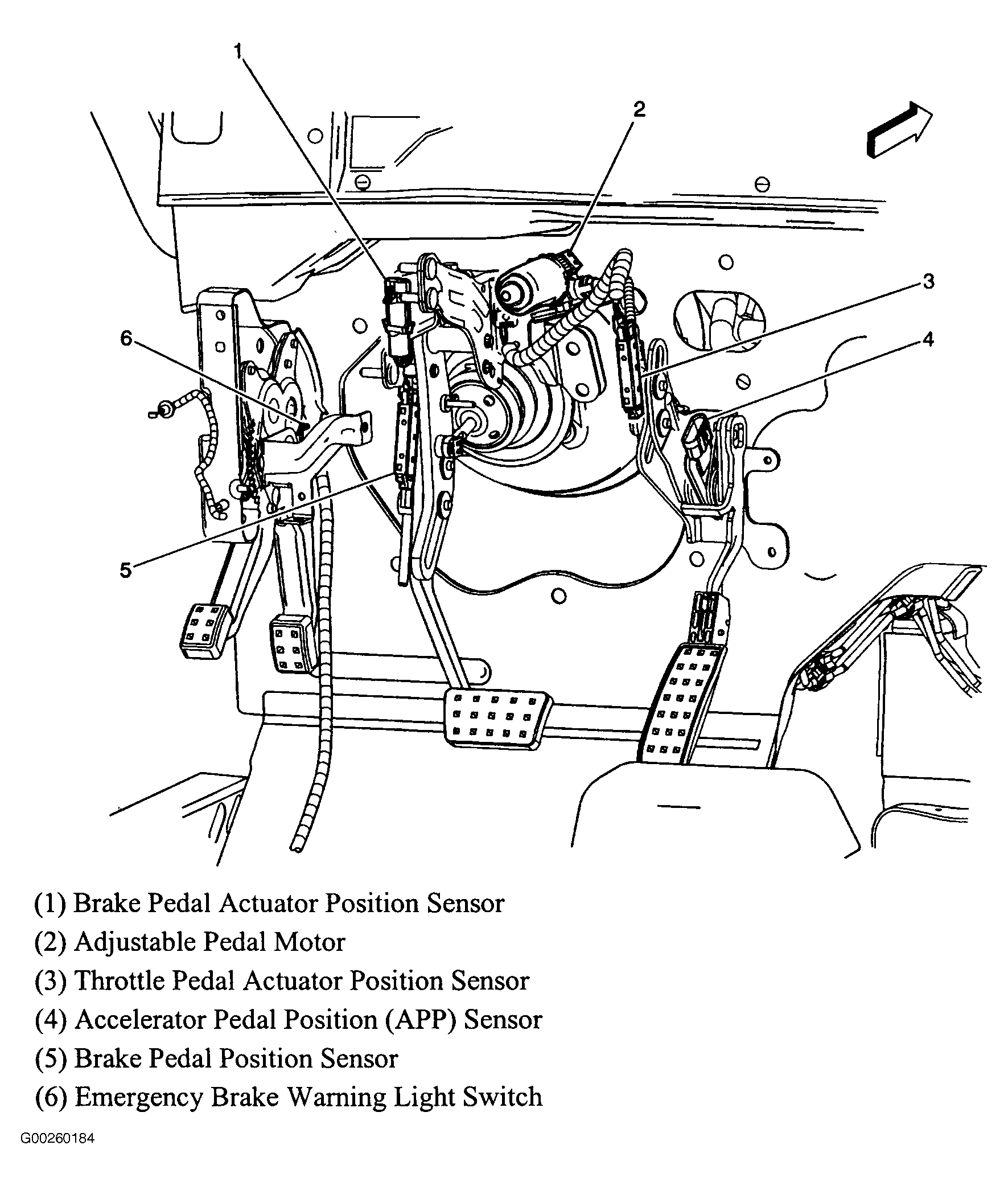

Fig 49: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 51: Under Center Console
Courtesy of GENERAL MOTORS CORP.

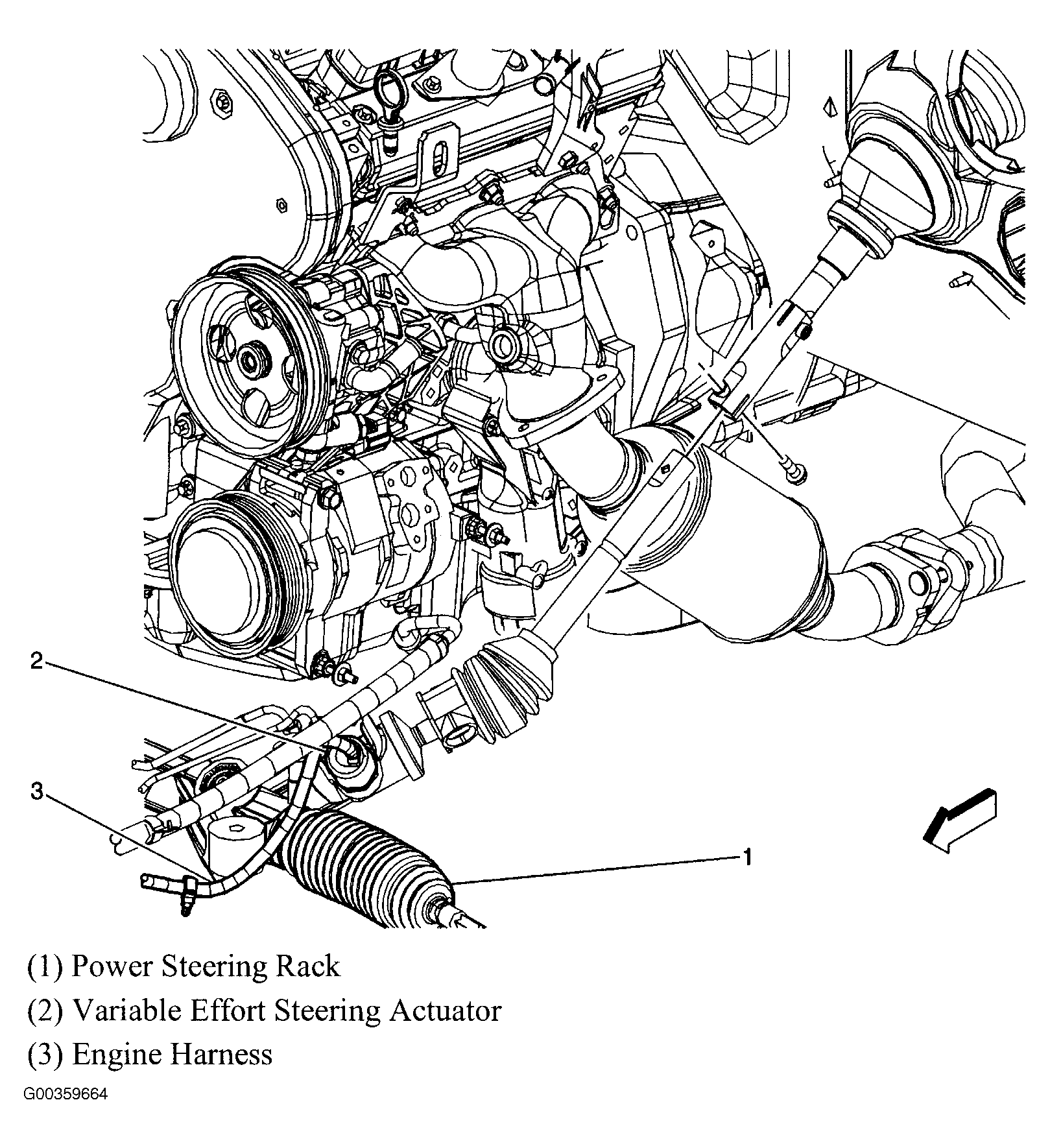

Fig 52: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 53: Bottom Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 54: Front & Rear Wheel Assemblies
Courtesy of GENERAL MOTORS CORP.

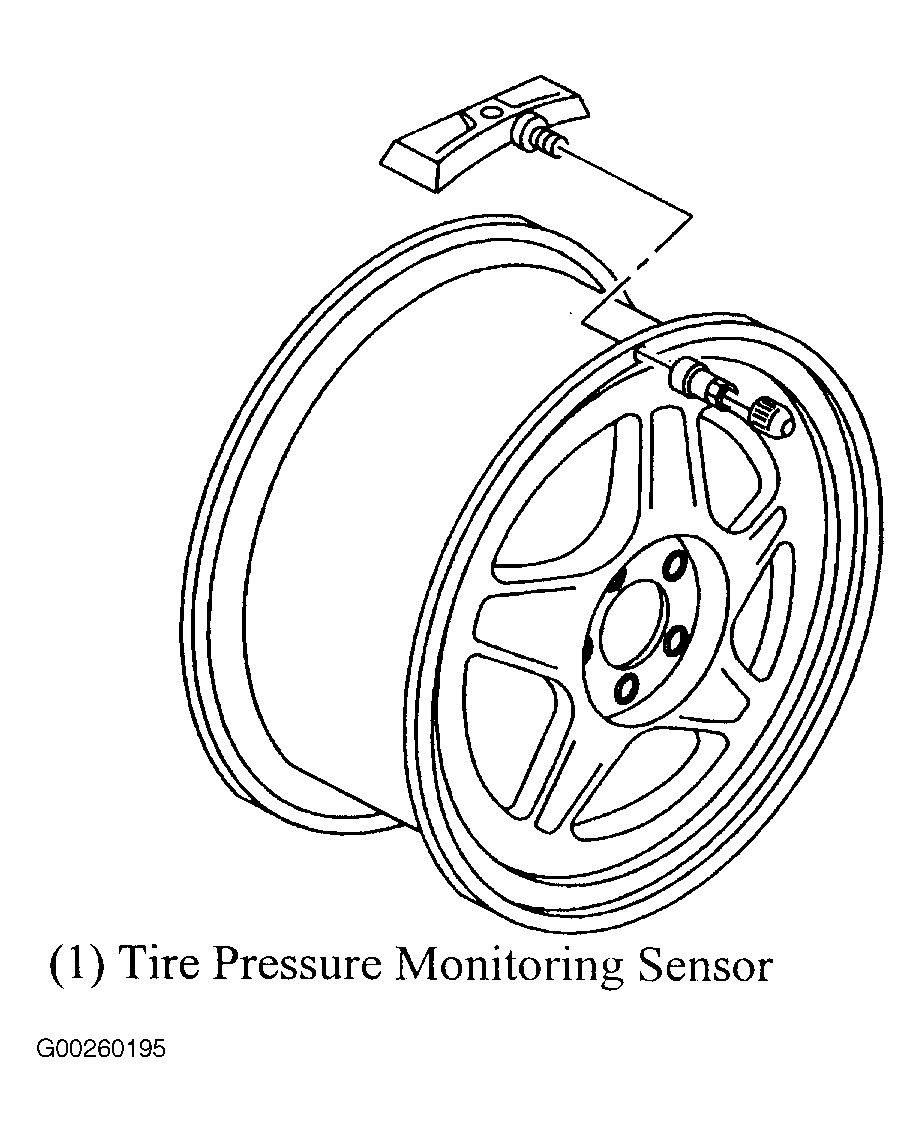

Fig 55: Tire Pressure Monitoring Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 56: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

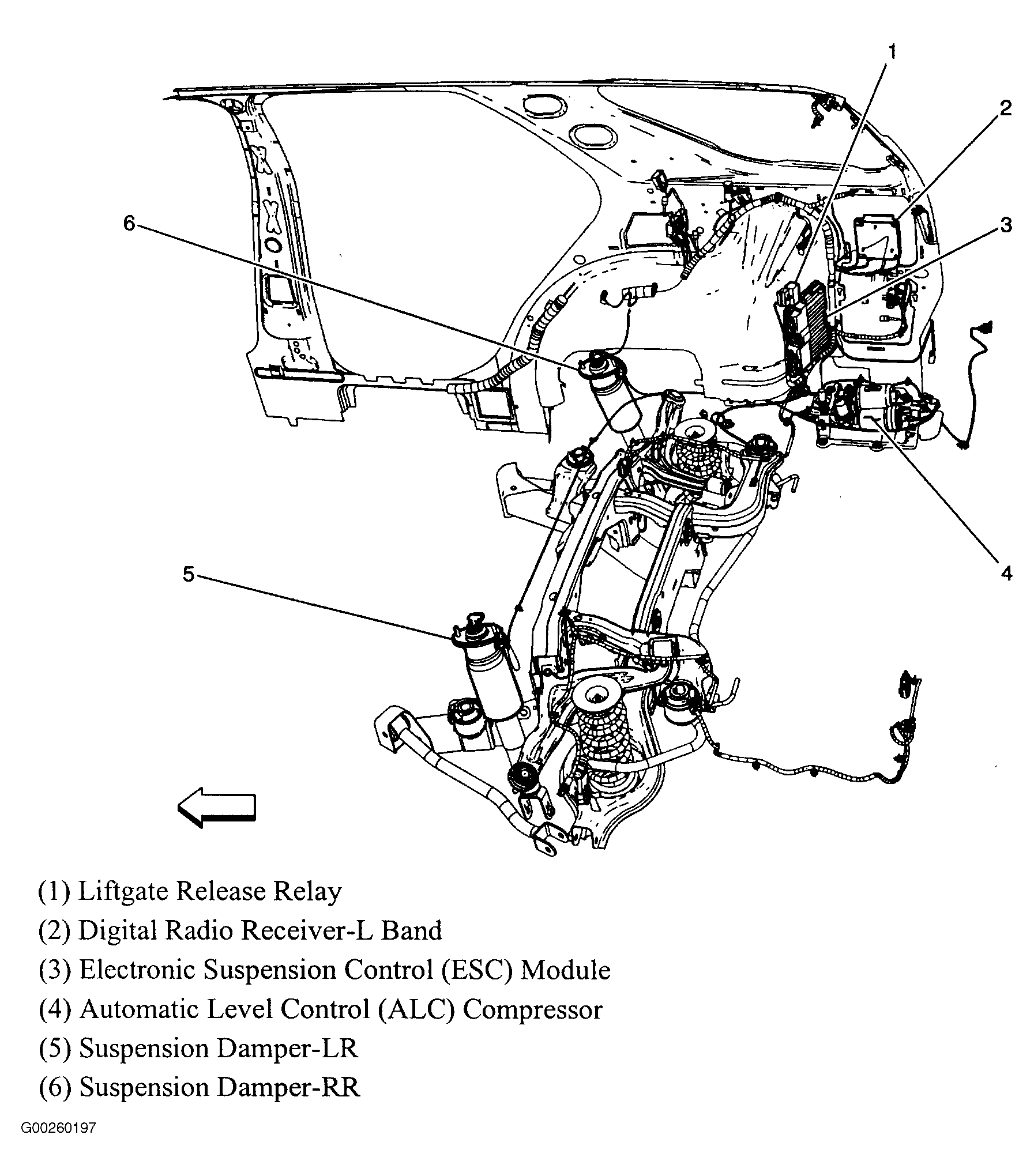

Fig 57: Right Rear Of Vehicle & Rear Suspension
Courtesy of GENERAL MOTORS CORP.
Fig 58: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

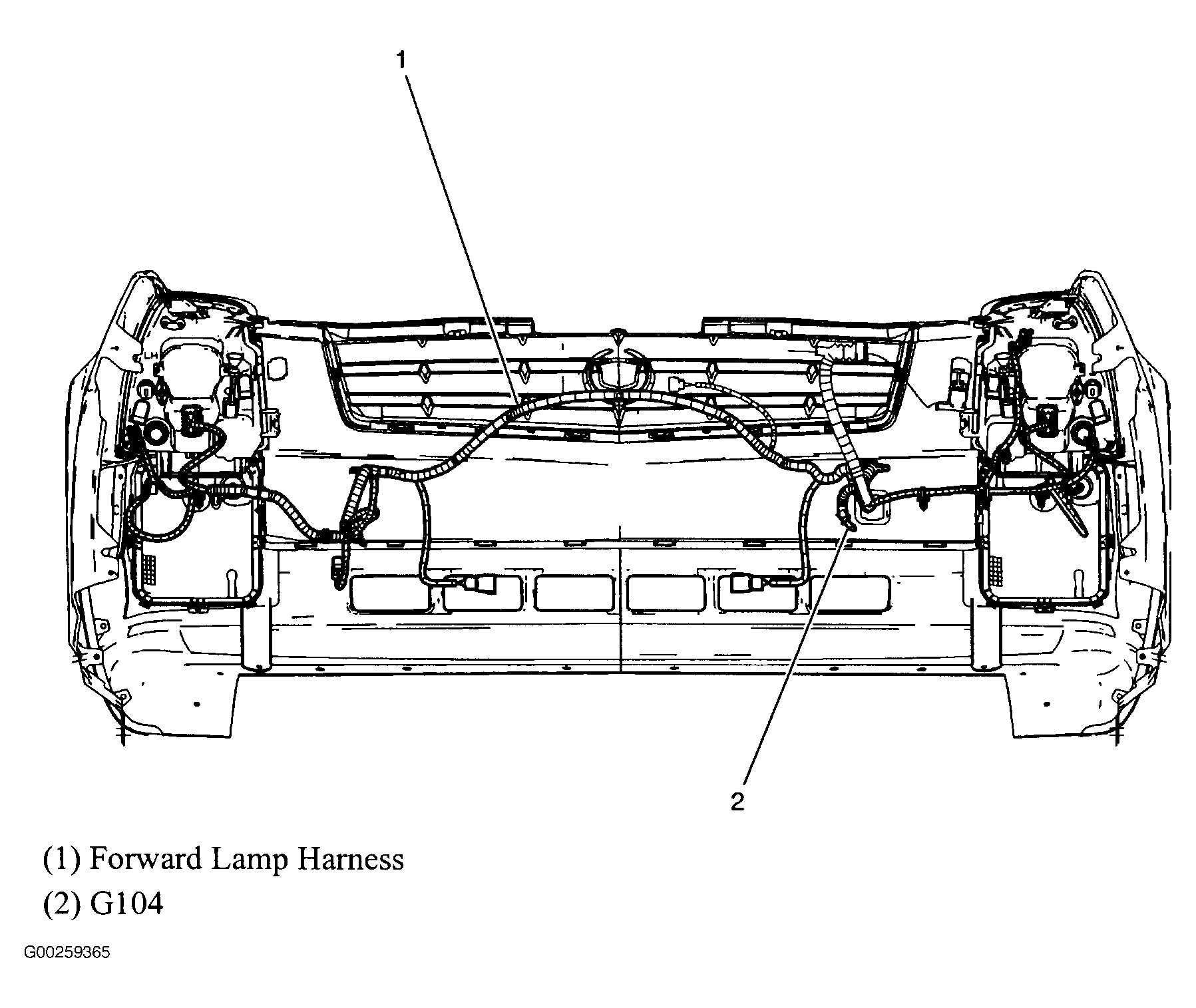

Fig 59: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

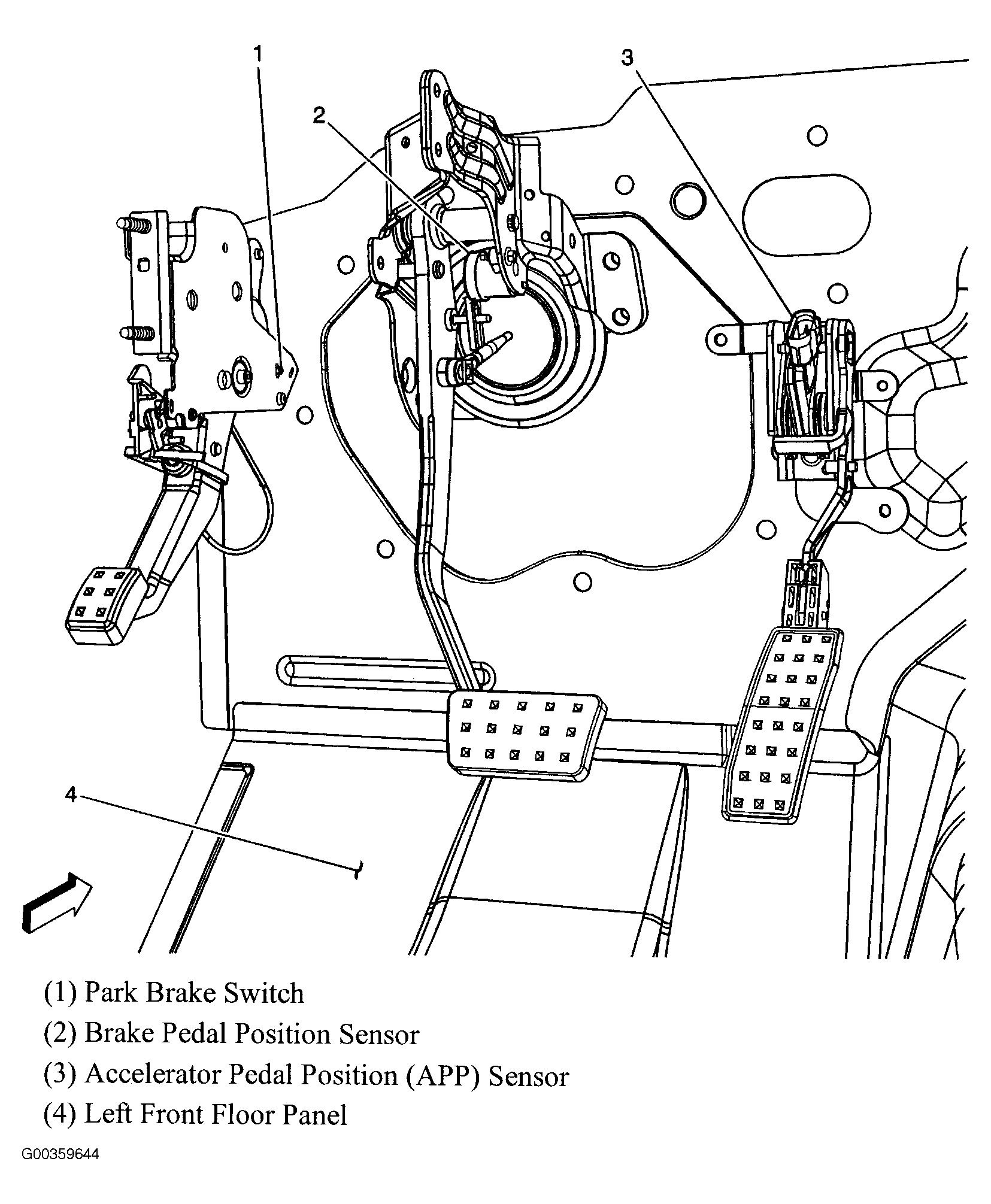

Fig 60: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

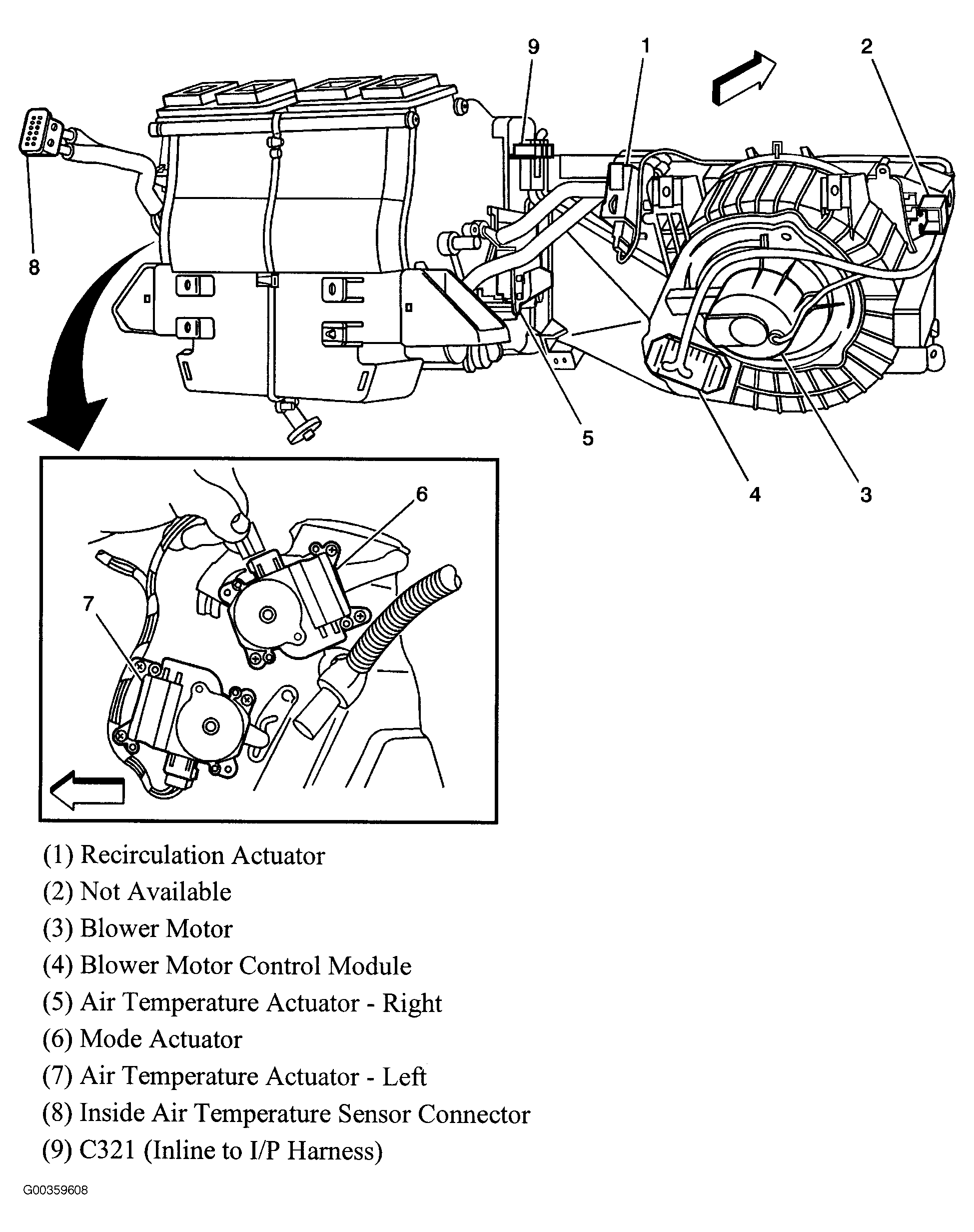

Fig 61: HVAC
Courtesy of GENERAL MOTORS CORP.

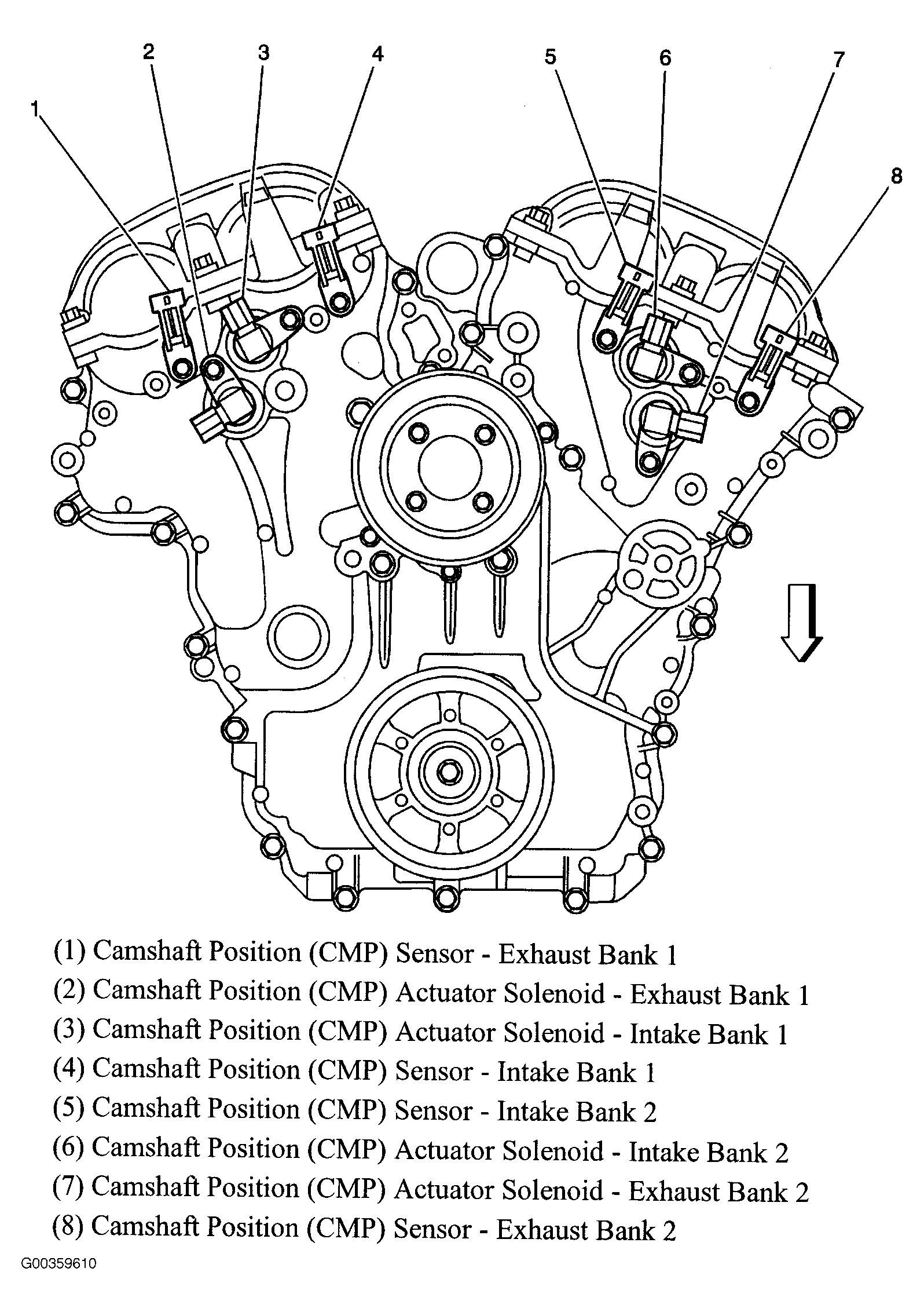

Fig 62: Front Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Top Of Engine (4.6L VIN A) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Top Of Engine (4.6L VIN A) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 65: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 66: Dash
Courtesy of GENERAL MOTORS CORP.

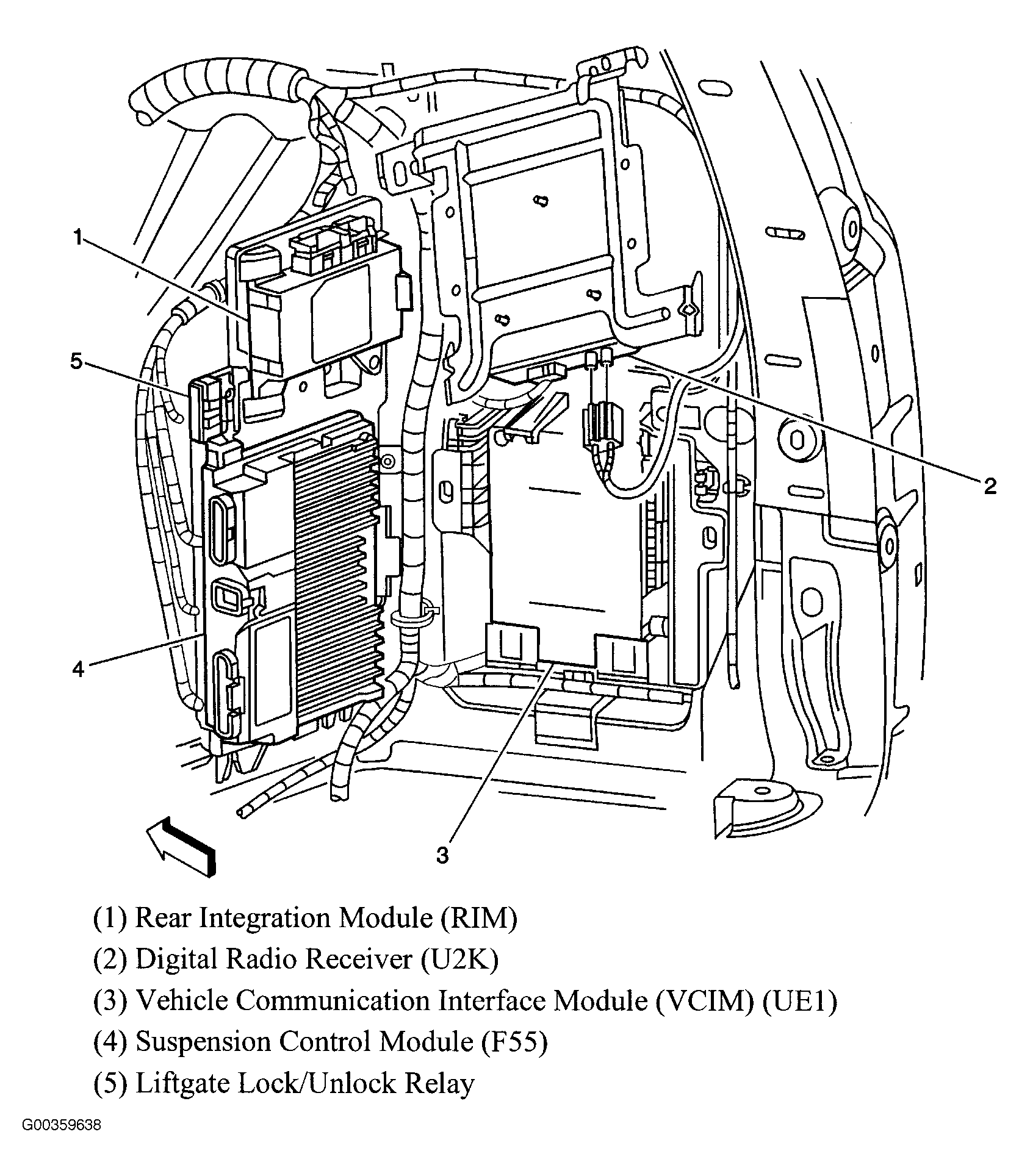

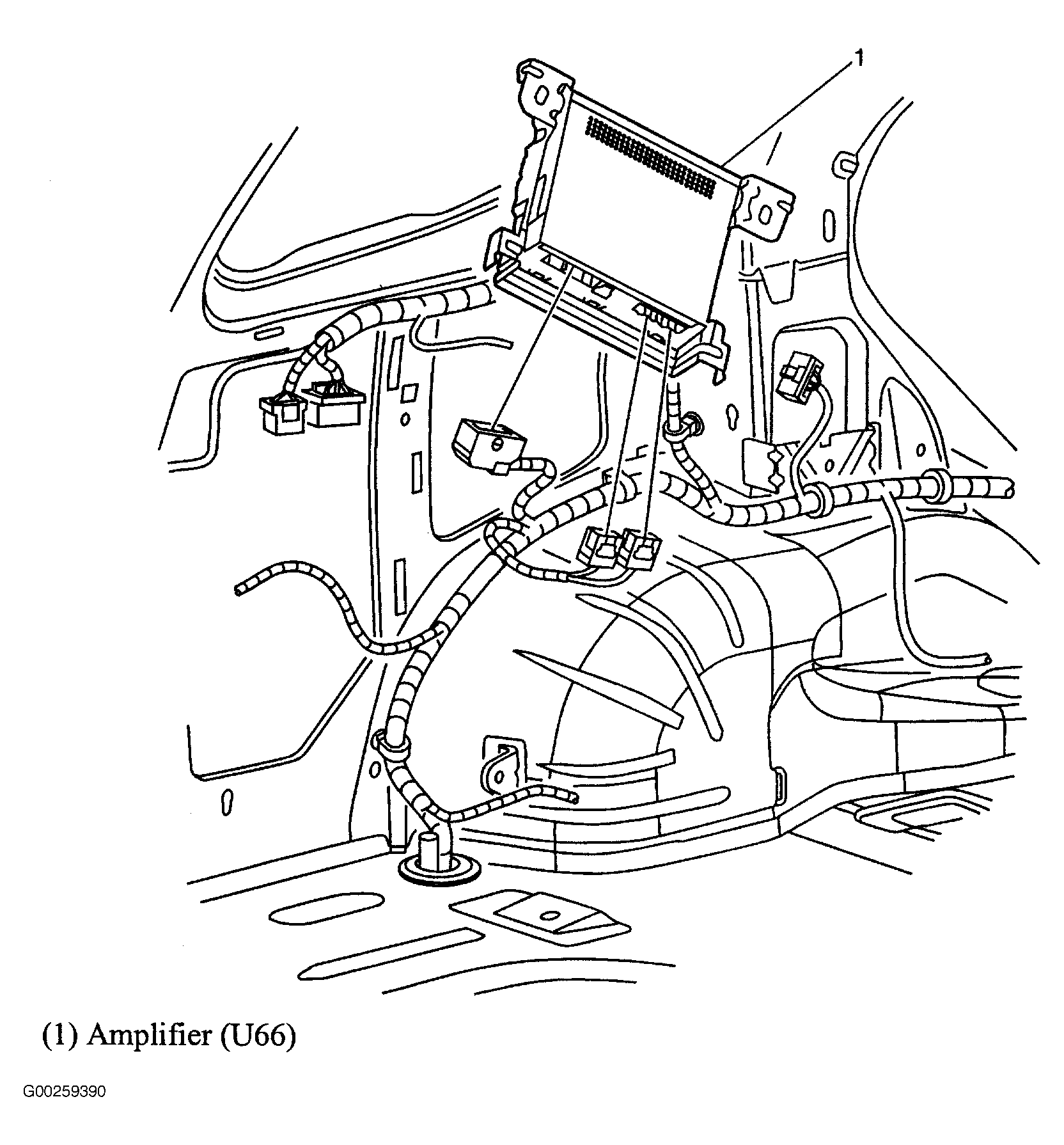

Fig 67: Right Rear Of Vehicle, Behind Trim Panel
Courtesy of GENERAL MOTORS CORP.

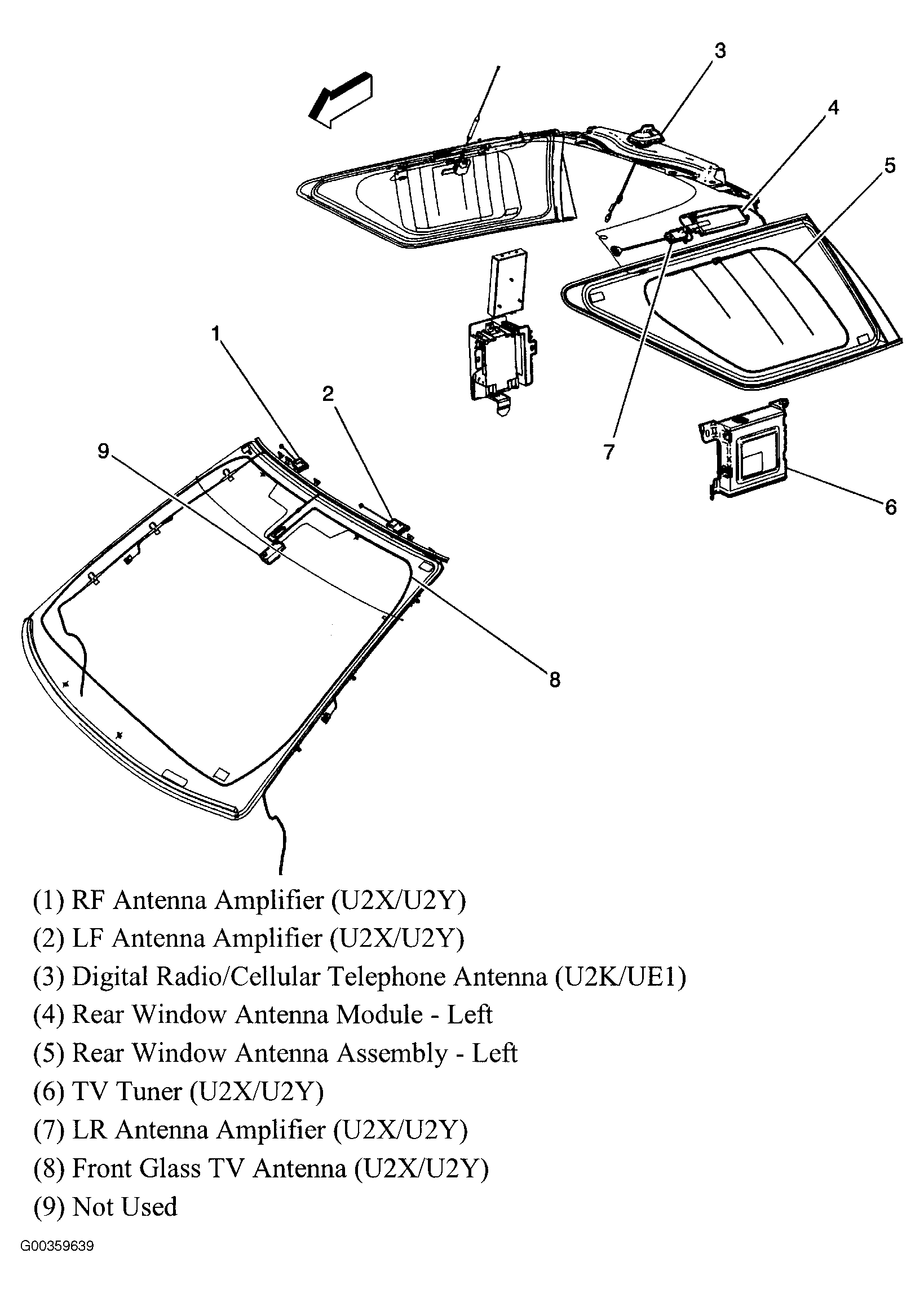

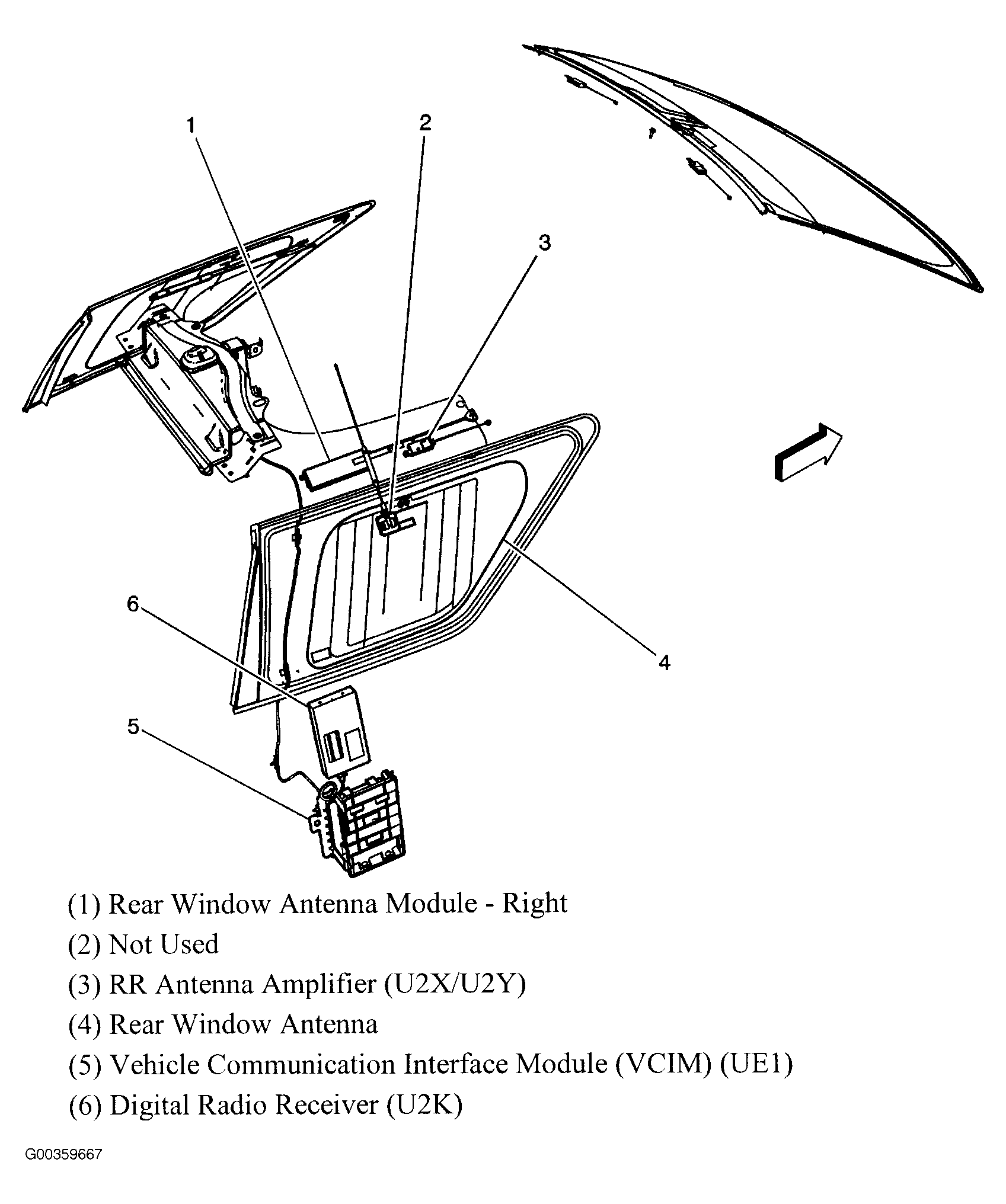

Fig 68: Antenna Components
Courtesy of GENERAL MOTORS CORP.

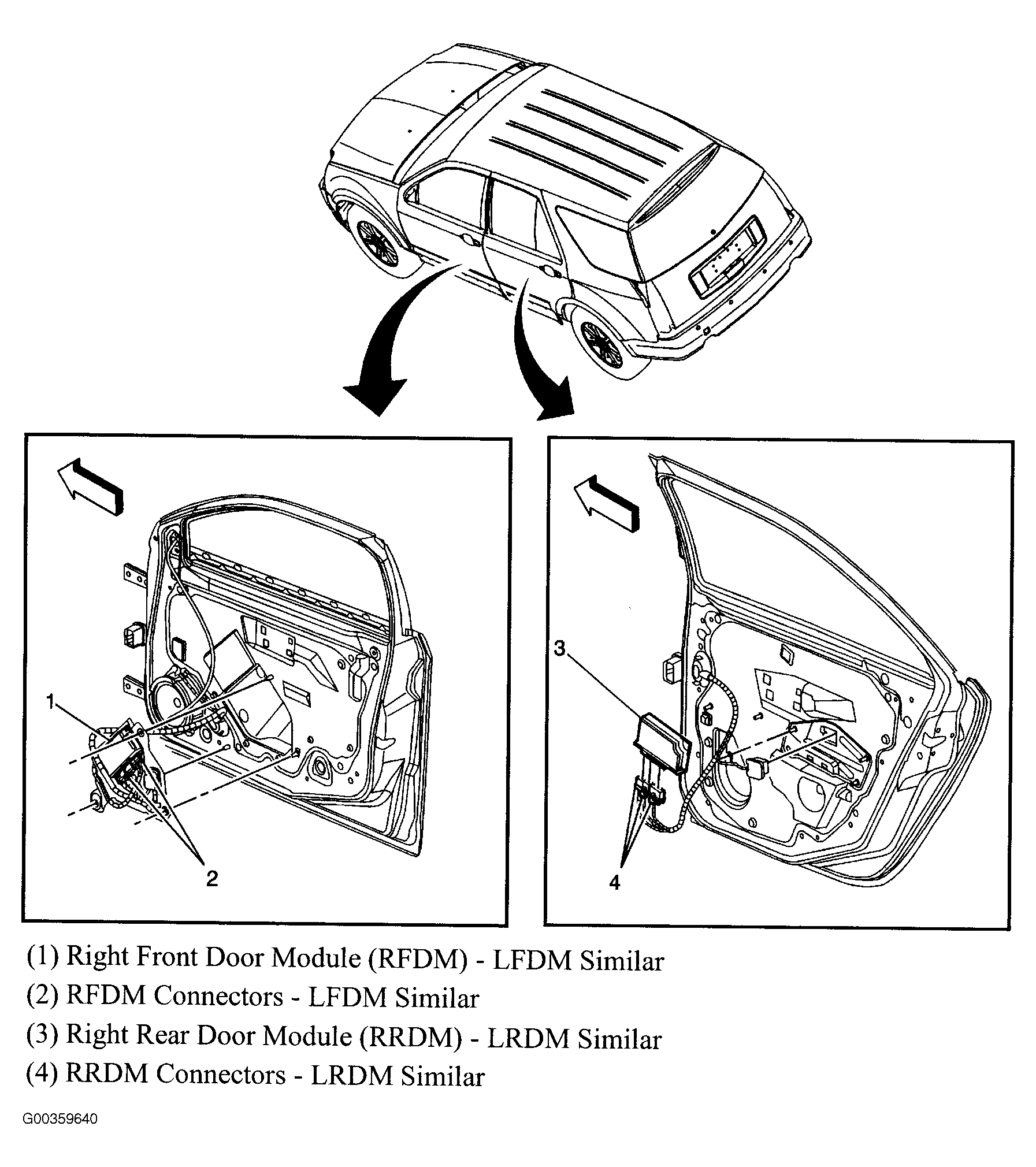

Fig 69: Right Door (Right Shown; Left Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Side Of Engine (4.6L VIN A)
Courtesy of GENERAL MOTORS CORP.
Fig 71: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 72: Front Of Engine (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Fig 73: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

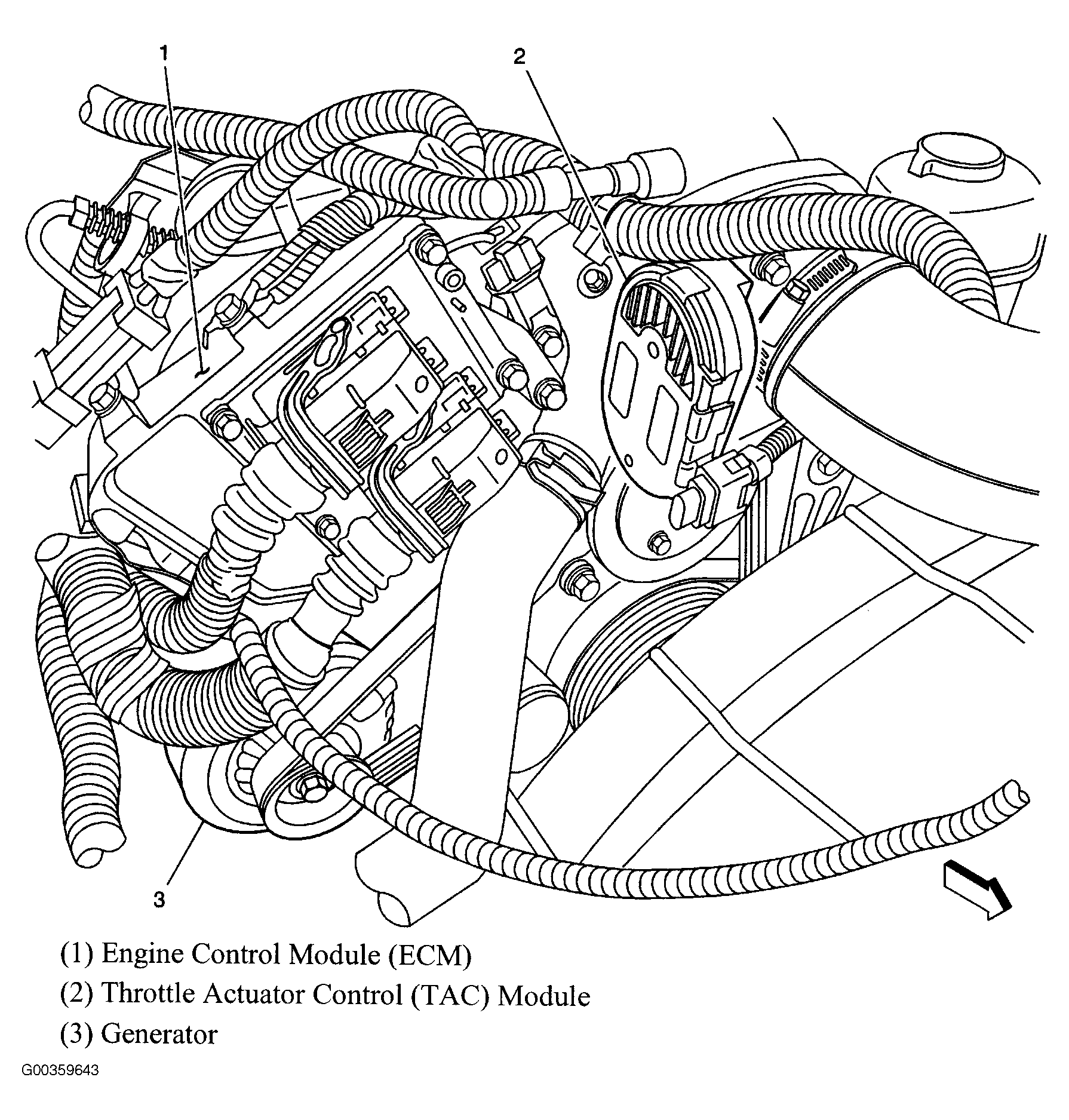

Fig 74: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

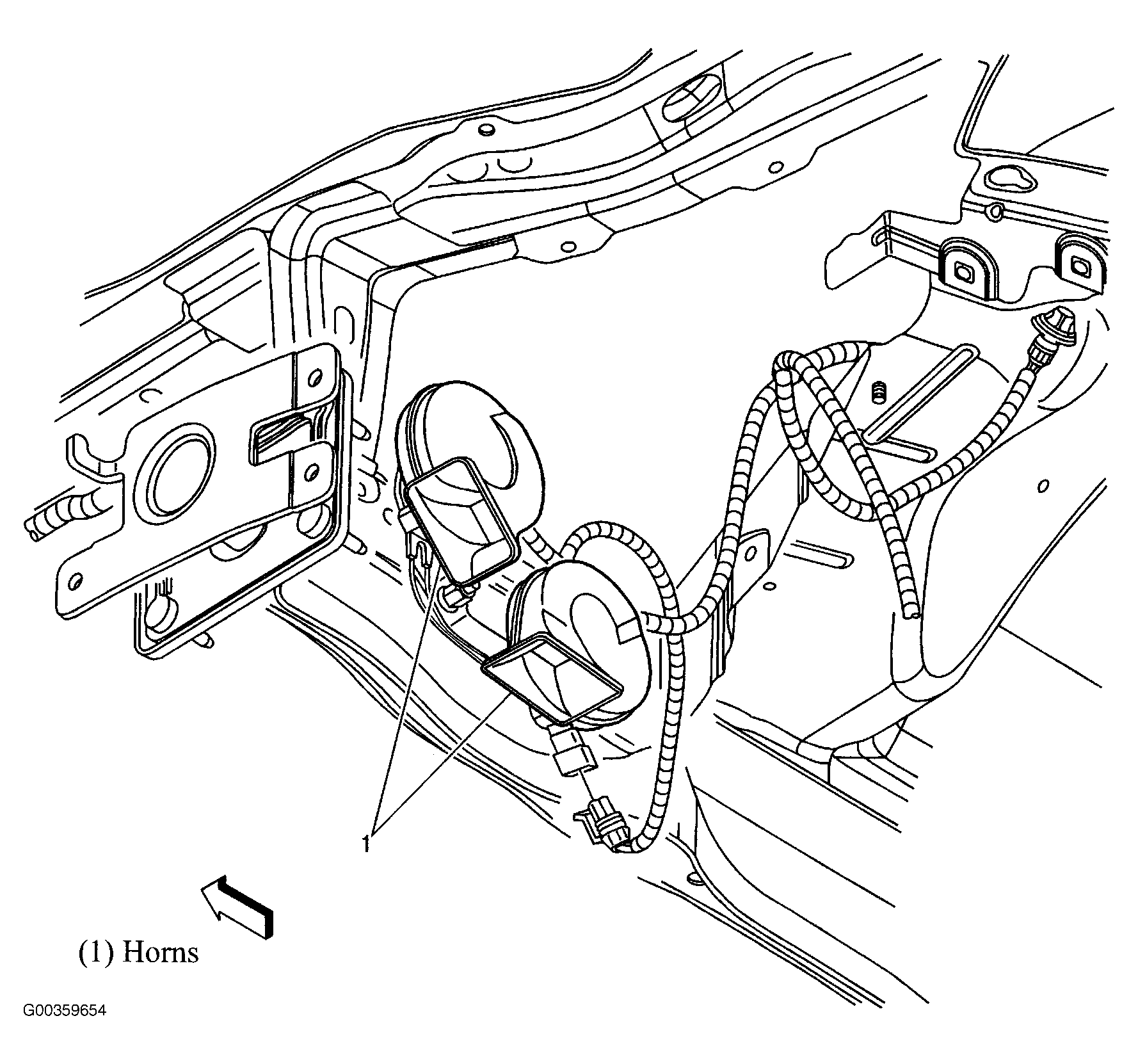

Fig 75: Behind Right Front Bumper
Courtesy of GENERAL MOTORS CORP.

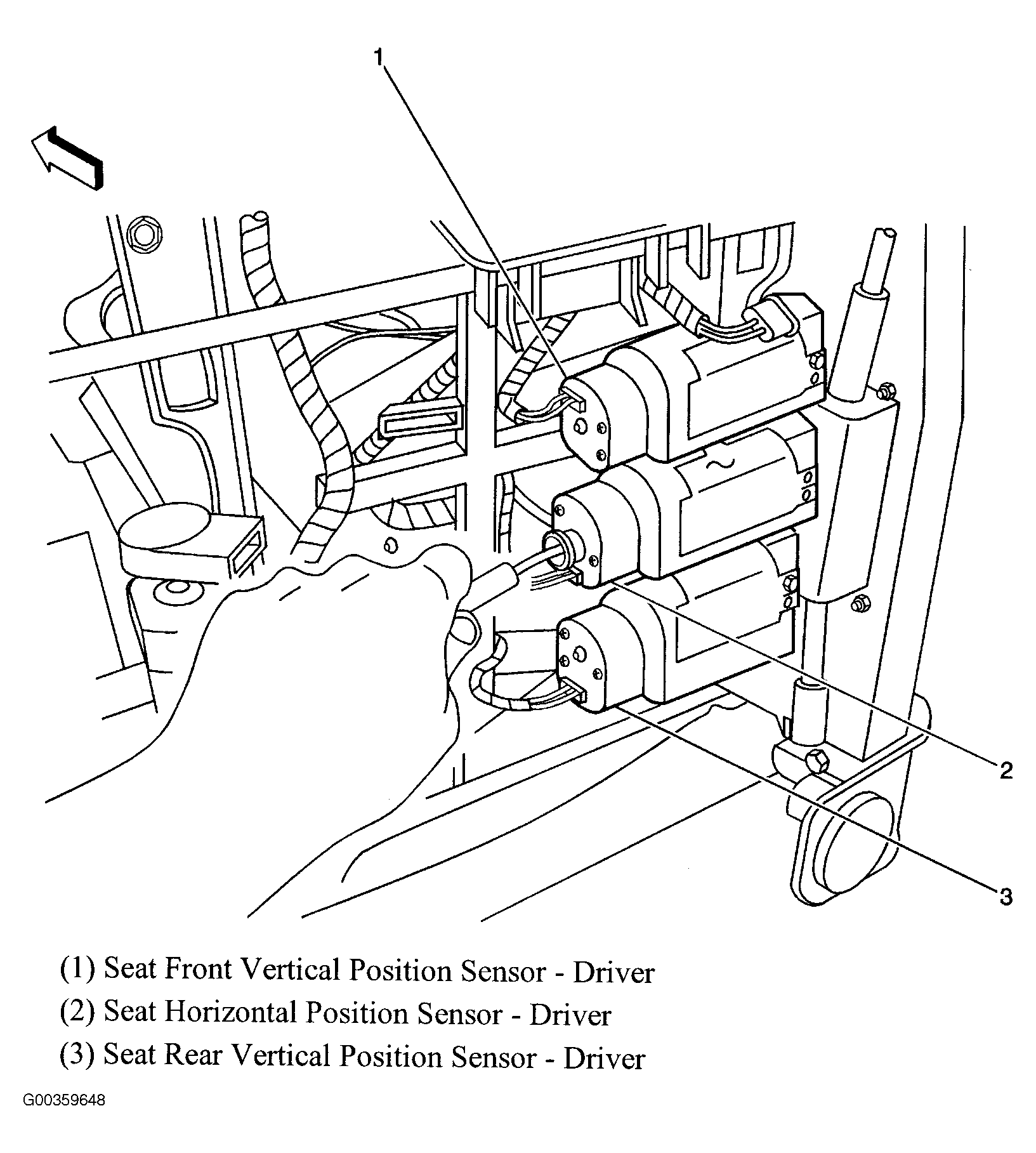

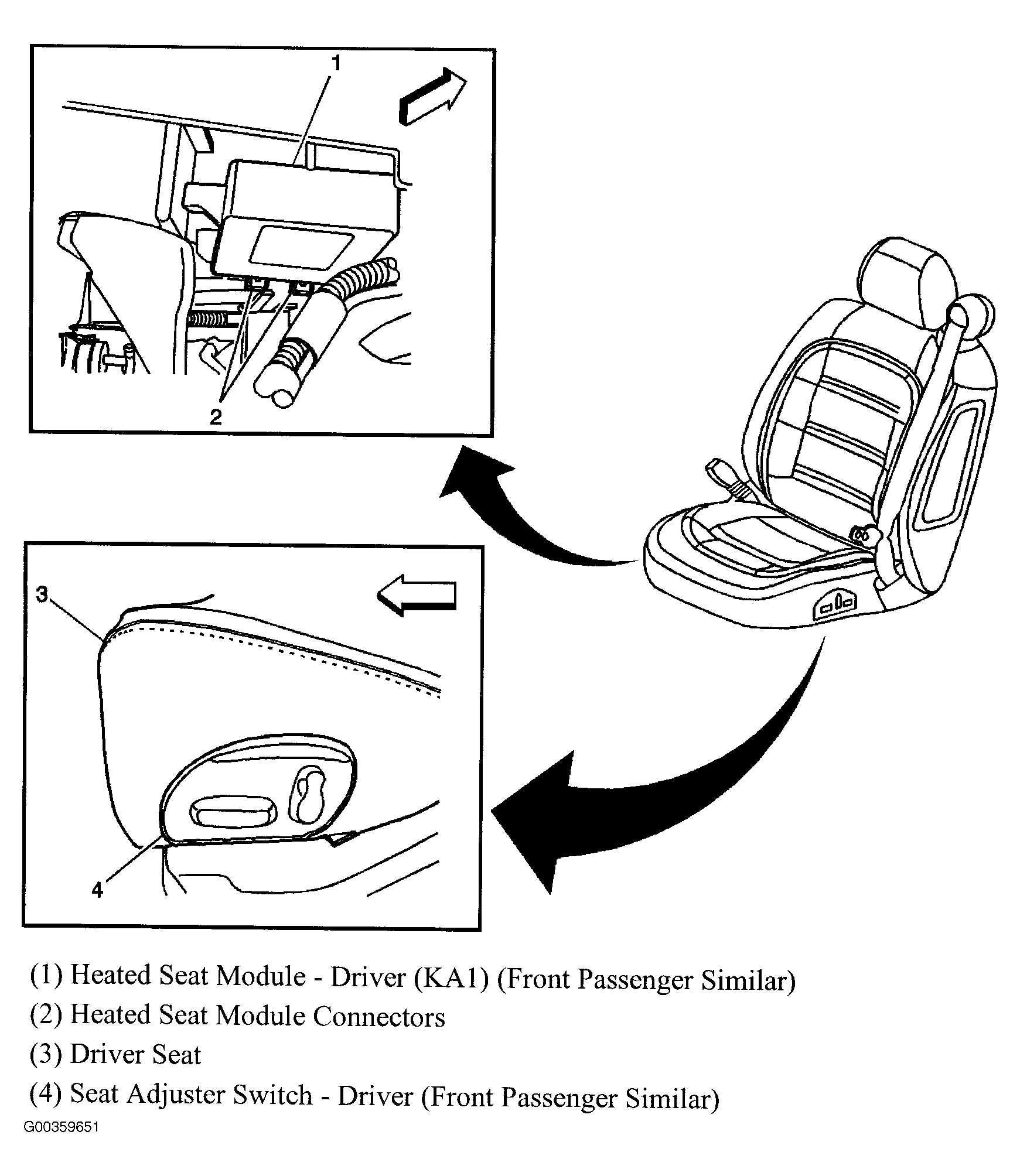

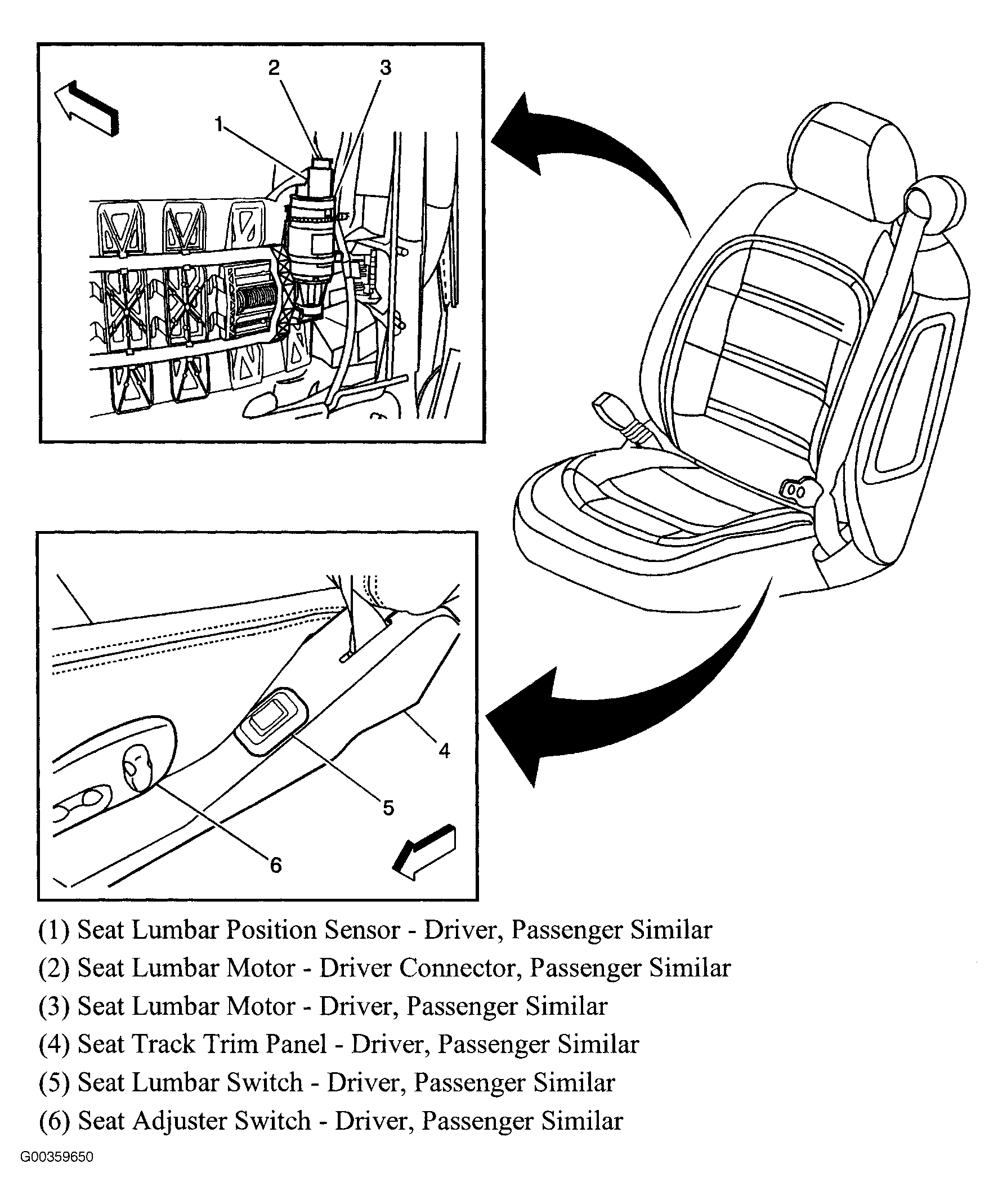

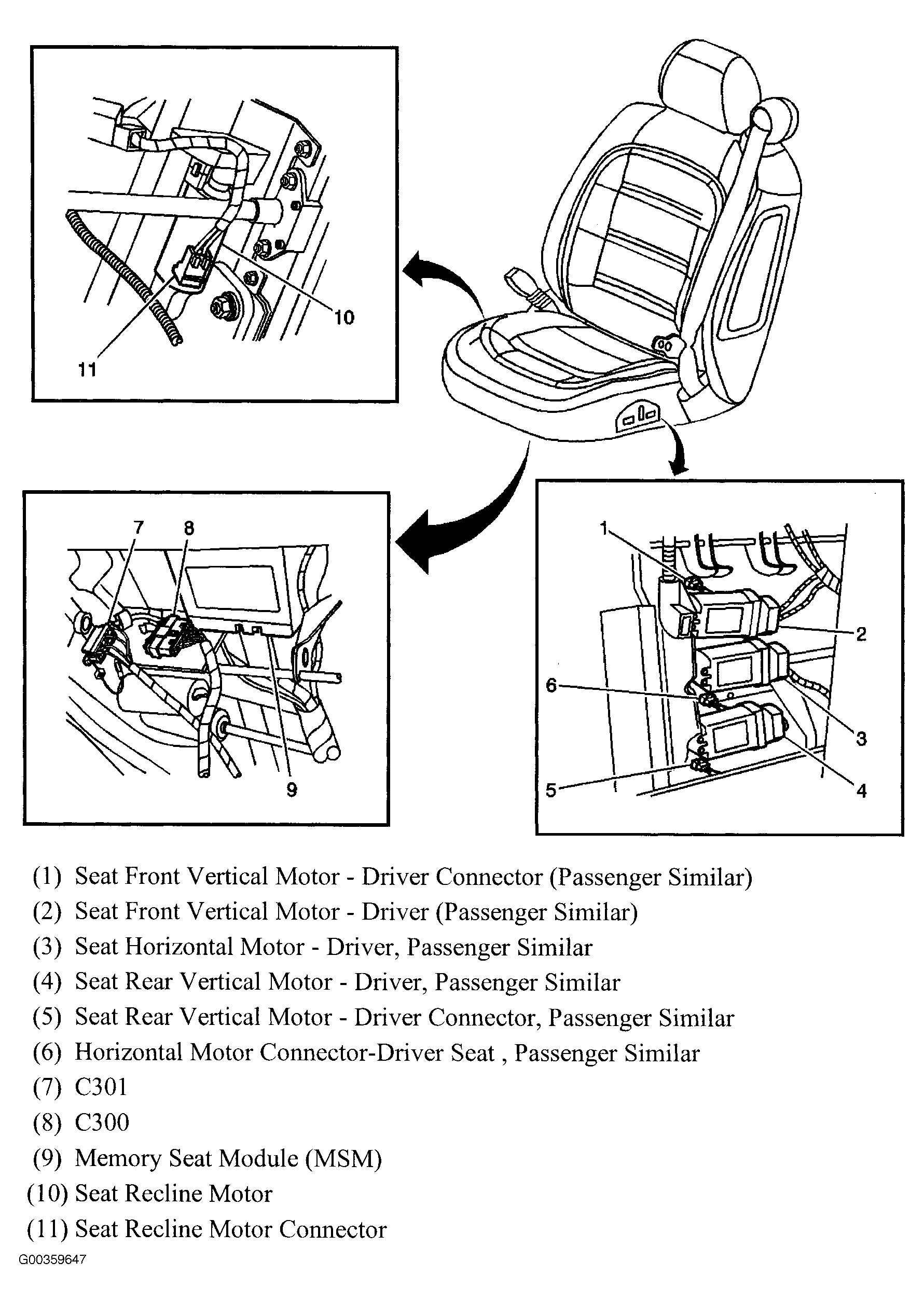

Fig 76: Driver Seat (Driver Shown; Passenger Similar)
Courtesy of GENERAL MOTORS CORP.

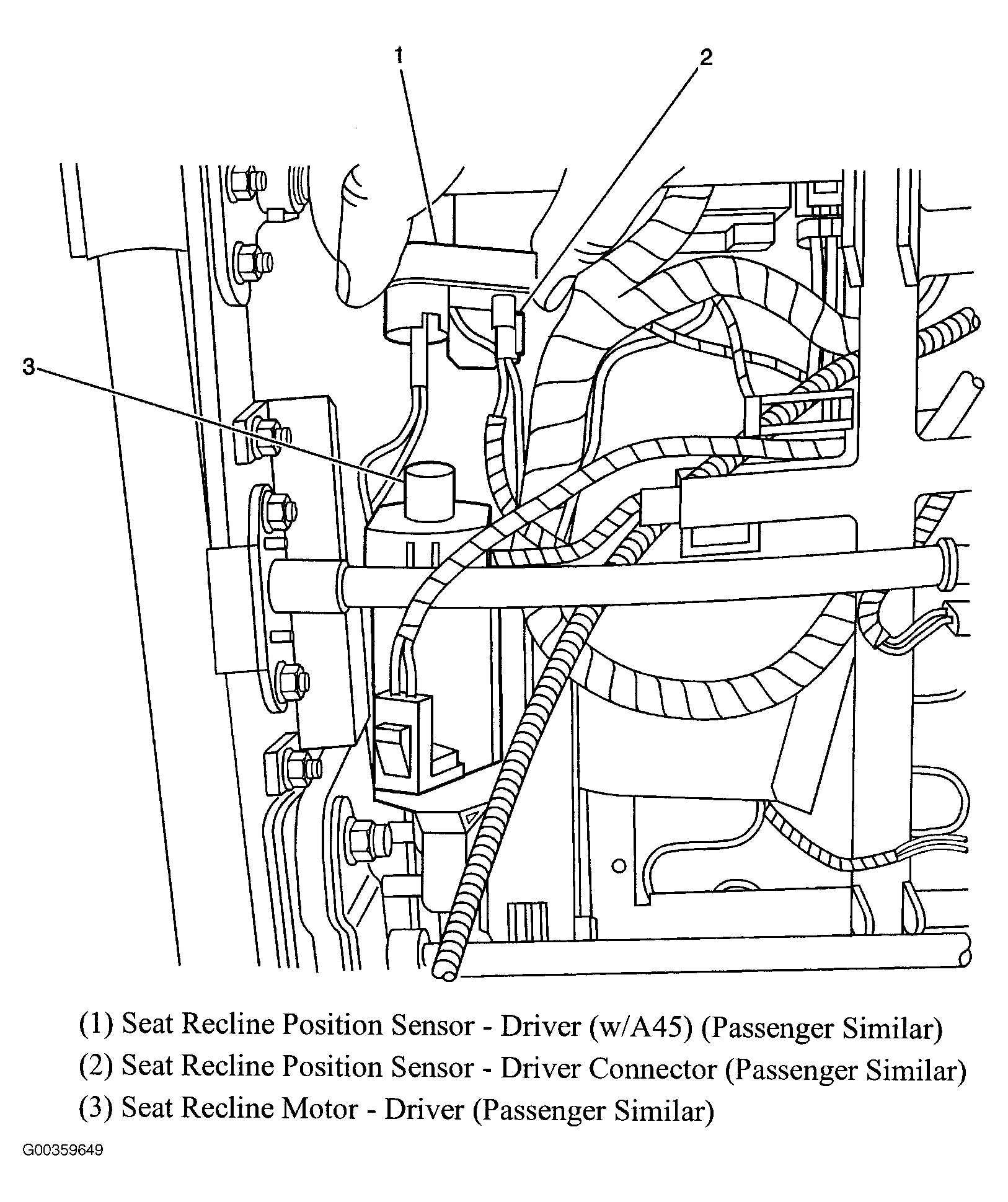

Fig 77: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 78: Driver Seat (Driver Shown; Passenger Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Driver Seat (Driver Shown; Passenger Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 80: Driver Seat (Driver Shown; Passenger Similar)
Courtesy of GENERAL MOTORS CORP.

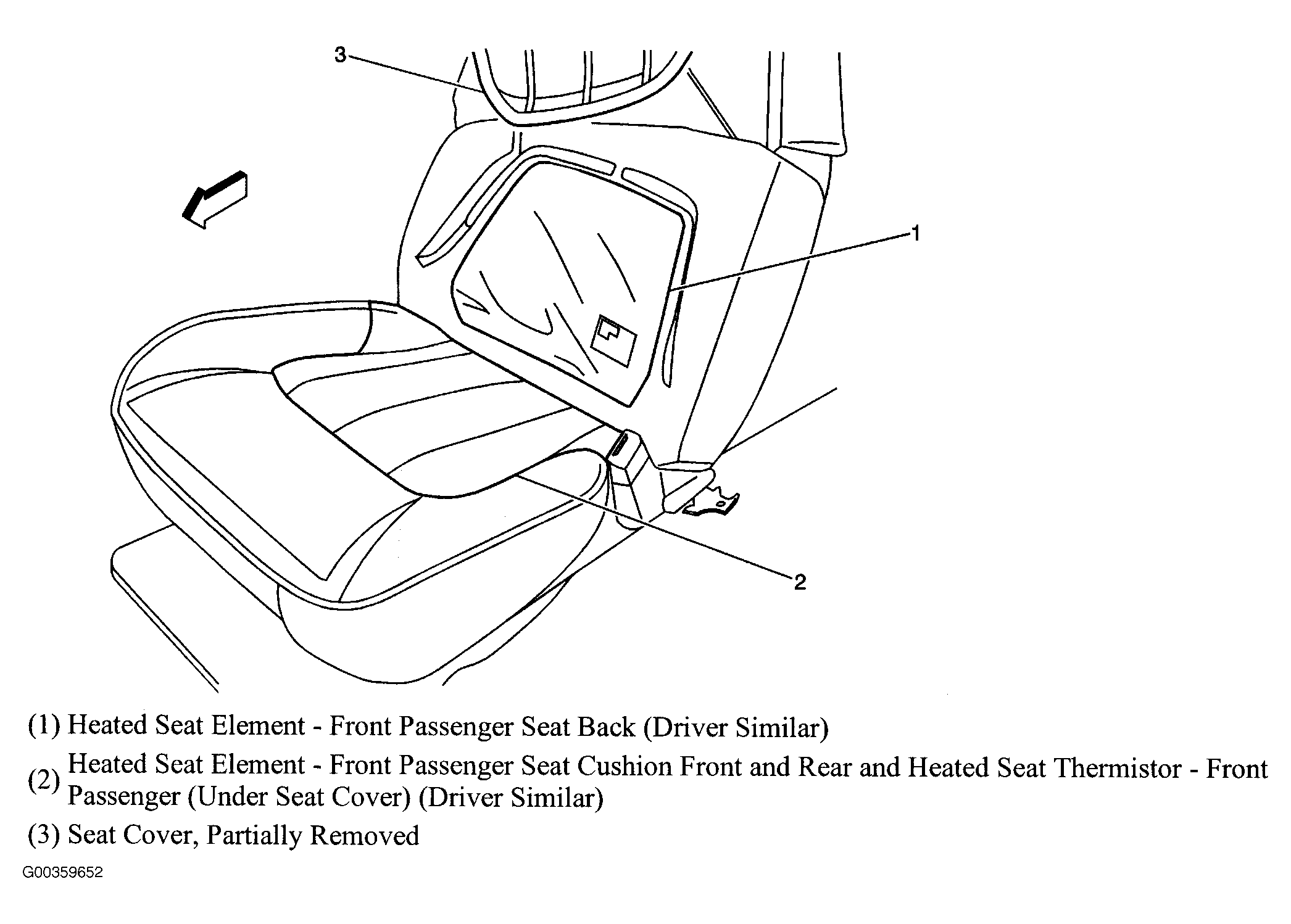

Fig 81: Passenger Seat (Passenger Shown; Driver Similar)
Courtesy of GENERAL MOTORS CORP.

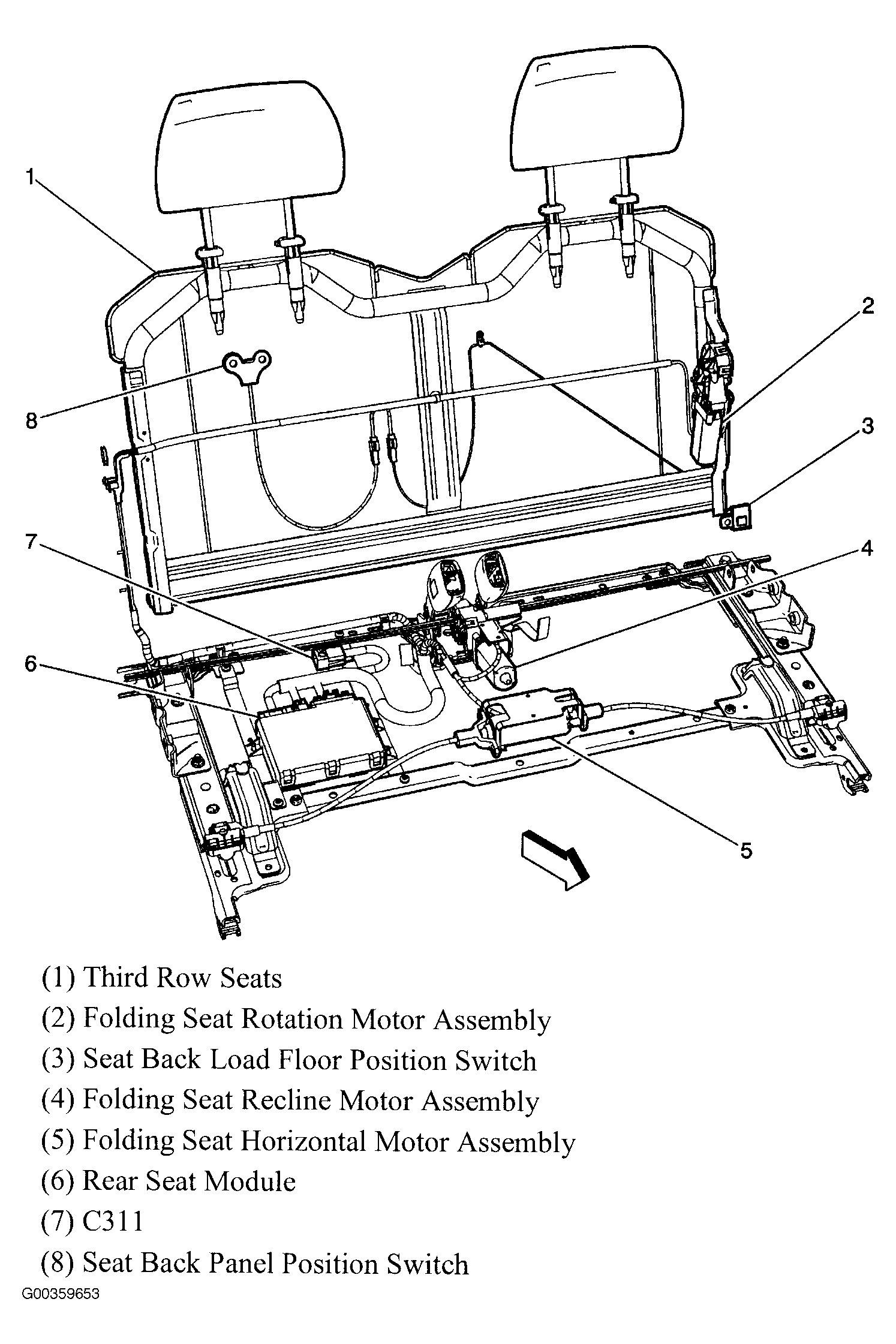

Fig 82: Third Row Folding Seats
Courtesy of GENERAL MOTORS CORP.
Fig 83: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 84: Right Rear Of Vehicle, Behind Trim Panel
Courtesy of GENERAL MOTORS CORP.

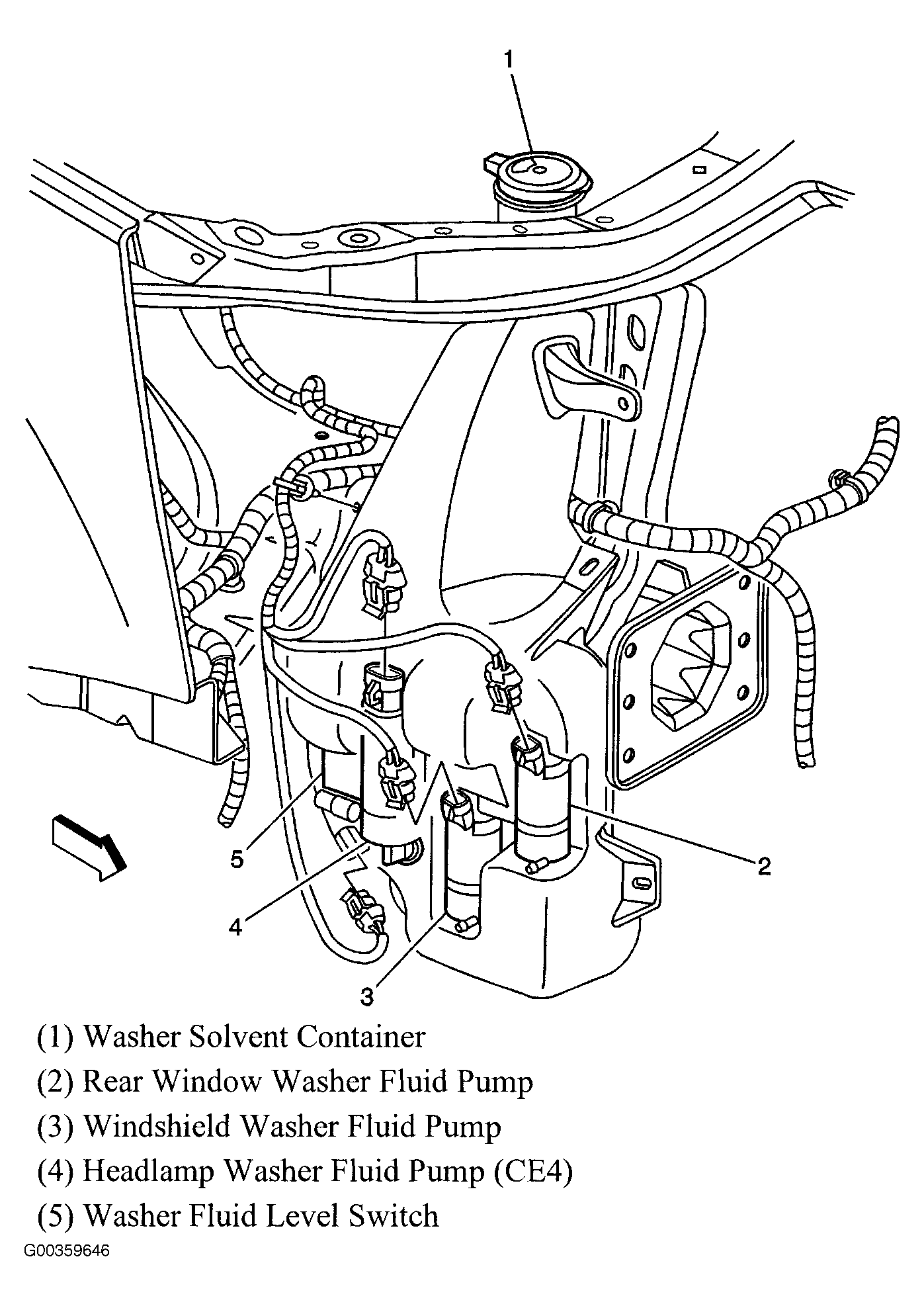

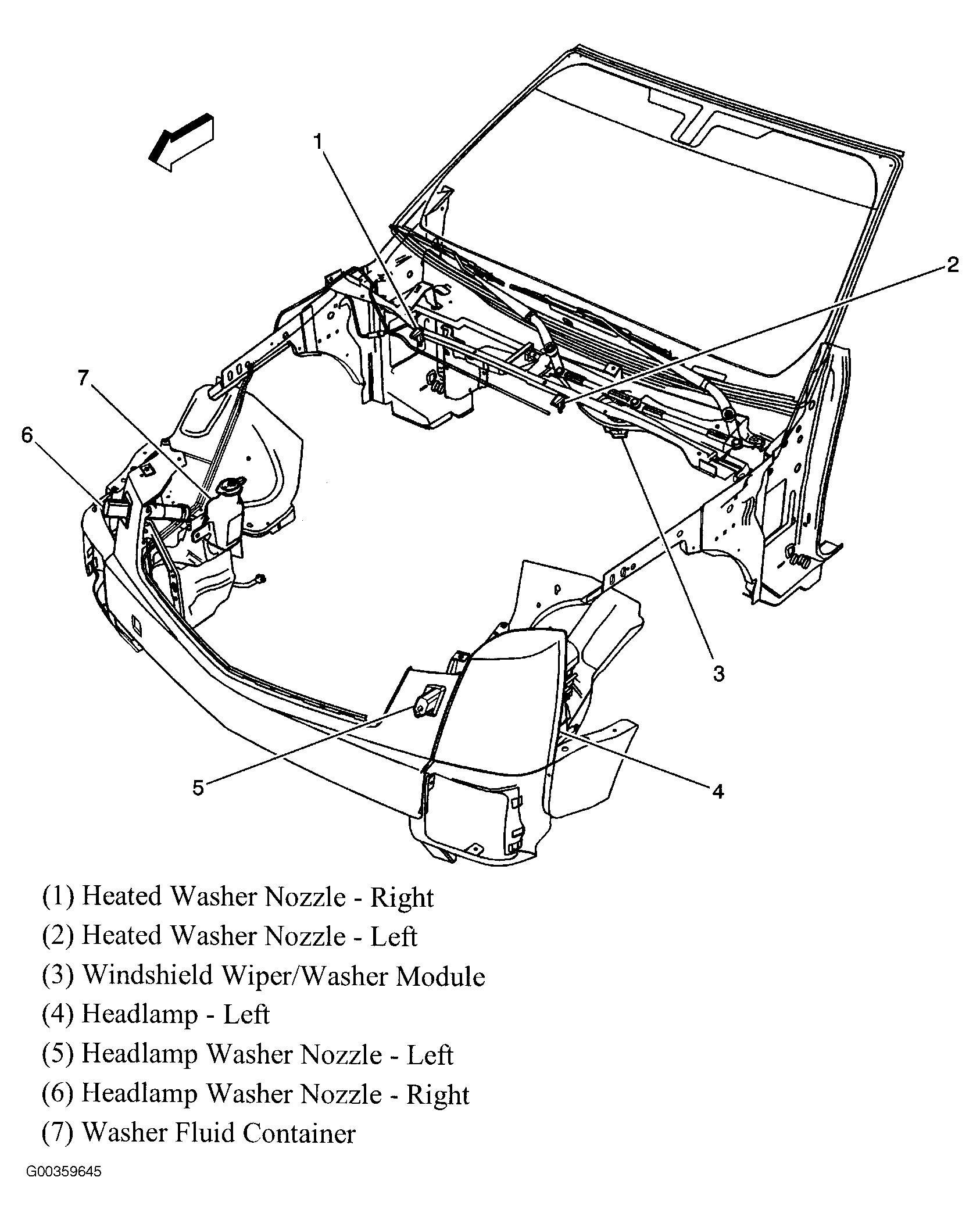

Fig 85: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

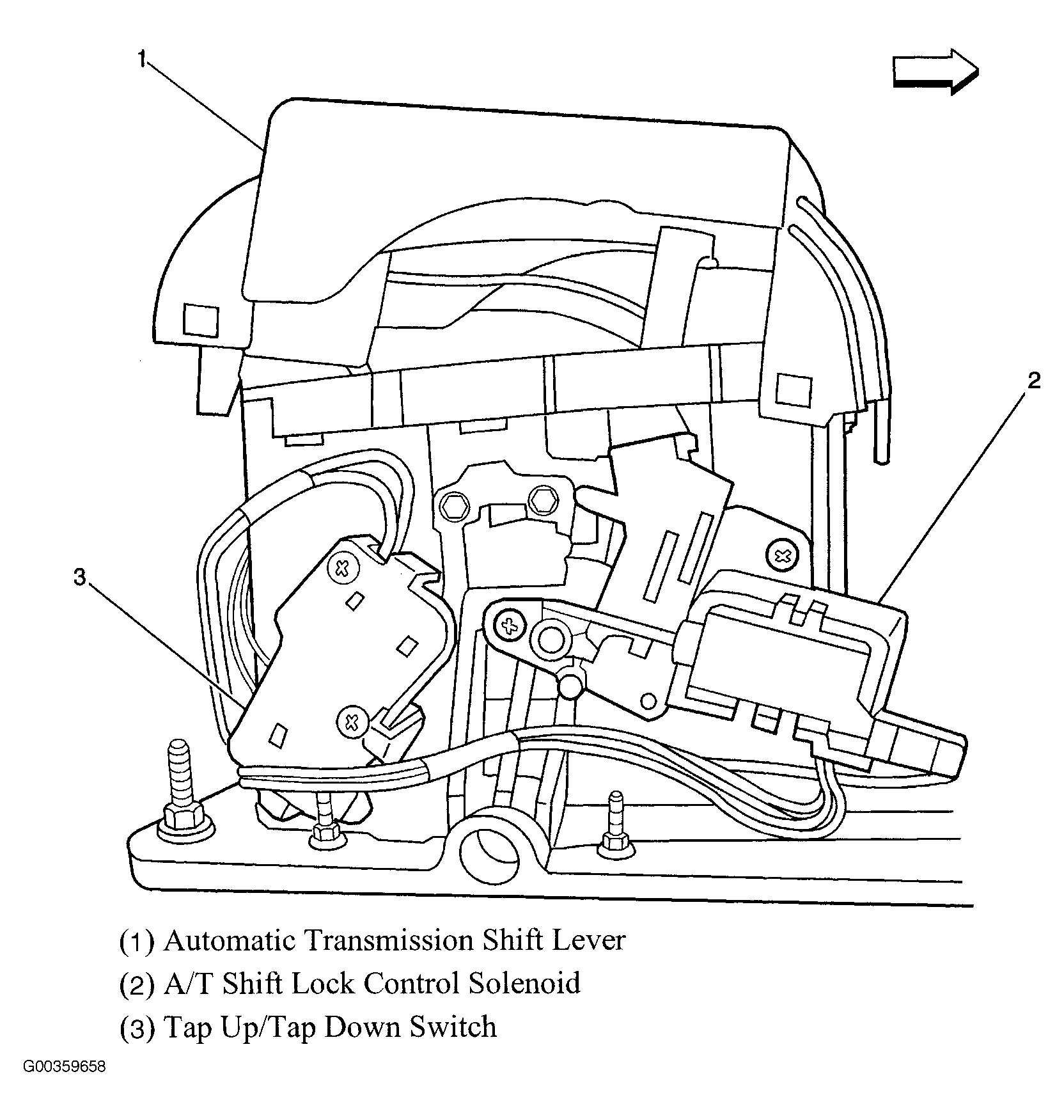

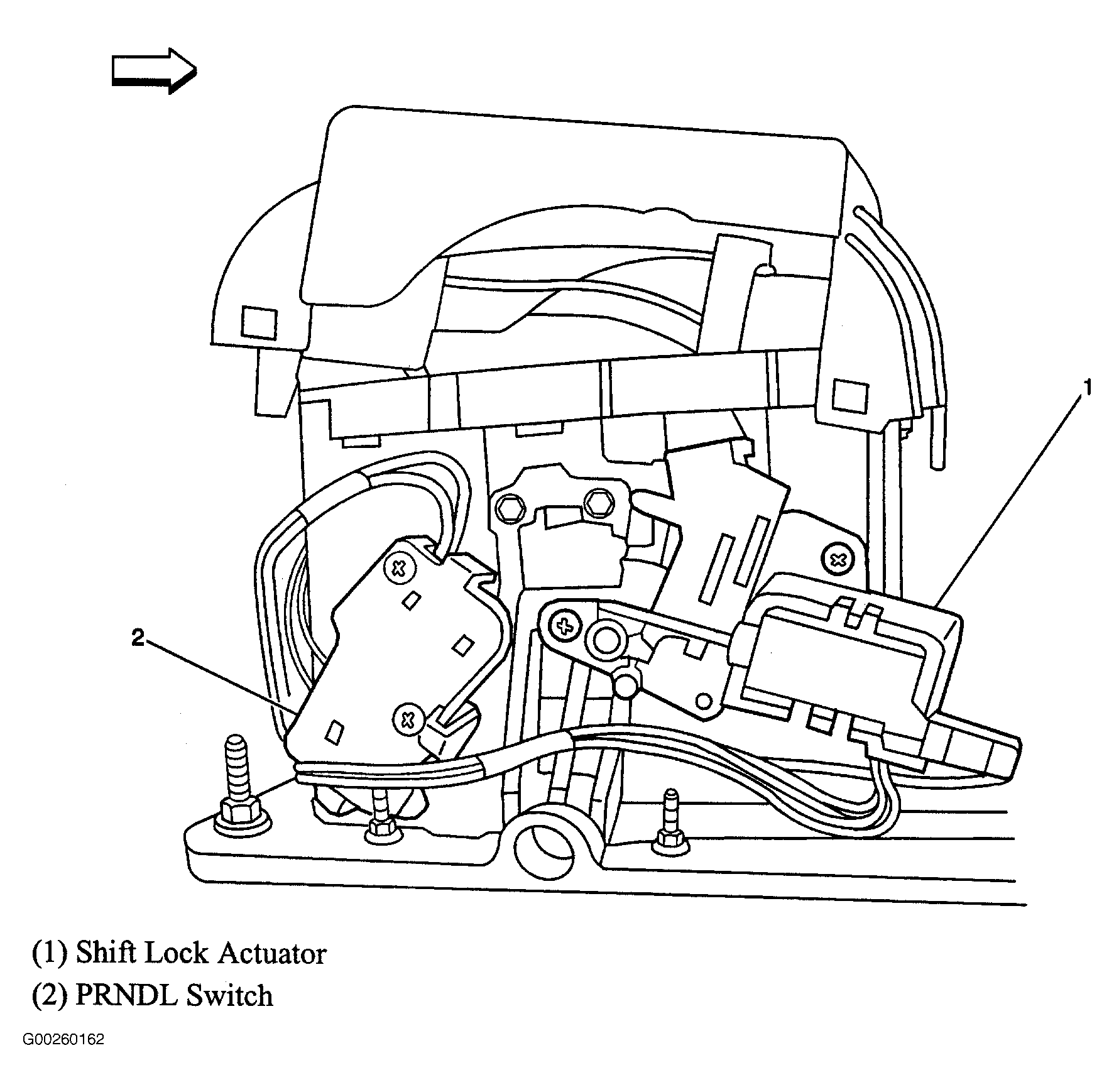

Fig 86: Automatic Transmission Shift Lock Control
Courtesy of GENERAL MOTORS CORP.

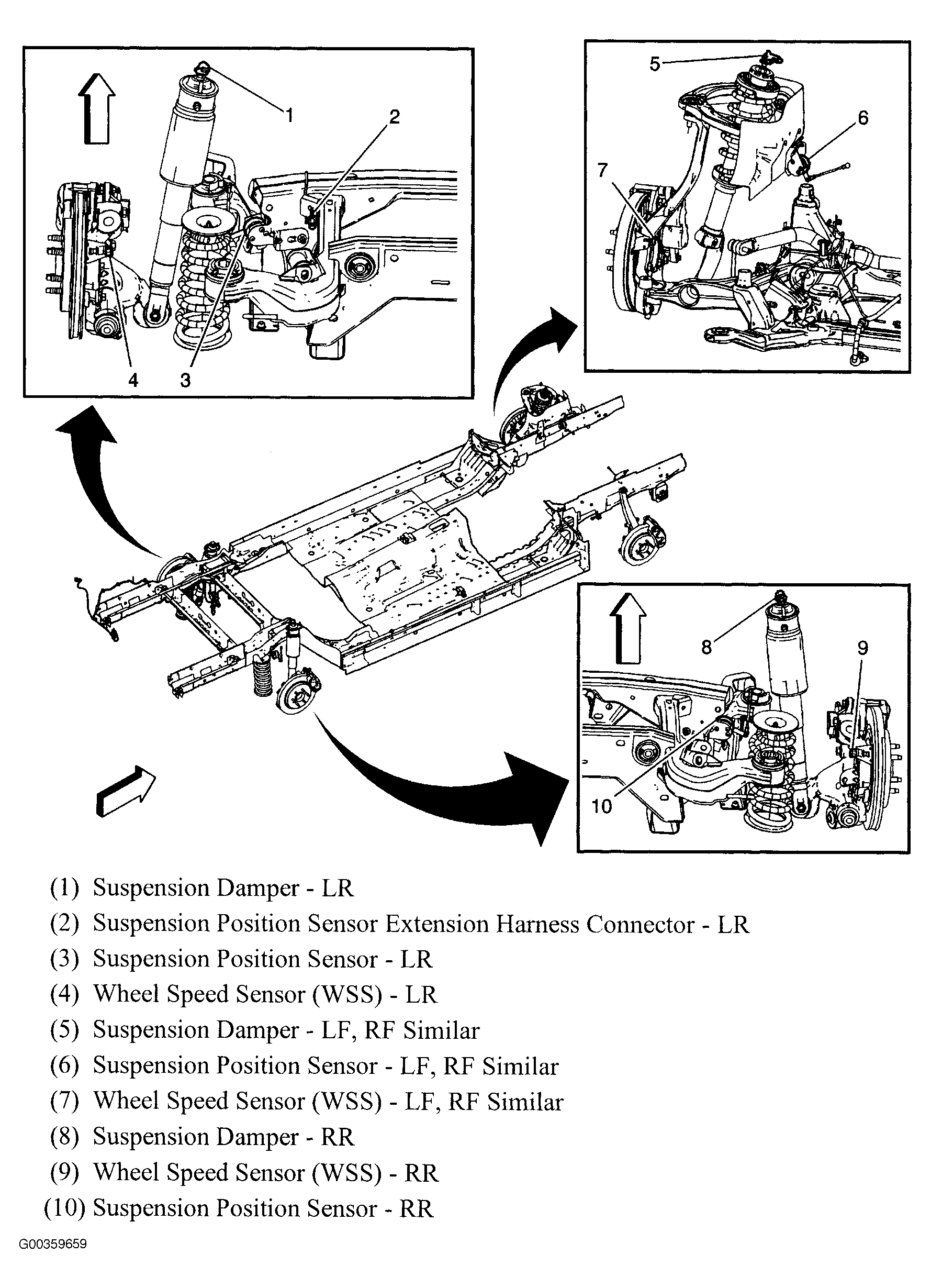

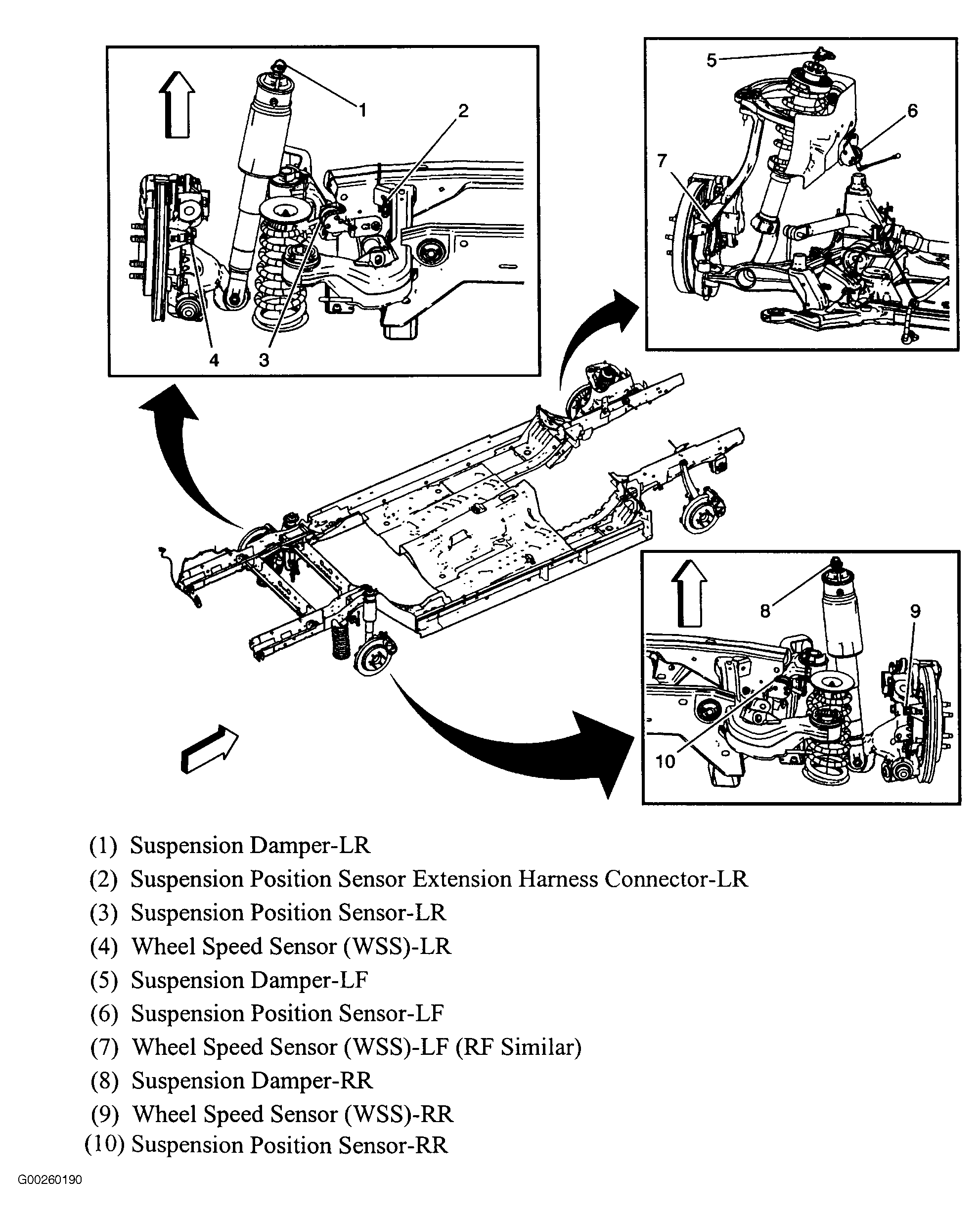

Fig 87: Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 88: Liftgate Latch Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 89: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 90: Engine Electrical Components (3.6L VIN 7)
Courtesy of GENERAL MOTORS CORP.

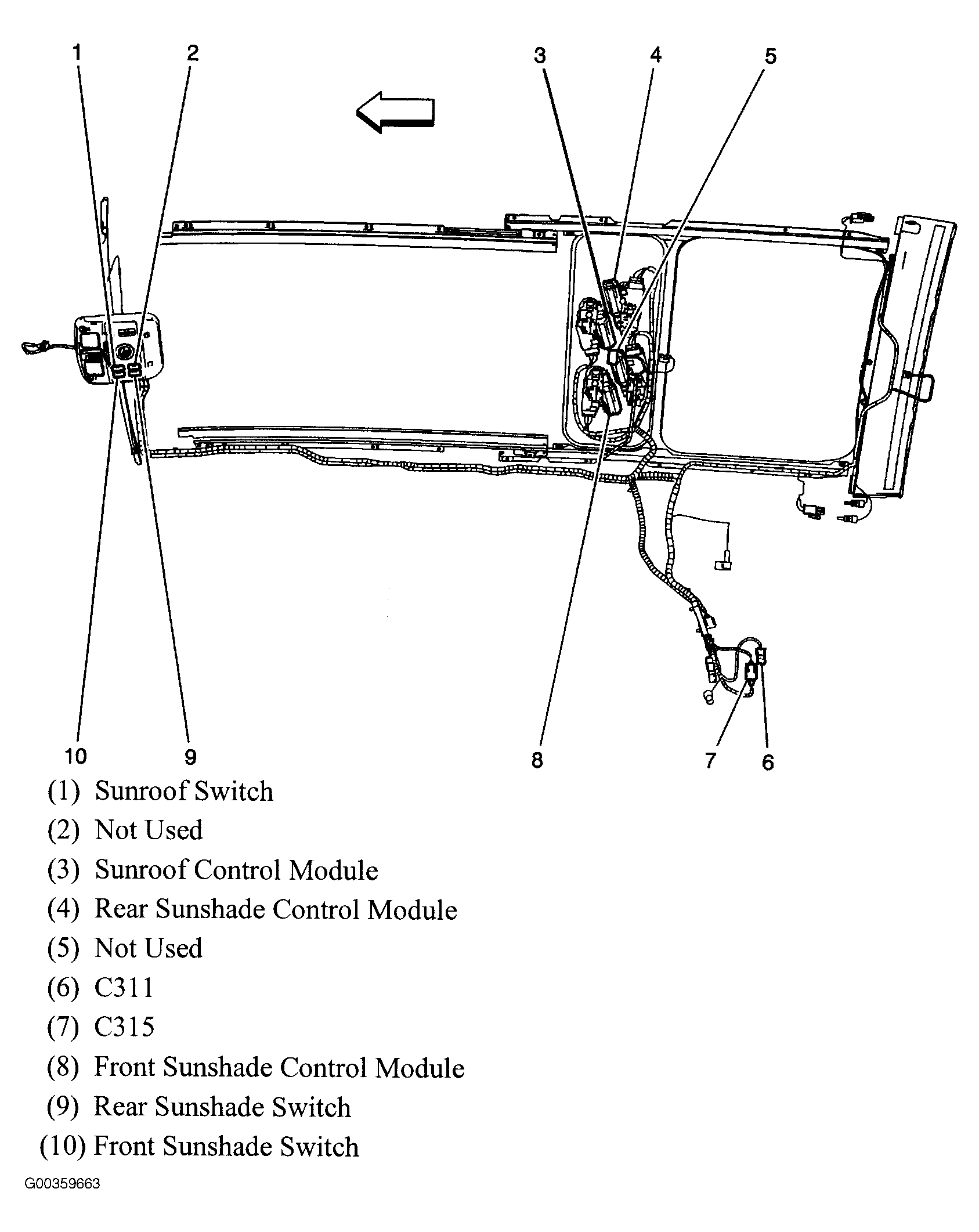

Fig 91: Sunroof (C3B)
Courtesy of GENERAL MOTORS CORP.
Fig 92: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

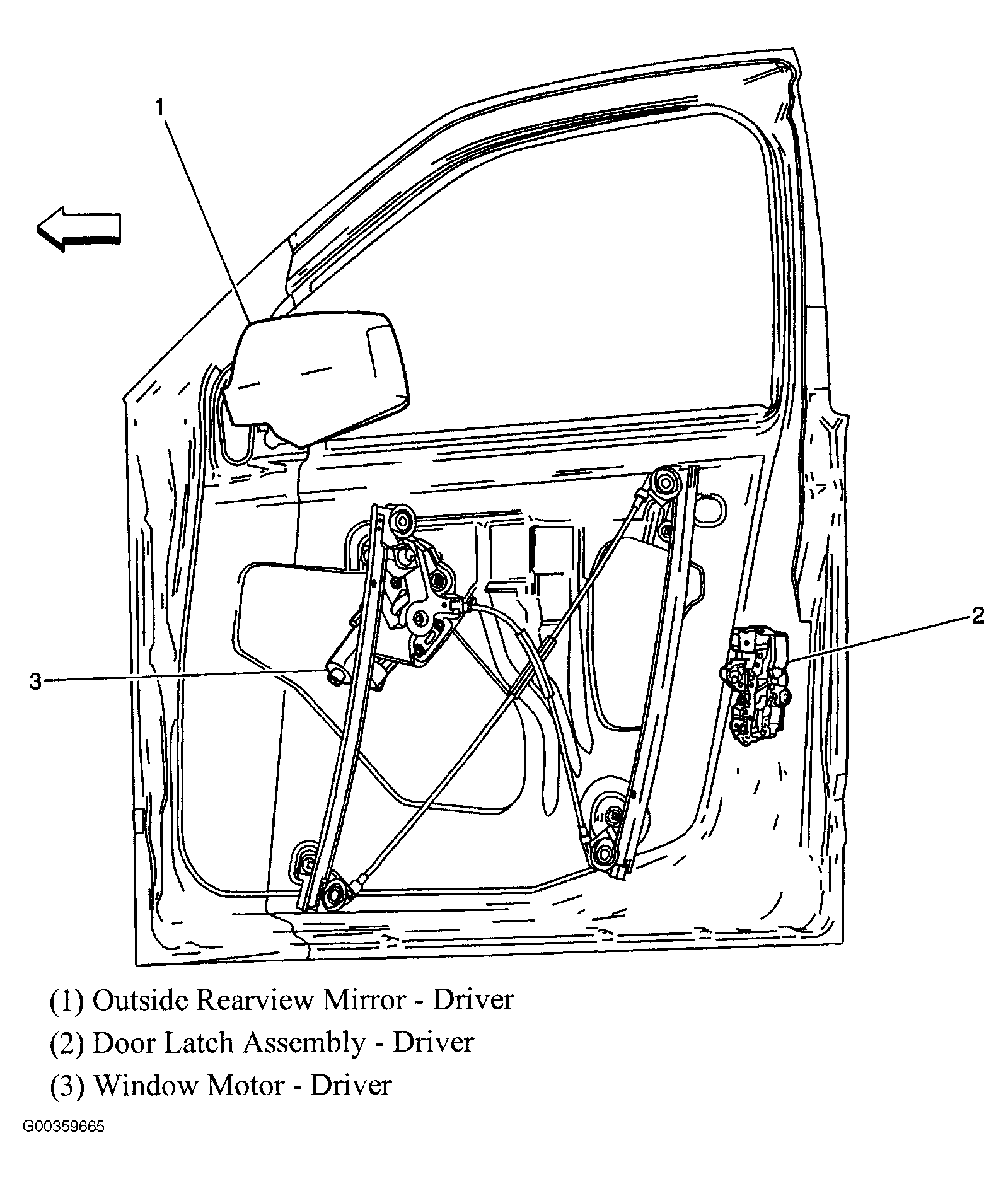

Fig 93: Driver Door
Courtesy of GENERAL MOTORS CORP.

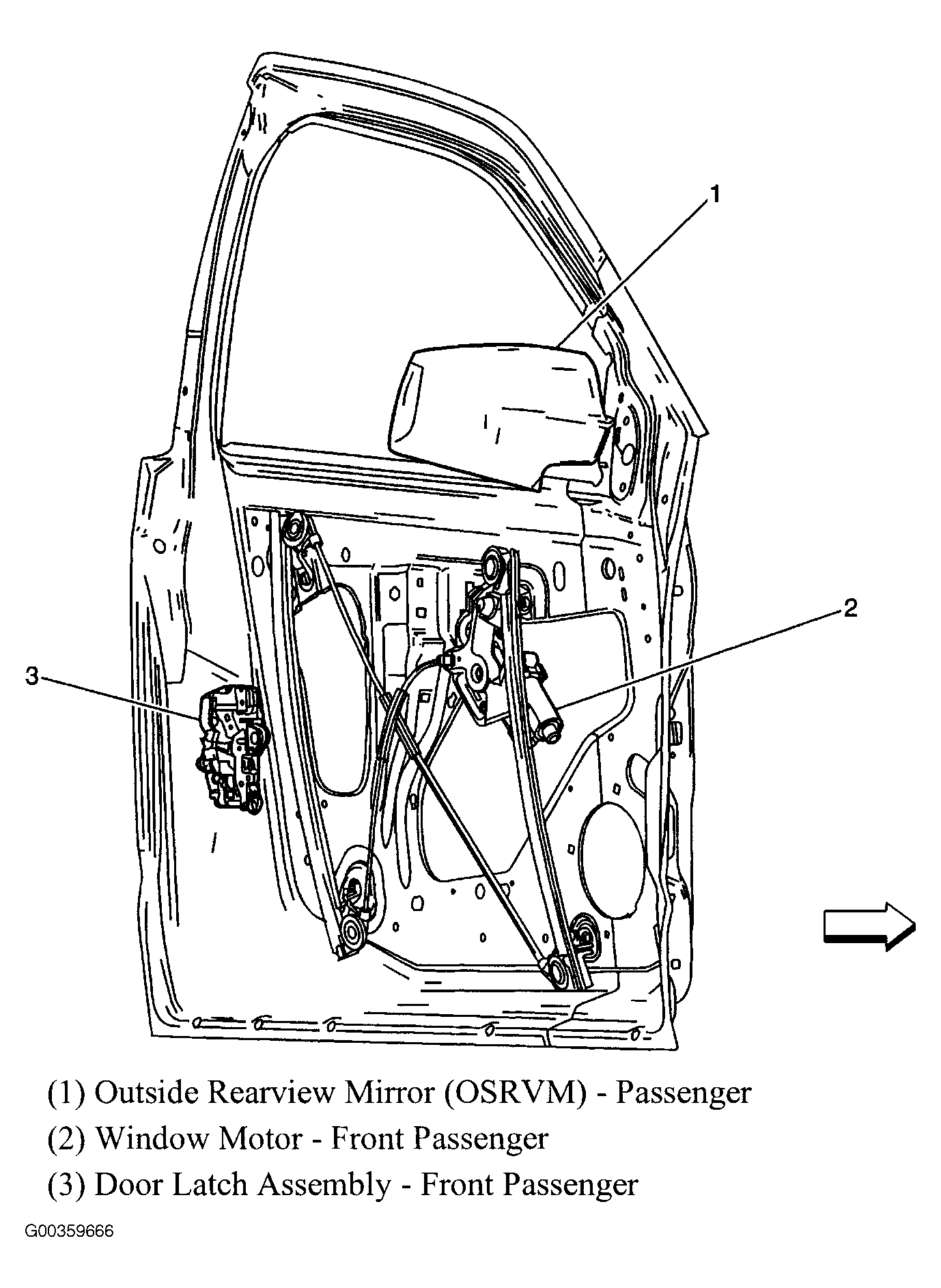

Fig 94: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 95: Antenna Components
Courtesy of GENERAL MOTORS CORP.

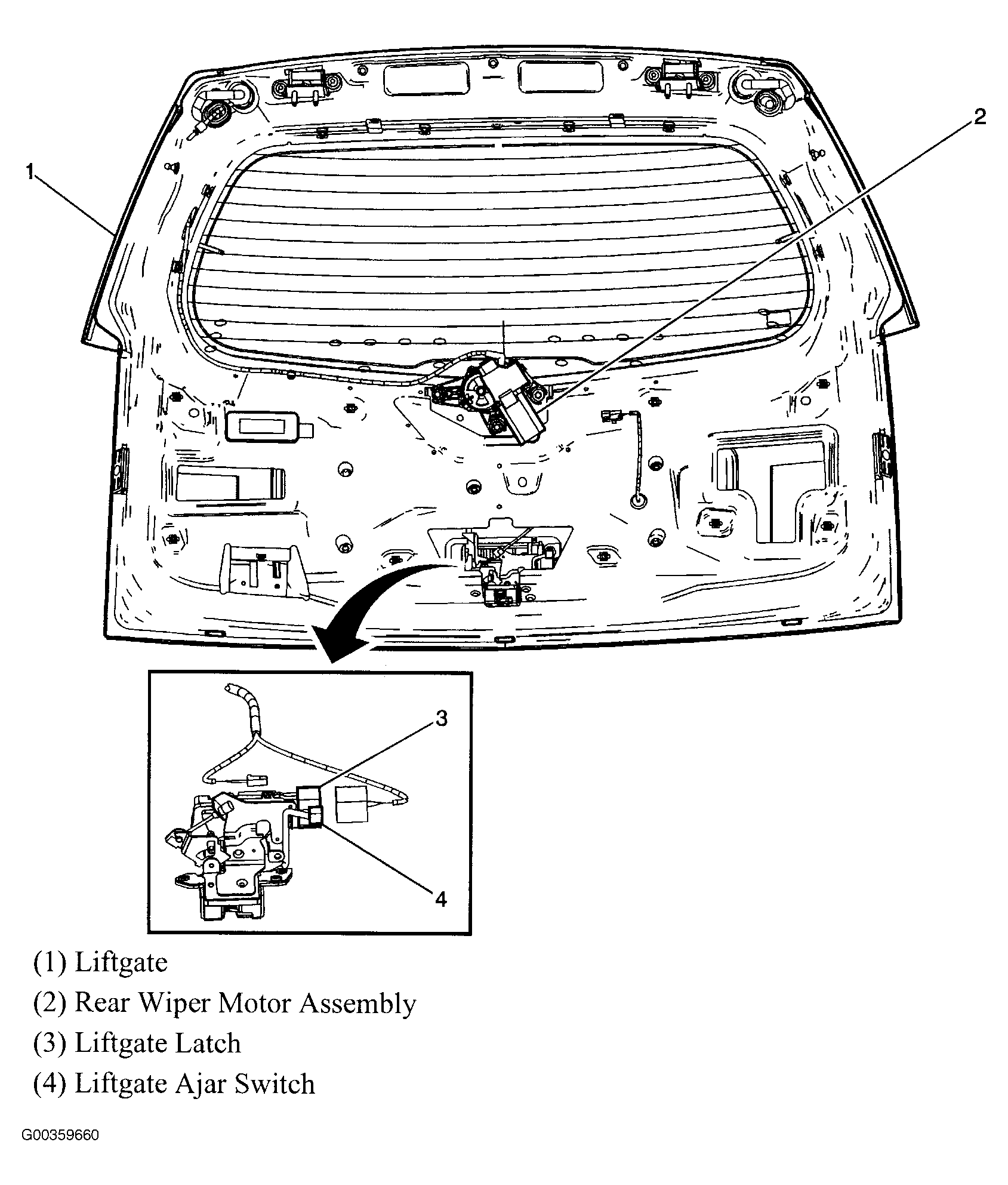

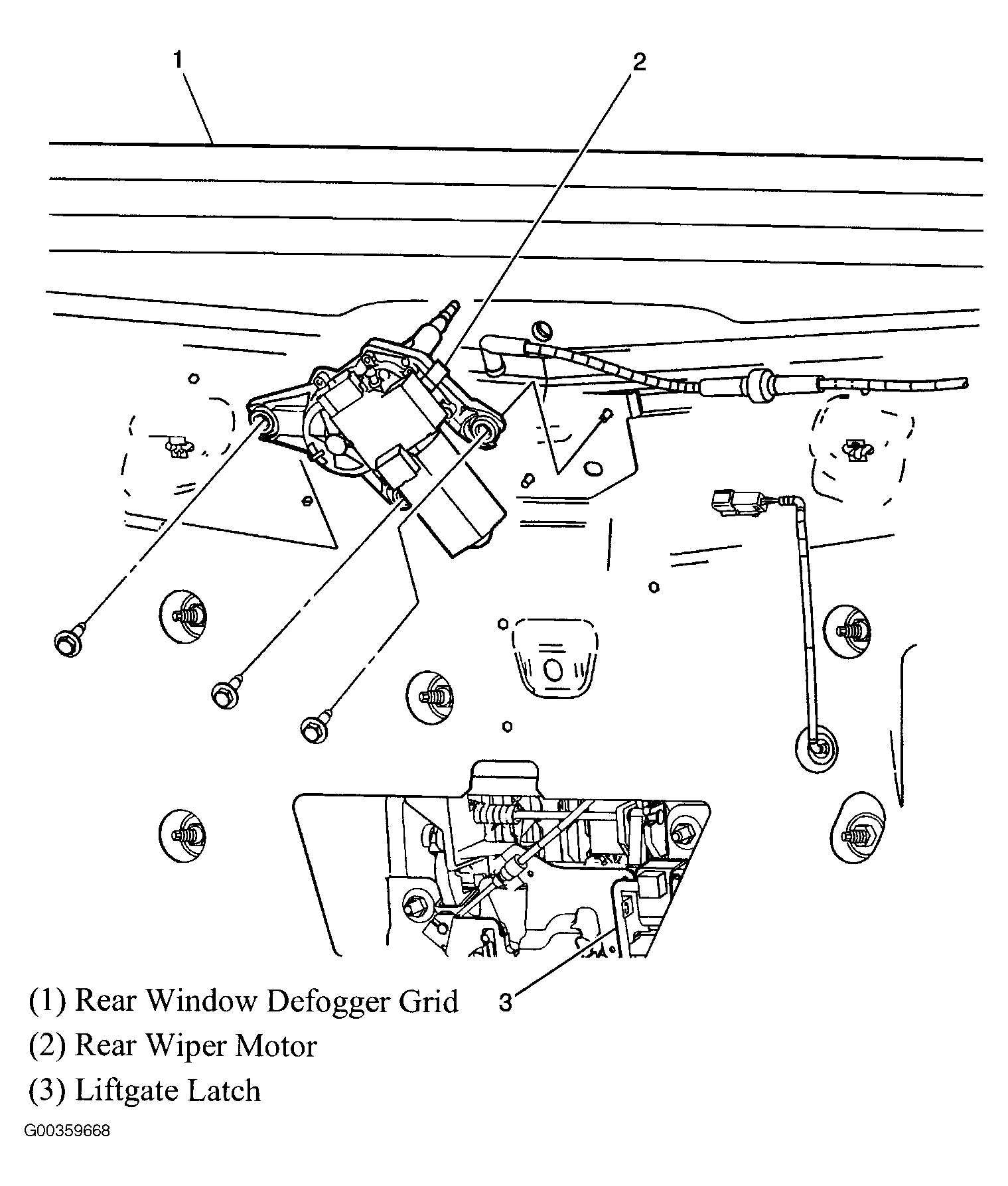

Fig 96: Center Of Liftgate
Courtesy of GENERAL MOTORS CORP.
