Engine Electrical Component Views

Fig 1: Under Intake Manifold (LH2) Component View
GM1379627Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Knock Sensor (KS) 1
2 Crankshaft Position (CKP) Sensor
3 Starter Motor
4 Knock Sensor (KS) 2

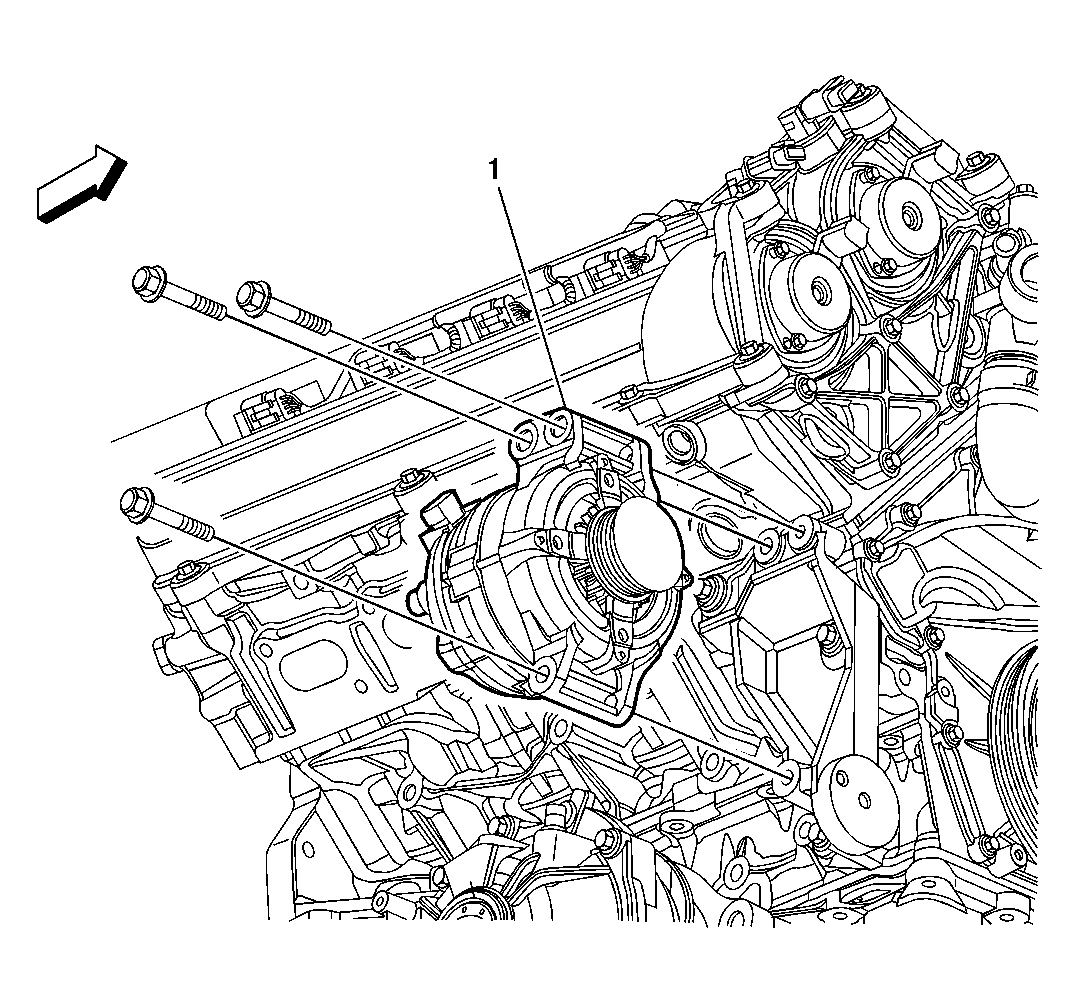

Fig 2: Right Front Side Of Engine (LH2) Component View
GM1545534Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
Fig 3: Engine Electrical Components (LY7) Component View
GM1368939Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Positive Cable
2 Starter
3 Generator
4 Battery Positive Cable
