ABS Component Views

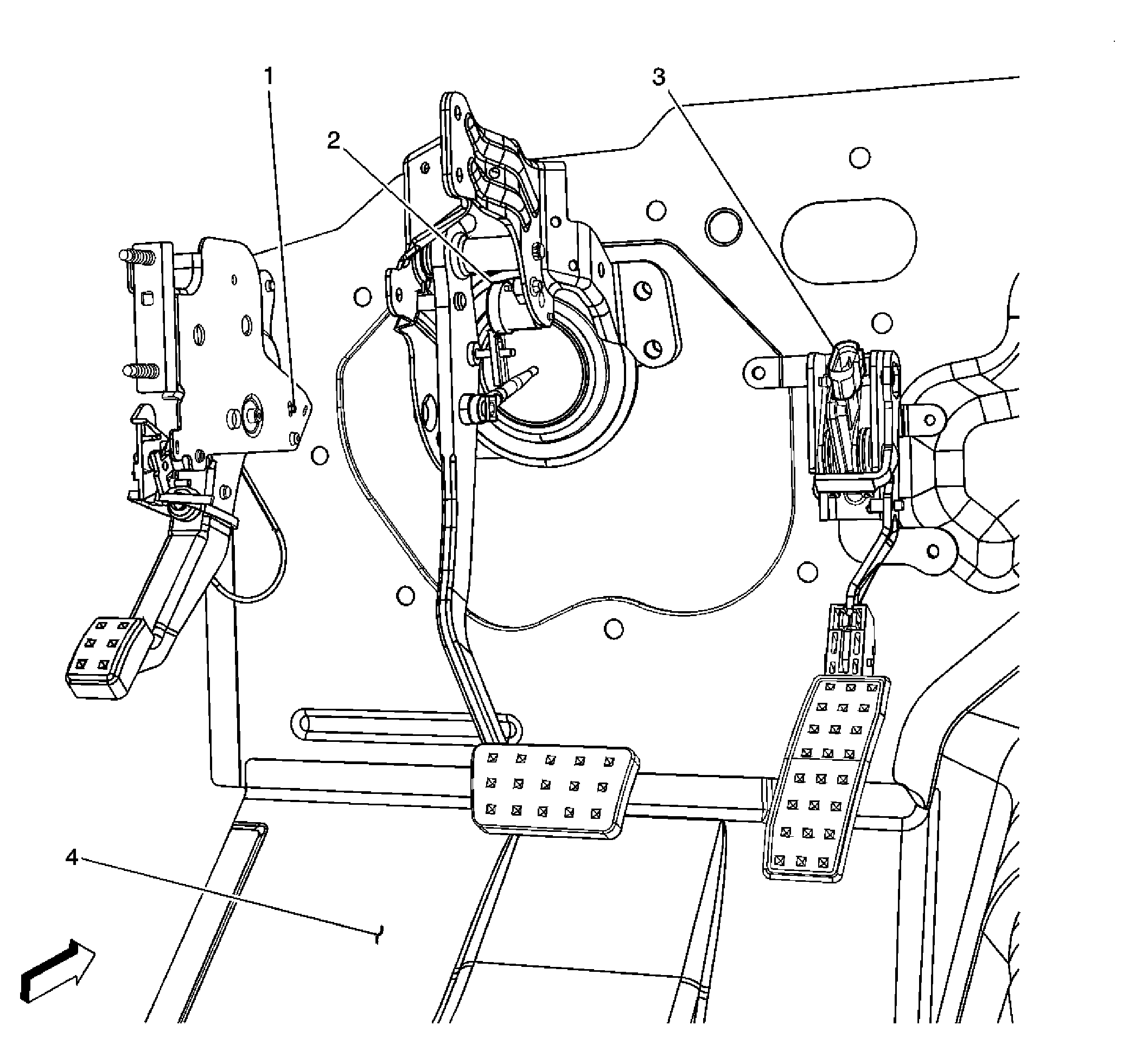

Fig 1: Pedal Switches & Sensors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor
4	Left Front Floor Panel

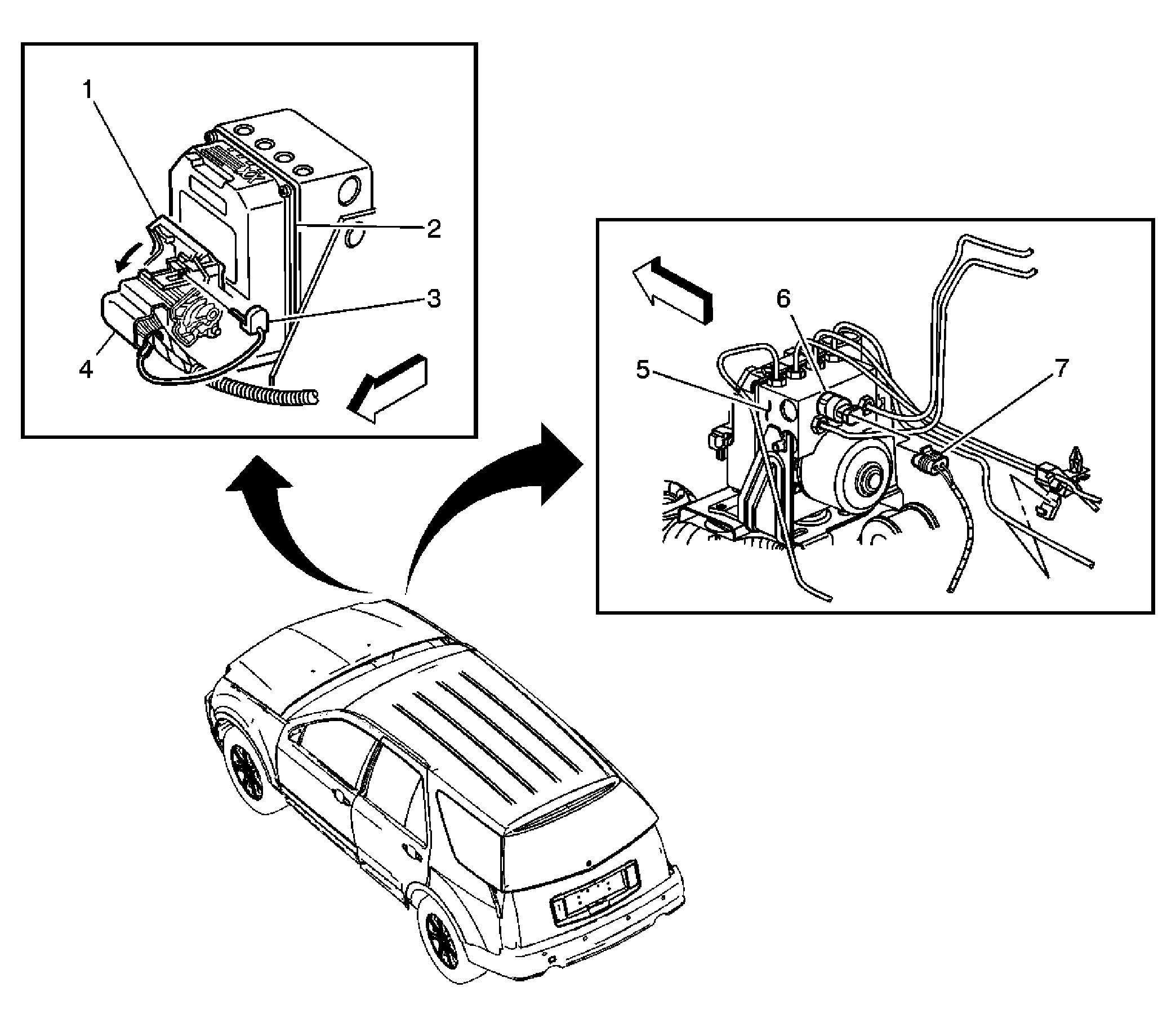

Fig 2: Right Front Of Vehicle Near Right Front Wheel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	EBCM Connector Lock
2	Electronic Brake Control Module (EBCM)
3	EBCM Connector Position Assurance Retainer
4	EBCM Connector
5	Brake Pressure Modulator Valve (BPMV)
6	Brake Fluid Pressure Sensor
7	Brake Fluid Pressure Sensor Connector

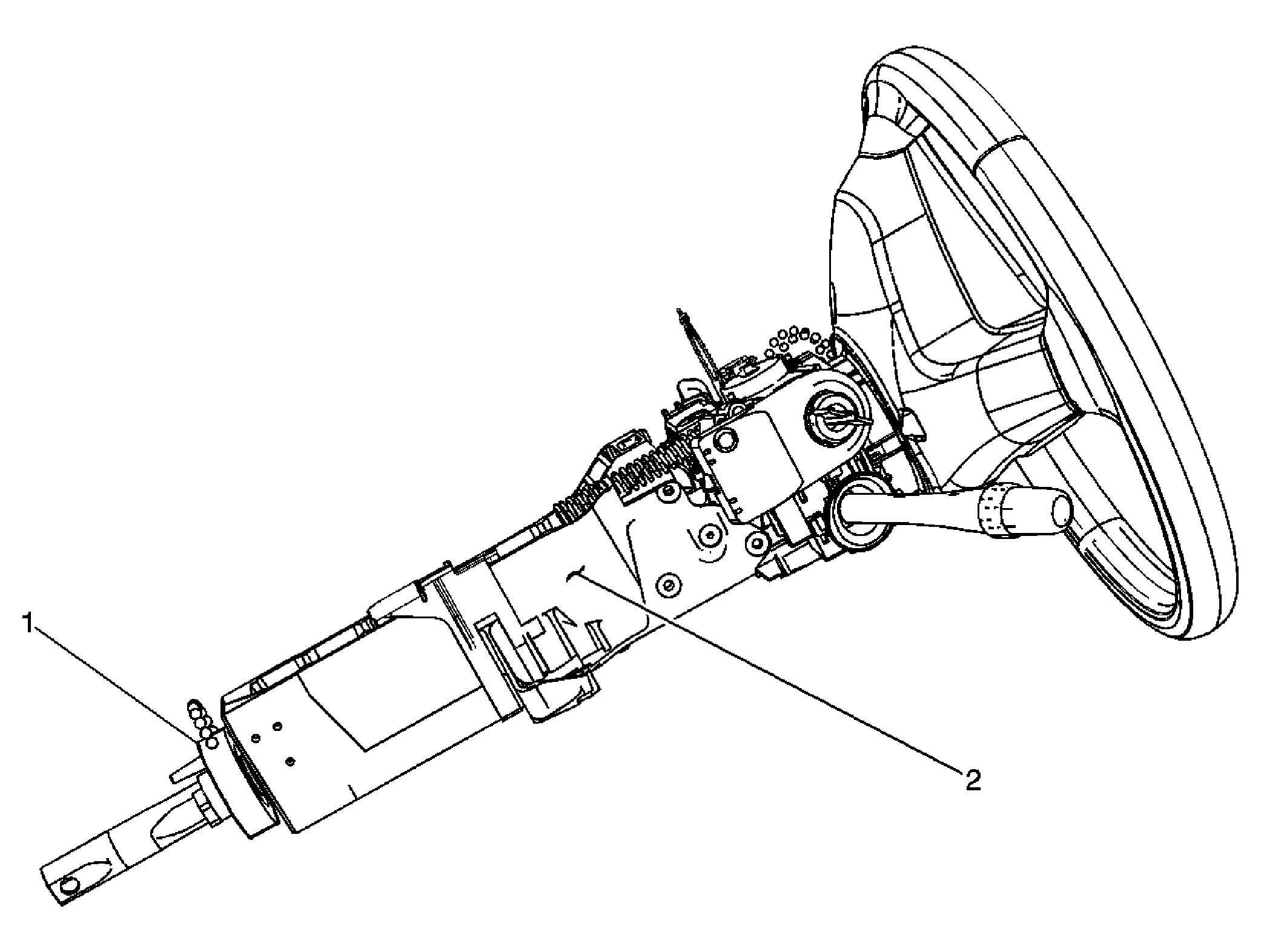

Fig 3: Steering Wheel Position Sensor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Angle Sensor
2	Steering Column

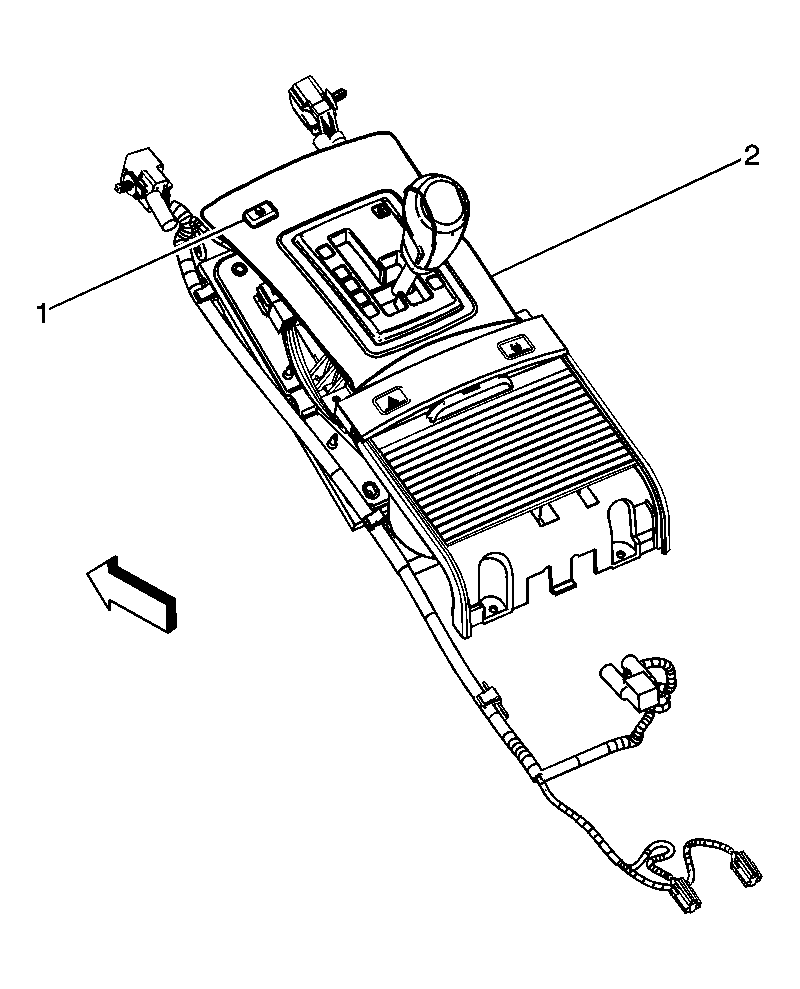

Fig 4: Traction Control Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch
2	Console

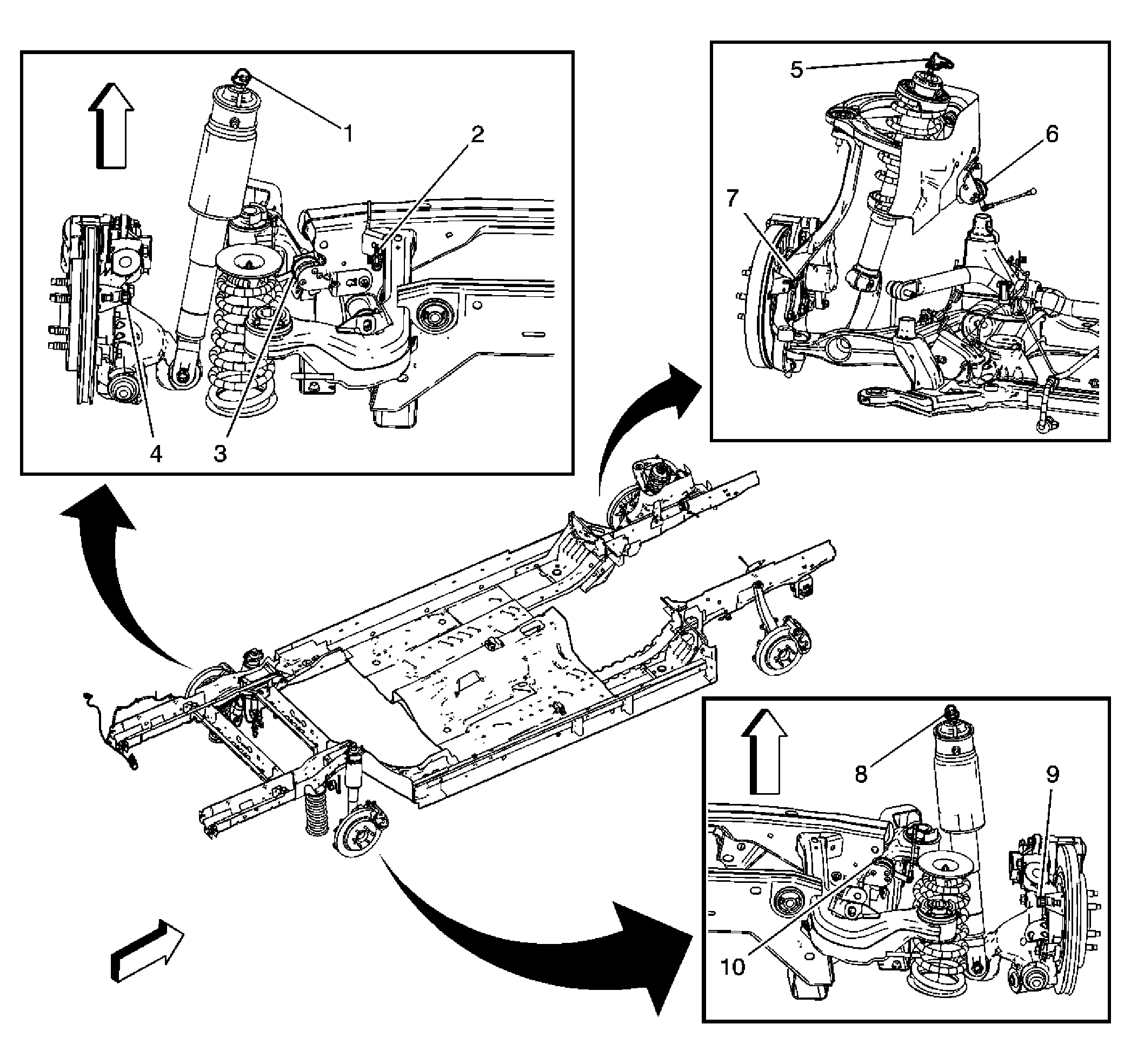

Fig 5: Wheel Speed Sensors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Damper - LR
2	Suspension Position Sensor Extension Harness Connector - LR
3	Suspension Position Sensor - LR
4	Wheel Speed Sensor (WSS) - LR
5	Suspension Damper - LF
6	Suspension Position Sensor - LF
7	Wheel Speed Sensor (WSS) - LF (RF Similar)
8	Suspension Damper - RR
9	Wheel Speed Sensor (WSS) - RR
10	Suspension Position Sensor - RR

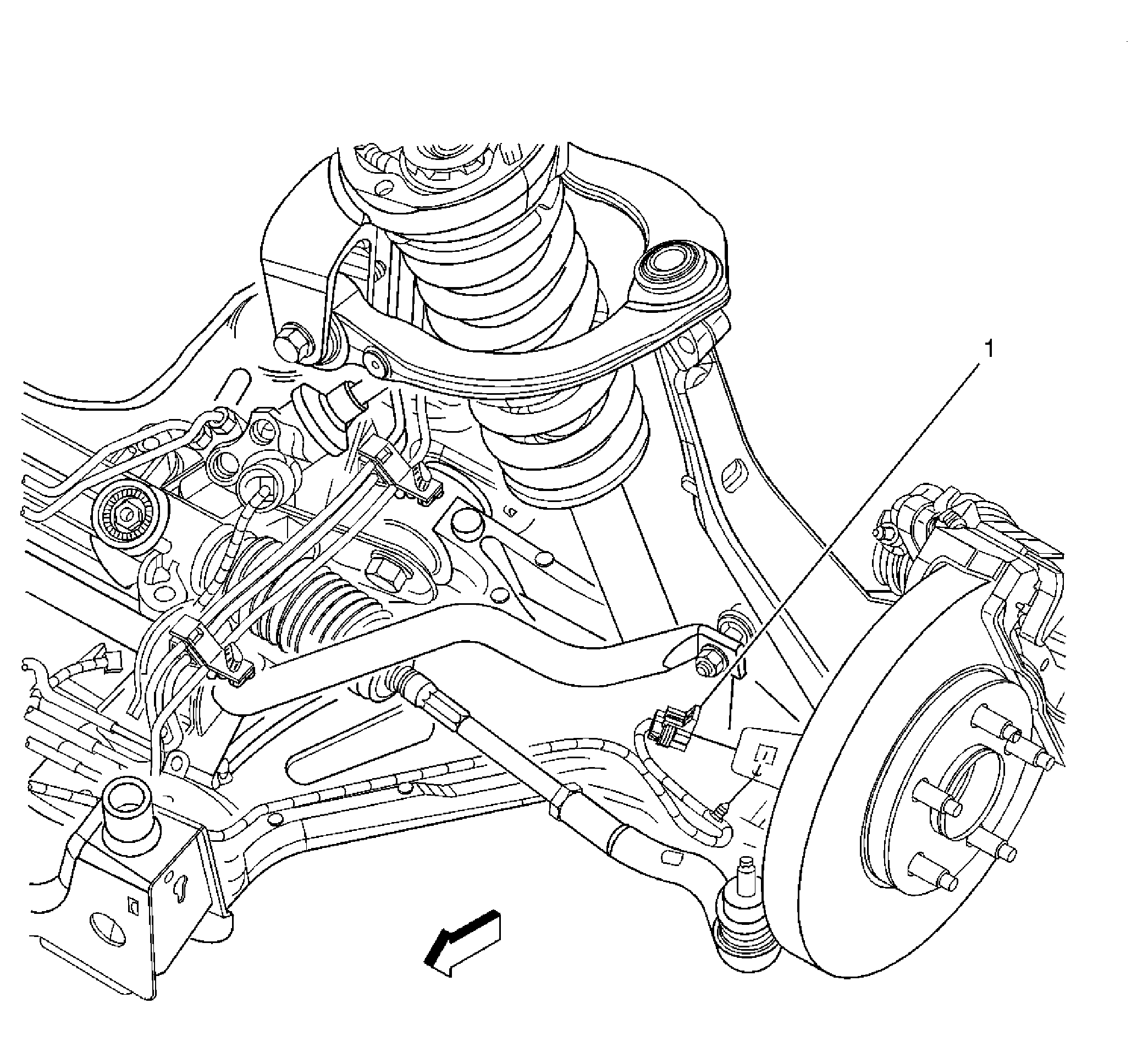

Fig 6: Left Front Of Vehicle Near Wheel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor - Left Front (Right Front Side Similar)

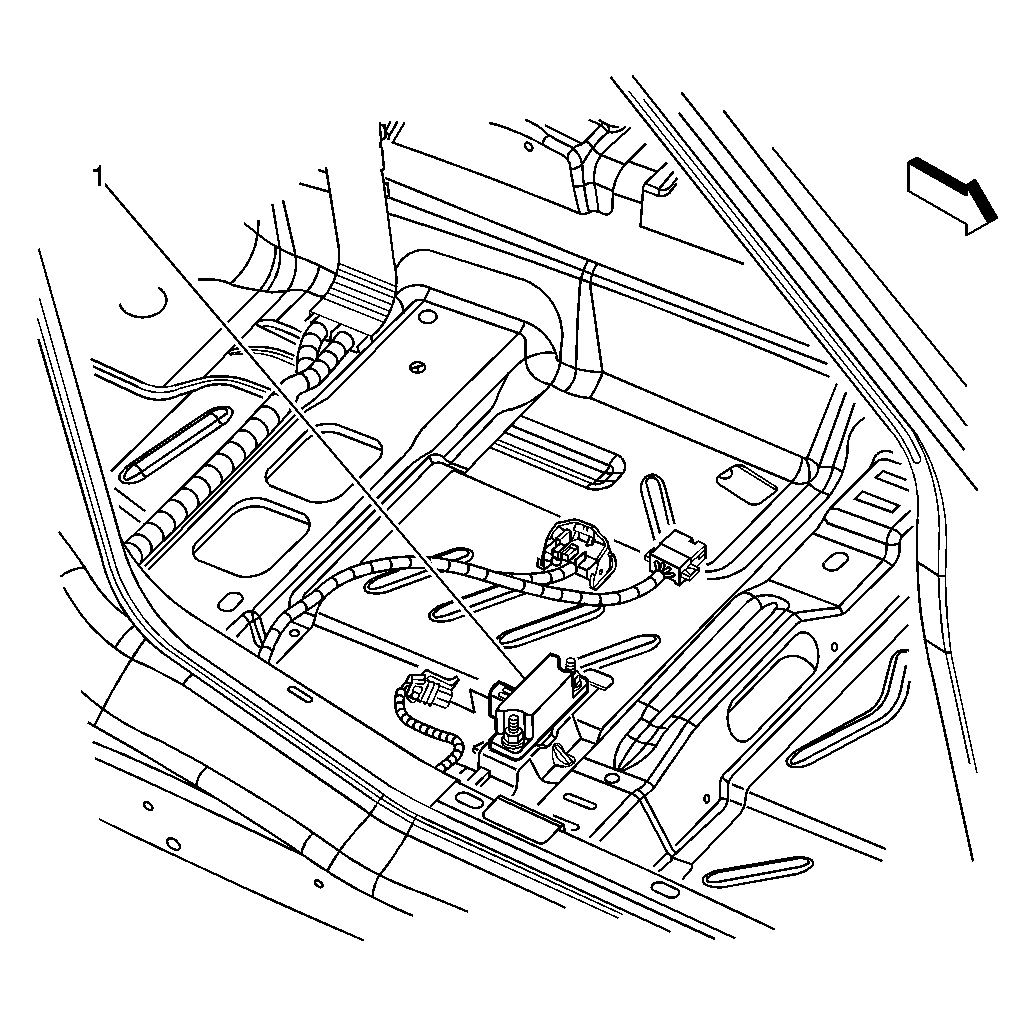

Fig 7: View Under The Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Yaw and Lateral/Longitudinal Acceleration Sensor
