Door Control Module Schematics

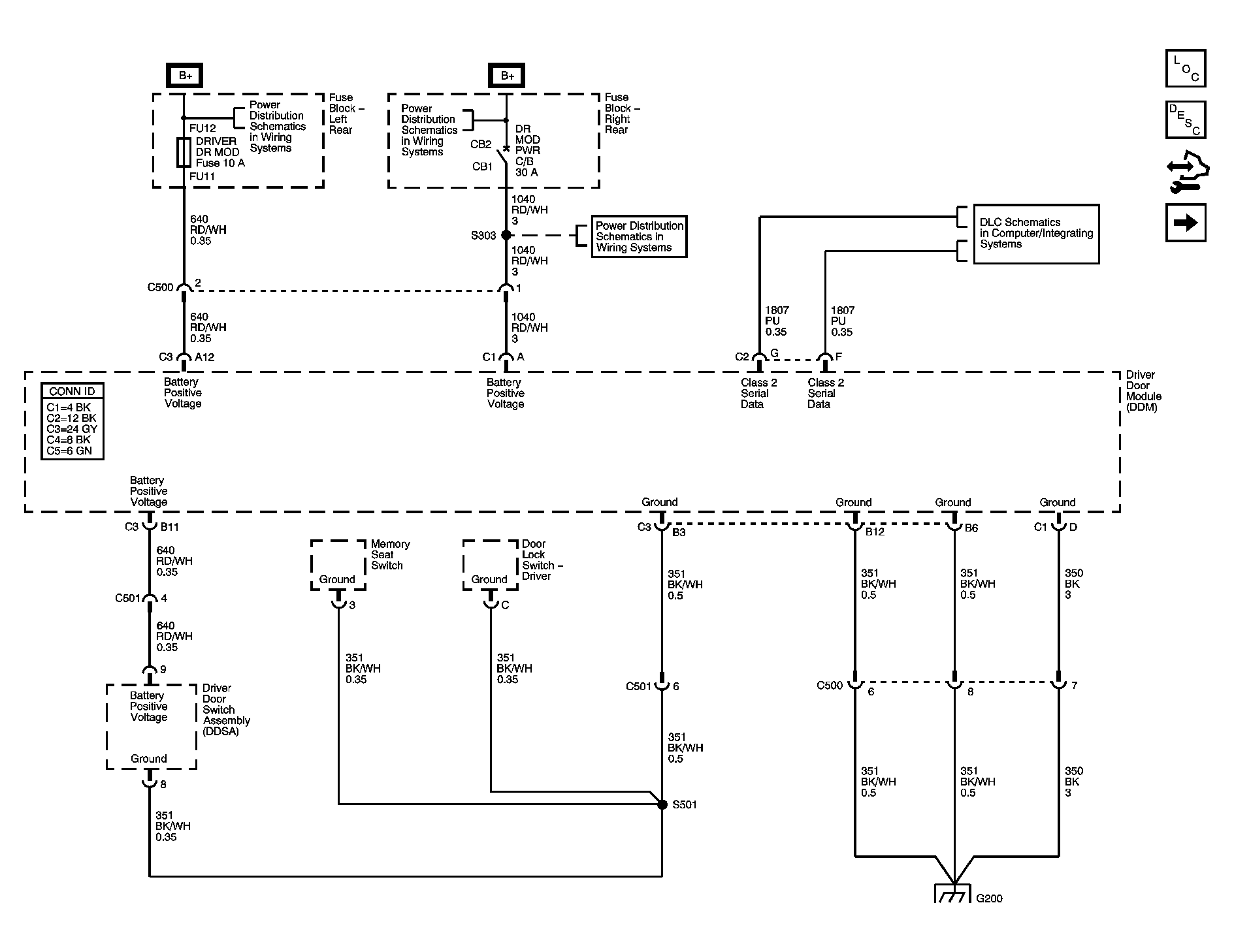

Fig 1: DDM Power, Ground and Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

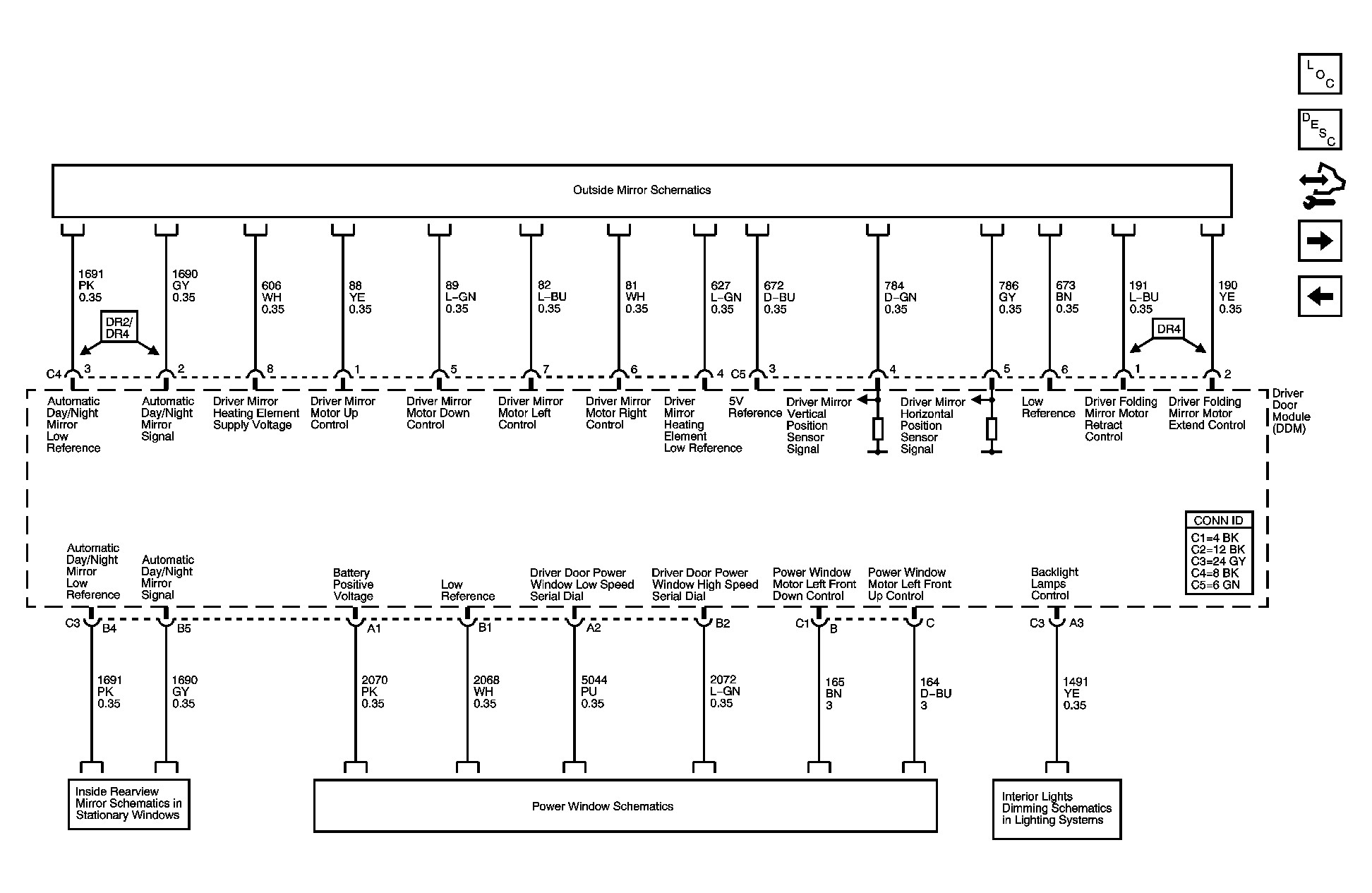

Fig 2: DDM Signals/Controls Schematics - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 3: DDM Signals/Controls Schematics - 2 of 2

Courtesy of GENERAL MOTORS CORP.

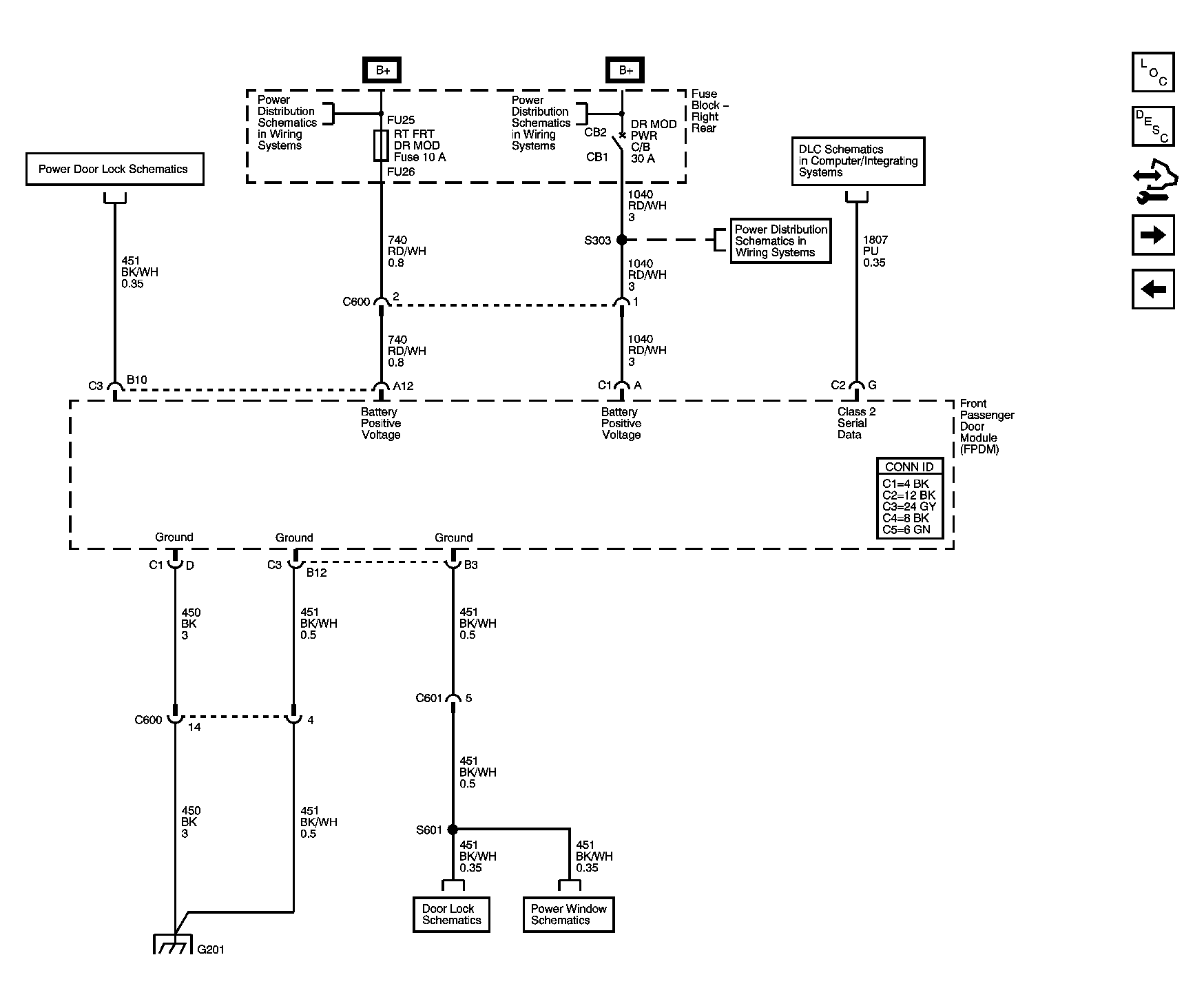

Fig 4: FPDM Power, Ground and Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

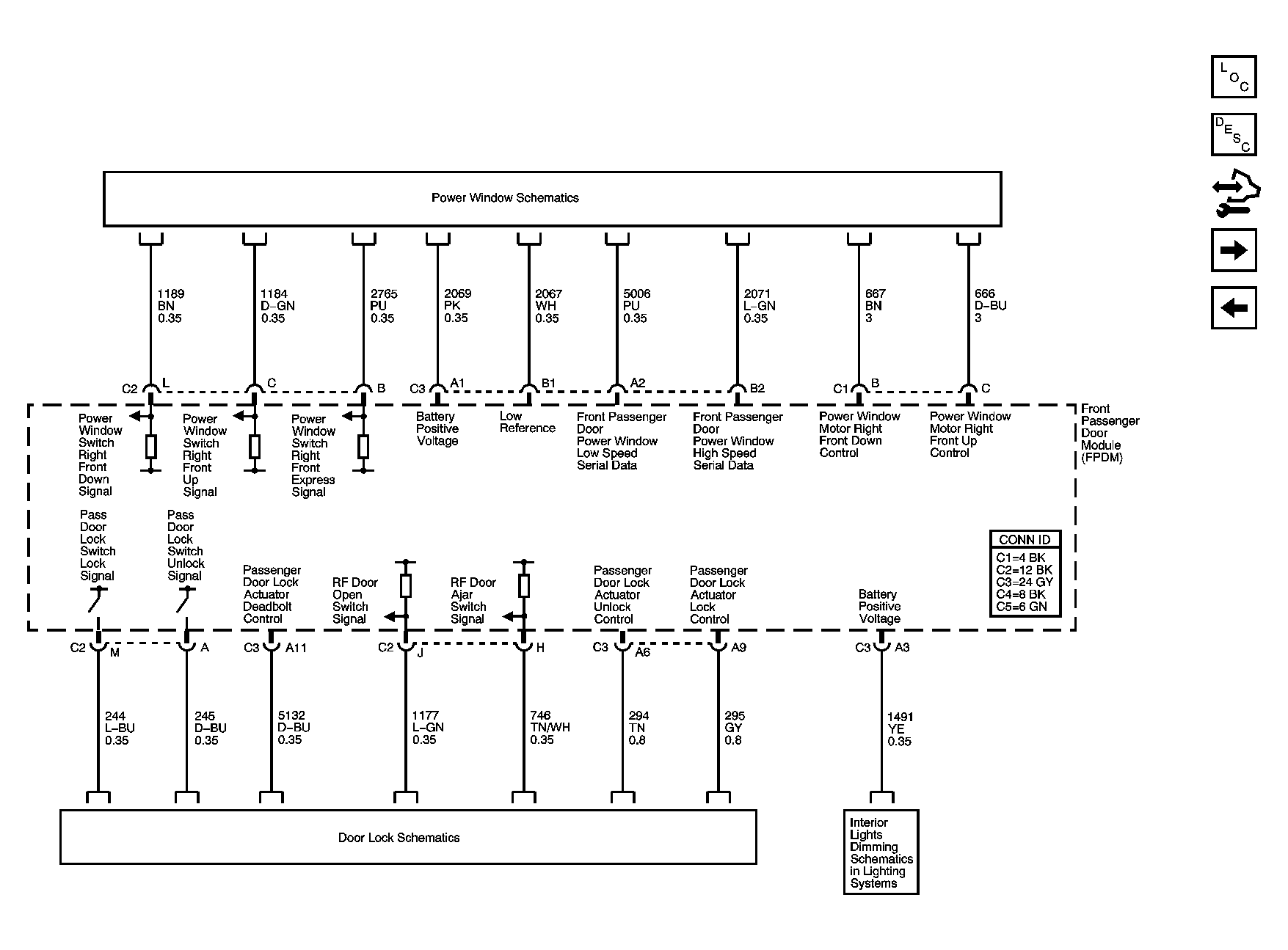

Fig 5: FPDM Signals/Controls Schematics - 1 of 2

Courtesy of GENERAL MOTORS CORP.

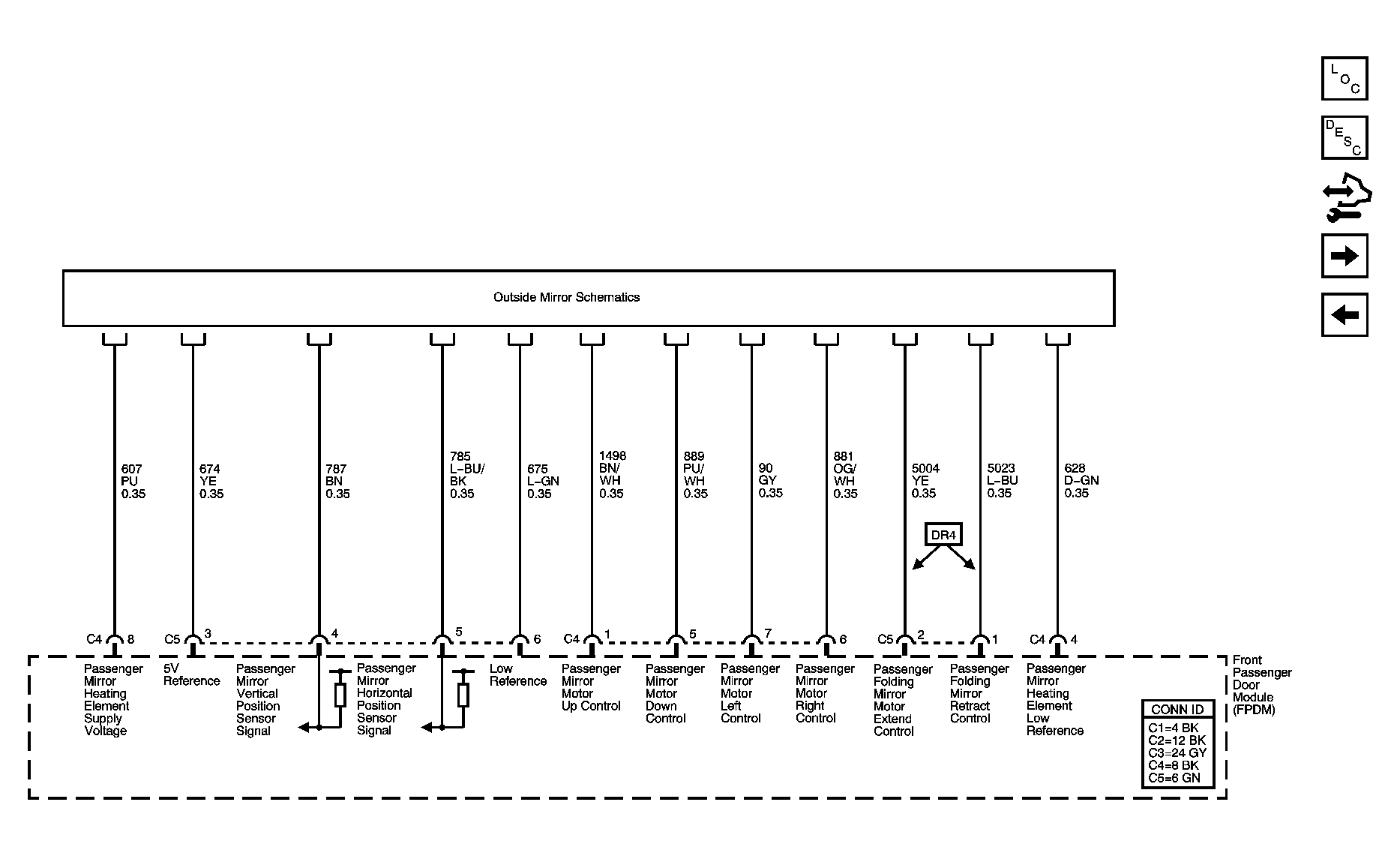

Fig 6: FPDM Signals/Controls Schematics - 2 of 2

Courtesy of GENERAL MOTORS CORP.

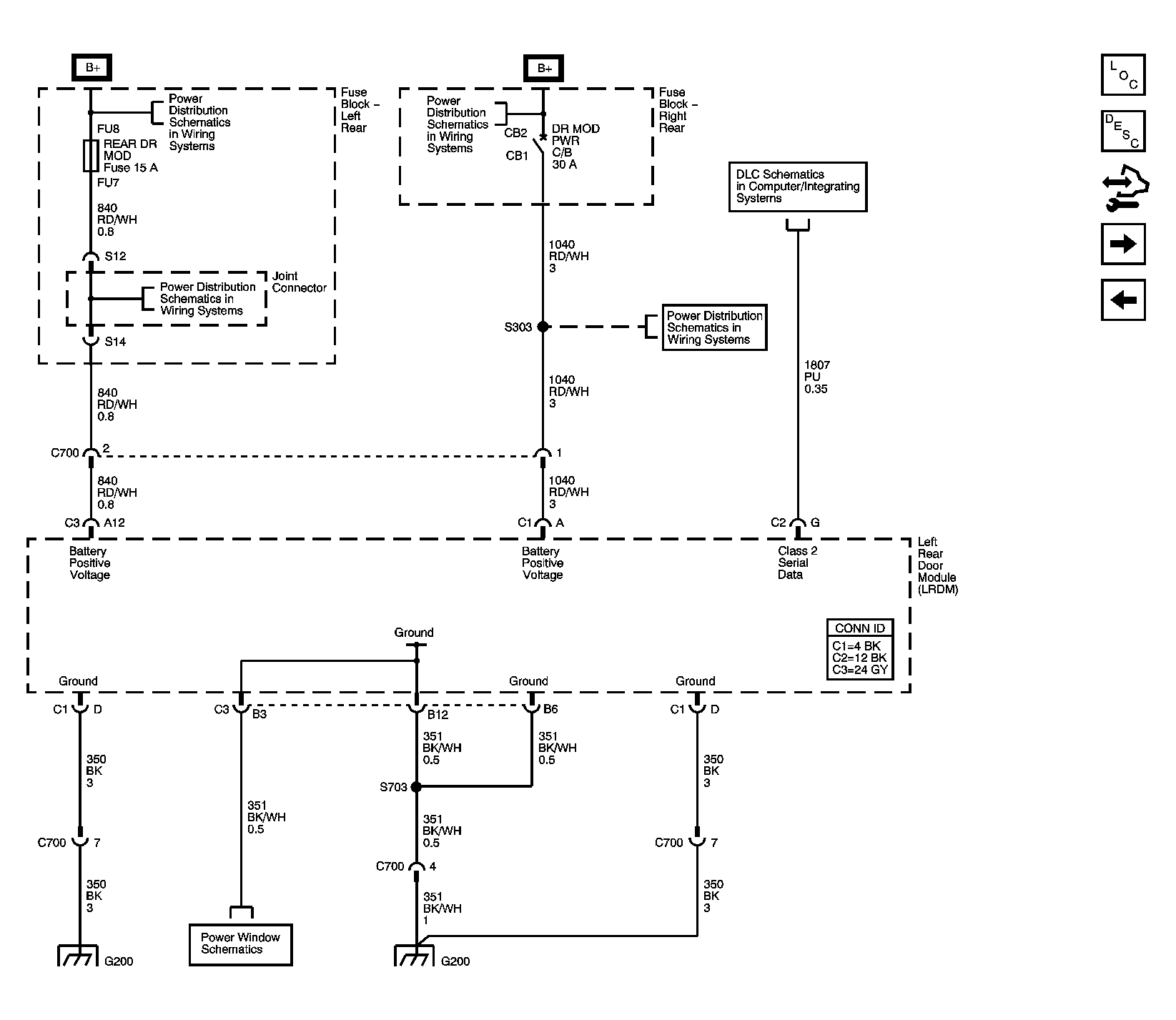

Fig 7: LRDM Power, Ground and Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

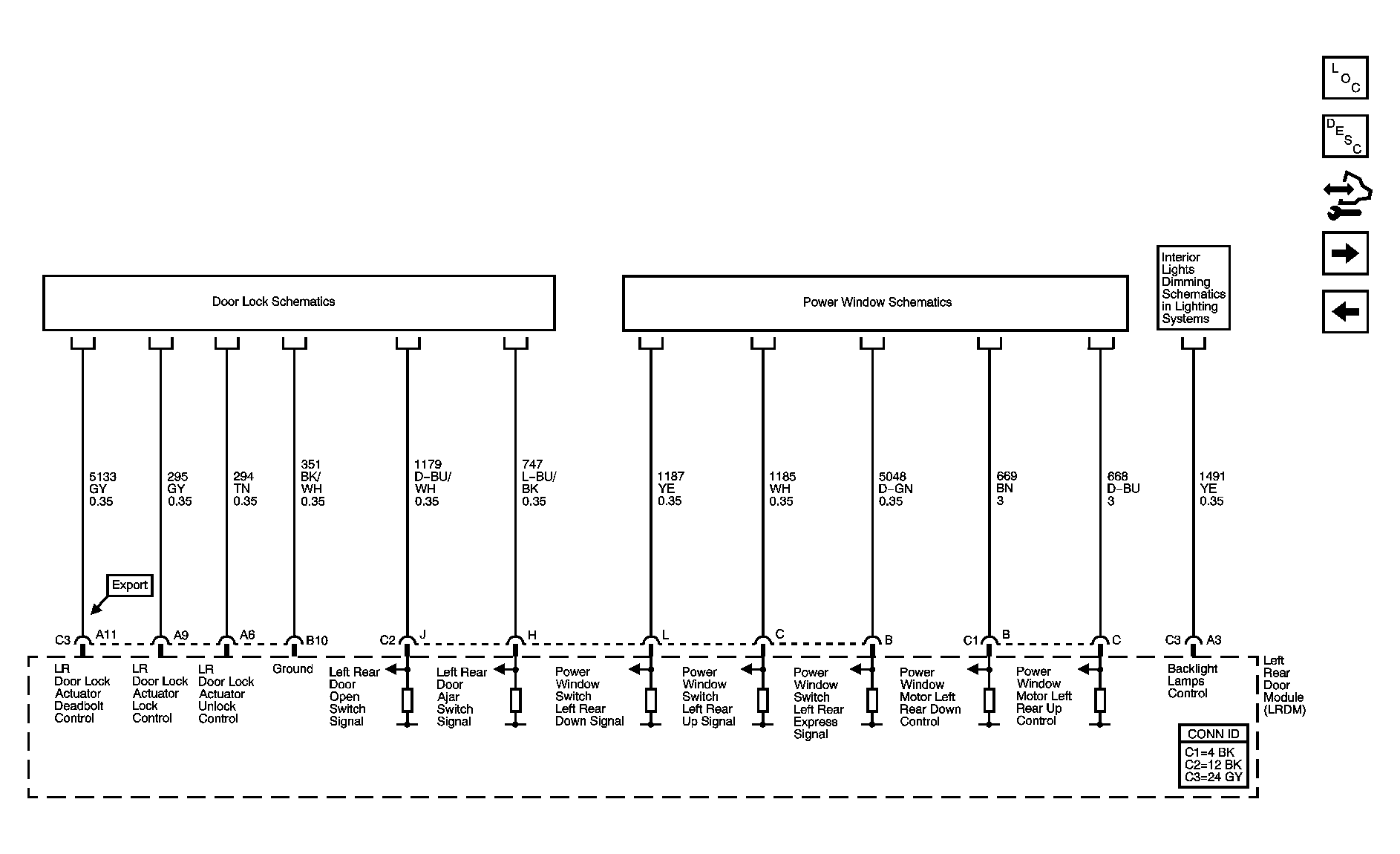

Fig 8: LRDM Signals/Controls Schematics

Courtesy of GENERAL MOTORS CORP.

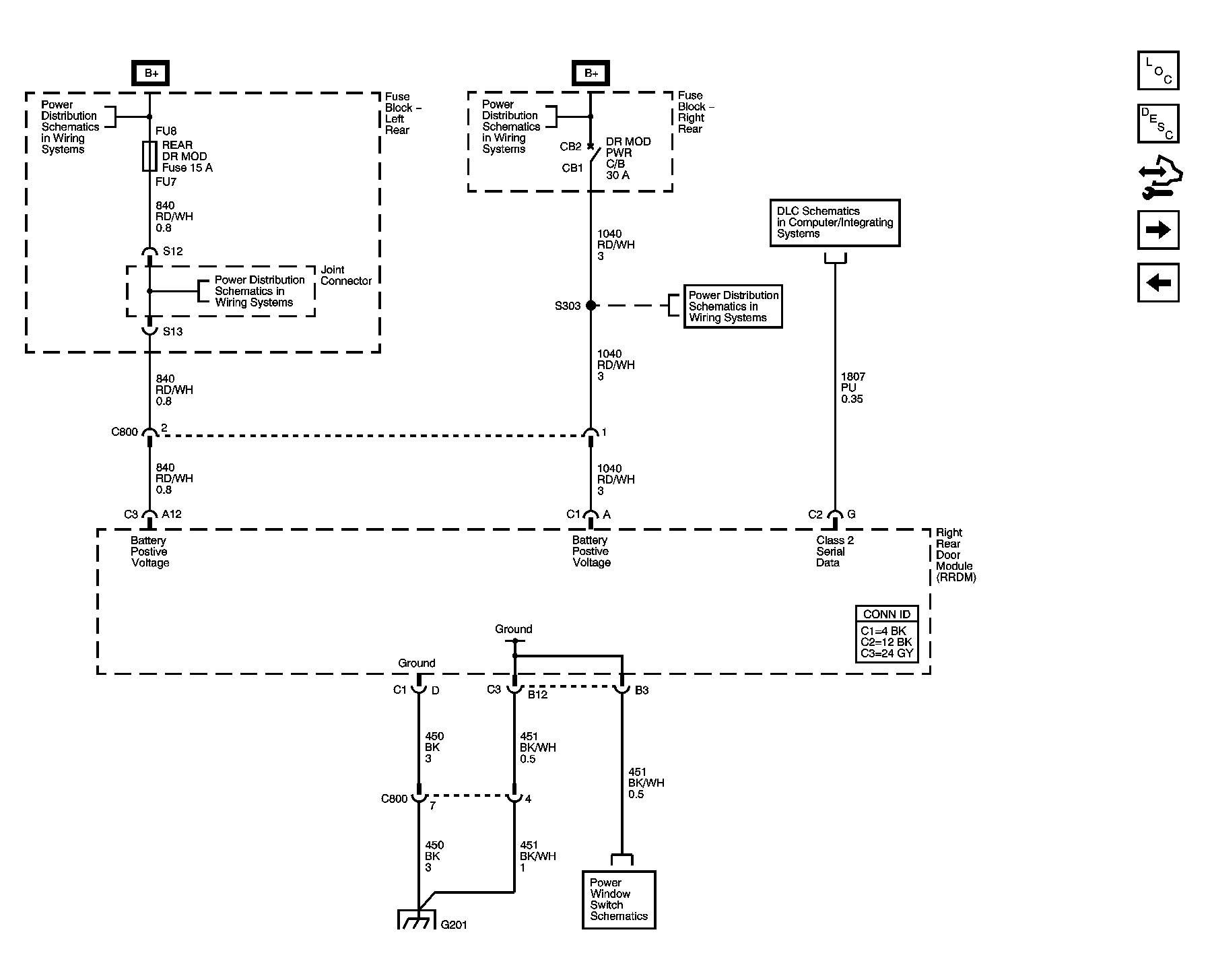

Fig 9: RRDM Power, Ground and Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

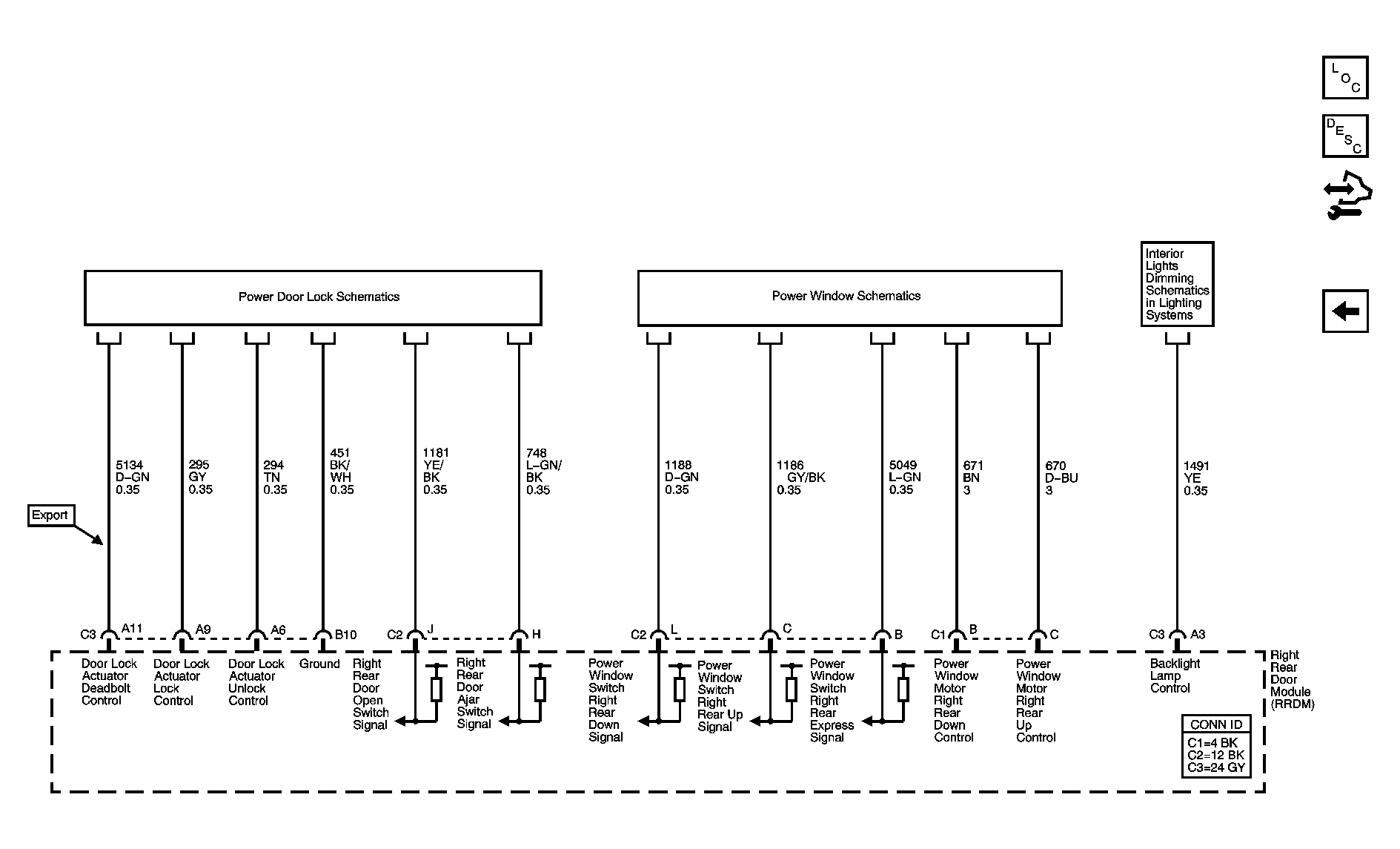

Fig 10: RRDM Signals/Controls Schematics

Courtesy of GENERAL MOTORS CORP.
