Power Door Systems Component Views

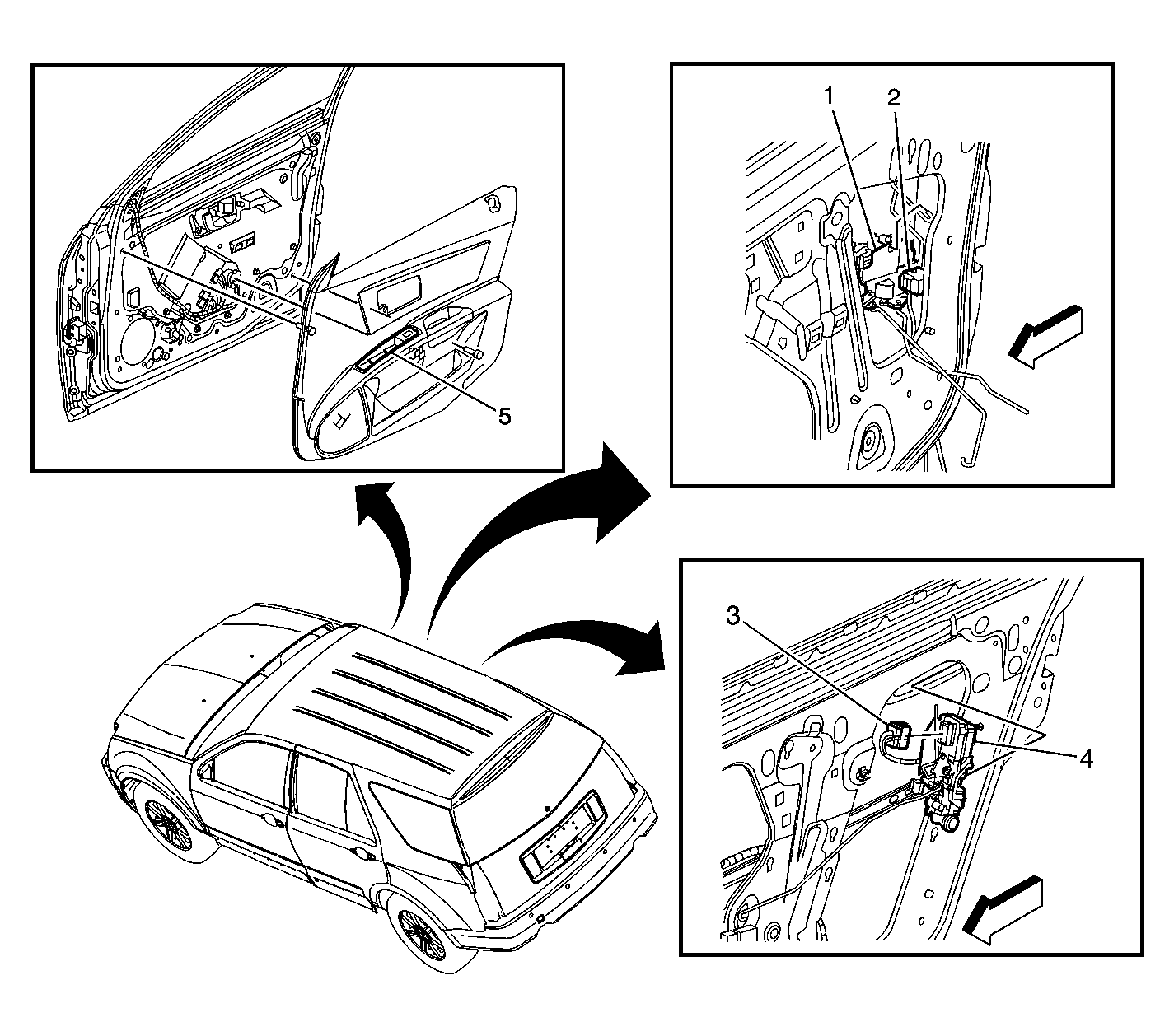

Fig 1: Right Doors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Front Passenger, Driver Similar
2	Door Latch Assembly - Front Passenger Connector
3	Door Latch Assembly - RR Connector
4	Door Latch Assembly - RR, LR Similar
5	Window Switch - Front Passenger

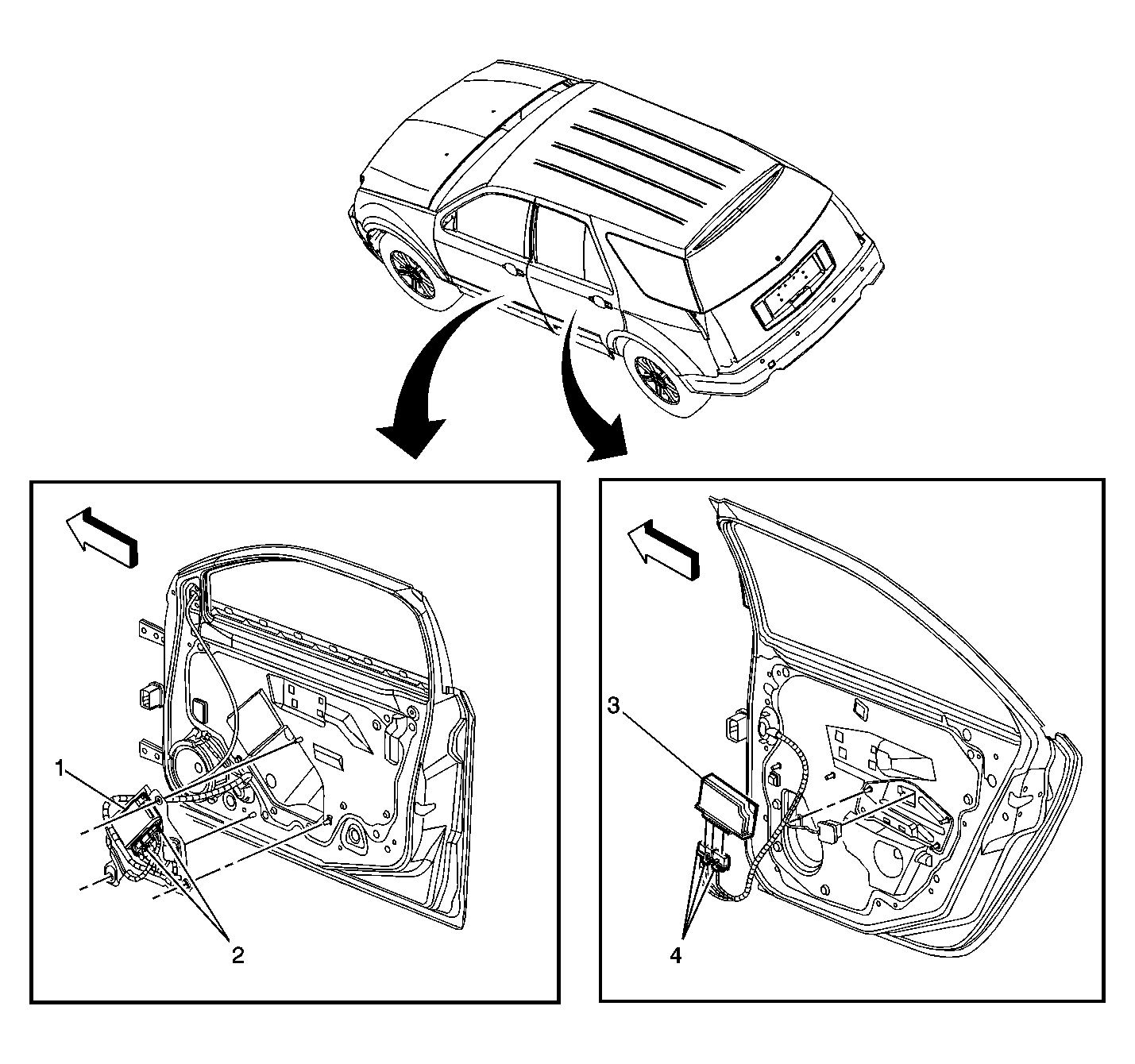

Fig 2: Right Door Modules Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front Door Module (RFDM) - LFDM Similar
2	RFDM Connectors - LFDM Similar
3	Right Rear Door Module (RRDM) - LRDM Similar
4	RRDM Connectors - LRDM Similar

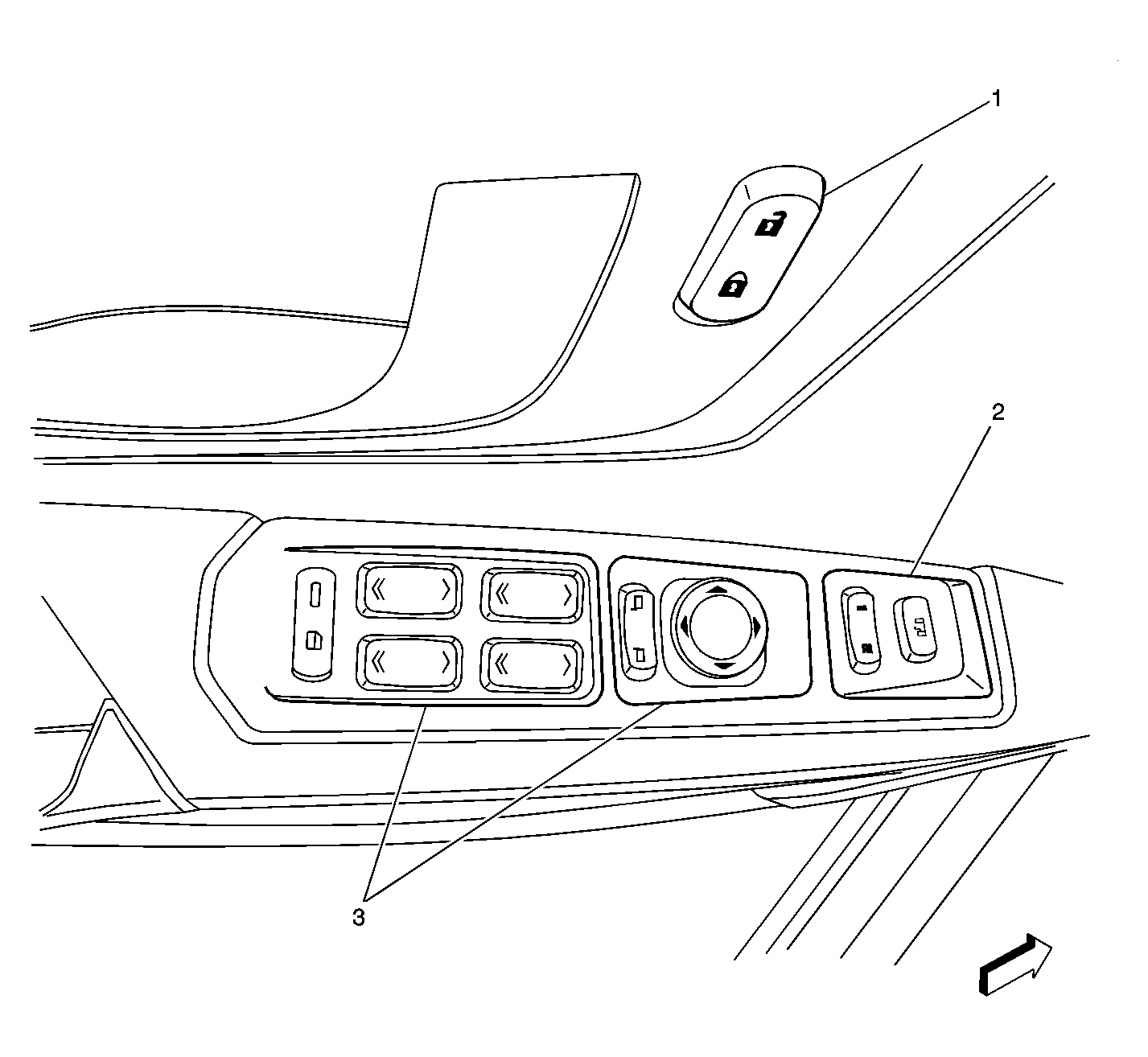

Fig 3: Driver Door Switches Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver, Passenger Similar
2	Memory Seat Switch (A45)
3	Driver Door Switch Assembly (DDSA)

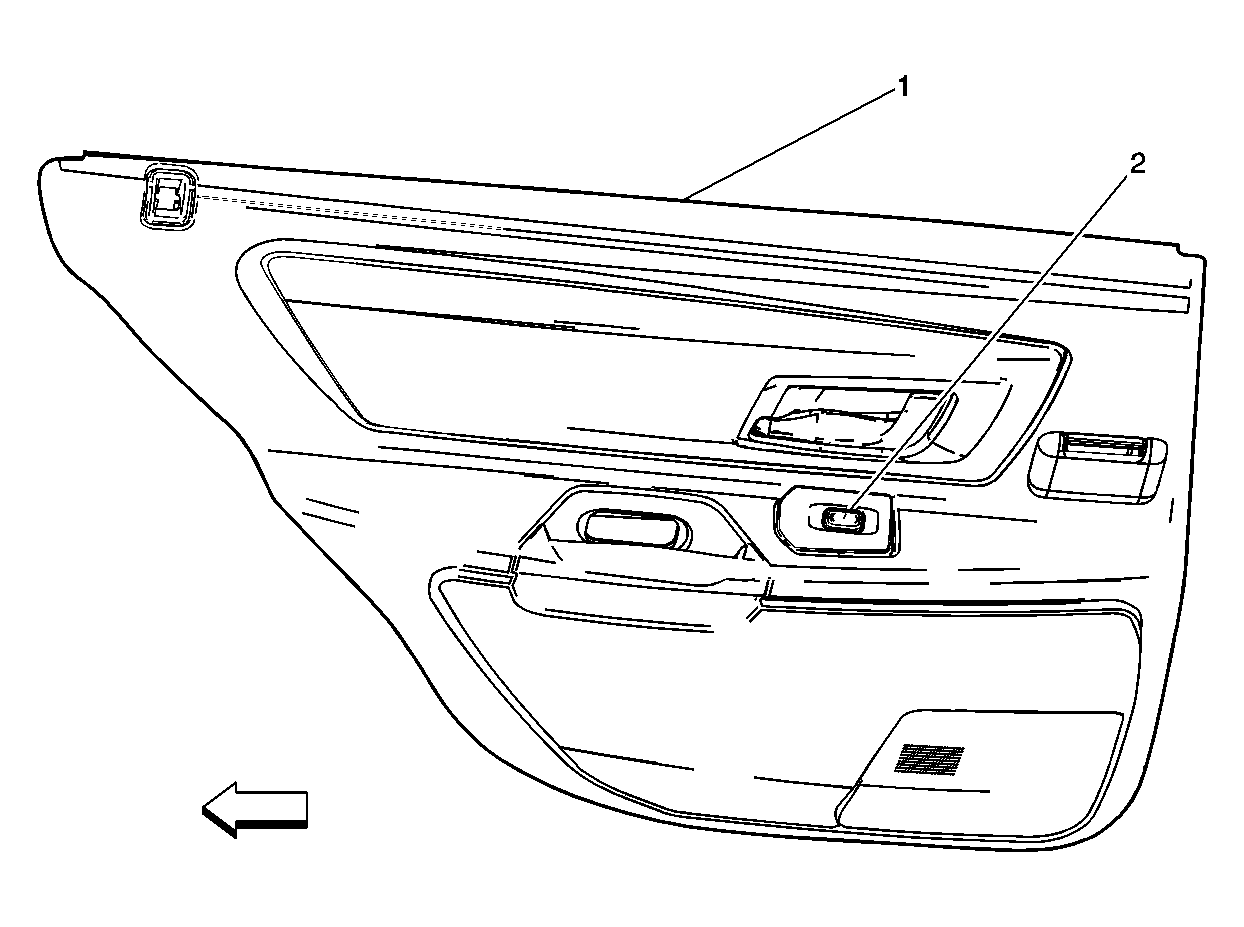

Fig 4: Window Switch Component View - LR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door - LR
2	Window Switch - LR, RR Similar

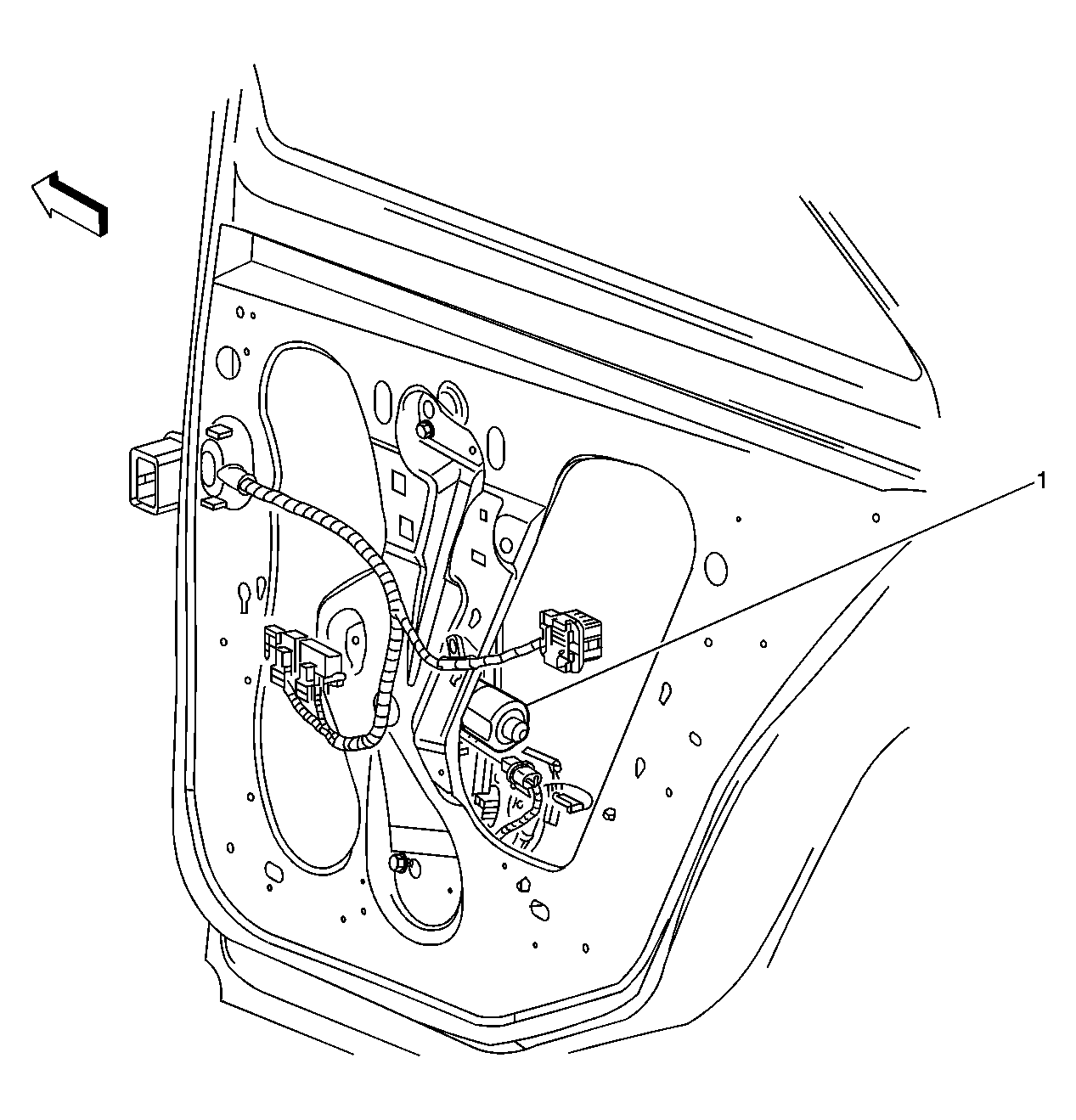

Fig 5: Window Motor Component View - LR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - LR, RR Similar

Fig 6: Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror (OSRVM) - Passenger
2	Window Motor - Front Passenger
3	Door Latch Assembly - Front Passenger

Fig 7: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Door Latch Assembly - Driver
3	Window Motor - Driver

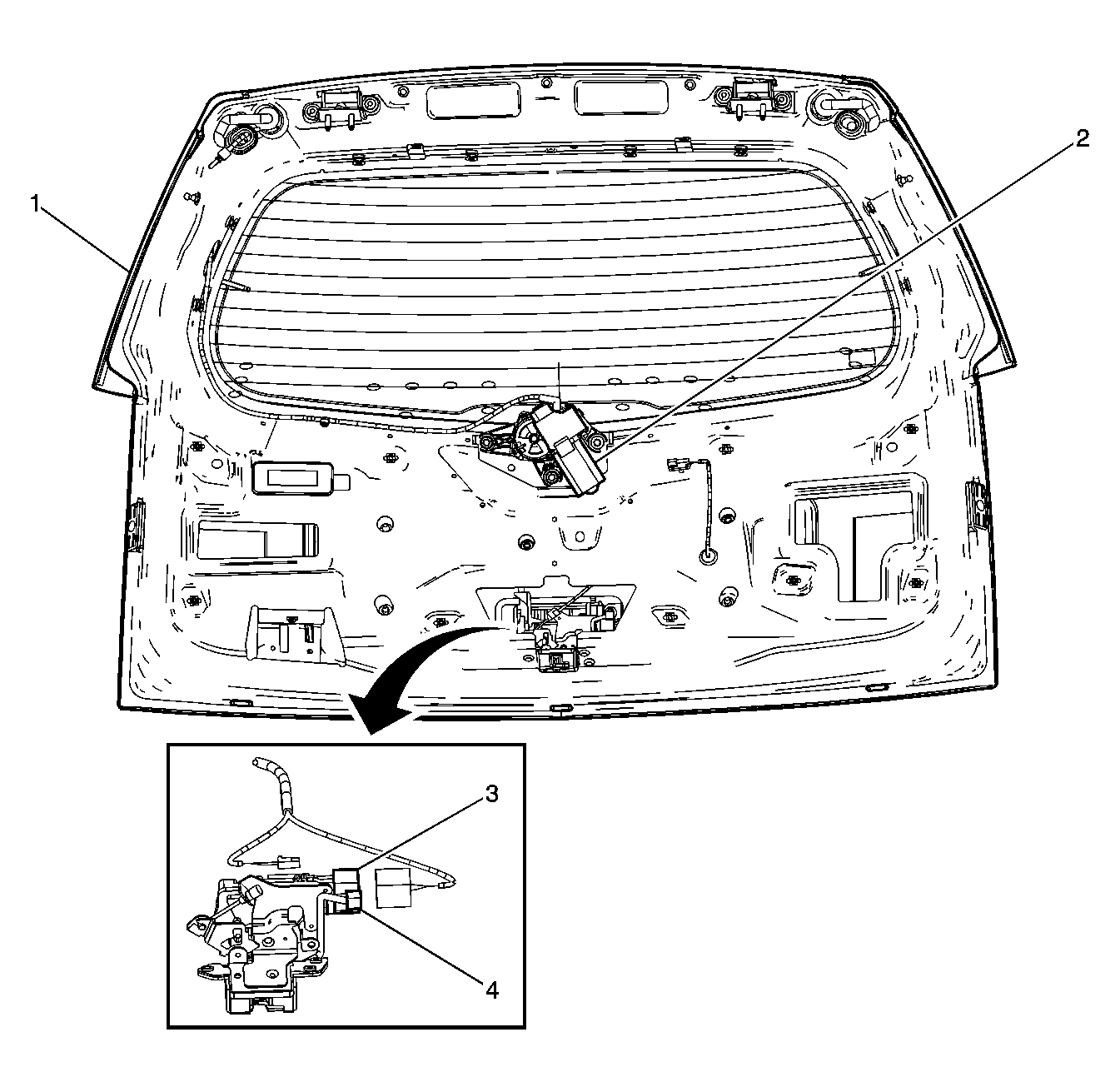

Fig 8: Liftgate Latch Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Rear Of Vehicle Behind Trim Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Integration Module (RIM)
2	Digital Radio Receiver (U2K)
3	Vehicle Communication Interface Module (VCIM) (UE1)
4	Suspension Control Module (F55)
5	Liftgate Lock/Unlock Relay
