Engine Coolant Temperature (ECT) Sensor Connector End View

Engine Coolant Temperature (ECT) Sensor

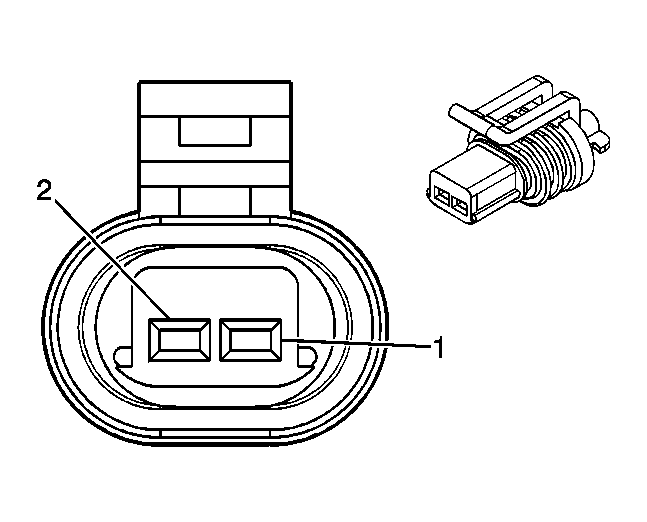

GM666646Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336024
  • 2-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 BK 407 Low Reference
2 YE 410 ECT Sensor Signal
