Automatic Level Control (ALC) Air Compressor Connector End View

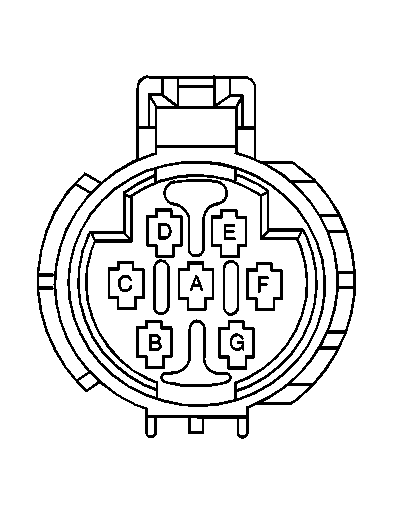

Automatic Level Control (ALC) Air Compressor

GM479413Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110751
  • 7-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A L BU 1112 Damping Relay Coil Control
B D BU 2249 Exhaust Solenoid Control
C BK 407 Low Reference
D TN 2252 Pressure Sensor Signal
E GY 416 5-Volt Reference
F OG 2440 Battery Positive Voltage
G BK 1750 Ground
