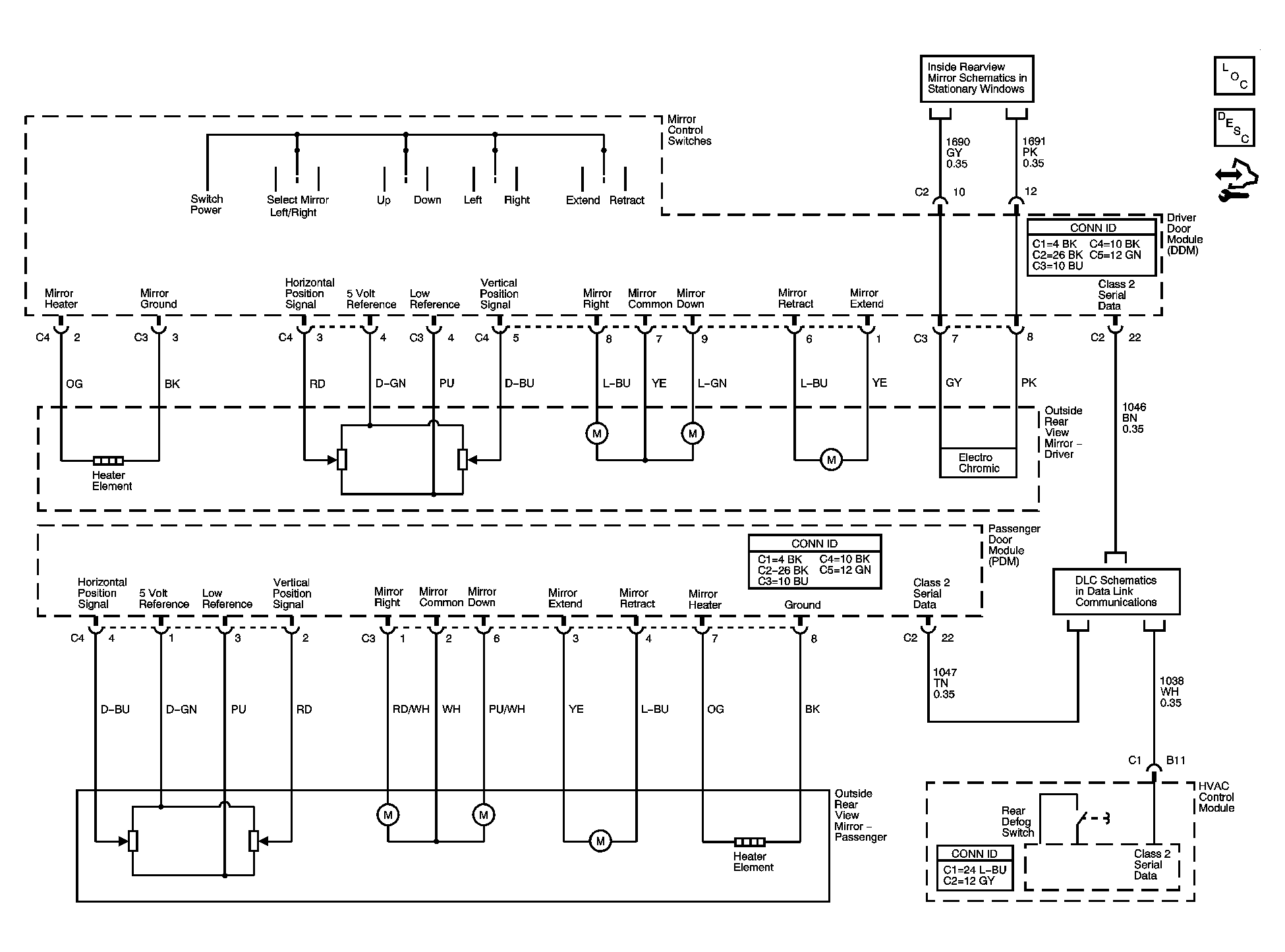

Home >> Cadillac >> 2005 >> Escalade EXT >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Schematic and Routing Diagrams >> Outside Mirror Schematics
