Defogger Schematics

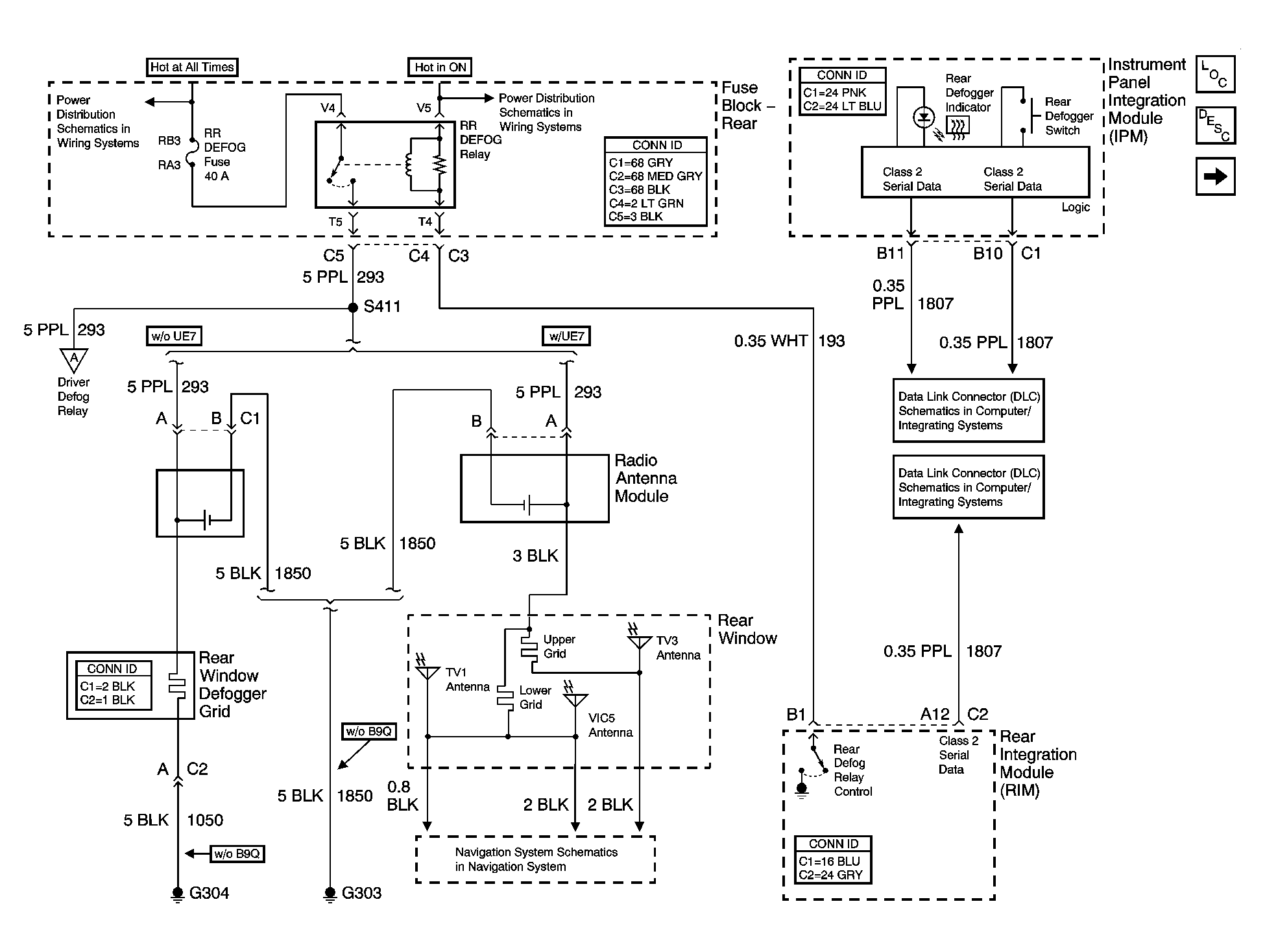

Fig 1: Rear Window Defogger

GM1412249

Courtesy of GENERAL MOTORS CORP.

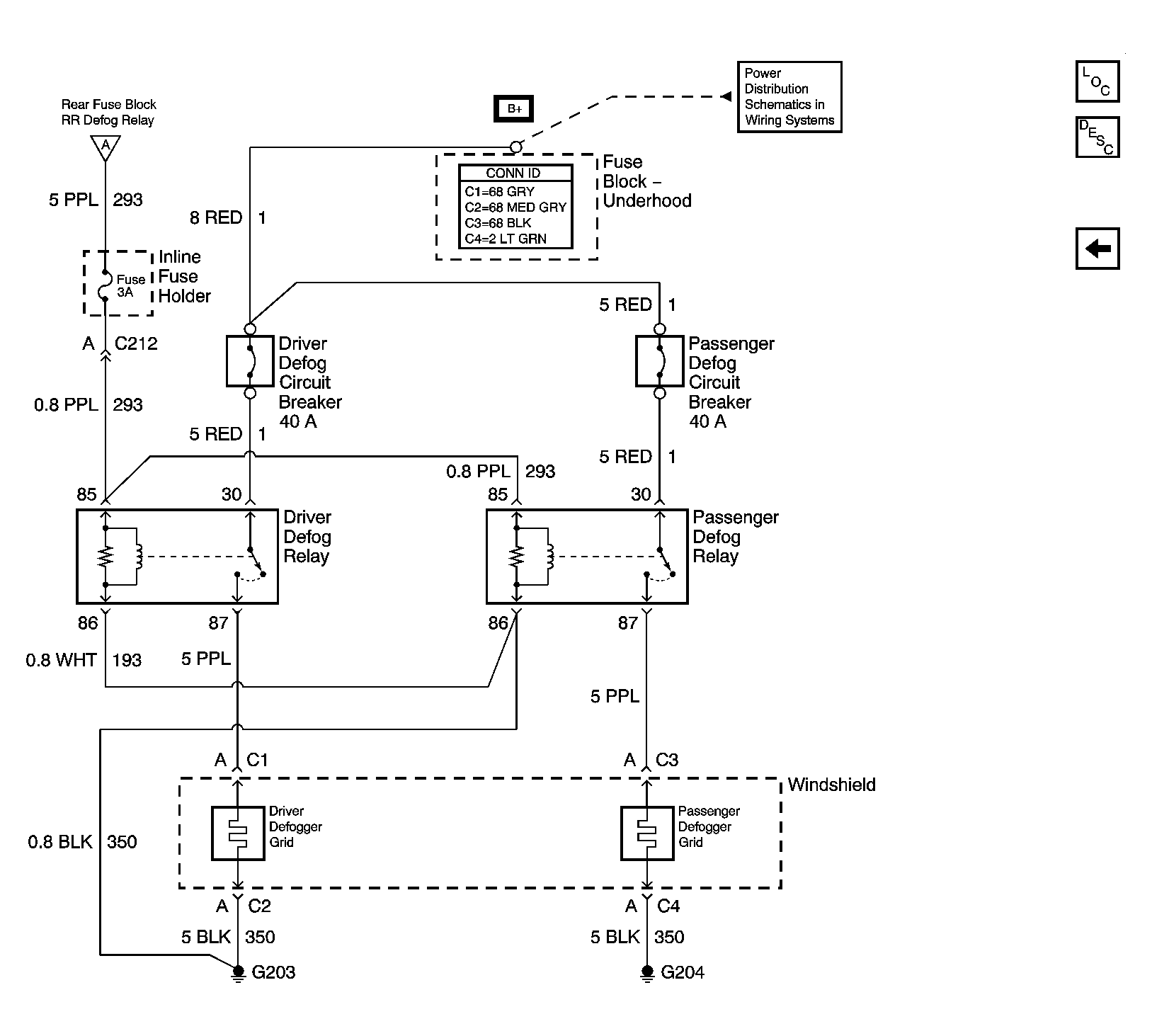

Fig 2: Windshield (WC2/WC8)

GM1412252

Courtesy of GENERAL MOTORS CORP.
