Theft Deterrent System Component Views

Fig 1: Behind Front Grille, At Center Of Radiator Core Support Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (Export)
2	Night Vision Camera
3	Ambient Air Temperature Sensor

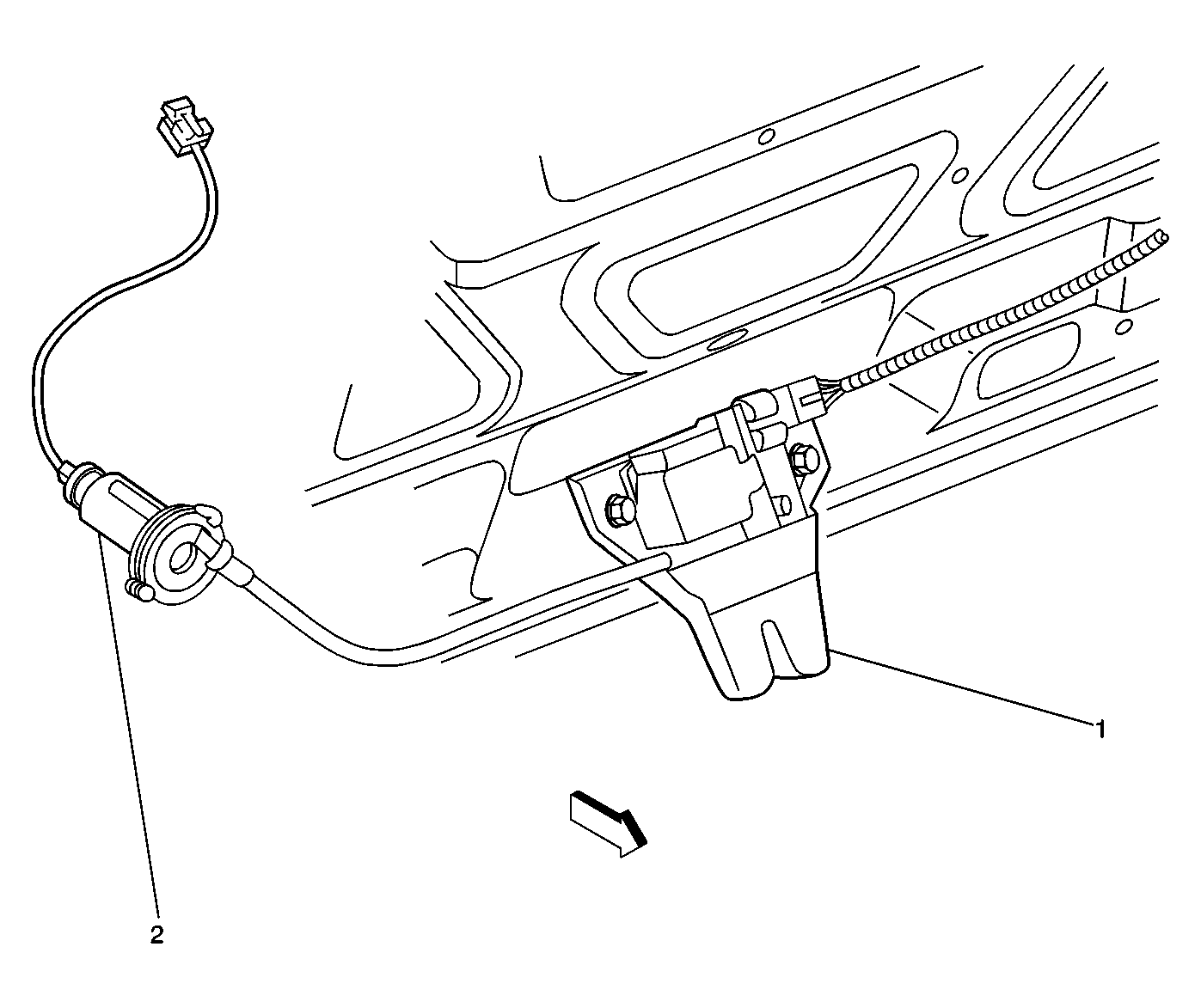

Fig 2: Center Rear Of Rear Compartment Lid Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Actuator
2	Rear Compartment Lid Tamper Switch

Fig 3: Left Front Of Passenger Compartment, In Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Theft Deterrent Control Module
3	Ignition Lock Cylinder Control Actuator
